1756-IF16 Wiring Diagram: Connecting Analog Inputs to the ControlLogix Chassis

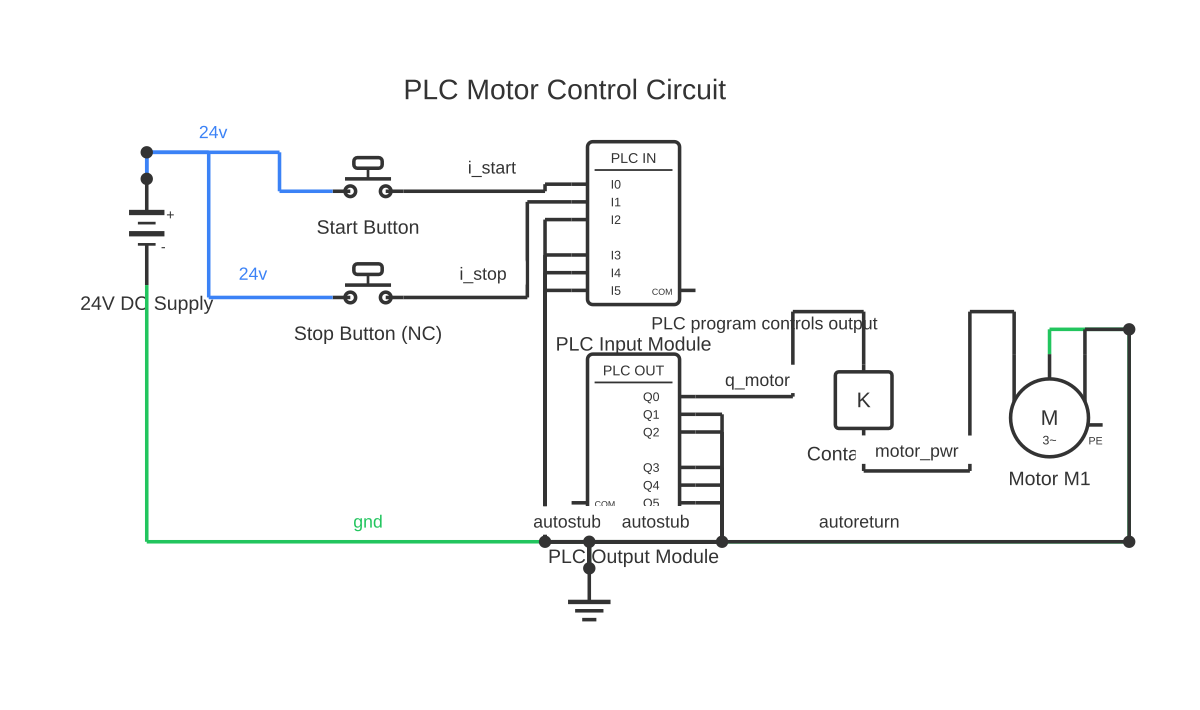

This is a free printable 1756 if16 wiring diagram: download the diagram as SVG or open it and print to paper or PDF.
A practical reference for wiring analog field devices to the Allen-Bradley 1756-IF16 analog input module, covering signal types, common wiring configurations, and best practices.
The Allen-Bradley 1756-IF16 is a 16-channel analog input module designed for use in a ControlLogix or GuardLogix chassis. It accepts voltage and current (4–20 mA) analog signals from field devices such as pressure transmitters, temperature transmitters, flow meters, and position sensors. Each channel can be independently configured in Studio 5000 Logix Designer for voltage or current input, differential or single-ended mode, and engineering unit scaling.
Wiring the 1756-IF16 correctly is critical to signal integrity and module longevity. The module uses a removable terminal block (RTB) — either spring-clamp or screw-clamp style — that must be ordered separately. Always consult the current Allen-Bradley publication 1756-UM009 (1756-IF16 User Manual) for the authoritative terminal block pinout before making any physical connections, as Rockwell Automation publishes revision-specific documentation and pinouts can differ between hardware series.
For 4–20 mA two-wire (loop-powered) transmitters, the module provides an internal 24 V DC loop supply. The positive supply terminal feeds the transmitter, and the return (signal) wire connects to the channel input terminal. For four-wire (separately powered) transmitters, the transmitter draws power from its own supply, and only the 4–20 mA signal wires connect to the module input terminals.
Shielded twisted-pair (STP) cable is strongly recommended for all analog wiring runs. Ground the cable shield at one end only — typically at the panel end — to avoid ground loops that introduce noise into the signal. Keep analog signal cables physically separated from power cables and high-frequency digital wiring.
This page provides a generic illustrative overview for educational purposes. For production installations, always refer to the official Allen-Bradley 1756-IF16 user manual for your specific hardware series, comply with all applicable codes (NEC/NFPA 70, IEC 60364, local authority having jurisdiction), and engage qualified instrumentation and control personnel.
How to wire 1756 if16 wiring diagram
- Download the current 1756-IF16 user manual Before wiring, download the latest revision of Allen-Bradley publication 1756-UM009 from the Rockwell Automation product compatibility and download centre (PCDC). Confirm the hardware series marked on the module label matches the manual revision, as terminal pinouts may vary between series.
- De-energise the chassis and verify it is dead Remove power from the ControlLogix chassis power supply. Use a calibrated multimeter to verify zero volts on the chassis backplane connector points before proceeding. Follow your site's lockout/tagout (LOTO) procedure — apply a personal lock to the isolation point and display a danger tag.
- Install the removable terminal block (RTB) Fit the correct RTB (spring-clamp or screw-clamp, as specified) onto the module face. The RTB can be installed and removed with the module in the chassis, allowing field wiring to remain intact when the module is replaced — a major operational advantage in live systems where only this step is performed with power present, if permitted by site procedure.
- Wire field devices according to the manual pinout Using shielded twisted-pair cable, connect each transmitter signal pair to the designated channel input terminal and common (or return) terminal as shown in the 1756-UM009 wiring diagrams. For 2-wire loop-powered transmitters, connect the loop supply positive terminal to the transmitter positive, and the transmitter output (return) to the channel input terminal. Ground the cable shield at the panel end only.
- Label all wires and document the installation Fit heat-shrink or clip-on wire markers at both ends of every conductor. Record channel assignments, signal ranges, transmitter tag numbers, and cable routes in the project's instrument loop drawings (ILDs). Good documentation is the single most valuable diagnostic tool for any future fault-finding exercise.
- Restore power and verify signals in Studio 5000 Energise the chassis. In Studio 5000, go online with the controller and open the module's input data table. Verify each active channel reads a value within the expected engineering-unit range. For a 4–20 mA transmitter at zero-percent process, expect 4.0 mA; at full-scale, 20.0 mA. Channel fault bits should read zero for correctly wired and functioning transmitters.
- Perform a live calibration check Using a calibrated loop calibrator (process meter) in source mode, inject 4 mA, 12 mA, and 20 mA into each configured channel in turn. Compare the displayed engineering unit value in the controller data table to the expected scaled value. Record results in a calibration record. Adjust Studio 5000 scaling parameters if measured values deviate from nominal by more than the module's specified accuracy (see current datasheet for accuracy specifications).
Specifications
| Number of input channels | 16 (independently configurable) |
|---|---|
| Signal types supported | Voltage and current (configurable per channel via Studio 5000) — refer to current Allen-Bradley datasheet for exact ranges |
| Typical current input range | 0–20 mA or 4–20 mA (verify in 1756-UM009 for hardware series) |
| Typical voltage input range | ±10 V DC (verify in 1756-UM009 for hardware series) |
| Backplane current draw | Refer to current Allen-Bradley publication for hardware series — verify chassis power supply capacity |
| Input resolution | 16-bit (refer to current datasheet — verify for hardware series) |
| Terminal block type | Removable terminal block (RTB) — spring-clamp or screw-clamp, ordered separately |
| Applicable standards | UL Listed, CE Marked — refer to current Allen-Bradley publication for full certification list |
Safety warnings
- AUTHORITATIVE SOURCE: Always obtain and follow the current Allen-Bradley 1756-IF16 user manual (publication 1756-UM009) for your specific hardware series. Terminal pinouts are series-dependent and must not be assumed from any third-party source, including this page.
- LOCKOUT/TAGOUT: De-energise and lock out the chassis power supply before making or breaking any wiring connections. Apply a personal lock and danger tag at the isolation point. Verify zero energy with a calibrated multimeter before touching terminals. Follow your site LOTO procedure and all applicable electrical safety regulations (NFPA 70E, IEC 60364, or local equivalent).
- QUALIFIED PERSONNEL ONLY: Installation and wiring of industrial control systems must be carried out by qualified electricians or instrumentation technicians who are trained, competent, and authorised to work on industrial control equipment in accordance with applicable codes and site safety rules.
- SEPARATION OF SIGNAL AND POWER CABLES: Route analog signal cables in dedicated signal cable trays or conduits, physically separated from AC power and high-power DC cables by the minimum separation distances specified in the installation standard applicable to your site (NEC Article 725, IEC 60364-5-52, or equivalent).
- GROUND LOOPS: Ground cable shields at one end only. Connecting both ends of a shield to earth creates a circulating current path that induces noise into the signal, potentially causing incorrect process readings and control errors.
Tools needed
- Calibrated digital multimeter (CAT III or higher, voltage and current measurement)
- Calibrated loop calibrator / process meter (4–20 mA source and measure)
- Insulated screwdrivers (flat-blade, sized for RTB terminals)
- Wire strippers appropriate for conductor gauge
- Heat-shrink applicator or clip-on wire marker applicator
- Personal lockout lock and danger tag (LOTO equipment)
- Studio 5000 Logix Designer software (licensed, appropriate version for firmware)
- Instrument loop drawing (ILD) set for the installation
Common mistakes
- Using the wrong RTB type or a non-1756-IF16 RTB: the RTB is module-specific; fitting an incorrect RTB will prevent correct seating and can damage terminals.
- Grounding the cable shield at both ends, which creates a ground loop and injects 50/60 Hz noise into the analog signal, causing unstable or offset readings.
- Confusing 2-wire and 4-wire transmitter wiring: a 2-wire loop-powered transmitter uses the module's loop supply, while a 4-wire transmitter has its own power supply — mixing these connections can damage the module or the transmitter.
- Failing to configure the channel type in Studio 5000 before connecting the field device: connecting a current-output transmitter to a channel configured for voltage can exceed module input ratings.
- Leaving the RTB disconnected (no field wiring) and assuming a zero or mid-scale reading indicates a working channel: unwired channels will float to indeterminate values and should be disabled or monitored for underrange/overrange faults in software.
- Not documenting channel assignments: with 16 channels per module and potentially multiple modules in a chassis, undocumented wiring turns a simple commissioning fault into a lengthy trace exercise.
Troubleshooting
- Channel reads underrange (below 4 mA on a 4–20 mA loop)
- Cause: Open circuit in the loop — broken wire, loose terminal connection, failed transmitter, or transmitter not powered Fix: Use a loop calibrator to inject 12 mA directly at the RTB terminals. If the channel reads correctly, the fault is in the field wiring or transmitter. If still underrange, check the module's channel configuration in Studio 5000 and verify the RTB is seated correctly.
- Channel reads noisy or fluctuating signal with no process change
- Cause: Electromagnetic interference (EMI) coupling into the signal cable — often caused by proximity to VFD output cables, contactors, or AC power conductors; alternatively a ground loop from double-ended shield grounding Fix: Verify shield is grounded at one end only. Reroute signal cable away from power cables. Increase the input filter frequency setting in Studio 5000 (lower filter frequency = more filtering). Check that all chassis ground connections are solid.
- Module shows 'comm fault' or does not appear online in Studio 5000
- Cause: Module not properly seated in chassis slot, incorrect slot number in the I/O tree, firmware mismatch, or chassis backplane fault Fix: De-energise the chassis and reseat the module firmly until the locking tab clicks. Re-energise and verify the module status LED sequence. Confirm the slot number in the I/O tree matches the physical slot. Check that controller firmware is compatible with the module's firmware revision.
- All channels read the same incorrect value regardless of field input
- Cause: Possible RTB not making contact with module connector, or all channels inadvertently configured for the same incorrect range Fix: Remove and re-install the RTB, ensuring it is fully seated. Review each channel's configuration in Studio 5000 module properties. Use a loop calibrator to verify the actual field signal level at the RTB terminals.
- Engineering unit values do not match expected process values
- Cause: Incorrect scaling parameters (low/high engineering units or input range) configured in Studio 5000 module properties Fix: Verify the configured input range (e.g., 4–20 mA) matches the transmitter's output range. Verify that the engineering unit low and high values in Studio 5000 match the transmitter's calibrated span (e.g., 0–100 bar). Reinject 4 mA and 20 mA with a loop calibrator and confirm the displayed values match the expected low and high engineering units.
Frequently asked questions
What signal types does the 1756-IF16 accept?
The 1756-IF16 accepts voltage signals (typically ±10 V DC ranges) and current signals (typically 0–20 mA or 4–20 mA), configurable per channel in Studio 5000. Refer to the current Allen-Bradley user manual (publication 1756-UM009) for exact input ranges for your hardware series.
Do I need a separate power supply for the 1756-IF16?
The module draws backplane power from the ControlLogix chassis power supply. However, the chassis power supply must have adequate capacity for all installed modules. For loop-powered (2-wire) 4–20 mA transmitters, the 1756-IF16 can supply loop voltage; verify the supply voltage and current specifications in the user manual.
Why should I use shielded twisted-pair cable for analog wiring?
Twisted-pair construction cancels common-mode noise induced by electromagnetic interference (EMI) from nearby power cables, motor drives, and switching equipment. Shielding provides an additional barrier against electrostatic interference. Grounding the shield at one end prevents circulating ground-loop currents that would themselves appear as signal noise.
How do I configure channel mode on the 1756-IF16?
Channel configuration — input type (voltage/current), range, filter frequency, and engineering unit scaling — is set in the module properties dialog within Studio 5000 Logix Designer. No physical hardware jumpers are required on the 1756-IF16; all configuration is software-driven via the module's electronic data sheet (EDS).
What does an 'underrange' or 'overrange' fault indicate on an analog input channel?
An underrange fault indicates the measured signal has fallen below the configured minimum (e.g., below 4 mA on a 4–20 mA channel, which can indicate a broken wire or failed transmitter). An overrange fault indicates the signal exceeds the configured maximum. Both conditions set corresponding status bits in the module's input data tags, which ladder or function block logic can monitor.
