2-Pole Changeover Switch Wiring Diagram

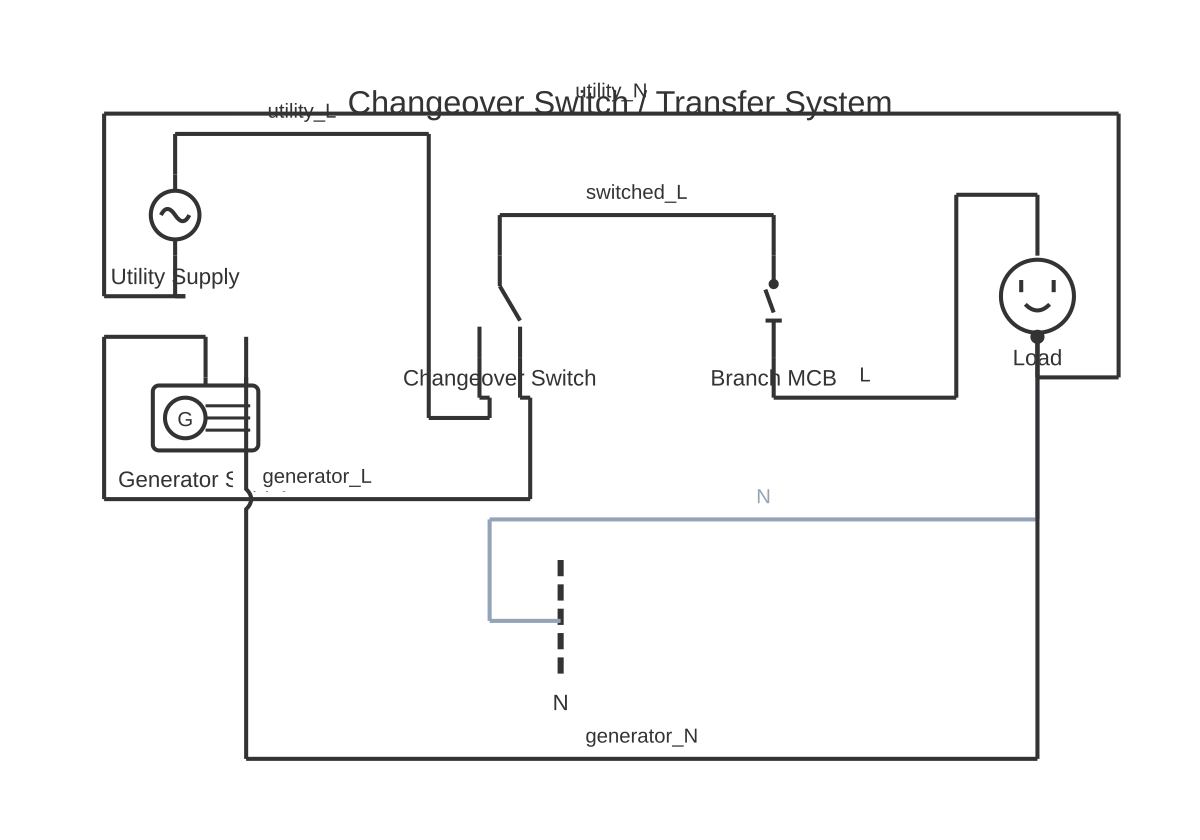

This is a free printable 2 pole changeover switch wiring diagram: download the diagram as SVG or open it and print to paper or PDF.
Wire a 2-pole manual changeover switch correctly to transfer between two supply sources — such as mains and generator — with break-before-make action that prevents parallel source connection.
A 2-pole changeover switch is a manually operated switching device that transfers a load between two mutually exclusive supply sources across both line and neutral conductors simultaneously. The critical safety characteristic of a changeover switch is its break-before-make action: the existing supply is fully disconnected before the alternative supply is connected. This prevents the catastrophic scenario of two power sources — such as a utility mains supply and a standby generator — being connected in parallel, which can cause equipment damage, injury, or generator backfeed onto a presumed-dead utility line.
The switch mechanism has three positions: Source A, Centre-Off (or a transient switching point), and Source B. The centre-off position allows a brief moment of complete isolation during transfer. In a 2-pole configuration, both line and neutral are switched simultaneously, ensuring that no part of the downstream load circuit remains connected to either source during the transfer. This is an important distinction from a single-pole changeover, which only switches the line and leaves the neutral permanently connected.
In practice, a 2-pole changeover switch is most commonly used for manual transfer between utility mains and a portable or standby generator in residential and small commercial applications. The switch is installed in a dedicated transfer panel or enclosure between the utility supply isolator and the load distribution board. One set of input terminals receives the utility supply; the other set receives the generator output. The output terminals feed the selected loads.
Current ratings are typically expressed as the continuous current capacity at a given voltage. Common ratings for residential transfer applications are 32 A, 40 A, 63 A, and 100 A at 230V or 240V single-phase. The switch must be rated for the maximum load current and for AC use at the system voltage.
Electrical codes in most jurisdictions — including NEC Article 702 (IEC 60364 equivalent sections, BS 7671, AS/NZS 3000) — require that standby generator transfer switches positively prevent backfeed to the utility. This requirement applies even to manual changeover switches.
How to wire 2 pole changeover switch wiring diagram
- Isolate all supply sources Before any wiring work, de-energise and lock off both the utility supply and the generator. Verify that both sources are dead using a calibrated voltage tester or multimeter at every point where you will be working. Do not rely on switches alone — confirm dead with test equipment.
- Install the changeover switch enclosure Mount the changeover switch in an appropriately rated enclosure — IP56 minimum if outdoors, IP20 acceptable for a dry indoor switchboard. Position it between the utility incomer and the distribution board it will feed. Allow sufficient cable entry space for the incoming utility cable, generator flex or cable, and the outgoing load cable.
- Connect the utility supply to Input A terminals Bring the utility supply (line and neutral) into the enclosure and connect line to the Input A line terminal and neutral to the Input A neutral terminal. These are commonly labelled L1-A and N-A, or simply identified in the manufacturer's connection diagram. Include a main isolator or MCB on this supply run if one is not already present upstream.
- Connect the generator supply to Input B terminals Route the generator output cable — or a dedicated generator inlet socket — to the Input B terminals of the changeover switch. Connect generator line to L1-B and generator neutral to N-B. The generator cable must be rated for the generator's maximum output current and should be as short as practical.
- Connect the load output terminals to the distribution board The common output terminals (sometimes labelled COM or OUT) connect to the line and neutral inputs of the distribution board or sub-board being supplied. Use cable rated for the maximum switch current and protect this run with an appropriately rated MCB or fuse.
- Connect earthing throughout Bond the earth conductor from the utility supply through to the enclosure earth bar, the load distribution board earth, and any exposed metalwork. The generator frame must also be earthed. Earth continuity is not switched by the changeover switch — it is maintained permanently. Some generators require a floating neutral arrangement; consult the generator manual.
- Test operation before energising loads With a qualified electrician present, energise the utility supply and confirm voltage at the output terminals with the switch in Position A. Switch to centre-off and confirm no voltage at the output. Then start the generator, confirm its output voltage, and switch to Position B. Confirm correct voltage at the output before reconnecting the distribution board.
Specifications
| Switch type | 2-pole (DPDT) break-before-make, 3-position: Source A / Off / Source B |
|---|---|
| Typical current ratings | 32 A, 40 A, 63 A, 100 A (select to match or exceed load) |
| Voltage rating | 230V / 240V AC single-phase (50 Hz or 60 Hz) |
| Poles switched | Line and Neutral simultaneously (both poles) |
| Applicable codes | NEC NFPA 70 Article 702; BS 7671; AS/NZS 3000; IEC 60364-5-55 |
| Enclosure IP rating (outdoor) | IP56 minimum recommended for external installations |
| Operating mechanism | Break-before-make; mechanical interlock prevents simultaneous connection of both sources |
Safety warnings
- This installation connects to the utility mains supply and must be carried out by a licensed electrician. In most jurisdictions this work is regulated under NEC (NFPA 70) Article 702, BS 7671, AS/NZS 3000, or IEC 60364 and requires inspection and certification. An unlicensed installation is illegal, may void insurance, and can kill utility workers who assume the line is dead.
- Always isolate and verify dead BOTH supply sources before working inside the changeover switch enclosure. The enclosure contains live terminals from two independent sources — switching off the mains does not make the generator terminals safe, and vice versa.
- The changeover switch must be permanently labelled to indicate that two supply sources are present. Anyone working on the downstream distribution board must be aware that the supply source may be a generator and cannot assume standard utility earthing arrangements apply.
- Never operate a generator indoors or in an enclosed space. Carbon monoxide from the generator exhaust is colourless, odourless, and lethal. Position the generator outdoors with exhaust directed away from all openings, and connect it to the transfer panel via a weatherproof inlet socket.
- Do not connect the generator neutral to the utility neutral downstream of the changeover switch. This can create a neutral-to-neutral bond that allows backfeed, interferes with the generator's voltage regulation, and can impose dangerous voltages on utility-referenced equipment.
Tools needed
- Calibrated voltage tester or non-contact tester (to verify dead before working)
- Multimeter (AC voltage, continuity, earth loop testing)
- Screwdrivers (flat blade for terminal screws)
- Cable strippers and wire cutters
- Crimping tool for bootlace ferrules (recommended for stranded conductors in screw terminals)
- Drill and hole saws or punches for cable entry holes in enclosure
- Torque screwdriver or torque-limiting tool (terminal tightening to manufacturer specification)
Common mistakes
- Using a standard 2-pole isolator instead of a true changeover switch: A standard isolator has no centre-off position and no input from a second source. Some installers attempt to use a double-pole isolator as a transfer switch — this does not provide a defined switching sequence and may permit parallel connection of sources.
- Switching only the line and not the neutral: A single-pole changeover leaves neutral permanently connected to one source. When the generator is running with a shared neutral, differences in neutral potential or neutral faults can create hazardous voltages on what should be an earthed conductor.
- Undersizing the cable between the changeover switch and the distribution board: Installers sometimes size the changeover switch correctly but use a smaller cable for the output run. The cable must match or exceed the switch rating for the entire protected circuit.
- No warning labels on the enclosure: Labelling dual-supply enclosures is a code requirement, not optional. Missing labels are an inspection failure and a safety hazard for anyone working on the installation at a later date.
- Connecting the generator before the changeover switch is in the generator position: Starting the generator and then switching the changeover is correct. Plugging in a running generator to an incorrectly positioned changeover switch can arc the contacts or momentarily parallel the sources.
Troubleshooting
- Loads do not receive supply in either switch position
- Cause: Open circuit in the output wiring, or output MCB tripped, or the changeover switch contacts are damaged or not seating correctly Fix: With supply isolated, test continuity through the switch contacts in each position. Check the output circuit MCB. Verify all terminal connections are torqued to specification and no wire has pulled back from a terminal.
- Generator backfeeds utility supply even with changeover switch fitted
- Cause: Neutral conductors from both sources have been bonded or connected downstream of the switch, creating a path for backfeed independent of the switch position Fix: Trace and remove any neutral-to-neutral connection downstream of the changeover switch output. The neutrals from both input sources must be kept entirely separate and only the selected source neutral should feed the load. Review the wiring against the original design.
- Changeover switch handle difficult to move between positions
- Cause: Mechanical binding in the switch mechanism, often due to misalignment of mounting, or the switch is attempting to be operated under load beyond its rated make-break capacity Fix: Turn off loads before switching where possible. Check that the enclosure mounting has not distorted the switch mechanism. Do not force the handle. If the mechanism is genuinely damaged or stiff when unloaded, the switch must be replaced.
Frequently asked questions
What does break-before-make mean in a changeover switch?
Break-before-make means the switch disconnects (breaks) the current source completely before it connects (makes) the new source. This prevents even a momentary parallel connection between two supply sources — which is essential for safety when switching between mains and a generator. The alternative, make-before-break, is used in some bus transfer applications but is inappropriate for generator transfer.
Why does a generator transfer switch need to switch neutral as well as line?
If only the line is switched and neutral is shared between sources, a fault in one source can impose voltage on the neutral conductor of the load, creating shock hazard and equipment damage. Switching both poles with a 2-pole changeover ensures the downstream circuit is fully isolated from both sources during transfer and fully referenced to only one source at a time.
Can I use a 2-pole changeover switch to power my whole house from a generator?
A 2-pole switch can only handle a single-phase supply and a limited current rating. Whether it can power an entire house depends on the total load and the generator capacity. Many households require a sub-circuit approach, transferring only essential circuits rather than the full board. Always size the switch for the maximum connected load current, and consult a licensed electrician for a whole-house transfer installation.
Is it legal to install a manual changeover switch myself?
In most jurisdictions, connecting a changeover switch that interfaces with the utility mains supply is classified as electrical work that must be carried out by a licensed electrician. This is governed by national wiring codes including NEC (NFPA 70), BS 7671, AS/NZS 3000, and IEC 60364. An unlicensed installation may void insurance, fail inspections, and create dangerous conditions for utility workers.
What is the difference between a changeover switch and an automatic transfer switch (ATS)?
A manual changeover switch requires a person to physically move the switch handle from one position to the other. An automatic transfer switch (ATS) monitors supply sources and transfers the load automatically when the preferred source fails, often within seconds. An ATS is more expensive but eliminates the need for manual intervention during a power outage.
