How to Install and Wire 2 wire light switch

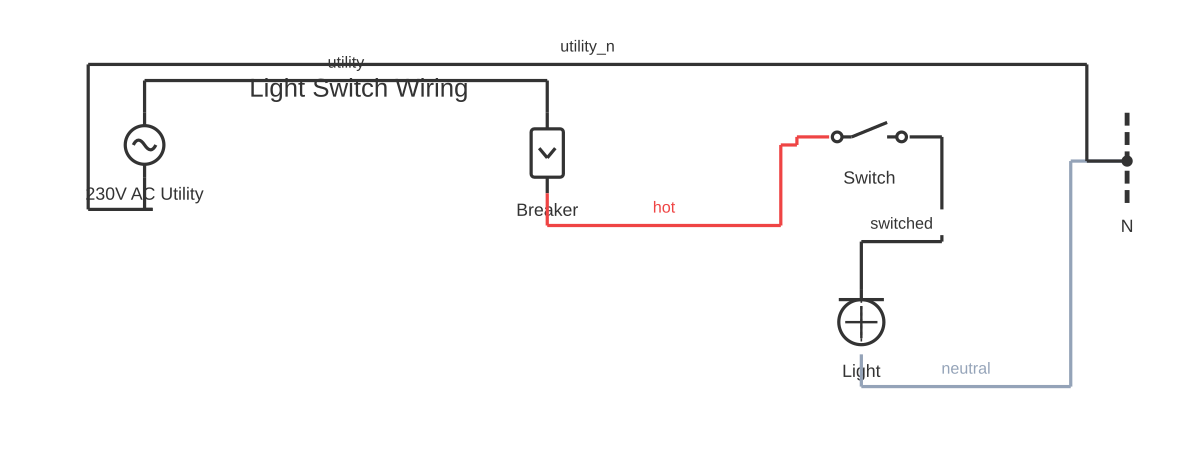

This is a free printable 2 wire light switch: download the diagram as SVG or open it and print to paper or PDF.
This comprehensive guide covers proper installation procedures, wiring methodologies, and safety considerations for 2 wire light switch systems. Learn correct component selection, circuit configuration, and testing procedures ensuring reliable operation.
The 2 wire light switch system encompasses critical electrical components and methodologies ensuring safe and reliable operation. Proper understanding of component functions, electrical ratings, and installation procedures enables technicians to implement correct configurations. Safety standards and local electrical codes establish requirements for specific applications. Component selection based on voltage, current, and environmental ratings determines system reliability. Manufacturer specifications provide detailed technical data including mechanical dimensions and electrical characteristics. Installation practices following established guidelines ensure consistent performance across different installations. Testing and verification procedures validate proper operation before energizing circuits. Maintenance routines including visual inspection and periodic testing extend equipment life and prevent unexpected failures. Troubleshooting methodology enables systematic identification of faults and implementation of corrective actions. Documentation provides reference material supporting training, installation, and maintenance activities.
Two-wire light switch wiring involves several practical questions that cause confusion: which terminal the hot wire should go to (top or bottom), what to do with ground wires when the box is plastic and the switch has no ground terminal, the purpose of a jumper wire in multi-switch or combination-device installations, and how to release wires from push-in (back-stab) connectors. Understanding how the red wire (in a 3-wire cable switch circuit) differs from neutral versus ground is also a frequent area of confusion for DIYers. These details make the difference between a safe installation and a code violation.
How to wire 2 wire light switch
- Review specifications and determine correct component requirements for application
- Gather all necessary materials and tools required for installation
- De-energize all power sources and verify de-energization with appropriate testing
- Install components following manufacturer specifications and electrical code requirements
- Verify all connections using continuity and insulation resistance testing
- Energize circuit and test operation under controlled conditions before full commissioning
Frequently asked questions
What are the basic safety considerations?
Always de-energize circuits before work, use appropriate protective equipment, follow all electrical codes, and verify proper grounding before operation.
How should components be selected?
Select components based on voltage rating, current capacity, environmental conditions, and application-specific requirements stated by manufacturers.
What testing should be performed?
Continuity testing, voltage measurement, current verification, and insulation resistance testing validate proper installation before energizing loads.
How often should maintenance occur?
Annual visual inspection, periodic electrical testing, and component-specific maintenance intervals extend equipment life and maintain reliability.
Where can I find technical documentation?
Manufacturer datasheets, electrical code references, and technical manuals provide detailed specifications and installation guidance for components and systems.
Does the hot wire go to the top or bottom of a light switch?
Electrically, it does not matter which physical terminal (top or bottom) the hot wire connects to on a single-pole switch, because both terminals are mechanically the same — the switch interrupts whichever wire connects across the two terminals. However, conventional practice in North America is to connect the incoming hot wire to the top terminal (the one closer to the line supply) and the switched hot wire to the bottom terminal. Always verify with a voltage tester, not assumption.
What do I do if the light switch ground wire is not connected or missing?
NEC code requires a ground wire in switch boxes for new installations (2011 and later). If the existing cable has no ground wire, the switch can legally be installed in a non-metallic (plastic) box without grounding the switch, provided the switch does not have a metal face plate. Metal face plates require a grounded switch. Ideally, run a new cable with a ground wire, or use a GFCI switch as a code-compliant alternative in some jurisdictions.
What is a jumper wire on a light switch?
A jumper wire on a light switch is a short wire connecting two terminals together — most commonly used in a combination switch-and-outlet device to share the hot supply between both the switch and the outlet without using a wire nut splice. The jumper (or connecting tab) bridges the two hot input terminals so that one incoming hot wire feeds both devices. Jumpers are also used in older switch wiring to supply neutral or hot to multiple gang positions in a multi-switch assembly.
How do I release a wire from a light switch's push-in (back-stab) terminal?
To release a wire from a push-in release terminal on a light switch or outlet, insert a small flat-blade screwdriver into the release slot adjacent to the wire entry hole and push firmly while pulling the wire out straight. On older back-stab connectors that have no release slot, the wire is sometimes gripped irreversibly — in that case the wire must be cut and a new connection made to the screw terminal instead. Push-in terminals are generally less reliable than screw terminals for long-term connections.
Does the red wire go to the top or bottom of a light switch?
A red wire in a 3-wire (14-3 or 12-3) switch circuit is typically used as the switched hot wire returning from the switch to the light, or as a traveller wire in a 3-way circuit. If red is the switched hot in a single-pole application, it connects to the switch terminal that goes toward the light (often the bottom terminal by convention). If red is a traveller in a 3-way setup, it connects to one of the two traveller terminals — not the COM terminal. Label the wire and draw your circuit before connecting.
What is the difference between the neutral wire and the ground wire at a light switch?
The neutral wire (white) is a current-carrying conductor that completes the circuit from the load back to the panel's neutral bar — current flows through it during normal operation. The ground wire (bare copper or green) is a safety conductor that normally carries no current; it provides a low-impedance path to earth that causes a breaker to trip if a fault connects hot to the metal enclosure. At a switch, neutral passes through without interruption (or is absent in a traditional switch-leg), while ground connects to the switch's earth terminal and the metal box.
