3-Phase Changeover Switch Connection Diagram: Manual Transfer Switch Wiring and Break-Before-Make Operation
This is a free printable 3 phase changeover switch connection diagram: download the diagram as SVG or open it and print to paper or PDF.

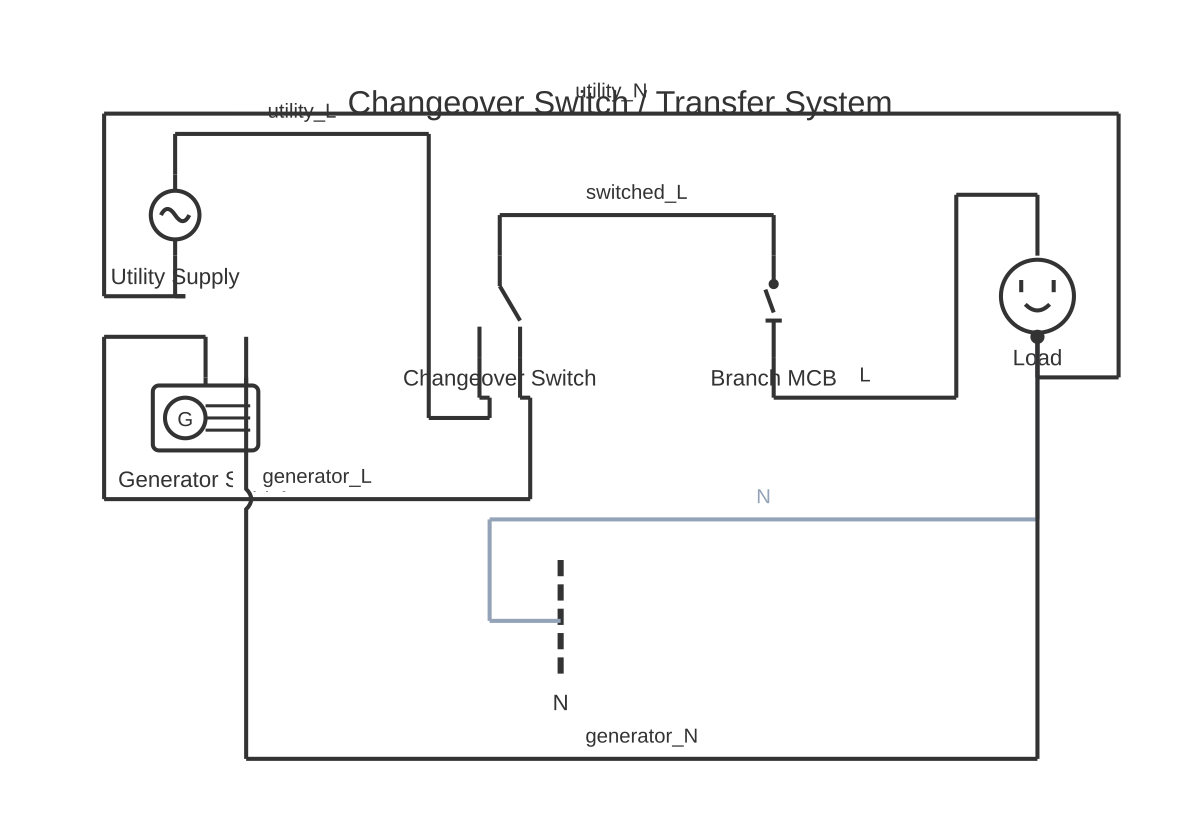

A 3-phase changeover switch connection diagram shows how to wire a manual transfer switch to select between two power sources using a break-before-make mechanism that prevents simultaneous source connection.
A 3-phase manual changeover switch transfers a load between two supply sources — typically the utility grid and a standby generator — without connecting both sources to the load simultaneously. This break-before-make characteristic is fundamental: the switch must fully interrupt one source before establishing contact with the other. Paralleling two unsynchronised sources even momentarily can cause extremely high fault currents, damage to both the generator and utility infrastructure, and create a safety hazard for utility workers (back-feeding a live generator into a de-energised utility network is illegal in most jurisdictions and is potentially lethal for linesmen).
A typical 3-phase changeover switch has three positions: Source 1 (utility/mains), Off (central neutral position), and Source 2 (generator). The mechanical interlock in the switch ensures the Off position is always passed through during transfer — this is the 'break' before the 'make.' The Off position is not optional and must not be bypassed with a modification.
For a 3-phase system, the switch must simultaneously switch all three phase conductors (L1, L2, L3). Neutral switching is a code requirement in some jurisdictions; in others, a solid neutral (common neutral bar) is permitted. IEC 60947-3 and NEC Article 700 and 702 govern transfer switch requirements depending on the classification of the load (essential, legally required standby, or optional standby).
Switching sequence at the switch involves six sets of contacts: three for Source 1 (L1-S1, L2-S1, L3-S1) and three for Source 2 (L1-S2, L2-S2, L3-S2), all feeding a common set of load output terminals (L1-OUT, L2-OUT, L3-OUT). In a 4-pole switch (3P+N), separate contacts handle the neutral conductor.
Phase rotation and phase labelling must be consistent between the utility supply and the generator's output terminals when wiring the switch. If the generator is connected with L1 and L2 swapped, phase rotation reversal will cause 3-phase motors to run in reverse when on generator power — a potentially destructive outcome for pumps, compressors, and conveyor drives.
All wiring associated with generator changeover, including the changeover switch, interconnecting cables, and load distribution board, must be installed by a licensed electrician to the applicable wiring standard (NEC/NFPA 70, BS 7671, AS/NZS 3000, IEC 60364) and, where required, inspected and tested before energisation.
How to wire 3 phase changeover switch connection diagram
- Select a correctly rated changeover switch Choose a 3-pole (or 4-pole with neutral) manual changeover switch rated for the maximum prospective load current and the supply voltage. The switch must be rated for AC-23B (motor loads) or AC-22A (mixed loads) per IEC 60947-3, or equivalent. Ensure the switch's rated breaking capacity exceeds the maximum available fault current at the installation point.
- Mount the switch in a suitable enclosure Install the changeover switch in an IP-rated enclosure appropriate for the installation environment (minimum IP54 for outdoor or damp locations). The enclosure must be securely fixed and positioned for safe operator access during a transfer. Mark the switch positions clearly: 'MAINS,' 'OFF,' and 'GENERATOR' using durable labels.
- Identify and label all source and load conductors Label the utility supply conductors L1, L2, L3 (and N if 4-pole). Label the generator supply conductors L1-GEN, L2-GEN, L3-GEN. Label the load output conductors L1-LOAD, L2-LOAD, L3-LOAD. Use phase-colour sleeving or cable markers per the applicable standard (IEC 60446: L1=brown, L2=black, L3=grey, N=blue, PE=green/yellow).
- Connect utility supply to Source 1 terminals With all supplies isolated and verified dead, connect L1, L2, and L3 utility conductors to the Source 1 (S1) input terminals of the changeover switch. Connect neutral (if 4-pole) to the N-S1 terminal. Torque terminals to the switch manufacturer's specification. Fit appropriately rated cable lugs or ferrules for the conductor cross-section.
- Connect generator output to Source 2 terminals Connect L1, L2, and L3 from the generator output terminals to the Source 2 (S2) input terminals of the changeover switch. Maintain consistent phase labelling — L1 from the utility and L1 from the generator must both connect to their respective L1 terminals on the switch. Connect generator neutral to N-S2 terminal if 4-pole switch is used.
- Connect load output terminals to distribution board Connect the changeover switch load output terminals (L1-OUT, L2-OUT, L3-OUT, and N-OUT if 4-pole) to the main incomer of the load distribution board. Use cable sized for the full rated load current. Fit an isolation switch or circuit breaker at the distribution board incomer for local isolation independently of the changeover switch.
- Test operation with loads connected With the generator running at stable rated voltage and frequency, and with the utility supply present, test the changeover sequence: from Mains to Off (verify load drops), then from Off to Generator (verify load restores on generator power). Check generator phase rotation is correct — monitor motor loads during first generator run. Confirm no back-feed path exists between the two sources at any point in the transfer sequence.
Specifications
| Switch Poles | 3-pole (L1, L2, L3) or 4-pole (L1, L2, L3, N) depending on earthing arrangement |
|---|---|
| Transfer Mechanism | Break-before-make; Off position mandatory between Source 1 and Source 2 |
| Switching Positions | 3: Source 1 (Mains), Off, Source 2 (Generator) |
| Typical Rated Voltage | 400 V AC (3-phase, 50/60 Hz) — refer to switch datasheet |
| Rated Current Range | Commonly 32 A to 3200 A depending on switch size and class |
| Utilisation Category (IEC 60947-3) | AC-22A (mixed resistive/inductive) or AC-23B (motor loads) |
| Applicable Standards | IEC 60947-3, NEC Articles 700/701/702, BS 7671, AS/NZS 3000 |
| Protection Class (enclosure) | IP54 minimum for outdoor; IP20 minimum for indoor clean environments |
Safety warnings
- All installation, modification, and testing of 3-phase changeover switch wiring must be performed by a licensed electrician and must comply with the applicable wiring regulations (NEC/NFPA 70 Articles 700/701/702, BS 7671, AS/NZS 3000, IEC 60364). In many jurisdictions, connection of a generator to the mains supply system requires formal notification to and approval from the Distribution Network Operator (DNO/utility). Back-feeding a live generator into the grid is illegal and can be fatal to utility workers.
- Always verify both the utility supply and the generator output are isolated and confirmed dead at the changeover switch terminals using a calibrated voltage tester (compliant with IEC 61010 CAT III minimum) before making any connections. Do not rely on indicators or switch position alone.
- The changeover switch must never be operated with both sources connected at the same time in a non-synchronised transfer, even briefly. Only use make-before-break switching for synchronised sources with an approved automatic synchronising system — do not implement manually.
- Verify phase rotation of both the utility supply and the generator output before completing the installation. Reversed phase rotation will cause 3-phase motors and compressors to operate in reverse on generator power, potentially causing mechanical damage or injury.
- Implement lockout/tagout (LOTO) procedures when working on the changeover switch or any associated wiring. Fit a padlock hasp to the switch handle that allows it to be locked in the Off position during maintenance work.
Tools needed
- Calibrated voltage tester, CAT III minimum (for verifying dead before work)
- Phase rotation indicator / phase sequence meter
- Digital multimeter (voltage, resistance, continuity, AC/DC)
- Insulated VDE-rated screwdrivers and spanners
- Hydraulic or ratchet cable lug crimping tool (appropriate for conductor sizes)
- Wire strippers and cable knife
- Lockout/tagout kit with padlocks
- Cable labels and permanent marker
Common mistakes
- Omitting the neutral conductor from the changeover switch when a 4-pole switch is required by the system earthing arrangement — using a common neutral bar between two unsynchronised sources in a TT or IT system creates a shock hazard from differing earth potentials.
- Connecting generator and utility L1, L2, L3 conductors to the changeover switch with inconsistent phase labelling — connecting what is L2 on the generator to the L1 terminal of Source 2 causes phase rotation reversal on generator supply, running 3-phase motors in reverse.
- Using a changeover switch with an insufficient breaking capacity for the installation's prospective short-circuit current — in the event of a fault, an undersized switch may weld or fail violently.
- Failing to notify the Distribution Network Operator (DNO/utility) before connecting a generator to the distribution system — this is a regulatory requirement in most jurisdictions, and failure to comply creates liability in the event of a utility worker being injured by back-feed.
- Operating the manual changeover switch under full load rather than shedding non-essential loads first — although changeover switches are rated for breaking load current, switching large motor loads without any prior load reduction increases arcing and wear, shortening contact life significantly.
Troubleshooting
- Load does not restore when changeover switch is moved to Generator position
- Cause: Generator not running or not at rated voltage/frequency, incorrect wiring at Source 2 terminals, or switch mechanism fault Fix: Verify generator is running and measure output voltage at Source 2 switch terminals — should be at rated line voltage (e.g., 400 V AC between phases). Check all three phases are present. Test switch continuity through each of the three Source 2 contact sets with a multimeter.
- 3-phase motors run in reverse when on generator supply
- Cause: Phase rotation on generator output is reversed relative to utility supply — two phase conductors are transposed somewhere in the generator-to-switch wiring Fix: With the changeover switch in the Off position, measure phase rotation of both sources separately using a phase rotation indicator. If generator rotation is reversed, swap any two of the three phase conductors at the generator output terminals only (not inside the switchboard). Re-verify rotation before restoring loads.
- Switch handle is difficult to move or locks up between positions
- Cause: Mechanical damage to interlock mechanism, or attempt to operate the switch under fault conditions with welded contacts Fix: Do not force the switch handle. Isolate both supplies and inspect the switch mechanism. Check contact condition — welded contacts require replacement of the switch. If the mechanism is intact, verify that all cables have sufficient slack to allow the switch body to pivot/rotate without cable tension binding the operation.
Frequently asked questions
Why must a 3-phase changeover switch be break-before-make?
If both supply sources are connected to the load simultaneously — even briefly — and the sources are not synchronised (same voltage, frequency, and phase angle), the resulting voltage difference drives enormous fault currents that can damage the generator windings, trip the utility protection, destroy switchgear, and cause fire. Break-before-make ensures the load is completely disconnected from one source before the second source is connected.
Does the neutral conductor need to be switched in a 3-phase changeover?
This depends on the jurisdiction and the supply system. In TN-S systems (separate neutral and earth from the supply source) the neutral may or may not need switching depending on local code. IEC 60364 and NEC Article 702 have specific requirements. In a TT system (earth electrode at the premises), switching the neutral is typically required to prevent earth potential differences between the two sources creating hazardous voltages. Consult a licensed electrician and the applicable standard.
Can I use a standard 3-pole isolator as a changeover switch?
No. A standard isolator switches one circuit only. A changeover switch is a purpose-built device with an interlock that enforces break-before-make between three positions (Source 1, Off, Source 2). Using two separate isolators without a mechanical interlock creates the risk of both being closed simultaneously, which can parallel two unsynchronised sources — a dangerous fault condition.
What is the difference between a manual changeover switch and an Automatic Transfer Switch (ATS)?
A manual changeover switch requires an operator to physically move the switch handle from one position to another. An Automatic Transfer Switch (ATS) includes voltage and frequency sensing circuits that automatically initiate transfer to the standby generator when the utility supply fails, and automatically retransfer to utility when supply is restored. ATS units also incorporate generator start/stop control signals.
How do I verify phase rotation is correct when connecting a generator through a changeover switch?
Use a phase rotation indicator (phase sequence meter) to measure phase rotation at the utility supply terminals first. Then, with the changeover switch in the Off position, start the generator and measure phase rotation at the generator supply terminals. Both should give the same rotation sequence (e.g., L1-L2-L3 clockwise). If the generator rotation is reversed, swap any two phase conductors at the generator output terminals only — not inside the changeover switch.
