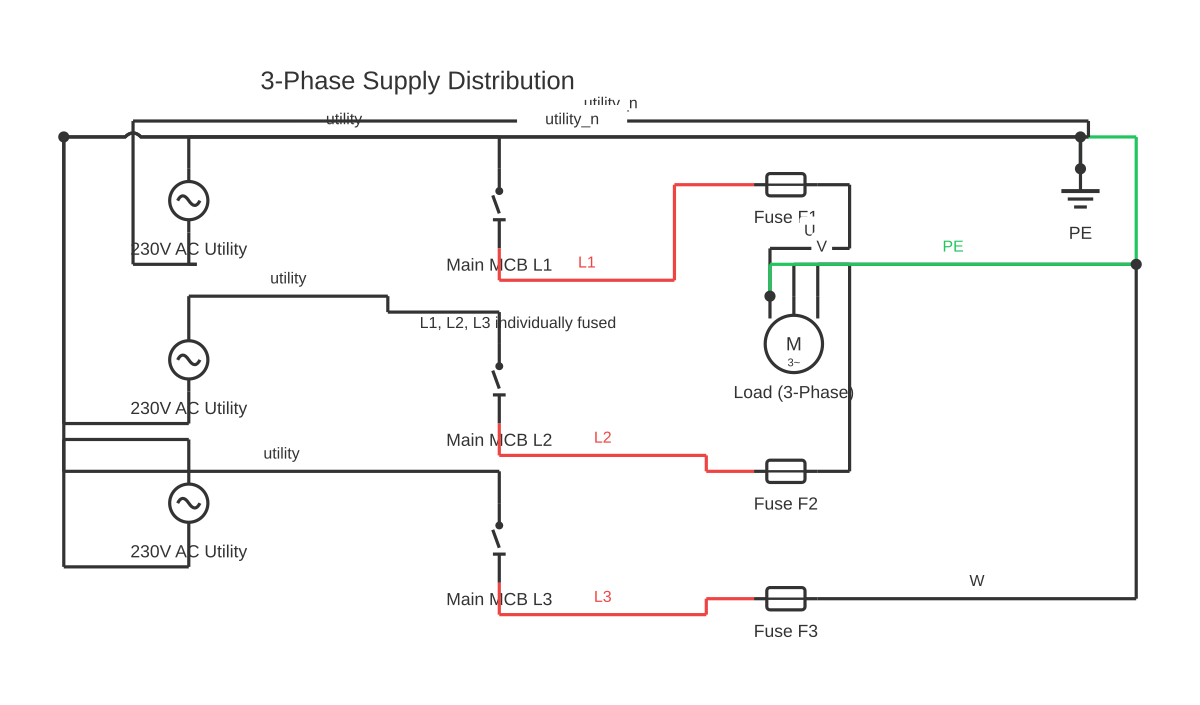

3-Phase to Single-Phase Wiring Diagram

3-Phase to Single-Phase Wiring Diagram — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable 3 phase to single phase wiring diagram: download the diagram as SVG or open it and print to paper or PDF.

Understand the methods and wiring considerations for deriving a single-phase 230V or 240V supply from a three-phase system, including phase-to-neutral derivation and phase converter approaches.

A three-phase electrical supply consists of three line conductors — typically designated L1, L2, and L3 — each carrying alternating current 120 degrees out of phase with the others, plus a neutral conductor (N) and a protective earth (PE). In a standard low-voltage system (230V/400V in Europe and many international markets, or 120V/208V in North American systems), the voltage measured between any single line and the neutral conductor is the phase voltage — 230V or 240V in most international systems. The voltage measured between any two line conductors is the line voltage — approximately 400V or 415V.

The simplest and most common method of deriving single-phase supply from a three-phase system is phase-to-neutral derivation. One line conductor and the neutral are taken from the three-phase distribution board and connected to the single-phase load or sub-board. This method is straightforward, does not require any conversion equipment, and is simply a matter of correct circuit design and load balancing. Electricians distributing single-phase loads across a three-phase system aim to balance the load evenly across all three phases to minimise neutral current and prevent voltage unbalance.

A phase converter is a different scenario — it is used to derive three-phase power from a single-phase supply (the reverse direction), or occasionally to derive a different phase arrangement for specific load types. Rotary phase converters use a motor-generator set, while static phase converters use capacitors to create an approximation of the third phase. These are used where three-phase equipment must be run from a single-phase supply, not the other way around.

Load balancing across phases is the critical operational consideration. Running a heavy single-phase load consistently on one phase while the others are lightly loaded creates current unbalance, which causes excessive neutral current, increased losses in the distribution transformer, and potentially trips the supply protection. Installers and electricians should distribute single-phase loads as evenly as practical across all three phases in the distribution board design.

All work connecting to or deriving from a three-phase supply must comply with applicable wiring codes and must be carried out by a qualified licensed electrician.

How to wire 3 phase to single phase wiring diagram

Confirm the three-phase system voltage and configuration Verify the supply is a three-phase four-wire (3P+N+PE) system. Measure phase-to-neutral voltage at the distribution board with a calibrated multimeter — should read the nominal phase voltage (e.g., 230V in a 400V system, or 120V in a 208V system). Confirm neutral and earth are present and separate.
Identify the phase to use for the single-phase circuit Review the existing load schedule for the three-phase board. Select the line conductor (L1, L2, or L3) that is carrying the least current to maintain balance. If this is a new board design, plan the allocation of all single-phase circuits across phases before installation.
Install an appropriate MCB or fuse for the single-phase circuit Fit a single-pole MCB on the selected line conductor in the three-phase distribution board. Size the MCB for the load current with appropriate diversity factors applied. The neutral runs through the neutral bar and requires no switching device (though in some circuit types a double-pole MCB is required — verify against applicable code for the specific circuit type).
Run the single-phase cable to the load or sub-board Run a three-conductor cable (Line, Neutral, Earth) from the three-phase distribution board to the single-phase load or sub-board. Size the cable to carry the circuit current at the installation's maximum demand, accounting for grouping, ambient temperature, and installation method derating factors.
Connect and verify at the load Connect the line (phase) conductor to the line terminal of the single-phase load or sub-board, neutral to neutral, and earth to earth. Verify polarity with a multimeter or approved polarity tester. Confirm phase-to-neutral voltage is correct at the load terminals before energising.
Record the circuit and update the distribution board schedule Update the distribution board circuit schedule to record the new single-phase circuit, the phase it is connected to (L1, L2, or L3), the MCB rating, cable size, and maximum load. This is essential for future load balancing assessments and safe working on the installation.

Specifications

Phase-to-neutral voltage (IEC/European system)	230V AC (from 400V three-phase four-wire system)
Phase-to-neutral voltage (North American 208V system)	120V AC (from 208V three-phase four-wire system)
Line-to-line voltage (IEC/European)	Approximately 400V AC (230V × √3 ≈ 400V)
Phase angle between phases	120 degrees
System configuration for derivation	Three-phase four-wire (3P+N+PE) — neutral must be available
Applicable standards	NEC NFPA 70; BS 7671; AS/NZS 3000; IEC 60364
Frequency	50 Hz (most international markets) or 60 Hz (North America, parts of Japan and South America)

Safety warnings

All work on three-phase distribution systems must be carried out by a licensed electrician. This work is regulated under NEC (NFPA 70), BS 7671, AS/NZS 3000, IEC 60364, and equivalent national codes. Unlicensed work on three-phase systems can result in prosecution, insurance invalidation, and fatal injury.
Never touch line conductors in a three-phase system without first isolating the supply at the incoming point of supply and verifying dead with a calibrated voltage tester. All three phases and the neutral must be proven dead before any work proceeds. Three-phase systems contain voltages of 400V or higher between line conductors.
Do not connect two line conductors as the supply for a single-phase 230V device. The line-to-line voltage in a 400V system is approximately 400V — more than sufficient to immediately destroy 230V equipment and create a fire or explosion risk.
Phase unbalance caused by poor load distribution can cause overheating in distribution transformers and three-phase motors connected to the same supply. If you are adding significant single-phase load, consult a qualified electrical engineer to assess the impact on the supply system.
This diagram is provided as an illustrative reference only for educational purposes. It does not substitute for an engineering design, a site-specific wiring diagram, or the judgement of a licensed electrical engineer and registered electrician.

Tools needed

Calibrated multimeter with AC voltage, current, and continuity functions
Non-contact voltage tester (to confirm dead before working)
Clamp ammeter (to measure existing phase currents for load balancing assessment)
Wire strippers and cable cutters rated for cable cross-sections being used
Screwdrivers and terminal drivers (including torque-limited driver for terminal connections)
Crimping tool with bootlace ferrules for stranded conductors
Cable labels and circuit schedule documentation

Common mistakes

Taking supply from two line conductors instead of one line and neutral: This applies 400V (line-to-line) instead of 230V (phase-to-neutral) to single-phase equipment, causing immediate equipment destruction and risk of fire or explosion.
Ignoring load balance across phases: Adding all single-phase loads to the same phase overloads that phase, causes high neutral current, and creates voltage unbalance that affects other loads on the supply. Distribute circuits across all three phases from the outset.
Undersizing the neutral conductor: The neutral carries unbalanced load current and, in circuits with high harmonic content (variable speed drives, IT equipment), may carry more current than the line conductors. Never use a smaller neutral than the line conductor without a specific engineering assessment.
Omitting earth fault protection on derived single-phase circuits: Every single-phase circuit derived from a three-phase board must have its own earth fault protection (RCD/GFCI/ELCB as required by the applicable code), not just overcurrent protection.
Failing to update the distribution board circuit schedule: An undocumented circuit is a hazard for anyone working on the installation in the future. It also makes it impossible to assess available capacity or perform safe isolation.

Troubleshooting

Single-phase load trips its MCB immediately on connection: Cause: Short circuit in the load, or MCB undersized for the load's inrush current (common with motors and transformers) Fix: Disconnect the load and test for short circuit with a multimeter. If the cable and wiring are sound, the load has an internal fault — repair or replace the load. If inrush is the issue, consider a Type D (high magnetic trip) MCB for motor or transformer loads, subject to code requirements.
Phase-to-neutral voltage at load is significantly below nominal: Cause: Excessive load on the phase, undersized cable causing voltage drop, or high neutral current from other unbalanced loads causing neutral displacement Fix: Measure voltage at the three-phase board and at the load. If voltage is correct at the board but low at the load, the cable is undersized or has a resistance fault — check connections and cable sizing. If voltage is low at the board itself, contact the utility supplier.
Neutral conductor overheating in three-phase board: Cause: Heavily unbalanced load across phases, causing high neutral current; or high harmonic content from non-linear loads (VFDs, switched-mode power supplies) causing harmonic neutral currents Fix: Rebalance single-phase load allocation across phases. If harmonic loading is suspected, measure the neutral current with a clamp meter capable of measuring harmonic content. For high-harmonic environments, the neutral may need to be upsized — consult a qualified electrical engineer.

Frequently asked questions

Can you get single-phase 230V from a three-phase 400V supply?

Yes — this is done by connecting one line conductor and the neutral from the three-phase system. The phase-to-neutral voltage in a 400V three-phase system is 230V (400V divided by the square root of 3, approximately 1.732). No conversion equipment is required — only correct circuit design and appropriate cable sizing and protection.

Which two wires do I use to get single phase from three phase?

For phase-to-neutral derivation, use any one of the three line conductors (L1, L2, or L3) and the neutral conductor (N). Do not use two line conductors — the voltage between two lines in a 400V system is approximately 400V, not 230V, and connecting single-phase 230V equipment to this would cause immediate damage.

What is the purpose of balancing loads across three phases?

When single-phase loads are unevenly distributed across the three phases, one phase carries more current than the others. This causes high neutral current (the neutral carries the unbalanced component), voltage unbalance across phases, increased transformer losses, and potential overloading of the most heavily loaded phase. Balanced loading minimises all these effects.

What is a phase converter and when is it needed?

A phase converter generates a third phase from a single-phase supply, allowing three-phase motors and equipment to be run where only single-phase utility supply is available. This is the opposite of deriving single-phase from three-phase. Rotary phase converters (motor-generator sets) are preferred for continuous motor loads; static (capacitor) converters are simpler but provide only an approximation of a true third phase and are less suitable for sensitive loads.

Is it safe to take single-phase supply from a three-phase distribution board?

Yes, provided the circuit is correctly designed, properly protected with an MCB or fuse rated for the single-phase load, and the cable is sized correctly. The work must be carried out by a licensed electrician in compliance with the applicable wiring standard — NEC, BS 7671, AS/NZS 3000, or IEC 60364. Single-phase circuits derived from a three-phase board are a routine part of building electrical design.
