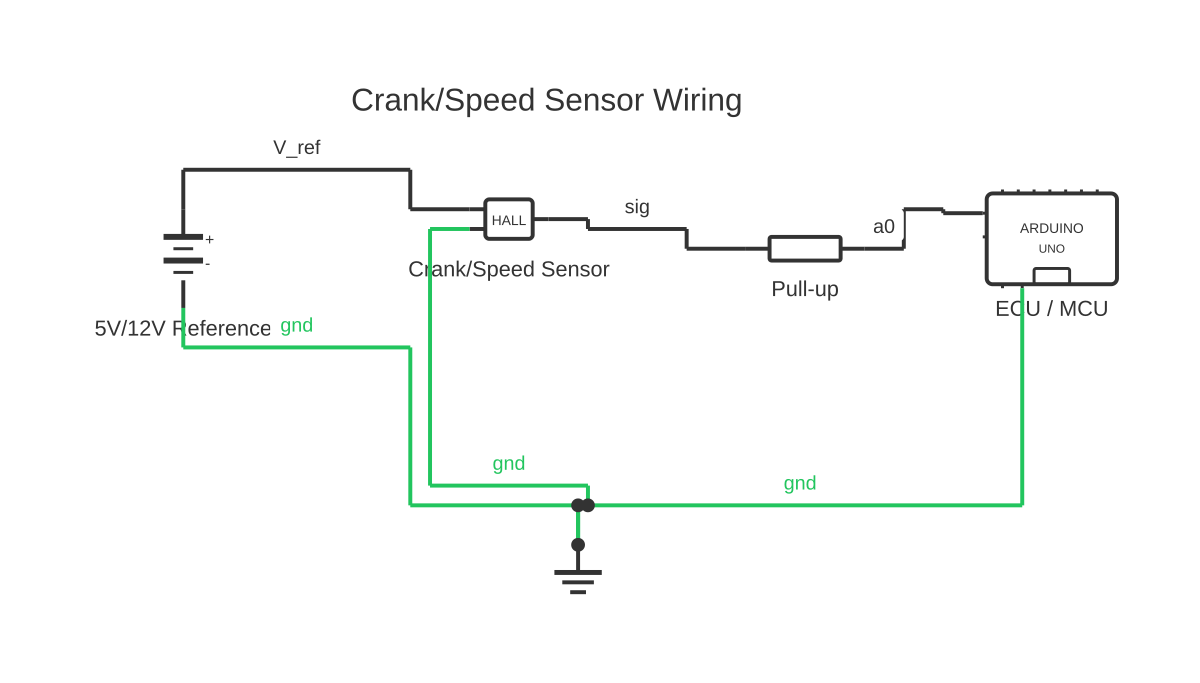

3-Wire Cam Sensor Wiring Diagram: Power, Ground, and Signal Connections Explained
This is a free printable 3 wire cam sensor wiring diagram: download the diagram as SVG or open it and print to paper or PDF.
A practical reference for wiring a three-wire camshaft position sensor, covering the power, ground, and signal pin functions, Hall effect operation, and automotive diagnostic context.
A three-wire camshaft position (CMP) sensor is a Hall effect sensor that detects the position of the camshaft relative to the crankshaft. The engine control unit (ECU) uses this signal — typically in combination with the crankshaft position (CKP) sensor — to determine which cylinder is on its compression stroke, enabling precise ignition timing and sequential fuel injection.
The three wires serve three distinct functions. The first wire is the supply voltage, typically 5 V DC supplied from the ECU's regulated reference voltage output, though some manufacturers use 8 V or 12 V — always verify with the vehicle's wiring diagram or factory service manual for the specific application. The second wire is the signal ground or sensor ground, which is a dedicated low-noise ground reference provided by the ECU, separate from the chassis ground to minimise interference. The third wire is the signal output, which is a switched DC voltage — when the sensor detects a trigger tooth on the camshaft reluctor ring (tone wheel), the output switches between approximately 0 V and the supply voltage in a digital square-wave pattern.
The ECU interprets the number and spacing of pulses from the camshaft reluctor ring to determine cam position. In variable valve timing (VVT) equipped engines, this signal is compared in real time with the crankshaft signal to calculate actual cam phaser position versus target.
Wire colour and pin position vary significantly between vehicle manufacturers, models, and sensor suppliers. There is no universal colour code. Always obtain the vehicle-specific wiring diagram — from the factory service manual (FSM) or a reputable wiring database — before measuring or connecting any sensor wires. Connect test leads in parallel with the sensor circuit; never break the circuit to insert a meter in series unless deliberately measuring current.
This page is a generic illustrative reference for educational purposes. Always consult the factory service manual for the specific vehicle and engine application.
How to wire 3 wire cam sensor wiring diagram
- Obtain the vehicle-specific wiring diagram Before touching any wires, obtain the factory service manual (FSM) wiring diagram for the specific vehicle, model year, and engine code. Identify the cam sensor connector pin numbers and the corresponding wire colours for supply voltage, signal ground, and signal output. Do not rely on generic colour assumptions — wiring differs across manufacturers and production years.
- Locate the cam sensor and connector Locate the camshaft position sensor on the engine — typically mounted in the cylinder head or timing cover, positioned adjacent to the camshaft reluctor ring. Trace the wiring harness to the connector. Inspect the connector for corrosion, damaged locking tabs, spread pins, or chafed insulation before proceeding.
- Measure reference voltage at the connector Set a multimeter to DC volts. With the ignition on (engine off) and the sensor connector disconnected, measure between the supply pin and chassis ground. Confirm the ECU is providing the correct reference voltage (5 V, 8 V, or 12 V as specified in the FSM). If no reference voltage is present, the fault is in the supply wiring or ECU — not the sensor.
- Verify sensor ground integrity With the sensor disconnected and ignition on, measure between the ground pin at the connector and the battery negative post. A reading of more than 0.1 V indicates a high-resistance ground path — inspect the sensor ground wire back to its ECU ground point. Poor sensor grounds cause signal noise and intermittent DTCs even with a working sensor.
- Measure signal output during cranking Reconnect the sensor. Set the multimeter to DC volts and back-probe the signal wire at the connector (use a dedicated back-probe pin — do not pierce the wire insulation). While a second person cranks the engine, observe the multimeter. The signal should toggle between near 0 V and near supply voltage. A scan tool graphing the cam sensor PID is often faster and less intrusive for this test.
- Check air gap between sensor tip and reluctor ring If signal amplitude is weak or the sensor outputs no signal despite correct wiring, check the physical air gap between the sensor tip and the reluctor ring teeth. Consult the FSM for the specified air gap (typically 0.5–1.5 mm, but varies by application). An incorrect gap — caused by a wrong sensor fitment, damaged mounting boss, or a missing shim — produces a weak or absent signal.
- Clear codes and verify repair After completing the repair, clear all DTCs with a scan tool. Start and warm up the engine. Run through the drive cycle conditions that trigger the cam sensor monitor (typically one or more warm-up cycles with highway and city driving). Confirm no DTCs reset and the cam sensor PID reads correctly on the scan tool before returning the vehicle to service.
Specifications
| Sensor type | Hall effect (active sensor, requires power supply) |
|---|---|
| Number of wires | 3 (supply voltage, signal ground, signal output) |
| Typical supply voltage | 5 V DC (ECU regulated reference) — some applications use 8 V or 12 V; verify in FSM |
| Signal output type | Digital square wave, switching between 0 V and Vref |
| Signal ground | Dedicated ECU sensor ground (low-noise, separate from chassis ground) |
| Air gap (sensor tip to reluctor ring) | Typically 0.5–1.5 mm — verify in factory service manual for specific application |
| Wire colour code | Vehicle-specific — no universal standard; always refer to the FSM or verified wiring diagram |
| Applicable standard | SAE J2012 (DTC definitions); OBD-II (ISO 15031 / SAE J1979) for diagnostic access |
Safety warnings
- BATTERY DISCONNECT: Before replacing a cam sensor or repairing its wiring harness, disconnect the negative battery terminal to prevent accidental short circuits during wiring work. On vehicles with capacitor-based hybrid or start-stop systems, follow the manufacturer's specified waiting period after disconnecting the battery before working near high-voltage components.
- DO NOT PIERCE WIRING INSULATION: Back-probe connectors using dedicated back-probe pins — do not push a sharp probe through the wire insulation. A puncture site traps moisture, corrodes over time, and can cause an intermittent open circuit fault that is extremely difficult to trace.
- ECU INPUT DAMAGE: Applying 12 V to a 5 V ECU sensor input (for example by connecting a 12 V supply to the signal or supply wire of a 5 V sensor) can permanently damage the ECU input circuit. Always verify the reference voltage specification before any powered wiring work.
- HOT ENGINE HAZARD: The camshaft position sensor is mounted on the engine and can become extremely hot after the engine has been running. Allow the engine to cool before removing or replacing the sensor to avoid burns.
- GENERIC REFERENCE ONLY: Wire colours, pin positions, and reference voltages vary by manufacturer, model, year, and engine variant. Always obtain and follow the factory service manual for the specific vehicle. This page is a generic educational reference and must not be used as a substitute for vehicle-specific documentation.
Tools needed
- Calibrated digital multimeter (automotive-grade, DC voltage and resistance)
- Scan tool or OBD-II reader with live data graphing capability
- Oscilloscope or graphing multimeter (for signal waveform analysis)
- Back-probe pins (dedicated, non-piercing)
- Socket set and spanners (for sensor removal)
- Factory service manual or verified wiring diagram for the specific vehicle
- Feeler gauges (for air gap measurement, if required)
- Heat-shrink solder splice connectors and heat gun (for wiring repairs)
Common mistakes
- Assuming wire colour identifies pin function — colour coding is manufacturer-specific and varies even within the same manufacturer across model years.
- Replacing the sensor without diagnosing the circuit first — a new sensor will not fix a broken supply wire, a corroded connector, or a damaged ECU input.
- Testing the signal wire with the sensor disconnected — a Hall effect sensor signal wire reads supply voltage with the sensor disconnected (no load); the signal only toggles when the sensor is connected and the reluctor ring moves past it.
- Using an incorrect replacement sensor — an incorrect sensor may have the same connector but a different output polarity, different reluctor ring tooth count compatibility, or a different supply voltage requirement.
- Neglecting to inspect the reluctor ring for missing, cracked, or damaged teeth — a damaged tooth creates a pattern fault that triggers a cam correlation DTC even with a perfect sensor and wiring.
- Failing to check air gap — an air gap that is too large (sensor positioned too far from the ring) produces a weak signal that the ECU cannot reliably decode, causing intermittent misfires and DTCs without a hard wiring fault.
Troubleshooting
- No cam sensor signal during cranking (DTC set)
- Cause: Open circuit in supply or signal wire, sensor failure, damaged reluctor ring, or missing reference voltage from ECU Fix: Verify supply voltage at connector with ignition on and sensor disconnected. Verify ground integrity. With sensor connected, observe signal wire voltage while cranking — should toggle. If no signal and wiring is confirmed good, inspect reluctor ring for damage and confirm sensor air gap. If supply, ground, and air gap are all correct and signal is absent, substitute sensor.
- Cam correlation DTC (cam and crank signals out of phase)
- Cause: VVT cam phaser stuck or slow to respond, jumped timing chain or belt, reluctor ring installed in wrong position (after timing service), or intermittent cam sensor signal Fix: Connect a scan tool and compare cam position PID with crank position PID in real time. If cam position is fixed (not varying with VVT commands), inspect the VVT solenoid and oil supply to the phaser. If the offset is constant, check timing chain or belt installation. If intermittent, inspect the cam sensor connector and wiring for intermittent open circuit.
- Intermittent cam sensor DTC, no symptom
- Cause: Corroded or water-ingressed connector, chafed wiring making intermittent contact with a ground or voltage source, or a cracked sensor body Fix: Inspect the sensor connector for corrosion, spread pins, and damaged seals. Inspect the wiring harness routing for chafe points — particularly where the harness passes near hot or rotating components. Apply dielectric grease to the cleaned connector. Monitor with a scan tool during a road test to determine if the fault occurs at a specific engine speed or temperature.
Frequently asked questions
What is the reference voltage on a three-wire Hall effect cam sensor?
Typically 5 V DC supplied from the ECU's regulated reference output, but some manufacturers use 8 V or 12 V. Measure the supply wire with the ignition on and the sensor unplugged — the ECU applies the reference voltage to the supply terminal at the connector. Verify against the factory service manual for the specific application.
How do I identify which wire is signal, ground, and supply without a wiring diagram?
With the ignition on and sensor connected, measure voltage between each wire and chassis ground. The supply wire reads the reference voltage (5 V, 8 V, or 12 V DC). The ground wire reads near 0 V. The signal wire toggles between 0 V and near-supply voltage as the engine cranks. Do not probe a connector with the sensor unplugged until the reference voltage wire is confirmed — applying 12 V to a 5 V sensor input will damage the ECU.
Can a faulty cam sensor cause a no-start condition?
Yes. On many sequential injection systems, the ECU requires a cam signal to begin injector sequencing. Without a cam signal, the ECU may disable injection entirely or run in a degraded 'wasted spark' mode with reduced performance. A failed cam sensor typically sets a diagnostic trouble code (DTC) in the ECU memory.
What is the difference between a Hall effect cam sensor and a variable reluctance (VR) cam sensor?
A Hall effect sensor (three wires: supply, ground, signal) produces a digital square-wave output and requires a power supply. A variable reluctance sensor (typically two wires) generates its own AC sine-wave voltage as teeth on the reluctor ring pass the sensor tip — no power supply is needed. The ECU input circuit and signal conditioning differ between the two types.
Why does my scan tool show a cam sensor code even after fitting a new sensor?
A persistent cam sensor DTC after sensor replacement often indicates a wiring fault (open circuit, short to ground, or short to voltage in the signal or supply wire), a damaged reluctor ring tooth, incorrect air gap between sensor and reluctor ring, or — less commonly — an ECU input circuit fault. Verify wiring integrity with a multimeter before condemning the ECU.
