3-Wire Condenser Fan Motor Wiring Diagram: Brown, Purple, and Common With Dual-Run Capacitor

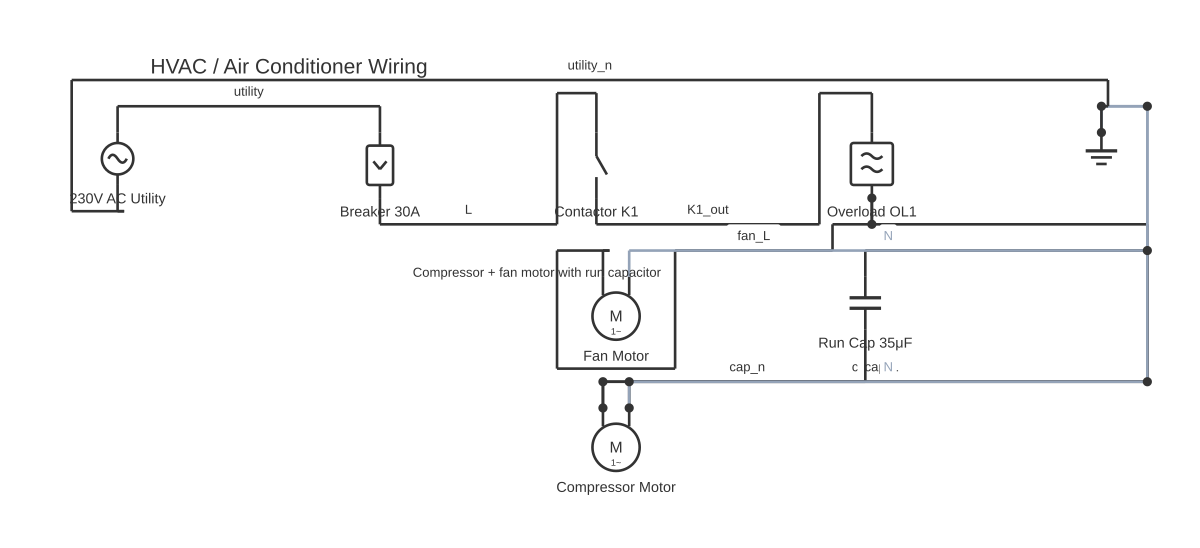

3-Wire Condenser Fan Motor Wiring Diagram: Brown, Purple, and Common With Dual-Run Capacitor — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable 3 wire condenser fan motor wiring diagram: download the diagram as SVG or open it and print to paper or PDF.

A 3-wire condenser fan motor connects a common wire, a run winding wire, and a start winding wire through a dual-run capacitor shared with the compressor, forming a permanent-split capacitor circuit that keeps the condenser operating efficiently in HVAC and refrigeration systems.

The condenser fan motor in a residential or light-commercial air conditioning or heat pump system is almost always a permanent-split capacitor (PSC) single-phase induction motor with three external leads and no internal capacitor or centrifugal switch. The three wires are commonly referred to as common, run, and start, and in many factory-supplied motors the standard colour code is:

- Brown: motor common (C) - Purple or blue: start winding (S) — connects to the motor (HERM or FAN) capacitor terminal - Black: run winding (R) — connects to the supply voltage along with the common

However, colour codes vary between manufacturers. Always verify the wiring diagram inside the motor terminal box cover or the condenser unit's wiring label before making connections.

The capacitor connected to these three terminals is typically a dual-run capacitor — a single cylindrical component with three terminals (usually labelled C for common, HERM for hermetic compressor, and FAN for fan motor) that contains two separate capacitor sections in one can. The compressor capacitor section is connected between C and HERM; the fan motor capacitor section is connected between C and FAN. This dual arrangement saves space and cost while providing the run capacitor function for both the compressor and the fan motor in a single component.

In circuit terms: supply line (L1) connects to one side of the motor common and also feeds the run winding; line (L2 or neutral) connects to the other end of the run winding and to the C terminal of the dual-run capacitor. The start winding connects from the common connection point to the FAN capacitor terminal — the capacitor shifts the phase by approximately 80–90 degrees, allowing the start winding current to lead the run winding current and creating the rotating magnetic field the motor requires to self-start and run efficiently.

Condenser fan motors typically run at 1050 RPM (on a 6-pole motor at 60 Hz) or 850–900 RPM (8-pole at 50 Hz), producing modest airflow across the condenser coil to reject heat from the refrigerant circuit.

When replacing a condenser fan motor, the replacement must match the original in: HP or watt rating, RPM, shaft diameter, shaft length and rotation direction (usually the blade end view determines this), and the capacitor microfarad rating. Using the wrong capacitor value causes the motor to run hot, draw excess current, and fail prematurely.

How to wire 3 wire condenser fan motor wiring diagram

Isolate the condensing unit and verify dead at all terminals Switch off the condenser unit disconnect (the fused disconnect box near the outdoor unit). Lock and tag the disconnect. Use a non-contact voltage tester on the condenser unit's contactor terminals — both line and load sides. Also test for voltage at the dual-run capacitor terminals, as capacitors retain a charge after power is removed. Discharge the capacitor through a 20 kΩ resistor before touching any terminals.
Photograph the existing wiring and record the capacitor labelling before disconnecting anything Take clear photographs of the dual-run capacitor wiring (C, HERM, FAN terminals), the motor terminal connections, and the contactor wiring. Note which wire colour connects to which terminal on both the motor and capacitor. This photograph is your reference if anything is unclear during reassembly.
Identify the motor's common, run, and start wires Remove the motor terminal cover or consult the wiring diagram sticker on the condenser cabinet interior. Common wire: typically brown. Run wire: typically black (connects to supply through the contactor). Start wire: typically purple or blue (connects to the FAN terminal of the dual-run capacitor). Do not assume colour — verify against the motor nameplate wiring diagram.
Connect the run winding to the supply and common The motor's run winding lead (typically black) connects to one side of the supply — usually the L1 side of the contactor output, the same connection as the compressor. The motor's common wire (typically brown) connects to the other supply terminal (L2 or neutral side of the contactor output).
Connect the start winding to the FAN terminal of the dual-run capacitor The motor's start winding lead (typically purple or blue) connects to the FAN terminal of the dual-run capacitor. The C (common) terminal of the dual-run capacitor connects to the same supply rail as the motor common wire — typically the L2 or neutral terminal at the contactor. The HERM terminal connects to the compressor's start winding wire.
Verify all connections are secure and inspect for damage before restoring power Check all push-on or screw terminals for tight, corrosion-free contact. Verify no conductors have been pinched or are in contact with sharp sheet metal edges. Confirm the motor shaft is free to rotate manually before power is restored. Replace the condenser grille and panel if removed.
Restore power and measure running current and capacitor voltage Remove the lockout, restore power at the disconnect. Use a clamp meter to measure motor running current — it should be within 10% of the motor nameplate amperage. With the unit running, measure AC voltage across the FAN and C capacitor terminals — a healthy capacitor on a correctly wired motor will show a voltage higher than the supply voltage (often 1.5–2x supply voltage due to the capacitor's reactive voltage). This confirms the capacitor is functioning.

Specifications

Motor type	Permanent-split capacitor (PSC), single-phase induction, 3 external leads
Typical motor supply voltage	208/230V AC single-phase (North America, 60 Hz); 220/240V AC (Europe, Australia, South Africa, 50 Hz)
Typical motor speed	1050 RPM (6-pole, 60 Hz); 850–900 RPM (8-pole, 50 Hz)
Fan capacitor section value (typical range)	5–10 µF; exact value on motor nameplate; 370V or 440V AC rated
Compressor capacitor section value (typical range)	25–80 µF depending on compressor HP; 370V or 440V AC rated
Motor lead colour code (common convention — verify against motor nameplate)	Brown = Common (C); Black = Run (R); Purple or Blue = Start (S)
Capacitor terminal labelling	C = common supply rail connection; HERM = compressor start winding; FAN = fan motor start winding
Applicable standards	NEC Article 440 (air conditioning equipment), UL 1995, IEC 60335-2-40, AS/NZS 3000

Safety warnings

Fixed HVAC electrical work must be performed by a licensed or registered HVAC technician or electrician in accordance with applicable codes (NEC Article 440, BS EN 378, AS/NZS 1677, SANS 10147). Working inside a condensing unit involves high-voltage electrical components, pressurised refrigerant, and sharp sheet metal edges.
Isolate the condensing unit at the fused disconnect AND at the indoor thermostat/control panel before working inside the unit. Verify dead at the contactor line and load terminals with a calibrated non-contact voltage tester and confirm with a multimeter.
Dual-run capacitors store electrical charge and can retain dangerous voltage after the power is removed. Discharge the capacitor through a 20 kΩ, 5 W resistor connected across each pair of terminals (C to HERM, C to FAN) before touching any terminal. A sudden capacitor discharge can cause injury and is startling enough to cause secondary accidents.
Refrigerant systems are under pressure. Do not disconnect refrigerant lines, pierce the system, or perform any refrigerant recovery or charging work without the appropriate refrigerant handling certification (EPA 608 in the USA; F-Gas qualification in the EU and UK; ARC authorisation in Australia).
The condenser fan blade can cause severe laceration injury if the motor is energised while hands are inside the unit. Ensure power is isolated, the blade has stopped rotating, and panels are replaced before restoring power.

Tools needed

Calibrated non-contact voltage tester (Cat III rated minimum)
Multimeter with AC voltage and capacitance functions
Capacitor discharge resistor (20 kΩ, 5 W or higher) with insulated leads
Clamp meter for measuring motor running current
Insulated screwdrivers and nut drivers (1/4 in and 5/16 in hex for most US condenser units)
Lockout/tagout device and padlock for disconnect
Needle-nose pliers for connecting push-on (spade) terminals to capacitor

Common mistakes

Swapping the HERM and FAN capacitor connections — connecting the fan motor start wire to HERM and the compressor to FAN. The capacitance values are different for each section, and connecting to the wrong section causes the compressor to run with the wrong capacitance, dramatically increasing its running current and risk of failure.
Replacing a dual-run capacitor with two separate single-run capacitors without accounting for the shared common (C) terminal — the C terminal is the common for both sections and must connect to the correct supply rail.
Installing a replacement condenser fan motor with the rotation direction reversed — the blade is designed to move air in one direction. A reversed motor pushes air the wrong way, reduces condenser efficiency severely, and may not overcome the blade's aerodynamic load at all.
Using an undersized condenser fan blade (different pitch or diameter) with the replacement motor — even if the motor connections are correct, wrong blade aerodynamics can cause the motor to labour and overheat.
Not discharging the dual-run capacitor before handling terminals — the capacitor may retain several hundred volts after power is removed, sufficient to cause injury.

Troubleshooting

Condenser fan does not start — motor hums but blade does not spin: Cause: Failed run capacitor (most common), seized motor bearings, or motor windings open-circuit Fix: Discharge the capacitor. Test capacitance of the FAN section — replace the dual-run capacitor if the measured value is more than 10% below the labelled value. Attempt to manually spin the blade after isolating power; if it does not turn freely, the motor bearings are seized and the motor requires replacement.
Motor runs but draws significantly higher than nameplate amperage: Cause: Capacitor wrong value or open-circuit, blade pitch too steep for motor HP, motor winding developing inter-turn short, supply voltage too high or too low Fix: Measure supply voltage at the contactor load terminals with unit operating — should be within ±10% of motor voltage rating. Test and replace capacitor if out of tolerance. Compare blade diameter and pitch to factory specification. If motor current exceeds nameplate by more than 15% with correct capacitor and voltage, replace the motor.
Condenser unit runs but head pressure is high — insufficient heat rejection: Cause: Fan motor running at reduced RPM (worn bearings, wrong voltage, capacitor degraded), blade airflow obstructed by debris, or condenser coil fouled with dirt and lint Fix: Verify fan motor RPM is within 5% of nameplate RPM under running conditions. Clean the condenser coil with a coil cleaner and low-pressure water rinse — fins loaded with dirt significantly reduce airflow. Inspect the condenser grille for debris. Replace the capacitor even if slightly out of specification, as a partially failed capacitor reduces motor speed noticeably.

Frequently asked questions

What are the three wires on a condenser fan motor and what does each do?

The three wires are common (C), run (R), and start (S). Common is the shared return for both windings. The run winding connects between common and supply voltage to produce continuous torque. The start winding connects from common through the run capacitor to the other supply terminal — the capacitor phase-shifts the current to create a rotating magnetic field, allowing the PSC motor to self-start and run without a centrifugal switch.

What is a dual-run capacitor and why is it used instead of two separate capacitors?

A dual-run capacitor is a single component housing two independent capacitor sections — one for the compressor motor and one for the condenser fan motor — in one cylindrical can with three terminals (C, HERM, FAN). It replaces two separate run capacitors, saving panel space in compact condenser units. The two sections are electrically independent; failure of one section does not always affect the other, but the entire unit is typically replaced as one component.

What happens if I use the wrong microfarad capacitor on a condenser fan motor?

An undersized capacitor reduces starting torque and running efficiency, causing the motor to draw higher current, run hotter, and fail prematurely. An oversized capacitor overcorrects the phase relationship, also causes excess current and heat, and can degrade the winding insulation. Always replace with a capacitor of the same microfarad rating as specified on the motor nameplate, with equal or higher voltage rating.

My condenser fan blade is spinning but the motor is very hot. What is wrong?

Likely causes are: a failing run capacitor (test with a capacitor meter — a value more than 10% below rating indicates failure), restricted airflow causing the motor to labour, incorrect motor speed for the blade pitch or blade diameter, or a motor winding developing a partial turn short. Check the capacitor first as it is the most common and least expensive cause of a hot-running PSC condenser fan motor.

Can I temporarily operate the condenser fan motor without the capacitor?

No. A PSC motor cannot start or run without its run capacitor — the capacitor is essential to produce the phase displacement that creates the rotating magnetic field. Attempting to start the motor without the capacitor will result in the motor humming, drawing high locked-rotor current, and overheating within seconds. Disconnect the power immediately if this occurs.
