3-Wire Float Switch Wiring Diagram

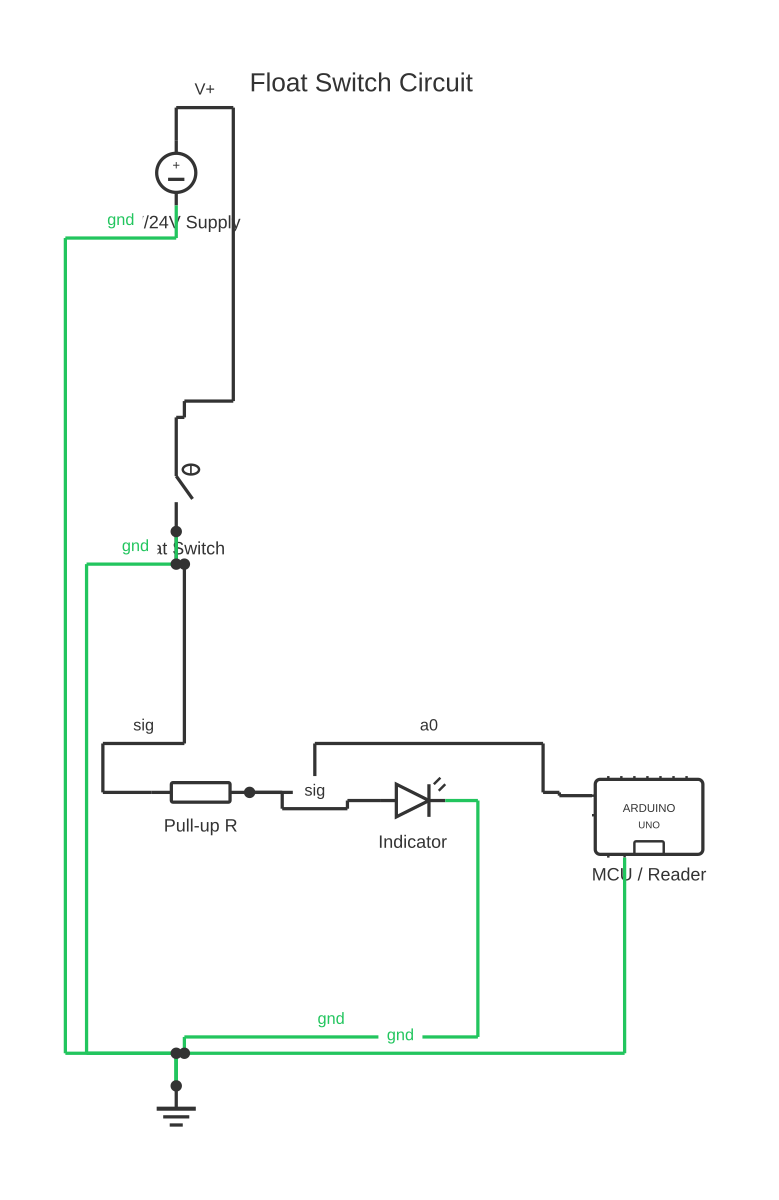

3-Wire Float Switch Wiring Diagram — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable 3 wire float switch wiring diagram: download the diagram as SVG or open it and print to paper or PDF.

A 3-wire float switch uses a single-pole double-throw (SPDT) mechanism to provide both a normally open and a normally closed contact, enabling flexible pump-up, pump-down, and alarm circuit wiring.

A float switch is a level-sensing device whose electrical contacts change state as the float rises or falls with the liquid level. The most versatile type — and the one most likely to be described as a '3-wire' float switch — uses a single-pole double-throw (SPDT) switch mechanism internally, providing three wire connections: Common (COM), Normally Open (NO), and Normally Closed (NC).

With three terminals, one float switch can simultaneously control two circuits: the NO contact closes (and the NC contact opens) when the float rises to the trigger level, and returns to its original state when the float drops. This is in contrast to a simple 2-wire float switch (SPST), which provides only one contact and cannot serve dual functions from the same unit.

Common wiring applications:

1. Pump-down (sump pump dewatering): The NO contact is wired in series with the pump motor contactor or relay. When the water level rises to the float trigger point, the NO contact closes, energising the pump. As the water pumps down, the float drops and the NO contact opens, stopping the pump. A second float switch set at a higher level can use its NC contact to trigger a high-level alarm.

2. Pump-up (supply tank filling): The NC contact is used in series with the fill valve or pump. When the tank is full, the float rises, the NC opens, and the valve or pump stops. As the level drops, the float falls, the NC closes, and filling resumes.

3. Dual-level control with one SPDT switch: Some installations use the NO contact to activate a pump and the NC contact simultaneously to illuminate a panel indicator lamp — one float switch provides two different status signals.

The common (COM) terminal is always one of the three connections and is the pivot point of the SPDT mechanism. For an AC load, COM carries the live (line) conductor. For a DC control circuit, COM carries the positive supply. The NO and NC terminals then connect to the respective load conductors.

Float switches are available in a wide range of contact ratings: from 10 VA miniature types for control circuits to 16 A or more for direct motor switching. Verify the contact rating against the load — resistive load ratings differ from motor (inductive) load ratings, and inductive loads have high inrush currents that can weld light-duty contacts. Use an interposing relay or contactor for heavy loads.

How to wire 3 wire float switch wiring diagram

Identify the Common, Normally Open, and Normally Closed terminals Before connecting any wires, use a multi-meter in continuity mode to identify the terminals. With the float in its resting (down) position: COM-to-NC should show continuity (closed); COM-to-NO should show no continuity (open). Lift the float manually: COM-to-NC should open; COM-to-NO should close. Label each terminal clearly.
Determine the switching logic required by the application For pump-down (high-level activation): use COM and NO. For pump-up (low-level activation / fill control): use COM and NC. For both simultaneous functions: use all three terminals, connecting the load according to each contact's behaviour.
Isolate the control circuit power before wiring Switch off the circuit breaker or isolator supplying the pump control panel. Verify dead with a voltage tester on all conductors at the point of connection. Lock out or tag out the isolator.
Connect the Common (COM) terminal to the supply conductor In an AC single-phase circuit, connect the live (line) conductor to COM. In a DC control circuit, connect the positive supply to COM. Do not connect neutral to COM — neutral interruption leaves the load energised with a live connection to the NO or NC terminal.
Connect the selected output terminal to the load For pump-down: connect NO to the pump relay or contactor coil. Return the neutral (AC) or negative (DC) directly to the relay coil's other terminal, completing the circuit. Ensure the relay coil voltage matches the supply voltage.
Set the float switch mounting position and cable clamp For vertical cable-type float switches in a sump or tank, secure the cable at the appropriate depth so the float hangs at the desired trip level. Allow the float to hang freely without contacting the tank walls. For arm-type switches, adjust the arm so the float rides the liquid surface and the switch actuates at the correct level.
Test the circuit through its full operating range Restore power. Manually raise the float to simulate a high level — the pump (or fill valve) should activate as designed. Lower the float — the device should de-energise. Confirm operation with actual liquid level changes if safe to do so. Check that the pump does not short-cycle by verifying the dead-band between trip and reset levels is adequate.

Specifications

Contact configuration	SPDT (Single-Pole Double-Throw): Common, Normally Open, Normally Closed
Typical contact rating (AC resistive)	10–16 A at 250 V AC
Typical contact rating (motor load / inductive)	3–6 A at 250 V AC (significantly de-rated from resistive)
Minimum dead-band (recommended)	100 mm or more vertical liquid travel between trip and reset
Cable entry / environment rating	IP67 or IP68 for submersible/direct immersion applications
Float body materials (typical)	Polypropylene, stainless steel, or ABS — check chemical compatibility
Applicable standard	IEC 61010 (measurement safety), installation per IEC 60364, BS 7671, NEC, or AS/NZS 3000

Safety warnings

Float switch installations in sumps, tanks, and wet environments operate in proximity to water and electricity — a combination that demands strict adherence to IEC 60364 (international), BS 7671 (UK), NEC/NFPA 70 (USA), or AS/NZS 3000 (Australia). All fixed electrical installations in wet or damp locations must be carried out by a licensed electrician.
Ensure the float switch's cable and body material are compatible with the liquid being monitored. Petrol, acids, solvents, and highly alkaline liquids may degrade standard PVC cables and polypropylene float bodies — consult the switch manufacturer's chemical compatibility data.
Do not allow the float switch to operate a motor or high-load device beyond the switch's rated contact capacity. Sustained operation at or above the rated current welds the contacts, causing the load to remain permanently energised — a fire or flood hazard depending on application.
In applications where a pump running dry represents a risk (sealed pumps, borehole pumps), include a separate dry-run protection device (thermal overload, flow switch, or low-level cutout) in addition to the float switch.
Verify that the control supply to the float switch circuit is protected by a residual current device (RCD/GFCI) of no more than 30 mA in any installation near a water source, per local wiring regulations.

Tools needed

Digital multi-meter (continuity and voltage modes)
Wire strippers and side cutters
Screwdrivers (flathead and cross-head, insulated handles)
Cable gland spanner (appropriate size)
Voltage tester for lock-out/tag-out verification
Cable ties and label printer for wiring identification

Common mistakes

Connecting neutral to the Common (COM) terminal instead of live — the load circuit remains energised regardless of float position because the neutral is connected through the switch, not the live.
Using the COM and NO terminals for a fill (pump-up) application instead of COM and NC — the pump activates when the tank is full and stops when it is empty, which is the opposite of the desired behaviour.
Exceeding the float switch contact rating by directly connecting a large pump motor without an interposing relay — contact welding causes the pump to run continuously, leading to tank overflow.
Failing to allow adequate dead-band between the pump-on and pump-off levels — the pump short-cycles (starts and stops rapidly), causing motor overheating and premature wear on the switch contacts and motor starter.
Installing the float switch cable without adequate slack for float travel — a taut cable prevents the float from reaching its full travel range and the switch may never actuate.

Troubleshooting

Pump runs continuously and does not stop when the liquid level drops: Cause: The float switch contacts are welded closed due to contact overload (motor inrush current exceeded the switch rating), or the float is tangled and stuck in the high position. Fix: Isolate the pump circuit. Physically inspect the float for mechanical obstruction. Use a multi-meter to check continuity between COM and NO — if continuity is present with the float in the down position, the contacts are welded. Replace the float switch and add an interposing relay rated for the motor load.
Pump does not start when the liquid rises to the expected trip level: Cause: Float switch wired using COM and NC terminals instead of COM and NO for a pump-down application, causing the contact to open (not close) as the level rises. Fix: Isolate the circuit. Verify the wiring diagram — confirm which terminals are connected. Transfer the pump relay connection from NC to NO at the float switch.
Control relay chatters at the trip level (pump starts and stops rapidly): Cause: Insufficient dead-band between the float's trip level and reset level — the float oscillates across the trip point due to liquid agitation caused by the pump itself. Fix: Reposition the float switch so the trip level is at least 100–150 mm above the pump-off level. In cable-type switches, lengthen the cable so the float travels more before switching. Consider adding a timer relay to enforce a minimum run time.

Frequently asked questions

What is the difference between a 2-wire and a 3-wire float switch?

A 2-wire float switch has a single normally open or normally closed contact (SPST) — it either makes or breaks one circuit. A 3-wire float switch has a common terminal plus both NO and NC contacts (SPDT) — it can control two different circuits simultaneously, switching between them as the float moves.

Which terminals do I connect for a pump-down (sump pump) application?

Use the Common (COM) and Normally Open (NO) terminals. Wire the COM to the live (AC) or positive (DC) supply; wire the NO to the pump motor relay or contactor coil. When the water rises to the trigger level, the float rises, the NO contact closes, and the pump runs. As the level drops, the float drops and the contact opens, stopping the pump.

Which terminals do I connect for a pump-up or tank-fill application?

Use the Common (COM) and Normally Closed (NC) terminals. The NC contact is closed at low level (float down), keeping the fill pump or valve energised. When the tank fills and the float rises to the trigger level, the NC contact opens and the pump or valve de-energises.

Can I connect a pump motor directly to the float switch contacts without a relay?

Only if the motor's running current and inrush current are within the switch's rated contact capacity — both for resistive and for motor (inductive) loads. Most float switches with 10–16 A AC ratings can directly switch small single-phase pump motors. For larger or three-phase motors, always use an interposing relay or motor contactor rated for the motor.

How do I set the switching level (trip point) of a float switch?

On cable-type vertical float switches, the trip level is set by adjusting the cable length or clamp position — the float hangs at the set level and switches when displaced. On mechanical arm-type float switches, the arm length and angle determine the trip point. Ensure there is adequate dead-band between the pump-on and pump-off levels to prevent short-cycling (rapid on-off operation).
