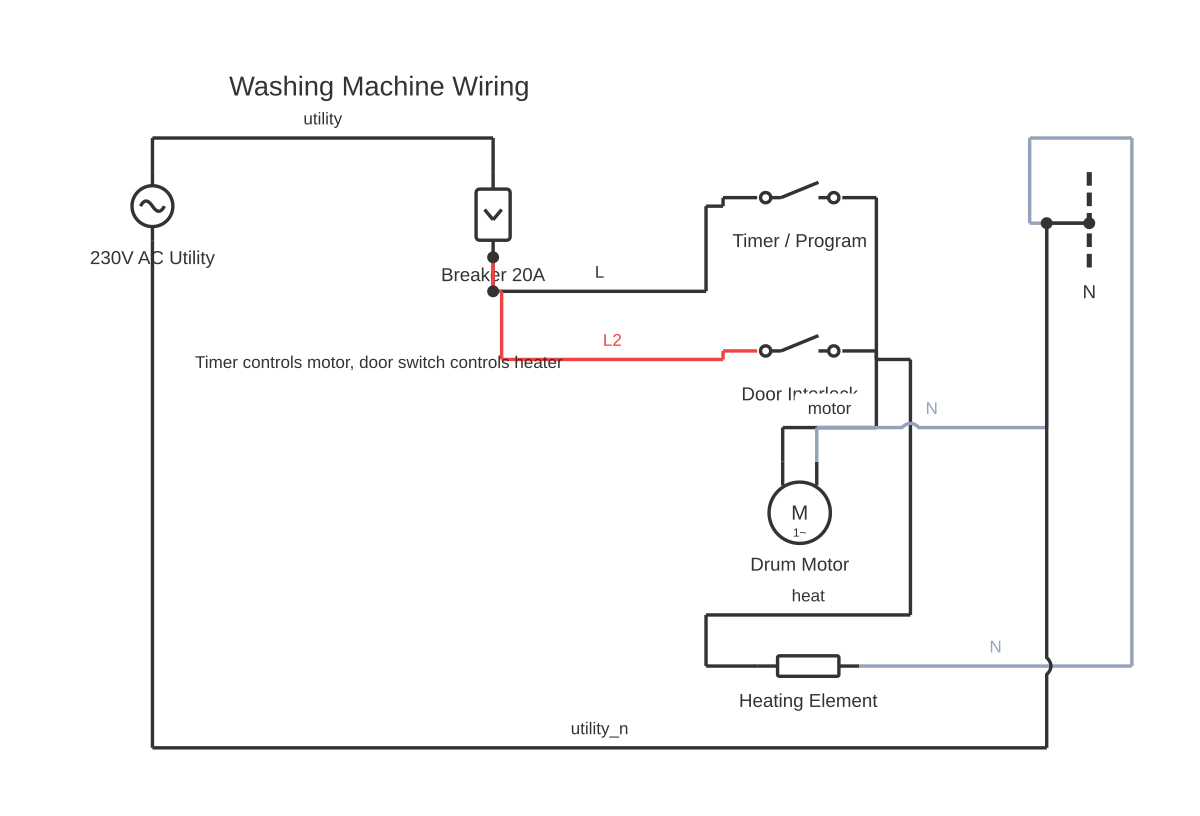

A 3 wire washing machine motor wiring diagram shows how to connect the start winding, run winding, and common terminal of a split-phase or capacitor-start induction motor used in washing machine drum drives.

Washing machine drive motors are almost universally single-phase induction motors — specifically either split-phase (resistance-start), capacitor-start induction-run (CSIR), or in modern machines, permanent split capacitor (PSC) or brushless DC (BLDC) motors driven by an inverter. The '3 wire' designation applies specifically to the split-phase and CSIR types, which expose three terminals externally: Common (C), Start (S), and Run (R).

The Common terminal is shared between both windings. The Run winding (C to R) has lower resistance because it is wound with heavier gauge wire designed for continuous current. The Start winding (C to S) has higher resistance — wound with finer wire and oriented at approximately 90 electrical degrees from the run winding. At startup, both windings are energised simultaneously. The phase difference created by the resistance difference between the two windings (or by a start capacitor in a CSIR motor) generates a rotating magnetic field that starts the rotor. Once the rotor reaches 70–80% of synchronous speed, a centrifugal switch (or in some designs, a PTC thermistor) disconnects the start winding.

In a CSIR motor, a capacitor is wired in series with the start winding to increase the phase shift and therefore improve starting torque. This capacitor is an electrolytic type rated for short-term duty only (2–3 seconds maximum) — it is not a continuous-duty run capacitor. Using a run capacitor in the start position (or vice versa) is a common and damaging mistake.

Reversing the motor for the wash agitation cycle is achieved by swapping the connections to the start winding terminals while keeping the run winding polarity fixed. The washing machine control board achieves this electronically using relays or a triac.

Ohm the three terminals with a multimeter: C-to-R gives the lowest resistance, C-to-S gives medium resistance, and S-to-R gives the sum of the two (highest resistance). This is the quickest way to identify which terminal is which on an unmarked motor.

How to wire 3 wire washing machine motor wiring diagram

Disconnect power and access the motor Unplug the washing machine from the mains supply. Do not rely on the door interlock or control board — physically disconnect from the wall socket. Remove the back or front panel as required for the machine model to access the motor. Note the position and colour of all existing wires before disconnecting anything.
Identify motor terminals using a multimeter Set the multimeter to resistance (Ω). Measure resistance between all three terminal pairs. Record all three values. The highest reading is S-to-R. The terminal not in the highest reading pair is Common. The lower of the other two readings identifies C-to-R (run winding); the higher is C-to-S (start winding). Mark each terminal clearly before proceeding.
Inspect and test the start capacitor if fitted Discharge the capacitor by shorting its terminals through a 10 kΩ resistor before touching. Measure capacitance with a multimeter or capacitor tester. Compare to the value on the capacitor label. A reading of zero (short) or open circuit indicates a failed capacitor requiring replacement. A reading more than 20% below the rated value may indicate a weak capacitor affecting starting torque.
Connect the run winding Connect the mains live wire (through the appropriate motor protection: thermal overload relay or machine control board relay) to the Run terminal. Connect the neutral wire to the Common terminal. This completes the run winding circuit. The motor will not start in this configuration alone — the start winding must also be energised at startup.
Connect the start winding (with capacitor if applicable) For a capacitor-start motor: connect the start capacitor in series between the live supply and the Start terminal (the capacitor is in series with the start winding, not in parallel). For a split-phase motor: connect the Start terminal directly to the live supply, in parallel with the run winding supply. The centrifugal switch inside the motor will disconnect the start winding automatically once running speed is reached.
Verify connections and test Double-check all connections against the wiring diagram. Ensure the motor is mechanically free to rotate (turn the drum or pulley by hand — it should rotate freely with slight resistance). Restore power and run the machine on a short cycle. Listen for smooth start and running — any humming, grinding, or excessive vibration indicates a fault requiring investigation before further use.

Specifications

Typical motor power (domestic washing machine)	250–500 W (drive motor); larger machines up to 1000 W
Supply voltage (most markets)	220–240 V AC, 50 Hz (Europe/AU/UK); 110–120 V AC, 60 Hz (North America)
Start winding resistance (approximate, varies by motor)	Typically 10–30 Ω (C to S); always verify against motor datasheet
Run winding resistance (approximate, varies by motor)	Typically 3–15 Ω (C to R); always verify against motor datasheet
Start capacitor value (CSIR type, typical)	125–250 µF at 250 V AC; short-duty (2–3 second maximum energisation)
Centrifugal switch cut-out speed	Typically 70–80% of synchronous speed
Motor protection class (typical)	IP44 (splash-proof) for washing machine drive motors
Applicable standards	IEC 60034 (rotating electrical machines), IEC 60335-2-7 (household washing machines safety)

Safety warnings

This diagram is for reference and educational purposes only. Washing machine repair and rewiring must comply with applicable electrical safety regulations in your jurisdiction. In many countries, work on mains-connected appliances must be undertaken by a qualified electrician or registered appliance repairer. Refer to NEC / NFPA 70 (USA), BS 7671 and the relevant Approved Code of Practice for appliance repair (UK), AS/NZS 3000 (Australia/New Zealand), or IEC 60364 as applicable.
Always unplug the washing machine from the mains supply before commencing any internal work. Do not rely on the door switch, programme selector, or any other internal interlock — these do not isolate the supply. Treat all internal wiring as live until confirmed dead.
Discharge the start capacitor before touching its terminals. An electrolytic start capacitor can retain a charge for several minutes after disconnection. Short the capacitor terminals through a 10 kΩ, 10 W resistor, not directly with a screwdriver (direct shorting causes a damaging current spike).
Do not operate a washing machine motor outside the machine enclosure without ensuring the motor is securely mounted and guards are fitted over rotating parts. The drum pulley and belt present entrapment and laceration hazards.
After any repair, verify the appliance earth continuity from the earth pin of the plug to all accessible metal parts using an appliance tester before returning the machine to service. A failed earth in a water-adjacent appliance is a serious electrocution risk.

Tools needed

Digital multimeter with resistance and capacitance functions
Appliance tester (earth continuity and insulation resistance) for post-repair verification
Set of insulated screwdrivers (flat and cross-head, VDE rated)
Spanner or socket set for motor mounting bolts
Nose pliers and wire strippers
10 kΩ resistor for capacitor discharge
Camera or phone (photograph all connections before disconnecting)
Personal protective equipment (insulated gloves for capacitor handling)

Common mistakes

Confusing the Start and Run terminals and connecting the capacitor to the Run terminal, resulting in the motor failing to develop starting torque and running at low efficiency.
Using a continuous-duty run capacitor in the start position (or a start capacitor in the run position) — start capacitors are not designed for continuous duty and will overheat and rupture within minutes.
Failing to discharge the start capacitor before handling, resulting in electric shock from the stored charge.
Reversing both the start and run winding connections when attempting to change rotation direction — only the start winding connections need to be swapped, not both.
Reconnecting a motor with a failed centrifugal switch without diagnosis — the start winding remains energised continuously, drawing high current and overheating the winding within seconds.
Omitting the earth connection when reassembling the machine after motor replacement — a washing machine without a functional earth in a wet environment is extremely dangerous.

Troubleshooting

Motor hums but does not rotate (locked rotor condition): Cause: Start winding circuit is open (failed capacitor, failed centrifugal switch contacts not closing, or open start winding), or the rotor is mechanically seized Fix: Immediately disconnect power to prevent overheating. Check start capacitor capacitance. Test continuity through the centrifugal switch contacts in the at-rest position (should be closed). Test start winding resistance from C to S terminals. Rotate the rotor by hand to check for mechanical seizure.
Motor starts but runs in the wrong direction: Cause: Start winding connections are reversed compared to the original wiring, or the reversing relay on the control board has failed in the energised position Fix: Swap the connection to the Start terminal and the connection to Common at the start winding circuit only. Verify the control board relay is operating correctly by checking relay output with a multimeter during the wash and spin cycles.
Motor trips thermal overload after a few minutes of running: Cause: Failing start capacitor leaving the start winding partially in circuit, excessive bearing friction increasing motor load, supply voltage significantly below rated value, or motor winding insulation degrading Fix: Test and replace start capacitor. Check bearing condition (rotate drum by hand — excessive stiffness or grinding indicates bearing failure). Measure supply voltage at the motor terminals under load. Perform insulation resistance test on motor windings.

Frequently asked questions

How do I identify the Common, Start, and Run terminals on an unmarked washing machine motor?

Measure resistance between all three terminal pairs with a multimeter on the ohms range. The highest resistance reading is between Start and Run. The terminal not involved in the highest reading is Common. Of the remaining two pairs, the lower resistance is C-to-Run and the higher is C-to-Start. Label accordingly before wiring.

Can I run a washing machine motor without a capacitor?

A capacitor-start motor will not start reliably without its start capacitor — it may hum and draw locked-rotor current, overheating the run winding quickly. A split-phase (resistance-start) motor does not use a capacitor and can start without one. Identify which type you have from the motor nameplate before attempting to operate it.

How do I reverse the direction of rotation on a 3 wire washing machine motor?

Swap the two start winding terminals (S and C at the start winding end) while keeping the run winding connections unchanged. This reverses the phase shift direction, causing the rotating magnetic field to spin in the opposite direction and reversing the motor. Do not swap the run winding — this achieves nothing on a single-speed motor.

Why does my washing machine motor hum but not turn?

The most likely causes are: a failed start capacitor (measure capacitance — a short or open indicates failure), a failed centrifugal switch that is not engaging the start winding, a seized bearing preventing the rotor from accelerating to switch-out speed, or an open start winding. Check each in turn.

What is the difference between a start capacitor and a run capacitor on a washing machine motor?

A start capacitor is an electrolytic type rated for short-duty cycles only (typically 125–330 µF, 250 V AC), used to boost starting torque for 2–3 seconds before being switched out. A run capacitor is an oil-filled or metallised film type rated for continuous duty (typically 3–25 µF, 400–450 V AC). They are not interchangeable — using a run capacitor in the start position gives insufficient starting torque; a start capacitor in the run position will overheat and fail.
