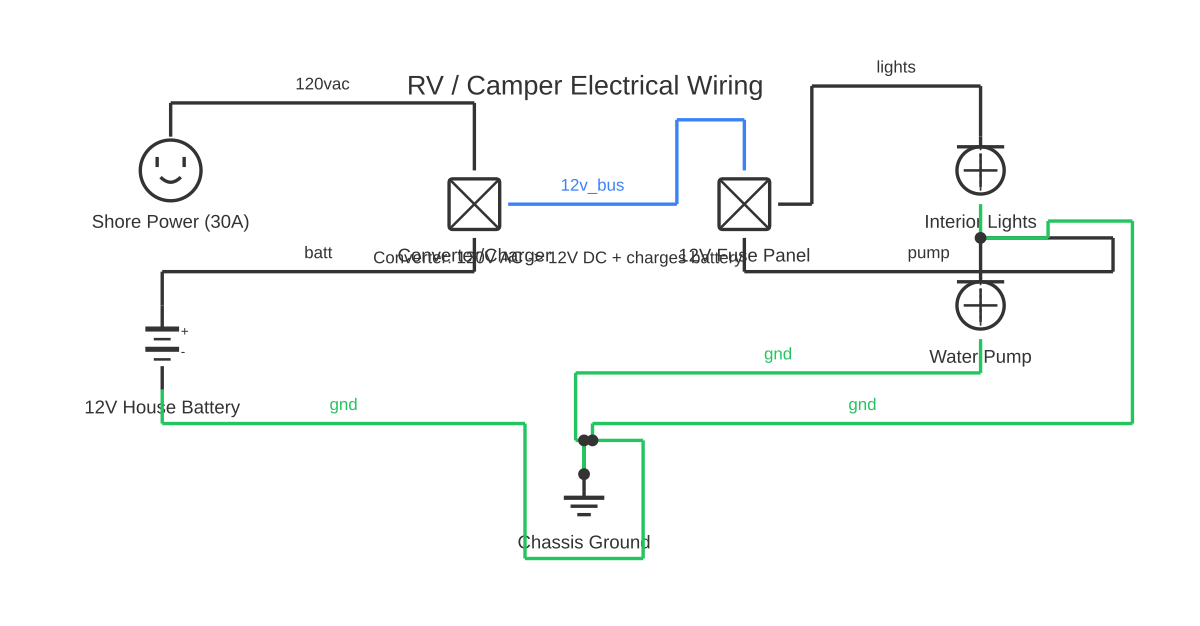

A 30 amp RV wiring diagram shows how a recreational vehicle connects to shore power through a TT-30 outlet, distributes 120 VAC to onboard circuits, and how the 12 VDC system integrates — the reference every RV owner needs before adding circuits or diagnosing electrical faults.

A 30 amp RV electrical system uses a single 120 VAC circuit fed through a TT-30P plug (Travel Trailer 30 amp, 3-prong) connecting to a TT-30R receptacle at the campsite pedestal. The TT-30 plug has three blades: a flat blade for the hot conductor (L), a flat blade for the neutral (N), and a round blade for the equipment ground (G). The system operates at 120 VAC, 30 A maximum — providing a maximum of 3 600 watts of power to the RV's 120 VAC appliances.

Inside the RV, the shore power cord enters a power inlet box or passes through a converter/charger. From there it feeds the main AC distribution panel, which is typically a small residential-style breaker panel with branch circuits protecting individual loads: air conditioner (usually on a 15 A or 20 A breaker), microwave, refrigerator (when in AC mode), interior outlets, and the converter-charger that charges the coach batteries.

The 12 VDC system is separate but interconnected. The converter/charger (also called a power converter) transforms 120 VAC shore power into 13.2–13.8 VDC to charge the coach (house) batteries and directly power 12 VDC loads. 12 VDC loads include: lighting (LED or incandescent), water pump, furnace fan, exhaust fans, refrigerator (12 VDC mode), and slide-out motors on larger units. The 12 VDC distribution panel is typically a blade-fuse block drawing from the house battery.

A critical limitation of 30 A service is that the air conditioner (typically 12–15 A starting current), microwave, and electric water heater cannot run simultaneously without tripping the main breaker. Managing this load hierarchy is something experienced RV owners learn quickly — and many install an Energy Management System (EMS) or surge protector with built-in load management.

The 30 A system contrasts with 50 A RV service (which uses a 14-50 type connector carrying two 120 VAC legs at 50 A each — totalling 240 VAC/12 000 watts), used on larger motorhomes and fifth wheels. A 30 A RV can use a 50 A pedestal via a 30-to-50 adapter, drawing only 30 A maximum. The reverse (50 A RV on 30 A service) requires a special adapter and limits total available wattage.

A 30-amp RV system uses a NEMA TT-30 shore-power inlet: a three-prong connector with one hot leg (120 V, brass terminal), one neutral (white, silver terminal), and a ground (green, ground pin). The 30-amp single hot leg feeds the RV's main distribution panel, supplying 120 V circuits only — unlike a 50-amp RV that carries two hot legs for 240 V capability. Pedestal outlets at campgrounds are wired with 10 AWG conductors and a 30 A breaker. When adapting to a 50-amp pedestal, only one hot leg is used, so total available power remains 3,600 W. You can draft a complete 30-amp RV outlet and panel wiring diagram in the free online editor, making it easy to plan load circuits and GFCI placement.

How to wire 30 amp rv wiring diagram

Identify the shore power inlet and check the TT-30 plug Locate the RV's shore power inlet box on the exterior. Inspect the TT-30 plug for damaged blades, burnt contacts, or melted plastic — a discoloured plug indicates overloading or a loose connection and must be replaced before use. Check that the inlet box cover closes and seals properly.
Verify campsite pedestal wiring with a receptacle tester Before connecting, use a NEMA TT-30R outlet tester or a multimeter to verify the pedestal outlet: hot-to-neutral should read 120 VAC, hot-to-ground should read 120 VAC, neutral-to-ground should read 0 V (or very close). An open neutral, reversed polarity, or open ground is dangerous and must be reported to the campsite office before use.
Connect the surge protector or EMS first Plug an inline EMS into the pedestal outlet before connecting the RV shore cord. The EMS will display voltage and warn of wiring faults. If the EMS shows a fault, disconnect and investigate before connecting the RV.
Connect the shore power cord and check the AC panel Connect the RV shore cord to the EMS or directly to the pedestal. Inside the RV, open the AC distribution panel. All breakers should be in the correct position. Verify AC voltage at an outlet with a multimeter — should read 108–132 VAC for acceptable operation.
Verify 12 VDC system and converter operation Check the coach battery voltage with a multimeter — should be 12.0–12.6 V disconnected or 13.2–13.8 V when the converter is actively charging. Verify the 12 VDC fuse block is not showing any blown fuses. Test 12 VDC loads: interior lights, water pump, exhaust fans.
Manage load hierarchy for 30 A service Plan which appliances can run simultaneously. As a rule: the air conditioner plus one other major appliance (microwave or electric water heater) is typically at or near the 30 A limit. Do not run the air conditioner, microwave, and electric water heater simultaneously on 30 A service.

Specifications

Shore power connector type	NEMA TT-30P (plug) / TT-30R (receptacle)
Shore power voltage	120 VAC, single phase
Maximum shore power current	30 A
Maximum available power	3 600 W (30 A × 120 V)
Shore power cord minimum conductor gauge	10 AWG (for 30 A)
Coach battery system voltage	12 VDC (nominal)
Converter output voltage (charging)	13.2–13.8 VDC
Acceptable shore power voltage range	108–132 VAC (±10 % of 120 VAC)

Safety warnings

All fixed electrical work on an RV's AC wiring system must be carried out in accordance with NFPA 70 (NEC) in the USA and equivalent codes in other jurisdictions. In the USA, RV manufacturers comply with NFPA 1192 (Standard on Recreational Vehicles). Modifications to the AC wiring system should be performed by a qualified electrician or certified RV technician. Always isolate from shore power and disconnect the battery before working on electrical systems.
Never bypass or remove the shore power ground (round blade on the TT-30 plug). The safety ground protects against electric shock if there is a wiring fault inside the RV. An open ground makes the metal chassis of the RV live in a fault condition, which is an electrocution hazard — especially at lakeside campsites near water.
Always verify pedestal wiring with an outlet tester before connecting. Campsite pedestals, particularly at older campgrounds, can have open neutrals, reversed polarity, or dangerously high or low voltage. An open neutral can expose 240 VAC across two supposedly 120 VAC loads, destroying appliances and creating a fire risk.
Extension cords must be rated for 30 A use and must be as short as practical. Using an under-rated extension cord (such as a standard household 13 A or 15 A extension cord) with a 30 A RV connection is a fire hazard. The cord will overheat under load well below the 30 A breaker trip point.

Tools needed

Multimeter (CAT II or CAT III rated)
TT-30R outlet tester or 3-light receptacle tester
Wire strippers
Crimping tool and weatherproof terminals
Screwdrivers (flathead and Phillips)
Non-contact voltage tester

Common mistakes

Connecting the RV to a campsite pedestal without first testing the outlet for reversed polarity or open ground — this can destroy appliances and create shock hazards.
Using an under-rated adapter or extension cord — a household 15 A or 20 A extension cord used as a makeshift 30 A shore cord will overheat silently inside the insulation, potentially causing a fire inside the RV walls.
Running the air conditioner, microwave, and electric water heater simultaneously on 30 A service — the combined current will exceed 30 A and trip the main breaker repeatedly, or cause overheating in the shore cord if the breaker is slower to trip than the cord's thermal limit.
Neglecting the 12 VDC system fuses — a blown 12 V fuse causes individual 12 V loads to fail intermittently. Many RV owners chase AC problems when the actual fault is a blown 12 V blade fuse in the fuse block.
Connecting the coach battery with reversed polarity during a battery replacement — most 12 VDC equipment in an RV is not reverse-polarity protected. Even a momentary reversal can destroy the converter, inverter, and electronic controllers.

Troubleshooting

Main 30 A breaker trips repeatedly: Cause: Total AC load exceeds 30 A, a failing air conditioner compressor drawing high starting current, or a short circuit in a branch circuit Fix: Disconnect all AC loads and reset the breaker. Reconnect loads one at a time. If the breaker trips immediately with no loads connected, there is a short circuit — inspect the shore cord and inlet. If the breaker trips when the air conditioner starts, the AC compressor may be drawing excessive starting current indicating a failing capacitor or compressor.
No 12 VDC power despite shore power connected: Cause: Failed converter/charger, blown main fuse on 12 VDC system, discharged battery, or loose battery terminal Fix: Measure battery voltage — if below 10.5 V the battery is deeply discharged. Check the converter's DC output with a multimeter. Verify the main battery fuse is intact. Inspect battery terminals for corrosion or looseness.
Outlets work but air conditioner does not power on: Cause: Tripped air conditioner branch circuit breaker, or the air conditioner's internal thermal cutout has tripped due to overheating or a dirty filter Fix: Check the AC panel for a tripped breaker on the air conditioner circuit and reset it. Allow the unit to cool for 30 minutes before restarting if it has tripped thermally. Clean or replace the air filter if restricted. Measure voltage at the air conditioner supply terminals — should be 108–132 VAC.

Frequently asked questions

What is a TT-30 plug and how is it wired?

TT-30 stands for Travel Trailer 30 amp. The TT-30P plug has three blades: one flat horizontal blade for the hot (120 VAC, black wire), one flat vertical blade for the neutral (white wire), and one round blade for the safety ground (green wire). The connector is defined by NEMA standard TT-30 and is unique to RV/camping applications — it cannot be inserted into a standard household outlet.

Why does my RV breaker trip when I run the air conditioner and microwave together?

A 30 A service provides a maximum of 3 600 watts (30 A × 120 V). A typical RV air conditioner draws 12–15 A (1 440–1 800 W) and a microwave draws 10–15 A (1 200–1 800 W). Running both simultaneously can exceed 30 A total, tripping the main breaker. Stagger usage or install an Energy Management System (EMS) that automatically sheds lower-priority loads.

What is the difference between the coach battery and the chassis battery in an RV?

The chassis (or start) battery powers the vehicle's engine starter, engine management, and chassis lights — the same as a regular vehicle battery. The coach (or house) battery powers 12 VDC living amenities: interior lights, water pump, exhaust fans, and the furnace blower. In motorhomes these are separate batteries isolated by a relay; in towed trailers there is only a coach battery charged through the tow vehicle's trailer wiring.

Can a 30 amp RV plug into a standard household 20 amp outlet?

Not directly. The TT-30P plug is physically different from a NEMA 5-15P (household 15 A) or 5-20P (household 20 A) outlet. Adapters ('dogbones') exist to adapt a TT-30P to a household outlet, but you are limited to 15 A or 20 A — enough to charge batteries and run small loads, but not an air conditioner. Do not exceed the outlet's rated current regardless of the adapter.

What is a surge protector or EMS and do I need one for my RV?

An RV surge protector guards against voltage spikes, while a more capable Energy Management System (EMS) also monitors for low voltage, open neutral, reversed polarity, and open ground — all potentially damaging or dangerous conditions at campsite pedestals. Many experienced RV owners consider an EMS essential given the variable quality of campsite wiring at older parks.

How do you wire a 30-amp RV outlet at home or at a campsite?

A 30-amp RV outlet uses a NEMA TT-30R receptacle wired with three conductors: a 10 AWG hot wire (black) to the brass terminal, a 10 AWG neutral (white) to the silver terminal, and a 10 AWG bare or green ground to the ground terminal. At the breaker panel, protect the circuit with a dedicated 30 A single-pole breaker. The outlet box must be weatherproof for outdoor installation and ideally mounted at a height that keeps the cord off the ground. Do not use a regular 20 A household outlet with an adapter for high-draw RV appliances — the 20 A wiring cannot safely carry a sustained 30 A load. If installing at home, have the circuit inspected to local electrical code.
