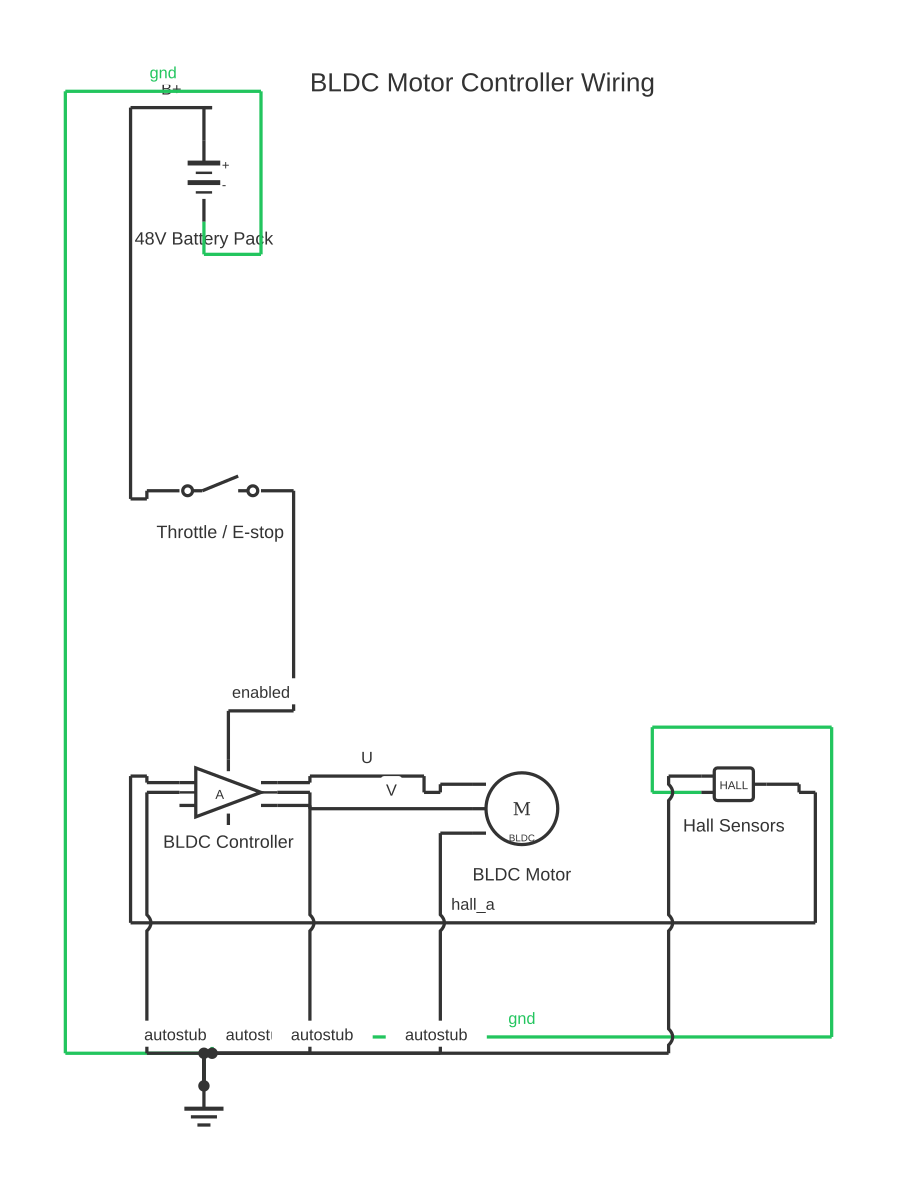

48V Brushless Motor Controller Wiring Diagram: 3-Phase Power, Hall Sensor Interface, Throttle & Regenerative Braking — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable 48v brushless motor controller wiring diagram: download the diagram as SVG or open it and print to paper or PDF.

Wire a 48V BLDC motor controller completely — three-phase motor cables, Hall effect sensor connections, throttle, brake regen signal, and battery power — for e-bikes, scooters, and EV drives.

A brushless DC (BLDC) motor controller uses solid-state switching — typically six power MOSFETs or IGBTs arranged as a three-phase inverter bridge — to commutate current through the motor's stator windings in sequence. Unlike a brushed motor, the BLDC motor has no mechanical commutator; the controller reads rotor position from Hall effect sensors embedded in the motor and switches the appropriate high-side and low-side transistors to maintain torque in the correct direction.

The power circuit has three elements: a DC power input from the 48V battery pack (with a main fuse and an anti-spark pre-charge resistor or relay to prevent capacitor inrush at connection), the three-phase motor output cables (labelled Phase A/U, Phase B/V, and Phase C/W), and the battery regenerative braking return path.

The three-phase motor cables carry the switched PWM voltage from the controller to the motor. Each cable alternates between the battery positive rail, the battery negative rail, and the floating state depending on the commutation step. These cables carry the full motor current — on a 48V, 1 000 W motor, rated phase current is approximately 20 A; at peak, it may be 40 A or more. Wire gauge must be sized for peak, not rated, current.

The Hall sensor assembly in the motor provides three digital position signals (HA, HB, HC) to the controller, each 120 degrees out of phase electrically. The sensors are powered from the controller's 5V or 12V sensor supply (typically through a dedicated connector). The six possible states of the three Hall signals define six commutation steps, allowing the controller to determine rotor position within 60 electrical degrees at any given moment. Incorrect Hall sensor wire mapping causes the motor to run rough, run in the wrong direction, or refuse to start — this is the most common commissioning fault.

The throttle interface is typically a 0–5V linear voltage output from a Hall effect throttle (twist grip or thumb lever). The controller reads this voltage and modulates PWM duty cycle accordingly. Many controllers also accept a brake signal input — a digital low signal from a brake lever switch — which simultaneously removes throttle demand and activates regenerative braking, feeding energy back into the battery pack.

Regenerative braking is implemented by reversing the motor control algorithm so the motor acts as a generator, with the three-phase terminals feeding current back through the controller's body diodes or synchronous rectification stage into the battery. The regen braking torque is limited by the controller's current limit and the battery's charge acceptance rate — lithium battery management systems (BMS) typically limit charge current to 0.5C–1C of capacity.

How to wire 48v brushless motor controller wiring diagram

Disconnect the battery before all wiring work Remove the battery pack from the system or disconnect the main positive and negative leads at the battery terminals. Discharge the controller's bus capacitors by leaving the controller disconnected for at least 60 seconds after battery removal. Measure DC bus voltage with a multimeter before touching any internal connections — capacitors in a 48V controller can hold enough charge to cause injury.
Connect the main battery power cables Run the positive cable from the battery pack positive terminal through the main fuse (typically 30–60 A for a 1 000 W controller) and then to the controller's B+ (battery positive) terminal. Run the negative cable from battery pack negative to controller B- terminal. Use cable gauge appropriate for the maximum current — 10 AWG (6 mm²) for up to 40 A continuous, 8 AWG (10 mm²) for 50–70 A. Connect the main fuse as close to the battery terminal as practical — within 300 mm.
Connect the three-phase motor cables Connect the three motor phase cables from the controller (labelled A/U, B/V, C/W or colour-coded yellow/green/blue in many systems) to the corresponding motor terminals. If the motor phase wires are not labelled, make a preliminary connection in any order and test rotation direction before finalising. Use ring terminals or bullet connectors appropriate for the current rating. Keep phase cable runs as short as practical to minimise inductance.
Connect the Hall sensor connector The Hall sensor connector (typically 5-pin or 6-pin, including power and ground) connects from the motor's Hall sensor assembly to the corresponding connector on the controller. Match the sensor power supply pin (5V or 12V as specified), sensor ground, and the three signal pins (HA, HB, HC). If using a generic motor without matched controller, verify sensor supply voltage with a multimeter before connection — applying 12V to a 5V sensor will destroy it.
Connect the throttle A Hall effect throttle has three wires: power (5V from controller), ground, and signal output (0–5V proportional to throttle position). Connect these to the controller's throttle connector or terminal block (often labelled +5V/GND/Throttle or 5V/GND/SPD). At rest, the throttle signal should be approximately 0.8–1.0V; at full throttle, approximately 3.5–4.5V. Verify this range with a multimeter before connecting to the controller. A throttle signal outside the controller's expected range may be interpreted as a fault.
Connect brake and regen signals Most 48V BLDC controllers have one or two brake input terminals (labelled BRK, EBS, or similar). These are active-low inputs: connecting the brake terminal to ground (through the brake lever switch) signals the controller to cut throttle and engage regenerative braking. Wire each brake lever switch between the corresponding controller brake input terminal and ground. Some controllers have separate regen level adjustment — set this to a comfortable level before road testing.
Power on, verify Hall signals, and test rotation Connect the battery and power on the controller. Do not apply throttle yet. If the controller has a diagnostic LED or display, observe it for fault codes. Apply a small amount of throttle with the wheel or motor shaft free to rotate — the motor should spin smoothly without hesitation or juddering. If it judders, hesitates, or runs rough, the Hall sensor to phase mapping is incorrect. Swap phase cables (two at a time) and re-test. Apply the brake input and confirm regen engages and the motor decelerates smoothly.

Specifications

Battery nominal voltage	48V DC (range: 42–58.8V for Li-ion; 40–58.4V for LiFePO4)
Motor type	Three-phase brushless DC (BLDC), Hall effect sensored
Hall sensor supply voltage	5V DC or 12V DC — verify for specific controller; do not assume
Hall sensor signal logic levels	Digital: logic low 0–0.5V; logic high 4.5–5V (5V systems) or 10–12V (12V systems)
Throttle signal range (standard)	0 V (resting approximately 0.8–1.0 V) to 4.5 V (full throttle)
Typical phase power cable gauge	10 AWG (6 mm²) for up to 40 A peak; 8 AWG (10 mm²) for 50–70 A peak
Regenerative braking return current (typical limit)	10–30 A (controller-limited); must not exceed BMS maximum charge current
PWM switching frequency (typical)	8–16 kHz (audible range avoided above 16 kHz in most modern controllers)

Safety warnings

A 48V lithium battery pack with a large capacity can deliver thousands of amperes into a short circuit — enough to instantly vaporise unprotected conductors and cause fire. The main fuse must be installed within 300 mm of the battery positive terminal and rated to interrupt the full available short-circuit current of the battery pack, not just the normal operating current. Never operate the system with the main fuse bypassed or missing.
The controller's DC bus capacitors retain charge after the battery is disconnected. A 48V bus can hold lethal charge on electrolytic capacitors for 60 seconds or more after disconnection. Wait at least 60 seconds after battery disconnection and verify bus voltage with a multimeter before opening the controller or touching internal power connections.
Regenerative braking returns energy to the battery. If the battery is fully charged, the BMS may reject the regen current, causing the bus voltage to rise rapidly. An uncontrolled bus overvoltage can destroy the controller's MOSFETs. Ensure the BMS in your battery pack is rated for the regen current the controller can produce, and set the controller's regen current limit to a level the BMS can safely accept. Never operate the regen system with a fully charged battery unless the controller has bus overvoltage protection.
Do not connect or disconnect the motor phase cables while the controller is powered. The controller switches high-frequency PWM voltage across the phase terminals. Disconnecting a phase cable under load creates an arc and can destroy the output MOSFET for that phase within milliseconds. Always power down and allow the bus capacitors to discharge before working on phase connections.
Thermal management is critical at 48V. A 1 000 W motor operating at 80% efficiency dissipates approximately 250 W as heat in the controller and motor combined. Ensure the controller is mounted to a heat sink or chassis with adequate thermal contact. Operating a controller above its rated case temperature will degrade the MOSFETs over time and cause premature failure. Monitor temperature during initial load testing.

Tools needed

Digital multimeter (DC voltage, AC voltage, and continuity modes)
Clamp-type DC ammeter (for measuring phase and battery current without breaking the circuit)
Wire strippers for 8–14 AWG silicone cable
Ratchet crimping tool for bullet connectors and ring terminals (10 AWG rated)
Heat gun for heat-shrink tubing
Torque screwdriver for terminal block screws
Oscilloscope (optional, for diagnosing Hall sensor waveforms during commissioning)
Anti-static precautions (wrist strap or mat) when handling controller with MOSFET gate drivers exposed

Common mistakes

Connecting Hall sensor power supply at wrong voltage. Controllers with 12V logic power may provide 12V on the Hall sensor supply pin. Connecting a 5V-rated sensor to a 12V supply will destroy the sensor immediately. Always verify the supply voltage on the specific controller's Hall connector before connection — measure with a multimeter before plugging in.
Using the motor's rated current rather than peak current for cable sizing. Rated current is the continuous operating level. BLDC motors can draw two to three times rated current during acceleration or hill climbing. Size all cables (phase and battery) for the controller's peak current output, not the motor's nameplate rating.
Ignoring Hall sensor to phase mapping when swapping controllers or motors. The HA, HB, HC signals must correspond to the correct physical position relative to phases A, B, C. Mixing these causes the controller to commutate at the wrong time — the motor will run but with greatly reduced torque, increased heat, and possibly violent vibration. Most modern controllers provide auto-detection; use it.
Not protecting against battery inrush current at initial connection. Plugging a charged 48V battery directly into a controller with large bus capacitors causes a high-current spark at the connector. This erodes connector contacts, can trip BMS overcurrent protection, and stresses the capacitors. Always use a pre-charge resistor, a soft-start relay, or a rated anti-spark connector at the battery connection point.
Setting throttle zero point incorrectly. A throttle signal resting at 0V (rather than the expected 0.8–1.0V) may be read by the controller as a fault or as a valid zero-throttle signal depending on firmware. Before wiring the throttle, measure its resting output voltage and confirm it falls within the controller's expected zero-throttle range (typically 0.7–1.2V). A throttle with a broken wire (0V signal) should never be interpreted as full throttle — confirm your controller implements this fail-safe.
Routing Hall sensor and phase cables together without separation. The phase cables carry fast-switching PWM signals with high dV/dt. If Hall sensor cables run parallel and close to phase cables, the rapidly changing electric field induces noise spikes on the sensor signal wires, causing false commutation signals and rough running. Route Hall sensor cables in a separate bundle, away from phase cables, and use shielded cable for Hall sensors in high-interference environments.

Troubleshooting

Motor judders or makes a grinding noise instead of spinning smoothly: Cause: Hall sensor to phase mapping is incorrect — the controller is commutating at the wrong rotor position, causing it to fight the magnetic field rather than assist it. This is the most common commissioning fault when pairing motors and controllers from different sources. Fix: Use the controller's auto-detect or phase-learning mode if available. If not available, systematically swap phase cable connections (there are six possible permutations) while testing for smooth rotation. After finding smooth rotation in one direction, if direction is wrong, swap any two phase cables to reverse it. Record the final working connection mapping.
Controller powers on but motor does not respond to throttle: Cause: Throttle signal is outside the controller's expected range (below minimum or above maximum accepted voltage), throttle connection is open circuit, a brake signal input is permanently active (keeping the controller in brake mode), or the controller has a fault that is inhibiting operation Fix: Measure throttle output voltage at rest and at full travel. Confirm it spans approximately 0.8–4.5V. Measure the brake input terminal — it should be floating or pulled to the supply voltage, not grounded. Check the controller for fault indication LEDs or codes. If no throttle response and no fault indication, test the 5V throttle supply at the controller connector.
Battery voltage drops sharply under load and the system cuts out: Cause: BMS overcurrent protection is tripping due to the controller drawing above the battery pack's rated discharge current; battery state of charge is low causing voltage sag below the controller's undervoltage lockout threshold; or main power cable resistance is too high causing excessive voltage drop Fix: Measure battery voltage directly at the battery terminals under load (not at the controller). If the battery voltage is stable but controller voltage drops, the cable or connector resistance is too high — check all connections and upgrade cable gauge. If battery voltage drops below 42V (for a 48V LiFePO4 pack) or 40V (for a 48V lithium-ion pack), the BMS is protecting against over-discharge. Recharge the battery or check BMS current limit settings relative to the controller's peak draw.
Regenerative braking is weak or has no effect: Cause: Regen current limit is set too low in the controller parameters; battery BMS is rejecting the regen charge current because the battery is near full; brake input signal is not reaching the controller correctly; or motor speed is below the minimum regen speed threshold Fix: Verify the brake switch is correctly wired (connecting the controller brake input to ground when activated) by measuring the brake terminal voltage during brake application — should drop to near 0V. Check controller parameter settings for regen current limit and increase if set very low. Partially discharge the battery and re-test regen — if it now works, the BMS was rejecting charge because the battery was full.
Controller overheats rapidly under moderate load: Cause: Inadequate heatsinking; controller is operating above its rated current; phase cable connections have high resistance causing the controller output MOSFETs to work harder; or the PWM frequency is set higher than necessary, increasing switching losses Fix: Check controller case temperature with an infrared thermometer. Ensure the controller is mounted flush to a metal heat sink or chassis with thermal compound. Check all phase cable connections for tightness and measure resistance across each bullet connector or ring terminal — should be below 1 mΩ. Verify the actual load current with a clamp meter — if it exceeds the controller's rating, the controller is undersized for the application.
