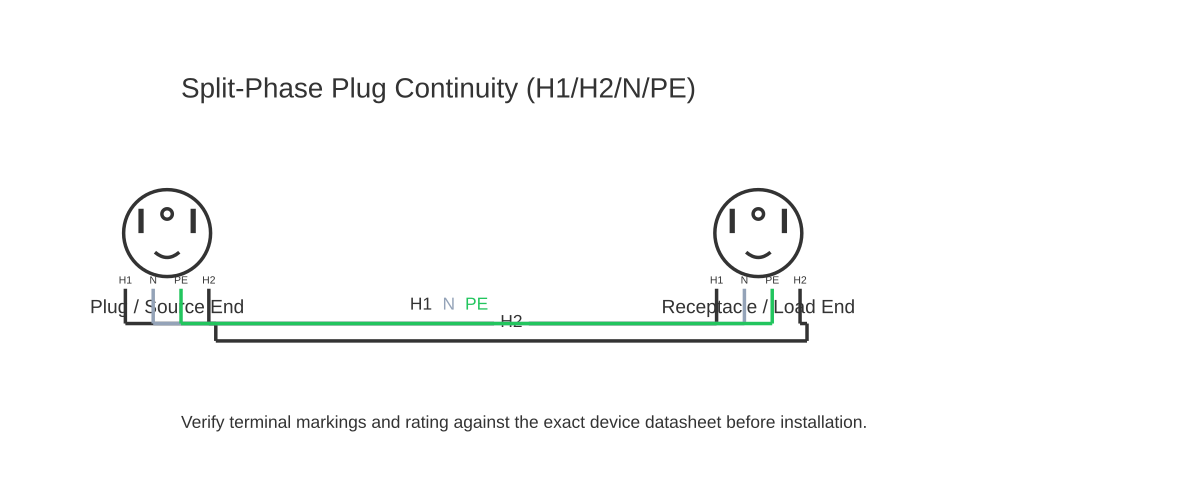

A 50-amp RV plug wiring diagram shows how the NEMA 14-50 outlet connects two separate 120V hot legs, a neutral, and a ground to deliver split-phase 240V / 120V power to a recreational vehicle.

The 50-amp RV electrical connection is fundamentally different from the 30-amp TT-30 connector used on smaller RVs — and understanding the difference is critical to safe wiring. A 50-amp RV service uses the NEMA 14-50 connector, which has four prongs: two hot conductors (X and Y, each at 120 V to neutral, and 240 V between each other), a neutral, and a safety ground. This is a 4-wire, split-phase configuration providing access to two independent 120 V legs.

The total capacity of a 50-amp RV service is not 50 A × 120 V = 6 000 W, but rather 50 A × 120 V × 2 legs = 12 000 W — because both hot legs are available. Large RVs distribute their loads across both legs through an internal distribution panel, allowing air conditioners, electric water heaters, and appliances to share the two legs without overloading either one.

By contrast, the 30-amp TT-30 connector is a 3-wire, single-phase, 120 V connection with one hot, one neutral, and one ground. It provides only 30 A × 120 V = 3 600 W maximum and has no second hot leg. This is why adapters that claim to convert 30-amp service to 50-amp are only delivering one 30 A leg to the RV's 50-amp inlet — not true 50-amp capacity.

The NEMA 14-50 connector has a distinctive 4-prong layout: two horizontal blade prongs (X and Y, the two hot legs), one vertical L-shaped or flat blade prong (neutral), and a round or U-shaped prong (ground). The outlet (receptacle, female) and plug (male) are keyed to prevent insertion in incorrect orientation.

Wiring the service-side NEMA 14-50 outlet requires a 50-amp, 240 V double-pole circuit breaker, 6 AWG copper wire for the two hot conductors, and 6 AWG or larger neutral and ground conductors, per NEC requirements. The pedestal or service box must be weatherproof and appropriate for outdoor installation.

How to wire 50 amp rv plug wiring diagram

Plan the installation and confirm code compliance Verify local jurisdiction requirements for outdoor electrical installations. In most jurisdictions, installation of a 50-amp outdoor RV outlet requires a permit and inspection. The work must comply with NEC/NFPA 70 Article 551 (Recreational Vehicles) and Article 553 (Floating Buildings), or applicable local equivalent. Hire a licensed electrician for this work.
Install a 50-amp, 240V, double-pole circuit breaker At the main service panel, install a 50-amp double-pole breaker occupying two adjacent slots and connecting to both L1 and L2 bus bars. Ensure available panel capacity exists — confirm the panel's main breaker rating and total existing load before adding a 50-amp circuit.
Run the supply cable Run 6/3 with ground NM-B cable (or 6 AWG conductors in conduit) from the panel to the outdoor pedestal or RV hookup box. For runs longer than approximately 20 m, consider voltage drop — at 50 A through 6 AWG copper over 30 m, voltage drop is approximately 4 V per leg. Use 4 AWG for longer runs to reduce drop.
Connect wires at the panel Connect the black hot conductor to one pole of the 50-amp breaker. Connect the red hot conductor to the other pole. Connect the white neutral to the neutral bus bar. Connect the bare copper ground to the ground bus bar. The neutral and ground bus bars are bonded at the main panel service entrance only — not at sub-panels.
Install the outdoor pedestal or outlet box Mount a weatherproof, NEMA 3R or better-rated enclosure at the hookup location. Install a NEMA 14-50R outlet in the enclosure. Bring the cable into the enclosure using a weatherproof cable clamp or conduit fitting.
Connect wires at the NEMA 14-50R outlet The NEMA 14-50R outlet has four terminals: X (hot 1 — connect black conductor), Y (hot 2 — connect red conductor), W (neutral — connect white conductor), and G (ground — connect bare or green ground conductor). Tighten all terminal screws to the torque specification on the outlet body — typically 12–14 in-lb for 6 AWG connections.
Close up, restore power, and verify Close and secure the outdoor enclosure with its weatherproof cover. Restore power at the panel. Use a NEMA 14-50-compatible outlet tester or a multimeter to verify: 120 V from X to neutral, 120 V from Y to neutral, approximately 240 V from X to Y, and continuity from the ground terminal to the panel ground bus. Verify both legs are present before connecting any RV.

Specifications

NEMA 14-50 outlet rating	50 A, 125/250 V, 4-wire (2 hot, 1 neutral, 1 ground)
Maximum power available (both legs)	50 A × 120 V × 2 = 12 000 W (12 kW)
Hot X to neutral voltage	~120 V AC (L1 to N)
Hot Y to neutral voltage	~120 V AC (L2 to N)
Hot X to hot Y voltage	~240 V AC (split-phase, L1 to L2)
Minimum wire gauge per NEC (50 A circuit)	6 AWG copper (NEC 240.4(D) and Table 310.15)
Circuit breaker required	50 A, 240 V, 2-pole — simultaneously trips both hot legs
GFCI requirement (NEC 210.8(B))	GFCI protection required for outdoor receptacles in North America

Safety warnings

The installation of a 50-amp RV outlet is fixed electrical installation work. It must be performed by a licensed electrician and must comply with NEC/NFPA 70 Articles 551 and 210, or your applicable national code. A permit and electrical inspection are required in most jurisdictions. This diagram is illustrative and reference-only.
Always isolate the circuit at the panel by switching off the 50-amp double-pole breaker and applying a lockout tag. Verify dead at the outlet location using a calibrated multimeter before working on any terminal. Both hot legs must be verified dead — one leg can be live even if the other appears dead.
The NEMA 14-50 outlet provides two live 120 V conductors (X and Y) with 240 V between them. This is more dangerous than a single-phase 120 V circuit — both hot legs must be treated as energised and potentially lethal.
A 30-amp to 50-amp plug adapter does not increase available current. Using an adapter to connect a 50-amp RV inlet to a 30-amp outlet limits the available power to 30 A / 3 600 W on a single phase. Running high loads through an undersized adapter causes overheating and fire risk.
Outdoor RV power pedestals must be protected by GFCI (ground fault circuit interrupter) protection per NEC 210.8(B) requirements for outdoor receptacles. Install a GFCI breaker at the panel or a GFCI outlet at the pedestal.

Tools needed

Digital multimeter with AC voltage range to 250 V minimum
Non-contact voltage tester
NEMA 14-50-compatible outlet tester (plug-in type with LED indicators)
Torque screwdriver or torque driver for terminal screws
Wire strippers for 6 AWG cable
Screwdrivers (flathead and Phillips)
Conduit bender and pipe cutter (if installing conduit-protected wiring)

Common mistakes

Connecting both hot legs to the same panel bus bar phase — the X and Y legs must be on opposite phases (L1 and L2) to achieve 240 V between them. Two hots on the same phase gives 0 V between them and only 120 V across both relative to neutral.
Using a single-pole breaker instead of a double-pole breaker, leaving one hot leg unprotected.
Using 8 AWG cable on a 50-amp circuit, which is undersized. NEC requires 6 AWG minimum for a 50-amp circuit.
Not using GFCI protection as required by NEC 210.8(B) for outdoor receptacles.
Connecting neutral and ground together at the outdoor outlet enclosure (sub-panel rule violation) — they must only be bonded at the main service entrance.
Installing a NEMA 14-30 outlet (dryer type, 30 A) when a NEMA 14-50 (50 A) is required — the plugs have different blade dimensions and will not mate.

Troubleshooting

RV powers up but only one leg of the distribution panel is live: Cause: One hot leg (X or Y) is not connected at the outlet terminal, or one pole of the 50-amp breaker has tripped or failed Fix: With RV disconnected, measure voltage at the NEMA 14-50R outlet: X-to-neutral should read ~120 V and Y-to-neutral should read ~120 V. If one measures 0 V, that hot leg is not connected or the corresponding breaker pole is off. Check terminal connections at the outlet and breaker, and verify both poles of the 50-amp breaker are on.
GFCI breaker trips immediately when RV is connected: Cause: The RV itself has a ground fault — a damaged appliance, a leaking heating element, or moisture in a circuit inside the RV Fix: Disconnect all appliances inside the RV. Reconnect to the service. If the GFCI holds, the fault is in a specific appliance — reconnect them one at a time to identify the culprit. If the GFCI trips immediately even with all RV appliances off, the fault may be in the RV's internal wiring or pedestal-side wiring — have both inspected by a licensed electrician.
Outlet appears to work but RV pedestal enclosure is warm to the touch after heavy use: Cause: High-resistance connection at one of the four terminal screws (undertorqued or corroded), or undersized cable causing I²R heating Fix: Isolate the circuit and inspect all terminal connections. Re-strip and re-torque all four terminal screws to specification. Verify cable gauge is correct (6 AWG minimum for 50 A). Measure voltage drop from panel to outlet at high load — if drop exceeds 3–5 V, cable is undersized or connections are resistive.

Frequently asked questions

How many watts does a 50-amp RV hookup provide?

A 50-amp, 240 V split-phase RV service provides up to 12 000 W (12 kW) — calculated as 50 A × 120 V × 2 legs. Each leg provides 6 000 W at 50 A. This is why a large RV with two rooftop air conditioners and an electric water heater requires a 50-amp service while a smaller camper can manage on 30-amp (3 600 W maximum) TT-30 service.

What is the wire colour convention for a NEMA 14-50 outlet?

In North American practice: hot leg X is black, hot leg Y is red (or a second black in some installations), neutral is white, and the equipment ground is bare copper or green. Both hot legs must be connected to the two-pole 50-amp breaker in the panel, one to each pole, ensuring they are on opposite phases.

Is the NEMA 14-50 the same as a standard 240V dryer outlet?

The NEMA 14-50 and the NEMA 14-30 (dryer outlet) share the same 4-wire split-phase configuration (two hots, neutral, ground) but differ in amperage rating and plug shape. A NEMA 14-30 is rated 30 A; a NEMA 14-50 is rated 50 A. The blades have different dimensions, making the plugs non-interchangeable.

Can I use a 30-amp to 50-amp adapter at a campsite with only 30-amp service?

An adapter can connect the RV's 50-amp inlet to a 30-amp TT-30 outlet, but it still delivers only 30-amp (3 600 W) single-phase capacity — it does not create additional current capacity. The RV's loads must be managed to stay within 3 600 W total, or the 30-amp circuit breaker at the pedestal will trip. The adapter is a physical conversion only, not an electrical upgrade.

What is the correct circuit breaker for a 50-amp RV outlet?

A 50-amp, 240 V, double-pole circuit breaker installed in the service panel and wired to both hot legs (L1 and L2) of the split-phase supply. This breaker must simultaneously disconnect both hot legs on an overload or fault — a single-pole breaker must never be used. The breaker must match the wire gauge: NEC 240.4(D) requires 6 AWG minimum for a 50-amp circuit.
