AC Connection Diagram

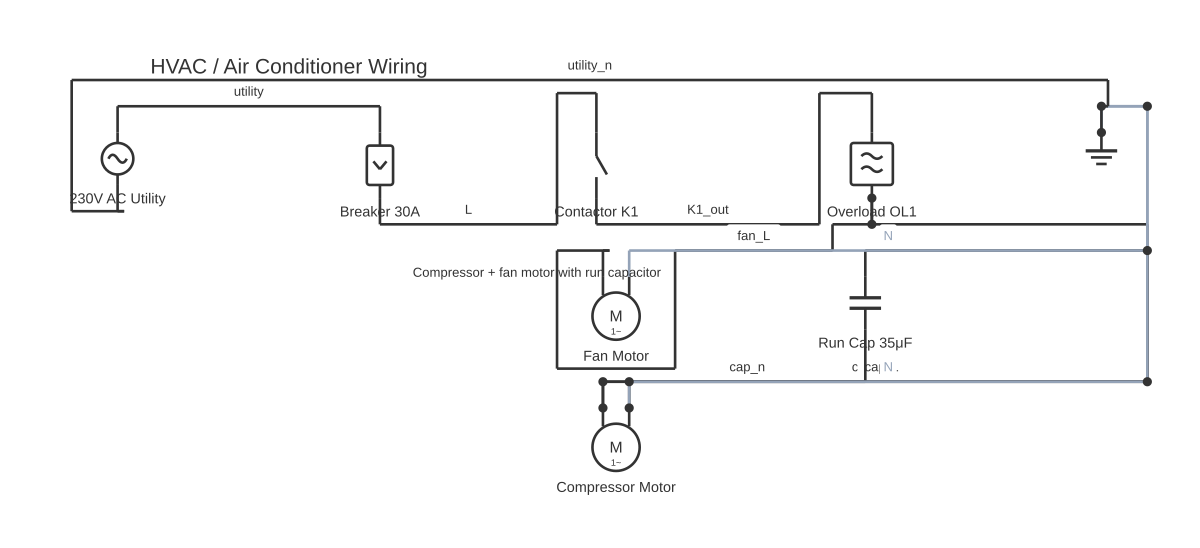

AC Connection Diagram — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable ac connection diagram: download the diagram as SVG or open it and print to paper or PDF.

A practical reference for AC mains connection diagrams covering single-phase and three-phase terminal layouts, conductor identification, and safe wiring practices for electrical installations.

An AC connection diagram shows how alternating current conductors—line (live), neutral, and protective earth—connect between supply terminals, protective devices, and load equipment. Understanding the diagram conventions is fundamental to safe electrical installation and fault diagnosis.

In single-phase systems, the supply consists of one line conductor and one neutral conductor, with a separate protective earth (PE) conductor. Standard domestic and light commercial supply in most countries operates at 230 V AC (IEC 60038 standard), 50 Hz, though North America uses 120/240 V at 60 Hz. The line conductor carries voltage; the neutral provides the return path; the earth conductor connects exposed metal parts to ground to facilitate protective device operation on fault.

Three-phase systems add two additional line conductors, labelled L1, L2, and L3 (or R, S, T in some conventions). Line-to-neutral voltage in a 400 V three-phase system is 230 V; line-to-line voltage is 400 V (230 V × √3 ≈ 400 V). Star (Y) connected loads connect between each line and the neutral. Delta (Δ) connected loads connect across line pairs without a neutral.

Conductor colour coding is standardised by region. Under IEC 60446 and adopted across EU/UK (BS 7671) installations: line conductors are brown (single-phase), or brown, black, and grey (three-phase); neutral is blue; protective earth is green-and-yellow. North American NEC wiring uses black (hot), white (neutral), and green or bare (ground). Australian/NZ AS/NZS 3000 uses brown/red (older installations) and blue (neutral).

Terminal designations on equipment follow IEC convention: L for line input, N for neutral, PE (or the earth symbol ⏚) for protective earth. Motor terminals are labelled U, V, W for three-phase outputs. Always verify terminal designations against the equipment nameplate or schematic before making connections.

How to wire ac connection diagram

Obtain and review the wiring diagram Before touching any conductors, study the connection diagram for the specific equipment or installation. Identify all terminals (L, N, PE for single-phase; L1, L2, L3, N, PE for three-phase), confirm the supply voltage matches equipment ratings, and note any specific connection sequence requirements.
Isolate and verify dead Switch off the supply at the appropriate circuit breaker or isolator. Apply lockout/tagout procedures if required. Use an approved voltage indicator to confirm all conductors are de-energised at the point of work. Test each conductor to earth and to each other conductor. Do not rely solely on a switched-off breaker without testing.
Prepare conductors Strip insulation to the length specified for the terminal type—typically 8–12 mm for screw terminals, less for spring-cage terminals. Do not nick or nick conductor strands. Fit ferrules (bootlace terminals) on stranded conductors where terminating into screw terminals, per IEC 60947-1 recommendations.
Connect the protective earth first Always connect the green-and-yellow earth conductor before any current-carrying conductors. This ensures exposed metalwork is earthed before live conductors are introduced. Terminate into the PE terminal and torque to the manufacturer's specification.
Connect neutral, then line conductors Terminate the neutral conductor (blue) into the N terminal. Then connect the line conductor(s) to the L terminal(s). In three-phase connections, follow the L1, L2, L3 sequence consistently to maintain correct phase rotation for motors and phase-sensitive equipment.
Verify torque and insulation Torque all terminal screws to the manufacturer's specified value using a calibrated torque screwdriver. Confirm no bare conductor is exposed outside the terminal. Check that no conductor insulation is damaged by the terminal edge.
Test before energising Perform an insulation resistance test (typically 500 V DC between live conductors and earth, minimum 1 MΩ per IEC 60364-6) and a continuity check on the earth conductor. Only then close the circuit breaker and verify correct operation of the equipment.

Specifications

Single-phase supply voltage (IEC/EU/UK standard)	230 V AC ±10%, 50 Hz
Three-phase supply voltage (line-to-line, IEC standard)	400 V AC ±10%, 50 Hz
North American single-phase supply voltage	120 V / 240 V AC, 60 Hz
Minimum insulation resistance (IEC 60364-6)	≥ 1 MΩ at 500 V DC (circuits up to 500 V)
Protective earth conductor colour (IEC 60446)	Green-and-yellow bicolour
Neutral conductor colour (IEC 60446)	Blue
Line conductor colour, single-phase (IEC 60446)	Brown
Conductor torque (typical screw terminal)	Per manufacturer specification; typically 0.5–3.0 N·m depending on terminal size

Safety warnings

Mains AC voltage is lethal. Always isolate the supply at the circuit breaker and verify the circuit is dead using an approved voltage indicator before touching any conductors. Never assume a circuit is de-energised based on a switched position alone.
Electrical installation work on fixed mains wiring must be carried out by, or under the supervision of, a licensed and competent electrician in accordance with applicable regulations (NEC/NFPA 70, BS 7671, AS/NZS 3000, IEC 60364). Unlicensed mains wiring work is illegal in many jurisdictions and invalidates insurance.
Never connect neutral and protective earth together at any point other than the designated main earth terminal (MET) in the installation. Downstream neutral-to-earth connections create shock hazards and can cause protective devices to fail to operate correctly.
Ensure all cables are rated for the installation environment—temperature, UV exposure, mechanical protection, and moisture. Using undersized or incorrectly rated cable is a leading cause of electrical fires.
Three-phase motor connections require correct phase rotation. Incorrect phase sequence will cause motors to run in reverse, potentially causing mechanical damage or injury. Verify rotation direction before coupling a motor to driven equipment.

Tools needed

Approved voltage indicator (two-pole tester)
Calibrated digital multimeter
Insulation resistance tester (500 V DC)
Calibrated torque screwdriver
Wire stripper suitable for cable gauge
Crimping tool for bootlace ferrules
Loop impedance tester (for BS 7671 / IEC 60364 installations)

Common mistakes

Reversing the neutral and line conductors in single-phase wiring, leaving equipment cases live and creating a hidden shock hazard even when equipment appears switched off.
Over-stripping cable insulation, leaving excessive bare conductor exposed outside the terminal, which creates a flashover or contact risk if an adjacent conductor shifts position.
Failing to torque terminal screws to the manufacturer's specification, leading to loose connections that arc, overheat, and cause fires over time.
Omitting ferrules on stranded conductors in screw-cage terminals, allowing individual strands to spread and contact adjacent terminals or create high-resistance hot spots.
Connecting the earth conductor to a neutral terminal or vice versa, which can energise metal enclosures under neutral fault conditions and defeat RCD protection.

Troubleshooting

Circuit breaker trips immediately on energising: Cause: A short circuit exists between line and neutral or line and earth, caused by wiring error, damaged insulation, or a faulty connected load. Fix: Isolate and verify dead. Disconnect the load and test insulation resistance between all conductors (minimum 1 MΩ at 500 V DC). Identify and repair the fault before re-energising. If the breaker trips with all loads disconnected, the fault is in the fixed wiring.
Equipment runs but enclosure is live to touch: Cause: The protective earth conductor is either not connected or has a broken continuity. The line and earth conductors may also be transposed. Fix: Isolate immediately. Test earth continuity from the equipment enclosure back to the main earthing terminal. A reading significantly above 1 Ω for domestic circuits (or above the value required by the applicable standard) indicates an earth continuity fault. Identify and rectify before returning to service.
Three-phase motor runs in the wrong direction: Cause: Phase rotation at the motor terminals is reversed relative to the required direction. This typically occurs when any two of the three line conductors (L1, L2, L3) are transposed. Fix: Isolate and verify dead. Swap any two of the three line conductors at the motor terminal block (not at the supply). Verify correct rotation direction before coupling to the driven load.

Frequently asked questions

What is the difference between neutral and earth in an AC connection?

Neutral is a current-carrying conductor that completes the circuit back to the supply transformer. Earth (protective earth) is a safety conductor connected to exposed metalwork; it carries current only during a fault. Neutral is bonded to earth at the supply source, but they must not be connected together downstream except at the main earthing point.

What colour is the live/line conductor in IEC-standard wiring?

Under IEC 60446, the line (live) conductor in a single-phase circuit is brown. In three-phase circuits, the three line conductors are brown, black, and grey. Neutral is blue and protective earth is green-and-yellow. These colours apply across EU, UK (post-2004), and many other IEC-aligned countries.

What is the voltage between lines in a 400 V three-phase system?

The line-to-line voltage is 400 V. The line-to-neutral voltage is 230 V (400 V ÷ √3 ≈ 230 V). Single-phase loads connected between one line and neutral receive 230 V; equipment connected directly across two line conductors receives 400 V.

How is polarity verified before energising an AC connection?

Use an approved voltage indicator or calibrated multimeter. Verify line-to-neutral voltage matches the expected supply voltage. Verify that the earth conductor shows near-zero voltage relative to neutral (any significant reading suggests an earth fault or incorrect wiring). A loop impedance tester confirms earth continuity under BS 7671 requirements.

Must AC electrical connection work be carried out by a qualified electrician?

Yes. In most jurisdictions, electrical installation work on fixed mains wiring must be performed by, or under the supervision of, a licensed or registered electrician. Regulations such as NEC (NFPA 70), BS 7671, AS/NZS 3000, and IEC 60364 require that installations are designed, installed, tested, and certified by competent persons. Always check local requirements before undertaking any wains wiring work.
