Ammeter Circuit Diagram
This is a free printable ammeter circuit diagram: download the diagram as SVG or open it and print to paper or PDF.

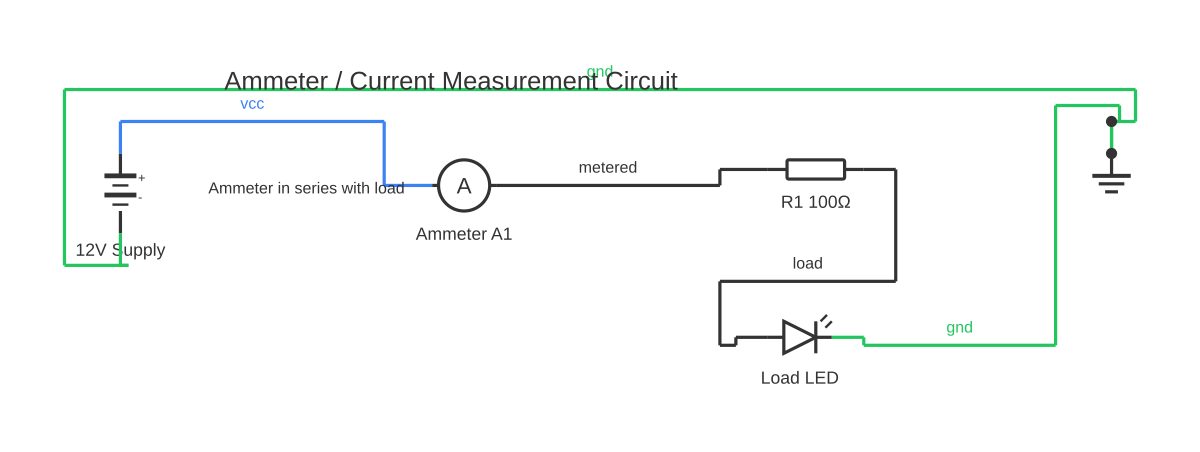

An ammeter circuit diagram shows how to connect an ammeter in series with a load to measure current flow. Because all current must pass through the instrument, series connection is mandatory — a parallel connection would short-circuit the load.
An ammeter is an instrument that measures electric current in amperes (A), milliamperes (mA), or microamperes (µA). Unlike a voltmeter — which connects across (in parallel with) a component — an ammeter must be placed in series so that every electron that flows through the circuit also flows through the meter movement.
How it works: A moving-coil (d'Arsonval) ammeter uses a coil suspended in a magnetic field. Current through the coil produces a torque proportional to that current, deflecting a pointer across a calibrated scale. To extend the range beyond what the delicate coil can handle, a low-resistance shunt resistor is connected in parallel with the coil. The shunt carries the bulk of the current while a known fraction passes through the coil, allowing high-current measurement without damaging the movement.
Digital ammeters use a precision shunt and an analogue-to-digital converter (ADC) to display the current numerically. Clamp meters (also called clip-on ammeters) measure the magnetic field around a single conductor — a non-contact method useful for high-current AC circuits where breaking the circuit is impractical.
Main variants: - Moving-coil (DC): most common in analogue panel meters; polarity-sensitive. - Moving-iron: suitable for AC or DC; less accurate at low currents. - Digital panel meter: shunt-based; high accuracy; often includes a 4–20 mA signal output. - Clamp/Hall-effect: non-invasive; measures AC or DC without circuit interruption.
Typical applications include automotive charging-system monitoring, laboratory bench testing, mains panel current monitoring, and battery discharge studies. In printed-circuit design an ammeter symbol (typically a circle with 'A' inside) placed in series on a schematic communicates measurement points to assemblers and reviewers.
An ammeter circuit diagram shows the current-measuring instrument wired in series with the load so that all circuit current passes through it; its very low internal resistance ensures minimal voltage drop. A voltmeter, by contrast, is always wired in parallel across the component being measured, and its very high internal resistance means negligible current is drawn. Combining both instruments in a single diagram — for example in a motor test circuit or a battery characterisation setup — lets students and engineers clearly see how the two measurement principles differ and how they interact when both are present simultaneously.
How to wire ammeter circuit diagram
- Determine the expected current range Before selecting or configuring an ammeter, estimate the maximum current in the branch to be measured. Choose a meter whose full-scale rating is at least 20% above the expected maximum to avoid pegging the pointer or overloading the shunt.
- De-energise and isolate the circuit Switch off the power supply and, for mains circuits, lock out / tag out the breaker. Verify the circuit is dead with a voltage tester before touching any conductors. For automotive circuits, disconnect the negative battery terminal.
- Break the circuit at the measurement point Identify a convenient series point in the conductor you wish to measure. Cut or disconnect the conductor to create an open gap. The ammeter will bridge this gap, restoring continuity through the instrument.
- Connect the ammeter in series For DC circuits, connect the positive (+) terminal of the meter to the conductor coming from the positive supply side, and the negative (−) terminal to the conductor going toward the load. For AC circuits, observe any polarity markings if the meter is polarity-sensitive, or use a clamp meter for non-invasive measurement.
- Re-energise and take the reading Apply power gradually if possible. Observe the pointer deflection or digital display. If the reading is unexpectedly high or the pointer slams to the stop, immediately de-energise and recheck the circuit or select a higher range.
- Record the measurement and restore the circuit Note the reading in the appropriate units (A, mA, µA). De-energise again, remove the ammeter, reconnect the conductor with a suitable joint or terminal, and restore normal circuit configuration before returning the circuit to service.
Specifications
| Connection type | Series (all circuit current flows through meter) |
|---|---|
| Internal resistance (typical analogue) | < 0.1 Ω at full-scale current (shunted ranges) |
| Full-scale deflection voltage (shunt type) | 50 mV or 75 mV (standard shunt ratings) |
| Accuracy class (analogue moving-coil) | Class 1.0 to Class 2.5 (IEC 60051), meaning ±1–2.5% of FSD |
| Frequency range | DC, or AC 45–65 Hz (moving-iron types); DC only (moving-coil unless rectified) |
| Overload capacity (typical) | 120% of FSD continuously; up to 200% for ≤ 2 seconds without damage |
| Operating temperature range | 0 °C to 40 °C (standard); −20 °C to 70 °C (industrial grade) |
Safety warnings
- Never connect an ammeter in parallel across a voltage source or load — the meter's near-zero resistance will cause a short circuit, producing dangerous fault current that can damage the meter, wiring, and source, and may cause fire or explosion.
- Always verify the circuit is completely de-energised (test-for-dead with a calibrated voltage tester) before inserting or removing an ammeter from a series connection. For mains-voltage circuits, a qualified electrician must perform the work in accordance with local wiring regulations (such as NEC/NFPA 70 in the US, BS 7671 in the UK, AS/NZS 3000 in Australia/New Zealand, or IEC 60364 internationally).
- Do not exceed the ammeter's rated current or voltage withstand. Overrange conditions can destroy the meter movement, rupture the shunt, or arc across internal components.
- In automotive circuits, disconnect the negative battery terminal before making series connections to prevent accidental shorts against the vehicle chassis. Ensure any replacement fuse in the ammeter circuit matches the original rating.
- High-current shunts can become hot during extended measurement. Do not touch shunt resistor surfaces or enclose them without adequate ventilation.
Tools needed
- Calibrated non-contact voltage tester or multimeter (verify dead before working)
- Insulated screwdrivers (flat and Phillips/Pozidriv)
- Wire strippers rated for conductor sizes in use
- Crimp tool with insulated ferrules or ring terminals
- Lockout/tagout kit (mains and industrial circuits)
- Ammeter or digital multimeter with current-measurement capability
- Insulated pliers or needle-nose pliers for terminal work
Common mistakes
- Connecting in parallel: the most common and most dangerous error — always verify the meter is placed in series before energising.
- Selecting too low a range: causes pointer peg-out (analogue) or overload (digital), potentially destroying the meter. Start on the highest range and step down.
- Ignoring polarity on DC circuits: reversed polarity on a moving-coil meter drives the pointer backward against the stop; always connect positive to the positive terminal.
- Using under-rated hook-up wire: the series conductors carry full circuit current; undersized wire overheats and may melt insulation or cause fire.
- Failing to re-fuse after measurement: removing the ammeter and leaving the fuse gap open, or reinstalling with a wrong-rated fuse, leaves the circuit unprotected.
- Reading the wrong scale: analogue multi-range ammeters often have several overlapping scales; always read the scale that corresponds to the selected range setting.
Troubleshooting
- Ammeter reads zero with power applied
- Cause: Open circuit in the series path — blown meter fuse, broken shunt connection, or disconnected terminal Fix: De-energise, check the meter's internal fuse, verify all series terminals are tight, and test the shunt with a low-resistance ohmmeter. Replace blown fuses with the correct rating.
- Pointer deflects backwards (analogue meter)
- Cause: DC polarity reversed — current entering the negative terminal instead of the positive Fix: De-energise and swap the meter connections so current enters the positive terminal. If the pointer was bent against the stop, the meter may need recalibration or replacement.
- Reading fluctuates or is unstable
- Cause: Loose terminal connections, intermittent contact in the series path, or electrical interference (for digital meters) Fix: De-energise, re-tighten all terminals, and check for damaged insulation causing intermittent contact. For digital meters, check for adequate filtering or use a meter with better interference rejection.
- Meter reads consistently lower than expected
- Cause: Meter accuracy out of calibration, wrong range selected, or shunt resistance has changed due to thermal drift or damage Fix: Verify the range setting matches the scale being read. Compare against a known-calibrated reference meter. Send the instrument for recalibration if discrepancy persists.
- Meter becomes hot during operation
- Cause: Current exceeding rated capacity passing through the shunt or internal wiring Fix: Immediately de-energise. Check that the circuit current does not exceed the meter's full-scale rating. If the current is genuinely that high, switch to a meter with a higher current rating or a larger external shunt.
Frequently asked questions
Why must an ammeter always be connected in series?
An ammeter has very low internal resistance by design. Connecting it in parallel would create a near-short circuit across the component, drawing destructive current through the meter and distorting or destroying the circuit under test. Series connection forces all circuit current through the instrument without significantly altering the circuit's resistance.
What happens if you connect an ammeter in parallel by mistake?
The meter's low resistance will draw a very large current, likely blowing the meter's internal fuse or burning out the shunt or coil. If the supply lacks current limiting, the source itself may be damaged. Always double-check meter connection mode before energising a circuit.
What is a shunt resistor in an ammeter circuit?
A shunt is a precision low-resistance resistor placed in parallel with the meter movement. It diverts a fixed proportion of total current around the sensitive coil, extending the measurable range. The shunt value is calculated so that at full-scale current, the coil receives exactly its rated deflection current.
Can a digital multimeter replace a dedicated ammeter?
Yes, most digital multimeters include a current-measurement mode. Insert the probes into the correct terminals (usually marked 'A' or 'mA' and 'COM'), select the appropriate range, and connect in series. Be aware of the maximum current rating — exceeding it blows the meter's fuse or damages the input.
How do you read polarity on a DC ammeter circuit?
Current must enter the positive terminal (usually marked '+' or red) and exit the negative terminal. Reversing polarity on a moving-coil meter deflects the pointer against the stop, potentially bending it. Digital meters typically display a negative reading when polarity is reversed rather than being damaged.
How do you draw a circuit diagram with both an ammeter and a voltmeter?
Place the ammeter (symbol: circle with 'A') in series in the main circuit branch so current flows through it; connect the voltmeter (symbol: circle with 'V') in parallel across the component you are measuring, with its two terminals on either side of that component. Ensure the ammeter is between the power source and the voltmeter tap-off point if you want to read the current through the load only (ammeter-external arrangement), or tap off before the ammeter if you want to include voltmeter current in the ammeter reading (ammeter-internal arrangement). The choice matters most for low-resistance loads where voltmeter current is not negligible.
