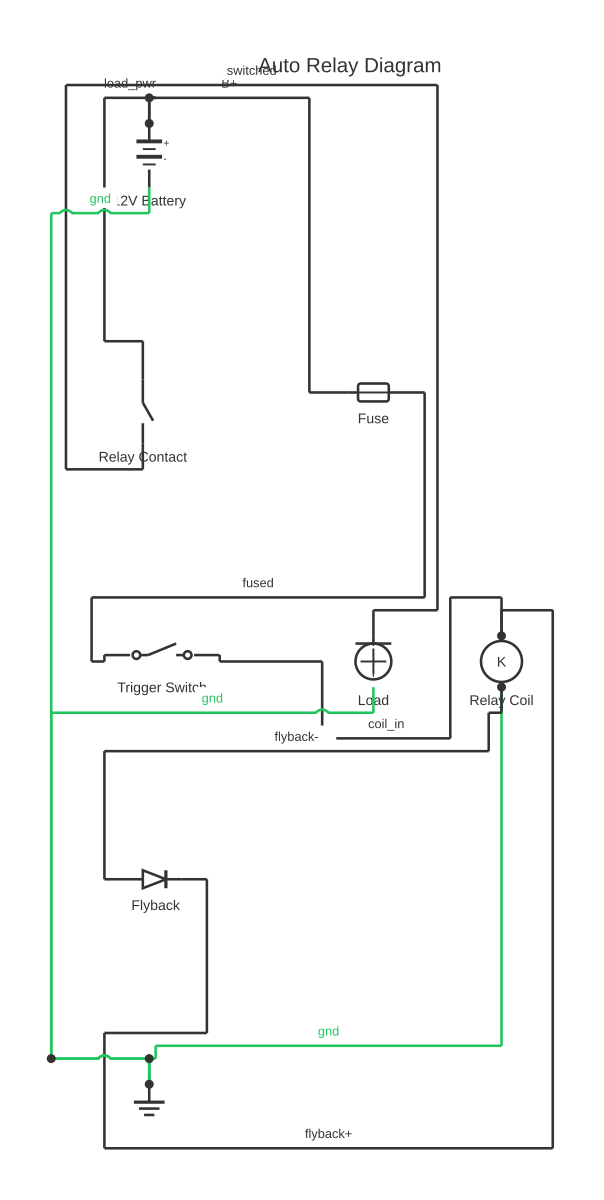

Auto Relay Diagram: Wiring a Relay for Horn and Cooling Fan Applications

Auto Relay Diagram: Wiring a Relay for Horn and Cooling Fan Applications — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable auto relay diagram: download the diagram as SVG or open it and print to paper or PDF.

A practical application guide for automotive relay wiring — using horn and electric cooling fan circuits to demonstrate how the five-pin relay routes a low-current switch signal to control a high-current load safely.

The five-pin ISO 280 automotive relay is the standard building block for adding or upgrading electrical accessories in a vehicle. Rather than running heavy-gauge cable all the way to a dashboard switch (which would create voltage drop, switch heat, and wiring complexity), the relay acts as a remote-controlled switch: a thin wire from the dashboard switch energises the relay coil, and the relay's heavy-duty contacts switch the actual load current locally near the battery or fuse box.

A horn circuit is the simplest relay application. Many factory horn circuits run the full load current through a small steering column switch, which degrades over time — particularly in vehicles where the horn is frequently used. Fitting a relay allows the factory switch to control only the relay coil (drawing roughly 150 mA) while the relay contacts switch the horn's full current (typically 3–8A for a single-tone horn, up to 15A for dual-tone). The relay should be mounted near the horn, keeping the heavy cable short.

A cooling fan application is more demanding and illustrates the relay's inductive load derating. An electric radiator fan motor draws significantly more current on start-up than during steady-state running — a fan rated at 15A running current may surge to 30–40A during start-up for a fraction of a second. The relay contacts must be rated for the surge, not just the running current. For fans, use a relay with a 30A contact rating (minimum). Many fan installations also use a thermostatic switch to energise the relay coil — when coolant temperature reaches the thermostat's trigger point, the switch closes, energising the relay coil, and the relay contacts switch fan power directly from a fused battery feed.

Both applications require a properly fused power feed to pin 30, a secure chassis ground for pin 85, and — if the relay coil is controlled by an ECU output or transistor switch — a flyback diode across pins 85 and 86.

Automotive relays are almost universally the ISO mini or standard relay form factor, with terminals numbered 85, 86 (coil), 30 (common/supply), 87 (normally open), and 87a (normally closed). The coil between pins 85 and 86 draws roughly 150–200 mA at 12 V, making it controllable by most ECU outputs or switch signals. Pin 30 is fed from the high-current source (battery or fused supply); pin 87 connects to the load when the coil is energised. A diode across the coil (cathode to 85, anode to 86 or ground) suppresses the voltage spike when the coil de-energises, protecting sensitive control circuits. You can diagram any automotive relay switching circuit — lighting, horn, cooling fan, fuel pump — in the free browser-based wiring editor.

How to wire auto relay diagram

Determine the load and select the correct relay Measure or look up the horn or fan current draw (running and start-up surge if available). For a horn, a standard 30A relay is adequate. For a cooling fan, confirm the relay's contact rating exceeds the fan's surge current or use a dedicated fan relay with higher inrush current tolerance.
Mount the relay near the load, not near the switch Mount the relay as close to the horn or fan as practical. This keeps the high-current cable (pins 30 and 87) short, reducing voltage drop. The control wire to the switch (pin 86) can be long without significant effect because it carries only coil current (~150 mA).
Connect the fused battery feed to pin 30 Run a suitably gauged cable (typically 3 mm² for a horn, 4–6 mm² for a large fan) from the battery positive through an inline fuse to pin 30 of the relay. Position the fuse within 450 mm of the battery terminal. For a fan relay, this cable should be heavy enough to carry full starting surge.
Connect pin 87 to the horn or fan positive terminal Run a wire from relay pin 87 to the positive terminal of the horn or fan motor. Keep this wire as short as possible — it carries the full load current.
Connect the coil control circuit For a horn: connect pin 86 to the existing factory horn switch wire (the wire that was previously going directly to the horn). Connect pin 85 to chassis ground. For a fan: connect pin 86 to one terminal of the thermostatic switch, with the other thermostatic switch terminal connected to ignition-switched 12V. Connect pin 85 to chassis ground.
Connect the load ground Connect the horn or fan motor's negative terminal to a chassis ground point. Do not share this ground with the relay coil ground. Use a dedicated clean metal chassis bolt.
Test operation and check voltage at the load For a horn relay, press the horn switch and confirm operation. For a fan relay, warm the engine to the thermostatic switch's trigger temperature and confirm the fan runs. Measure voltage at the horn or fan terminals while operating — it should be within 0.5V of battery voltage. Excessive drop indicates undersized wiring or a poor ground.

Specifications

Relay coil voltage	12V DC
Relay coil draw	~120–170 mA at 12V
Contact rating (resistive)	30A minimum for fan/horn applications
Horn current draw (typical)	3–8A (single tone); 6–15A (dual tone)
Cooling fan current (running, typical)	10–20A (vehicle-specific)
Cooling fan current (start-up surge)	2–3x running current for < 100 ms
Fuse position from battery	Within 450 mm of battery positive terminal
Pin layout	ISO 280: 30 (common), 85/86 (coil), 87 (NO), 87a (NC)

Safety warnings

Disconnect the vehicle battery negative terminal before making any wiring connections. The fused battery feed to pin 30 is at battery voltage throughout the installation — a short circuit during connection can cause a fire.
Always install the inline fuse within 450 mm of the battery positive terminal. An unfused cable between the battery and the relay is a fire risk if the cable is damaged by vibration or chafing.
For cooling fan installations, confirm that the fan relay and wiring are kept clear of hot exhaust components, moving belts, and cooling hoses that may degrade the insulation.
Do not use a fuse rated higher than the wire's ampacity — the purpose of the fuse is to protect the wiring, not just the load. A fuse that is too large will not blow before the cable overheats.

Tools needed

Digital multimeter (DC voltage and continuity functions)
Wire strippers and automotive crimp tool
Ring terminal crimp set (M6 for chassis ground)
Cable tie gun
Drill and drill bits (for mounting relay bracket if required)
Inline fuse holder punch or blade fuse pliers

Common mistakes

Connecting the horn or fan load directly to the battery cable used to supply pin 30, rather than running a separate load wire from pin 87 — this bypasses the relay entirely and defeats the purpose of the installation.
Mounting the relay far from the load and running a long heavy cable from pin 87 to the fan or horn — the short cable run should be the heavy one (pins 30 and 87), and the long run should be the light control wire to the switch.
Using the chassis ground on the relay coil (pin 85) also as the ground for the load — mixing coil and load grounds can cause coil voltage to fluctuate when the load switches, causing relay chattering.
Forgetting to connect the load's own negative terminal to ground — the relay provides a switched positive feed but the load still needs its own ground return path.
Not testing the circuit under full load before routing and securing the wiring — discovering a voltage drop problem after the cables are taped into the loom requires extensive rework.

Troubleshooting

Horn operates weakly or not at all with relay installed: Cause: Poor ground connection on the horn body, high resistance in the load cable, or voltage drop across a poorly rated fuse holder Fix: Measure voltage at the horn terminals while operating — should be within 0.5V of battery voltage. If voltage is low, check each section of the load circuit (fuse holder voltage drop, cable resistance, load ground resistance) and repair the high-resistance point.
Cooling fan runs continuously and does not switch off: Cause: Thermostatic switch contacts welded closed (failed closed), or the control wire is connected to a permanent 12V supply rather than through the thermostat Fix: Disconnect the thermostatic switch. If the fan stops, the thermostat has failed closed — replace it. If the fan continues with the thermostat disconnected, the control wire is connected to a permanent 12V source rather than through the thermostat switch. Trace and correct the wiring.
Relay coil energises but fan or horn does not operate: Cause: Open circuit between pin 87 and the load positive terminal, or missing load ground Fix: With the relay coil energised (confirmed by the click), probe pin 87 — should show battery voltage. Trace the wire from pin 87 to the load and identify any break. Check that the load's negative terminal is connected to chassis ground.

Frequently asked questions

Why does the horn relay improve horn performance over the factory circuit?

Factory horn wiring often routes current through the clock spring and steering column switch, adding resistance and creating voltage drop. A relay fed directly from a fused battery connection ensures the horn receives full battery voltage regardless of the condition of the steering column switch, producing a louder, more consistent tone.

How do I wire a thermostatic switch to control a cooling fan relay?

The thermostatic switch connects in series with the relay coil circuit. One terminal of the thermostat connects to the switched 12V supply (ignition-on power); the other connects to pin 86 of the relay. Pin 85 connects to chassis ground. When coolant temperature rises above the thermostat's setpoint, the switch closes and energises the relay coil, turning on the fan.

Should pin 87a be used in a fan or horn circuit?

Not typically. Pin 87a (normally closed) would energise the load when the relay coil is off. For a fan controlled by a temperature switch, you want the fan on only when the relay is energised (coil on). Pin 87 (normally open) is the correct connection for both horn and fan applications.

What fuse rating should I use for a cooling fan relay?

Size the fuse to the fan motor's maximum current draw plus a small margin — typically the next standard fuse size above the motor's rated running current. For a 15A running fan, use a 20A fuse. For dual fans sharing one relay, add both running currents and apply the same margin logic. The fuse protects the wiring, not the motor.

Can one relay control two horns or two fans?

Yes, provided the total load current does not exceed the relay's contact rating. Two standard horns drawing 5A each total 10A — well within a 30A relay. Two large cooling fans might draw 25A combined, which is within a 30A relay's rating but close enough that you should check the relay's inductive load derating before deciding whether to use two separate relays.

How do you wire an automotive relay in a car?

Wire the relay coil by connecting pin 86 to a switched 12 V trigger source (such as a switch output or ECU signal) and pin 85 to chassis ground; when the trigger is active, the coil energises and closes the relay. Connect pin 30 to a fused 12 V supply rated for the load, and pin 87 to the load device (lamp, horn, fan, etc.), with the load's other terminal going to ground. If the load requires a return path, ensure a solid ground connection separate from the coil ground to avoid voltage drops. For inductive loads such as motors or solenoids, fit a flyback diode across pin 30 and 87 (or across the load) to absorb the back-EMF spike when the relay opens.
