Automatic Transfer Switch (ATS) Wiring Diagram

Automatic Transfer Switch (ATS) Wiring Diagram — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable automatic transfer switch wiring diagram: download the diagram as SVG or open it and print to paper or PDF.

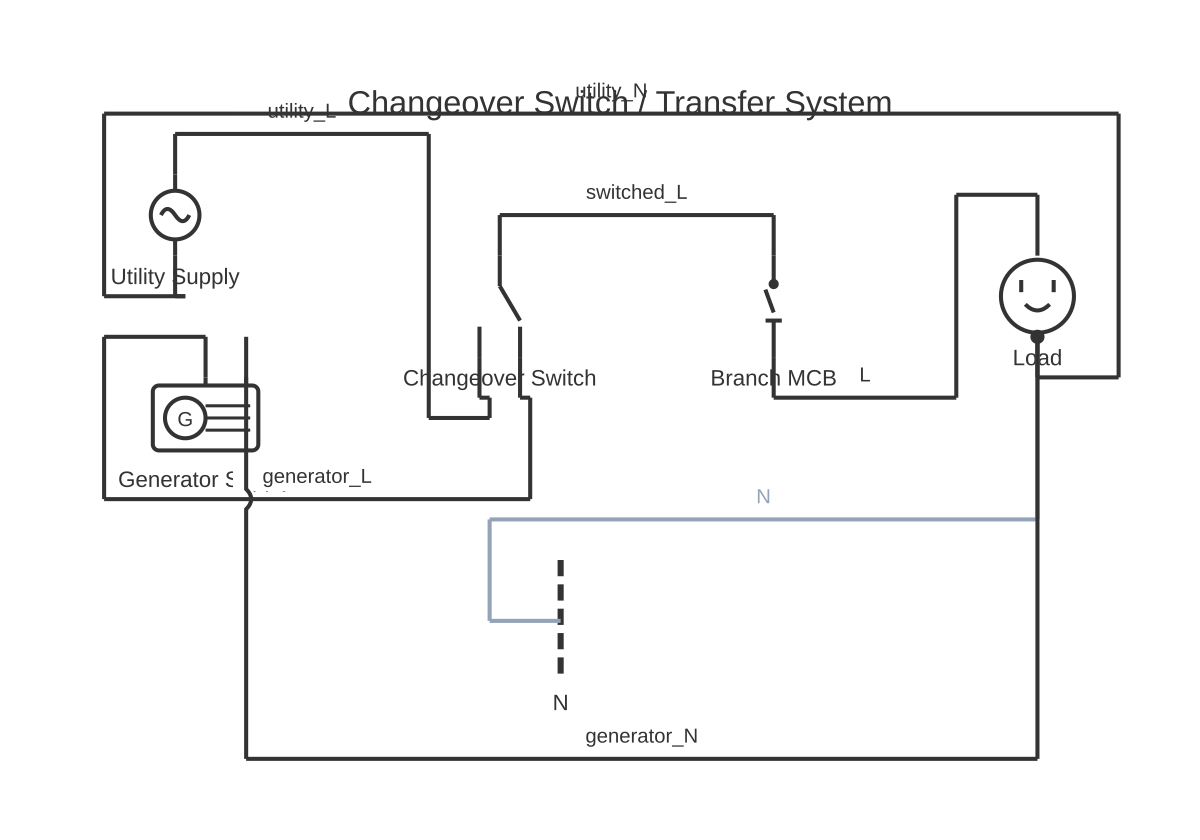

An automatic transfer switch wiring diagram shows how utility power, generator power, and the load connect through an interlocked switching mechanism that transfers the load to the generator when utility power fails and back when it is restored.

An automatic transfer switch (ATS) monitors the utility (mains) power supply and, on detecting a supply failure, automatically starts the standby generator and transfers the electrical load from the utility to the generator. When utility power is restored and stabilised, the ATS transfers the load back and initiates generator shutdown. This process happens without manual intervention.

CIRCUIT TOPOLOGY: An ATS has three sets of connections: 1. UTILITY (NORMAL) INPUT: Incoming supply from the utility company's service entrance or the distribution board incomer. 2. GENERATOR (EMERGENCY) INPUT: Incoming supply from the standby generator output. 3. LOAD OUTPUT: The circuits that will be transferred — can be the entire installation (whole-building ATS) or a critical load sub-panel (partial transfer).

INTERLOCK PRINCIPLE: The defining feature of any transfer switch is that utility and generator power can never be connected to the load simultaneously. Connecting two independent power sources in parallel without synchronisation causes a short-circuit current limited only by the source impedances — resulting in circuit breaker trips, generator damage, and potential for grid feedback from the generator, which is a safety hazard for utility workers. The interlock is achieved either mechanically (a physical linkage preventing both contactors from closing) or by a make-before-break or break-before-make switching action on a single transfer switch mechanism.

TYPES OF ATS: - Open-transition ATS (break-before-make): The load is disconnected from the utility before being connected to the generator, creating a brief supply interruption during transfer. Simpler and less expensive. The standard type for most applications. - Closed-transition ATS (make-before-break): The load is momentarily connected to both sources simultaneously during transfer, requiring synchronisation of phase, frequency, and voltage. Used where even momentary interruption is unacceptable (hospitals, data centres). - Static transfer switch: Uses solid-state switching elements for near-instantaneous transfer without a mechanical contact, used in UPS systems and critical power.

CONTROL LOGIC: The ATS controller monitors utility voltage (and sometimes frequency) on all three phases. On detecting an outage or voltage outside set limits, it sends a start signal to the generator via a dry-contact output. After confirming the generator has reached stable voltage and frequency (typically after a 10–30 second stabilisation delay), it initiates the transfer. On utility restoration, a retransfer delay (typically 1–30 minutes) confirms supply stability before transferring back, preventing rapid cycling during intermittent utility faults.

IMPORTANT: ATS work involves simultaneous exposure to utility power and generator power. This is among the most hazardous electrical work a qualified electrician undertakes. Only qualified personnel must perform installation and maintenance.

How to wire automatic transfer switch wiring diagram

Engage a licensed electrician and notify the utility company ATS installation requires a licensed electrician. Notify the utility company before installing any transfer switch — back-feed from a generator onto utility lines during an outage is a legal liability and a danger to utility workers. The utility company may require inspection of the installation.
Determine the load to be transferred and select the ATS rating Calculate the total continuous load current of all circuits to be on emergency power. Select an ATS rated for this current with an SCCR exceeding the prospective fault current at the installation point. Determine whether full-building transfer or critical-load sub-panel transfer is required.
Install the ATS enclosure at the main switchboard Mount the ATS adjacent to or integrated into the main distribution board. The ATS must be accessible for maintenance and positioned so the utility incoming and generator incoming connections are of manageable cable length.
Connect the utility (NORMAL) supply input With utility power isolated and locked out, connect the utility supply cables to the NORMAL input terminals of the ATS. These are typically the same conductors as the existing main supply — the ATS is installed between the service entrance and the main distribution board.
Connect the generator (EMERGENCY) supply input Run generator output cables from the generator's output terminals to the EMERGENCY input terminals of the ATS. Include a generator output circuit breaker rated to the generator's output current. Confirm cable sizing is adequate for the generator's full rated current.
Connect the load output Connect the load output terminals of the ATS to the main distribution board's incoming terminals (for a whole-building transfer) or to a dedicated emergency sub-panel (for partial transfer). Confirm the load does not exceed the ATS current rating or the generator rated output.
Wire the control circuit and generator start output Connect the ATS controller to the utility voltage monitoring inputs (all three phases). Connect the dry-contact generator start output to the generator's remote start terminals. Wire the retransfer delay timer, test switch, and any alarm/annunciator outputs as specified in the ATS wiring diagram.
Commission and test the transfer sequence With a qualified electrician present, test the full transfer sequence: simulate a utility failure by opening the utility supply breaker, confirm the generator starts and the ATS transfers load, then restore utility and confirm retransfer and generator shutdown. Time each phase of the sequence. Record all test results.

Specifications

ATS switching type	Open-transition (break-before-make) standard; closed-transition for critical applications
Voltage rating (typical LV)	230/400 V AC, 3-phase 4-wire (IEC); 120/208 V or 277/480 V (US)
Typical current ratings	100 A, 200 A, 400 A, 630 A, 800 A, 1 000 A, 1 600 A
Generator start delay (typical)	0–5 seconds after utility failure detection (to avoid nuisance starts on momentary dips)
Generator stabilisation delay before transfer (typical)	10–30 seconds after generator reaches rated voltage and frequency
Retransfer delay (typical range)	1–30 minutes (adjustable)
Voltage acceptance window (typical)	90–110% of nominal voltage
Applicable standards	IEC 60947-6-1 (transfer switching equipment), NFPA 110 (US), AS/NZS 3010 (Australia)

Safety warnings

ATS installation and maintenance must only be performed by licensed and qualified electricians. Both utility power and generator power are present at this equipment. The utility side must be treated as live at all times — isolation at the utility main breaker does not make the service entrance conductors safe.
Generator back-feed onto the utility network during a utility outage is an electrocution hazard for utility line workers who believe the lines are de-energised. Only a properly interlocked ATS prevents back-feed — never connect a generator directly to an installation without an ATS or lockout transfer switch.
Apply lockout/tagout to both the utility main breaker and the generator output breaker before working inside the ATS enclosure. The ATS enclosure contains live busbars from both sources when both are connected. Verify dead on all terminals before touching any conductor.
Notify the utility company before installing any transfer switch. Some utilities require an inspection and approval. Operating without notification can void the supply agreement and create legal liability.
The neutral conductor treatment (switched neutral vs solid neutral) must be determined at design stage by a qualified engineer. In some systems, the neutral must be switched with the phases; in others, a common neutral is acceptable. Incorrect neutral treatment can cause hazardous voltage on the neutral conductor during transfer.

Tools needed

Lockout/tagout (LOTO) equipment for both utility and generator sources
Three-phase voltage tester (CAT IV rated)
Arc-rated PPE (face shield, arc suit, insulating gloves — rated to incident energy)
Calibrated torque wrench (for main terminal connections)
Multimeter (AC/DC voltage and continuity)
Stopwatch or logging multimeter (to time transfer sequence)
Insulated screwdrivers and nut drivers
Cable ferrule crimping tool and markers

Common mistakes

Connecting the generator directly to the main board without an ATS or interlocked transfer arrangement — this allows back-feed to the utility grid and is illegal and dangerous.
Sizing the ATS to the generator output rather than the actual load — if the load exceeds the ATS rating, the ATS will overheat and fail during an extended outage.
Not setting the retransfer delay long enough — short retransfer delays cause repeated transfer cycling during intermittent utility faults, wearing the ATS mechanism and disrupting connected loads unnecessarily.
Omitting the generator output circuit breaker — without overcurrent protection at the generator output, a fault between the generator and the ATS cannot be isolated without shutting down the generator manually.
Not testing the full transfer sequence under actual load before relying on the system — an ATS that passes a no-load test may fail to transfer when the generator is loaded due to voltage droop or frequency instability.

Troubleshooting

Generator starts but ATS does not transfer the load: Cause: Generator voltage or frequency has not stabilised to within the ATS controller's acceptance window within the timeout period, or the generator voltage sensing wiring at the ATS controller is faulty. Fix: Measure generator output voltage and frequency at the ATS EMERGENCY input terminals. Compare against the ATS controller's set acceptance window (typically 90–110% of nominal voltage, 47–53 Hz). Adjust generator AVR if voltage is out of range. Check generator sensing wiring continuity.
ATS does not retransfer to utility after restoration: Cause: The retransfer delay has not expired, or the utility voltage is not stable within the acceptance window, or the retransfer control signal path has a fault. Fix: Confirm the retransfer delay setting on the ATS controller. Monitor utility voltage at the NORMAL input terminals — confirm it is stable within the acceptance window for the full duration of the retransfer delay. If voltage is stable and delay has expired, inspect the retransfer control circuit.
Alarm indicating both sources are connected: Cause: The mechanical interlock has failed or the interlock auxiliary contact is faulty — the control system believes both contactors are closed simultaneously. Fix: Do not ignore this alarm. Isolate both sources immediately. Inspect the mechanical interlock mechanism and both contactor positions physically. If both contactors are truly closed simultaneously, the interlock has failed — this is a critical fault requiring immediate replacement before restoration.
ATS transfers to generator but generator immediately shuts down under load: Cause: Generator is undersized for the actual load — voltage and frequency collapse when full load is applied, triggering the generator's own protection. Fix: Check the generator's rated kVA against the actual transferred load. Measure voltage and current at the generator output terminals immediately after transfer. If the generator is correctly sized, investigate generator governor and AVR calibration, or mechanical faults in the engine causing it to stall under load.

Frequently asked questions

What prevents utility and generator power from connecting at the same time in an ATS?

A mechanical interlock between the utility and generator contactors prevents both from closing simultaneously. In a single-transfer-switch ATS, the switching mechanism physically cannot connect both sources. In two-contactor designs, a positive mechanical linkage and auxiliary electrical interlocks provide redundant prevention. This interlock is not optional — its absence creates a direct short between two power sources.

How long does an ATS take to transfer to the generator?

Transfer time varies by application. The generator must first reach stable voltage and frequency — typically 10–30 seconds from start signal. The actual switching in an open-transition ATS takes less than 100 ms. Total time from utility loss to restored load supply is typically 15–45 seconds. Critical facilities use static or closed-transition ATS for near-instantaneous (less than 16 ms) transfer.

Can I install an ATS myself if I am a competent DIY person?

No. ATS installation involves working simultaneously with utility power (which may be live up to the main breaker) and generator power. The utility side must be treated as energised at all times. This work requires a licensed electrician in virtually all jurisdictions, and must be inspected and approved before commissioning. Improper installation can cause generator back-feed onto the utility grid, endangering utility workers.

What is a retransfer delay and why is it needed?

A retransfer delay holds the load on the generator for a set period (typically 1–30 minutes) after utility power is restored, before switching back. This prevents rapid cycling between sources if utility power is intermittent, and allows the utility supply to stabilise after a fault. Without this delay, repeated transfer switching can wear the ATS mechanism and stress connected equipment.

Does an ATS need to be rated to the full load current or just the generator output?

The ATS must be rated to carry the maximum continuous load current and must have a short-circuit withstand rating (SCCR) sufficient for the available fault current at the installation point. It must handle both the utility fault level and the generator output. Size the ATS to the load, not the generator — the load must be equal to or less than both the ATS rating and the generator's rated output.
