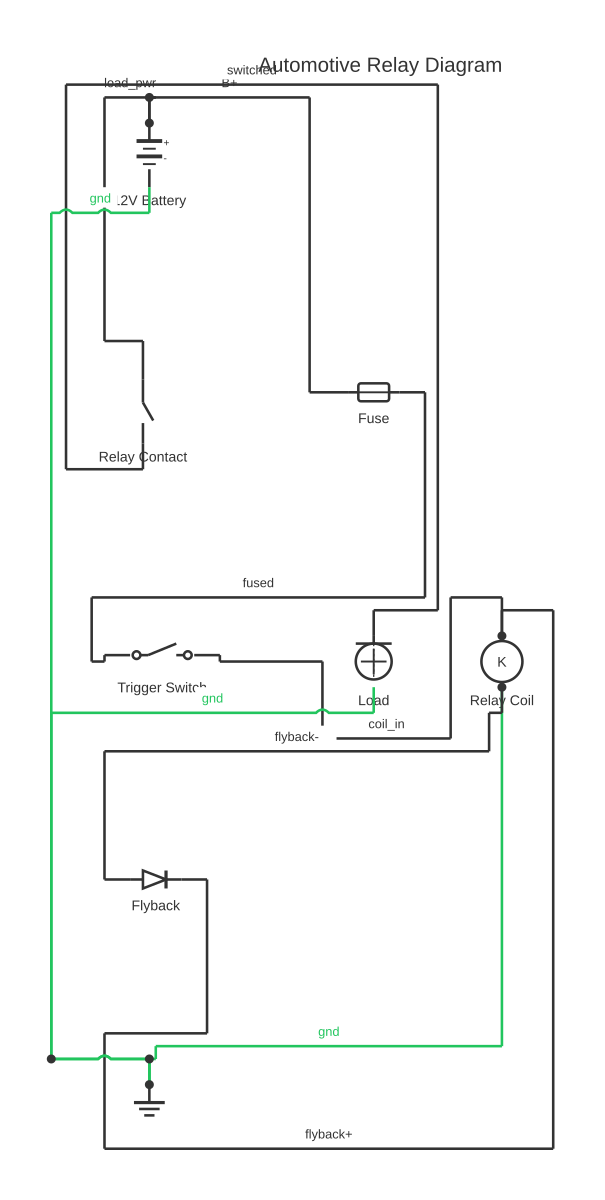

Automotive Relay Diagram: How to Drive High Loads from a Low-Current Switch Output
This is a free printable automotive relay diagram: download the diagram as SVG or open it and print to paper or PDF.
A technically precise guide to the automotive relay's role in load switching — focusing on why thin control wires can safely trigger heavy loads, how to calculate coil and contact requirements, and how to prevent common installation errors.
The fundamental purpose of an automotive relay is impedance transformation for switching: a control signal with very limited current capacity (a dashboard switch, an ECU transistor output, or a body control module pin) can command the switching of a load that would otherwise destroy the control source.
Consider a pair of driving lights drawing 20A total. Routing 20A through a dashboard switch rated for 10A would overstress the switch contacts, cause arc erosion, and eventually result in a failed or fire-damaged switch. Instead, the relay coil draws only about 150 mA from the dashboard switch — well within the switch's rating — while the relay contacts switch the full 20A independently.
The coil circuit and the contact circuit are electrically isolated inside the relay. The coil (pins 85 and 86) creates a magnetic field; the contacts (pins 30, 87, 87a) carry the load current. These two circuits share only a mechanical linkage — the magnetic armature. This isolation means the coil can be driven by a transistor output at logic level (through a driver circuit) even when the contact circuit is switching 12V at 30A.
When calculating coil requirements, note that a 12V relay coil drawing 150 mA presents a load of 80 ohms (by Ohm's law: R = V/I = 12/0.15). An ECU pin rated for 200 mA maximum current output can drive this coil directly. A microcontroller GPIO pin rated for 20 mA maximum output cannot — a transistor or dedicated relay driver IC is required to amplify the GPIO signal to a level that can energise the coil.
For the contact circuit, the key specification is the contact current rating under inductive load conditions, not the resistive rating printed on the relay housing. Inductive loads — motors, solenoids, compressors — generate voltage spikes when switched off, and the arc energy at the contact during switching exceeds that of a purely resistive load at the same current. Derate the resistive contact rating by approximately 30% for sustained inductive switching.
An automotive relay is a small electromechanical switch that lets a low-current circuit (the trigger) control a high-current circuit (the load), protecting switches and ECU outputs from overload. The standard ISO 280 mini relay found in virtually every vehicle follows a universal five-pin layout, though four-pin versions (without pin 87a) are most common for simple on/off switching of horns, lights, and fans. You can draw and annotate any automotive relay diagram free in your browser at circuitdiagrammaker.com.
How to wire automotive relay diagram
- Calculate the control source's current capability Identify the control source (ECU pin, body control module, dashboard switch, or microcontroller GPIO). Find its maximum output current in the vehicle service manual or component datasheet. If this value exceeds 150 mA, it can drive a standard relay coil directly. If it is under 150 mA, a transistor driver stage is required between the control output and the relay coil.
- Select the relay for the load type and current Identify whether the load is resistive (lights, heaters) or inductive (motors, fans, solenoids). For resistive loads, select a relay with a contact rating at or above the load current. For inductive loads, divide the load current by 0.7 to get the minimum resistive contact rating required. Verify the relay's contact voltage rating suits the circuit voltage.
- Add a transistor driver if required If the control source cannot drive the coil directly, use an NPN transistor (e.g. BC337 or 2N2222) with the collector connected to relay pin 86, emitter to ground, and base driven through a current-limiting resistor from the control signal. Calculate the base resistor to set collector current slightly above the coil current requirement.
- Fit the flyback diode across the coil Whenever a transistor, MOSFET, or any semiconductor drives the coil, fit a 1N4007 (or equivalent) diode in reverse bias across pins 85 and 86. Without this diode, the inductive voltage spike from the collapsing coil field can exceed 100V and destroy the driver transistor or ECU output stage.
- Design the contact circuit with correct fusing and wire sizing The load circuit (pins 30, 87) must be fused at the battery end. Choose wire gauge for the maximum continuous load current, not just the steady-state current. Use the appropriate wire ampacity table for the cable insulation temperature rating — PVC-insulated wire in a conduit bundle has a lower ampacity than the same wire in free air.
- Verify full circuit function under load After completing the installation, measure the voltage at the load terminals under full operating conditions. Voltage drop across the relay contacts should not exceed 0.2V. Measure the relay case temperature after 10 minutes at full load — it should be warm but not hot to the touch. Excessive contact temperature indicates an underrated relay or a connection with high resistance.
Specifications
| Coil resistance (standard 12V relay) | 70–120 Ω |
|---|---|
| Coil current at 12V | 100–170 mA |
| Inductive load derating factor | 70% of resistive contact rating |
| Minimum ECU/switch output for direct coil drive | 150 mA (source current capable) |
| Contact voltage drop (healthy relay, full load) | Under 0.2V DC |
| Flyback diode specification | 1N4007 (1A / 1000V) in reverse bias across coil |
| Pull-in voltage (typical) | 8–9V DC minimum |
| Pin layout | ISO 280 / DIN 72552: 30, 85, 86, 87, 87a |
Safety warnings
- Disconnect the battery negative terminal before making any electrical connections. The load circuit wiring between the battery and relay pin 30 is always live once connected — an accidental short can weld the cable and start a fire before any fuse responds.
- Do not omit the flyback diode when driving the relay coil from any semiconductor output — microcontrollers, ECU outputs, and transistors can be destroyed by the inductive voltage spike from the collapsing coil field, which can exceed 100V.
- Ensure the selected relay's contact voltage rating matches the circuit operating voltage. Using a relay with a lower contact voltage rating than the circuit voltage causes accelerated arc erosion and premature contact failure.
- Do not touch relay contacts or connection terminals immediately after disconnecting from a high-current load — residual heat in the contact area can cause minor burns.
Tools needed
- Digital multimeter (DC voltage, resistance/continuity, DC current if available)
- Wire strippers and crimp tool (correct jaw for terminal type and wire gauge)
- Soldering iron (for transistor driver circuit construction if required)
- Oscilloscope (to observe and confirm flyback spike suppression during commissioning)
- Bench power supply (for off-vehicle testing of relay and driver circuit)
Common mistakes
- Calculating the minimum relay contact rating using the steady-state load current for an inductive load without applying the 30% derating factor — selecting a relay rated exactly at the running current of a motor leaves no margin for start-up surge or arc energy.
- Grounding the flyback diode cathode to chassis rather than connecting it directly across the coil terminals — a diode connected to chassis instead of across the coil will not suppress the spike correctly and may still allow a damaging transient to reach the driver transistor.
- Omitting the transistor base resistor, which allows the full control signal voltage to saturate the transistor base and can destroy the base-emitter junction over time from thermal stress.
- Assuming that because the relay clicks it is working correctly — a relay with degraded contacts can click but fail to maintain continuity under load due to contact pitting or carbon buildup.
- Using a relay salvaged from an unknown source without verifying its coil resistance and contact ratings — salvaged relays may have reduced contact life from previous high-inductive-load switching.
Troubleshooting
- Driver transistor fails repeatedly after relay installation
- Cause: Missing flyback diode — inductive spike from relay coil de-energisation is destroying the transistor collector-emitter junction Fix: Fit a 1N4007 diode directly across the relay coil pins 85 and 86 in reverse bias (cathode to the positive coil pin). Verify correct diode orientation before replacing the transistor.
- Relay contacts carry current when the coil is de-energised (load stuck on)
- Cause: Contacts welded closed from sustained inductive load switching, or the relay was underrated for the load Fix: Replace the relay with one that is correctly rated for the load type. For an inductive load, use a relay with a 30A resistive contact rating when the load draws 20A (30% derating applied). Consider fitting a snubber (RC network) across the load terminals to reduce arc energy.
- Significant voltage drop across relay contacts under load
- Cause: Contact surface oxidation from extended service, or contacts were never rated for the continuous load current Fix: Measure voltage from pin 30 to pin 87 while the relay is energised and carrying full load — should be under 0.2V. If higher, replace the relay and ensure the replacement has adequate contact current rating for the specific load.
Frequently asked questions
Why can a microcontroller not drive a relay coil directly?
Most microcontroller GPIO pins are limited to 5–20 mA source or sink current. A standard 12V automotive relay coil draws 120–170 mA — six to thirty times the GPIO pin limit. Driving the coil directly would damage the microcontroller. A transistor (BJT or MOSFET) is interposed between the GPIO pin and the coil to amplify the current; the microcontroller drives the transistor base, and the transistor conducts the coil current.
What is inductive load derating and why does it matter?
When an inductive load (motor, solenoid) is switched off, the collapsing magnetic field induces a back-EMF voltage spike across the circuit. This spike causes arcing at the relay contacts during opening, eroding the contact surface faster than a resistive load would. Derating to 70% of the resistive contact rating accounts for this additional arc energy and extends contact life.
Can I use a 12V relay to switch a 24V circuit?
The contact circuit is rated for a maximum voltage — commonly 14V DC for standard automotive relays, though some relays have 24V or higher contact ratings. Check the relay's contact voltage rating in its datasheet. The coil must still be driven at its rated voltage (12V). Using a 12V coil relay on a 24V coil supply will burn out the coil.
How do I test a relay without a wiring diagram?
Apply 12V directly to pin 86 and ground pin 85 — you should hear a click as the armature pulls in. Then measure continuity: pins 30 and 87 should be open when the coil is off, closed when the coil is on. Pins 30 and 87a should be closed when the coil is off, open when the coil is on. Coil resistance measured across 85 and 86 should be 70–120 ohms.
Why does my relay get warm during normal operation?
Relay warming has two sources: coil heat (normal — the coil dissipates about 1.5–2W continuously) and contact resistance heat (abnormal if significant — indicates contact degradation or a connection that is loose or corroded). A warm relay body is normal; a hot relay with discoloured terminals indicates a contact problem.
What is the wiring diagram for an automotive relay?
A standard 4-pin automotive relay has four numbered terminals: pin 30 (common, connects to the load's power supply via a fuse), pin 87 (normally open output, connects to the load), pin 85 (coil negative, connects to chassis ground), and pin 86 (coil positive, connects to the trigger signal). When the trigger applies voltage to pin 86, current flows through the coil between 85 and 86, magnetically closing the contacts between 30 and 87 and powering the load. A 5-pin relay adds pin 87a (normally closed output) for applications needing the load energised when the relay is off.
