Calling Bell (Simple Doorbell) Electrical Diagram
This is a free printable calling bell circuit diagram: download the diagram as SVG or open it and print to paper or PDF.

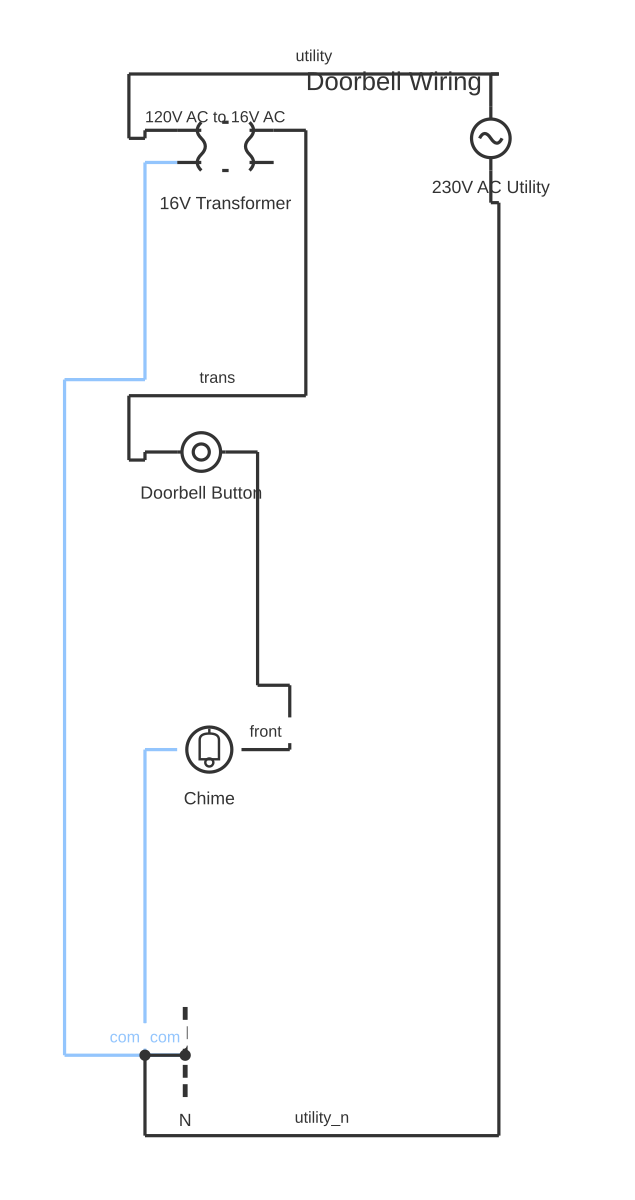

A calling bell circuit diagram demonstrates the basic electrical setup for a simple doorbell system. This fundamental diagram shows how a transformer, push button, and bell connect to create a functional notification system.
A simple calling bell circuit uses electromagnetic principles to produce sound when activated. The circuit begins with a step-down transformer that reduces high-voltage AC (120V) to low-voltage AC (12-24V) suitable for the bell device. When a visitor presses the push button, it closes a switch that completes the circuit path through the transformer's secondary winding to the bell mechanism. Inside the bell, a solenoid coil creates a magnetic field that attracts an armature attached to a striker. The striker hits the bell creating sound. When the button is released, the circuit opens and the magnetic field collapses, allowing a spring to return the striker to its resting position. This cycle can occur hundreds of times per second when the button is held down, creating a continuous ringing sound. The transformer is the critical safety component: its primary winding connects to the house electrical system through a dedicated breaker, while the secondary provides safe low-voltage power. The low-voltage secondary circuit poses minimal shock hazard, making this system very safe for visitors to use.
How to wire calling bell circuit diagram
- Turn off the circuit breaker that powers the doorbell transformer.
- Locate the transformer, usually installed in a basement or utility closet.
- Verify the transformer voltage matches your doorbell requirements.
- Connect the transformer primary (high voltage) to the appropriate breaker circuit.
- Run low-voltage wire from the transformer secondary to the door push button location.
- Connect the push button wires to complete the secondary circuit path to the bell.
- Run wires from the bell back to the transformer secondary to complete the loop.
- Restore power and test the doorbell to verify proper operation.
Frequently asked questions
Can I use a standard 16V doorbell transformer with a 12V doorbell?
Yes, most doorbells accept input between 12V and 16V AC. Always check the doorbell manufacturer specifications to confirm compatible voltage ranges.
What happens if my doorbell transformer fails?
The doorbell will not function. The primary symptoms are complete silence and no voltage on the secondary terminals when measured with a multimeter.
How do I choose between a buzzer and a chime?
Buzzers produce a continuous buzzing sound, while chimes ring a musical note. Chimes are more pleasant but require more power. Choose based on preference and the transformer capacity.
Can I install a doorbell myself?
Yes, the low voltage secondary makes this safe for DIY installation. However, the primary connections should follow electrical code or be done by a licensed electrician.
What's the purpose of the push button in the diagram?
The push button acts as a switch that connects the circuit when pressed. It's a simple momentary contact switch that breaks the circuit when released.
