Campervan Wiring Diagram

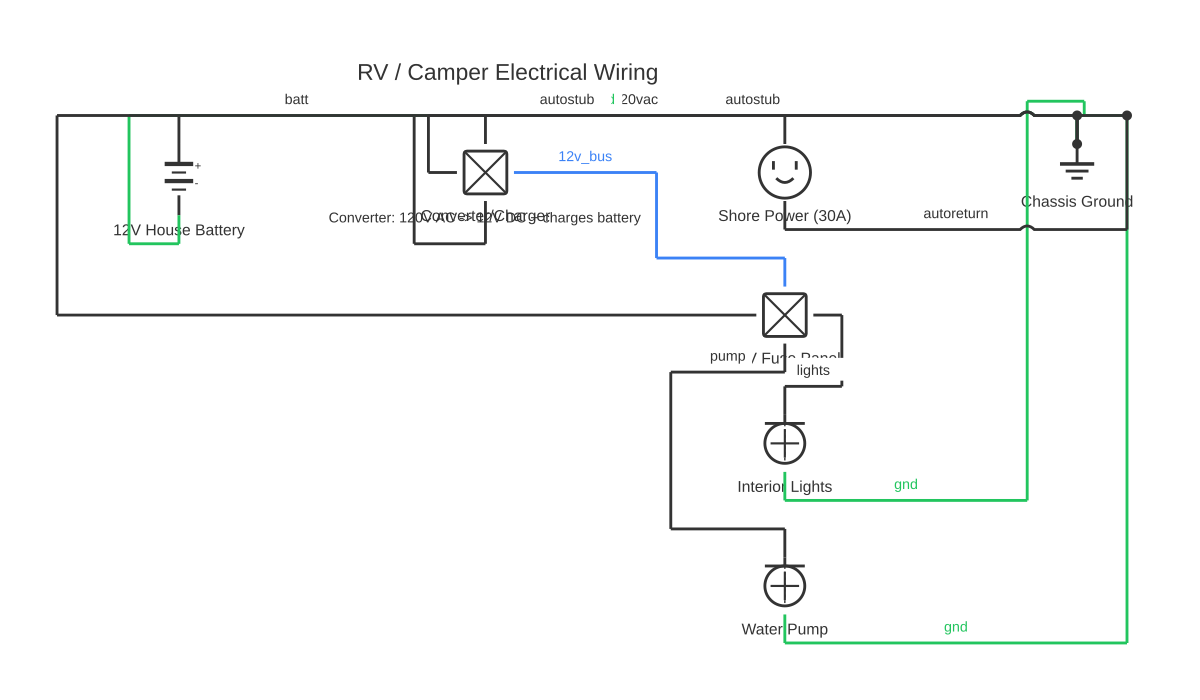

Campervan Wiring Diagram — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable campervan wiring diagram: download the diagram as SVG or open it and print to paper or PDF.

A campervan wiring diagram maps out the 12 V DC and optional 230 V AC electrical systems — from solar panels and battery bank through to lighting, water pumps, and appliances — letting you design a system that works reliably off-grid and on-site.

Campervan electrical systems typically centre around a 12 V DC battery bank, with solar panels and the van's alternator as primary charging sources. When site power is available, a mains battery charger (or inverter-charger) tops up the batteries and can supply 230 V AC loads directly. Understanding the flow of power through the system is the foundation of any safe and reliable build.

System overview: 1. Generation and charging: Solar panels output variable DC voltage, regulated by an MPPT charge controller. The van's alternator charges the battery bank via a battery-to-battery (DC-DC) charger that isolates the leisure (house) battery from the starter battery — preventing the van from being unable to start because the leisure loads drained it. Shore power (230 V AC, 16 A typically in Europe) feeds a charger or inverter-charger.

2. Battery bank: Deep-cycle batteries (AGM or lithium LiFePO4) store energy. Lithium offers more usable capacity per kilogram and tolerates deeper discharge, but costs more and requires a compatible charger. A battery monitor or shunt gives accurate state-of-charge readings.

3. 12 V distribution: A bus bar with individual fused circuits feeds lights, water pump, diesel heater, compressor fridge, USB chargers, and other 12 V loads. Each circuit is fused independently at the bus bar to protect the wiring.

4. 230 V AC system: An inverter converts 12 V battery power to 230 V AC for laptops, phone chargers, and small appliances. A combined inverter-charger can also accept shore power and switch automatically between mains and battery. The shore-power inlet typically uses a CEE 17 (caravan) or standard domestic socket depending on the region.

5. Safety: A main 12 V isolation switch disconnects the leisure battery. The chassis of the van acts as the negative return for 12 V circuits (negatively grounded). All cables must be correctly sized, routed away from heat sources, and protected with appropriate fuses.

How to wire campervan wiring diagram

Calculate your energy budget before buying components List every 12 V and 230 V load, its wattage, and daily hours of use. Sum to get daily Wh consumption. This determines battery bank size, solar array size, and inverter rating. Skipping this step is the single biggest cause of undersized systems.
Install and bond the leisure battery bank Mount batteries in a ventilated (for lead-acid) or enclosed compartment. Connect all battery cells in parallel or series-parallel for required voltage and capacity. Bond the battery negative terminal to the van chassis with a heavy earth strap.
Install the main isolation switch and fuse holder Fit a main battery isolation switch within reach of the battery and a main ANL fuse within 30 cm of the battery positive terminal. This lets you disconnect all 12 V power safely and protects the main cable from fault current.
Mount the DC-DC charger and connect to starter battery via existing fusebox Wire the DC-DC charger input to the van's starter battery feed (via a dedicated fuse), and the output to the leisure battery bank. Configure the charger for your battery chemistry (AGM or LiFePO4 profile).
Install the MPPT solar charge controller and panel wiring Mount the controller inside the van (away from heat). Run MC4 solar cable from the roof panels to the controller input (observe polarity; always connect battery side first). Wire the controller battery output to the leisure bank via its own fuse.
Install the positive and negative bus bars Connect the leisure battery positive (via main fuse and isolation switch) to the positive bus bar. Connect all 12 V loads via individual blade fuses at the bus bar. Run all negative returns to the negative bus bar, which connects back to the battery negative and chassis.
Install the inverter or inverter-charger and shore-power inlet Mount the inverter close to the battery bank. Use correct cable gauge for the inverter current. Wire the shore-power inlet through an RCD and MCB to the inverter-charger AC input and to any direct AC loads. Test both inverter and charger modes before using the van.

Specifications

System voltage (typical)	12 V DC
Shore-power supply (Europe)	230 V AC, 50 Hz, 16 A CEE 17 or domestic plug
Shore-power supply (North America)	120 V AC, 30 A, NEMA TT-30
Solar charge controller type	MPPT (recommended for efficiency)
Main battery fuse position	Within 30 cm of battery positive terminal
Applicable AC standard (UK)	BS 7671 (IET Wiring Regulations)
Applicable AC standard (Australia/NZ)	AS/NZS 3000
Battery monitor shunt rating	Match or exceed maximum system current

Safety warnings

230 V AC work in a vehicle must comply with the applicable wiring regulations for your country (BS 7671 in the UK, AS/NZS 3000 in Australia and New Zealand, etc.). If in doubt, have a qualified electrician inspect and certify the AC system.
Always fit an RCD and miniature circuit breakers on the 230 V AC system. In a damp or metal-bodied vehicle, the risk of electrocution from an unprotected mains fault is significant.
Never work on the 12 V system without first isolating the leisure battery via the main isolation switch. Short circuits at 12 V can deliver hundreds of amps, causing immediate cable fire.
Lithium LiFePO4 batteries must not be charged below 0 °C (32 °F) without a low-temperature cutoff in the BMS — charging a cold lithium cell causes irreversible internal damage (lithium plating).
Route all wiring away from exhaust components, moving parts, and sharp metal edges. Use grommets wherever cables pass through panels or chassis members.

Tools needed

Digital multimeter
Clamp meter
Crimping tool with heat-shrink lugs
Wire strippers
Voltage drop calculator
Drill and hole saws (for cable routing)
Cable ties, edge grommets, and split loom conduit

Common mistakes

Connecting the leisure battery directly in parallel with the starter battery without a DC-DC charger or VSR, risking a dead starter battery from overnight leisure loads.
Using undersized cable between the battery bank and inverter, which causes dangerous heating and severe voltage drop under load.
Omitting individual fuses on each branch circuit at the bus bar, leaving wiring unprotected if a short develops in a load or cable.
Installing lithium batteries without verifying that the charger (DC-DC, solar controller, and mains charger) supports lithium charge profiles — incorrect profiles overcharge or undercharge cells.
Routing the positive main cable too close to the negative (or chassis) without protection, creating a risk of chafing, short circuit, and fire.
Skipping the energy budget calculation and buying components intuitively, leading to a system that runs out of power by mid-afternoon.

Troubleshooting

Battery does not charge from solar even on a sunny day: Cause: Blown fuse in the solar circuit, wrong polarity on panel or battery connections, or controller set to wrong battery type. Fix: Check the solar fuse. Measure open-circuit panel voltage at the controller input — should be above battery voltage. Confirm the controller battery output voltage is above the resting battery voltage. Check controller settings for correct battery chemistry.
Lights flicker when the compressor fridge starts: Cause: High inrush current from the fridge compressor causes a momentary voltage drop, which dims 12 V LED lights momentarily. Fix: This is often normal for LED drivers sensitive to voltage fluctuation. Move the fridge to a dedicated high-capacity circuit. Add a capacitor across the fridge supply terminals to smooth the inrush (100–1000 µF, rated 16 V or above).
Inverter beeps and shuts off: Cause: Battery voltage too low (low-voltage cutoff triggered), inverter overloaded, or overtemperature shutdown. Fix: Check battery state of charge. Measure battery voltage at the inverter terminals under load — if below 11 V (for 12 V lead-acid) or 11.5–12 V (for LiFePO4, check BMS specs), the bank needs more capacity or charging. Reduce load or improve ventilation around the inverter.
Alternator not charging leisure battery via DC-DC charger: Cause: Input fuse blown, DC-DC charger requires ignition-sense signal that is not connected, or input voltage too low. Fix: Check the input fuse on the DC-DC charger. Some chargers require a separate ignition-sense wire — verify this is connected to a switched 12 V supply. Measure input voltage at the charger while the engine is running — should be 13.5–14.8 V.

Frequently asked questions

What is the difference between a DC-DC charger and a split-charge relay for van conversions?

A split-charge relay (VSR) simply connects the leisure battery to the starter battery when alternator voltage rises — both batteries share charging current, and the leisure battery can drain the starter battery if deeply discharged. A DC-DC (battery-to-battery) charger isolates the two batteries and actively converts voltage to provide an optimised charge profile, protecting the starter battery and charging leisure batteries more efficiently, especially lithium types.

How many solar panels do I need for a campervan?

Calculate your daily energy consumption in watt-hours (Wh). Divide by the average peak sun hours for your location. Account for panel efficiency losses (dust, angle, temperature) by adding a 25–30% margin. A typical campervan with a fridge, lights, and device charging might need 200–400 Wp of panels and 100–200 Ah of lithium battery capacity for a comfortable off-grid experience in moderate climates.

Can I use the van's chassis as a negative return for all 12 V circuits?

Yes, most 12 V campervan systems use the chassis as a common negative return, which reduces wiring complexity. Every load connects from a fused positive bus bar back to the chassis via its own ground point. Ensure ground connections are made to clean, unpainted metal with adequate surface area and that the battery negative is bonded solidly to the chassis.

What size cable do I need between my batteries and inverter?

Inverter cables must be sized for peak current draw plus a safety margin. A 1,000 W inverter at 12 V draws approximately 100 A; a 2,000 W inverter draws around 200 A. For short runs (under 1 m), 25–35 mm² is typical for a 1,000 W inverter. Always use the cable manufacturer's current rating table and keep the cable run as short as possible.

Do I need an RCD (residual current device) in a campervan 230 V system?

Yes. Any 230 V AC circuit in a campervan should be protected by an RCD (RCCB in some markets). This is a fundamental safety requirement — if an insulation fault develops in damp or cramped conditions, an RCD can prevent electrocution. Use a combined MCB/RCBO or a separate RCD upstream of all AC outlets.
