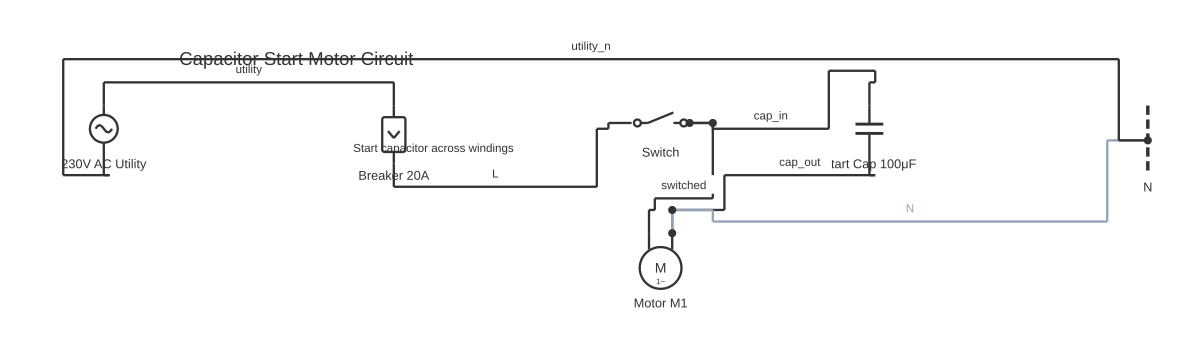

A capacitor circuit diagram illustrates how capacitors are connected to store and release electrical charge, showing their role in filtering, timing, coupling, decoupling, and power factor correction across AC and DC circuits.

A capacitor is a passive two-terminal component that stores electrical energy in an electric field between two conductive plates separated by a dielectric (insulating) material. Its capacitance, measured in farads (F), determines how much charge it can store for a given voltage. In practice, circuit values range from a few picofarads (pF) in radio-frequency (RF) tuning circuits to thousands of microfarads (µF) in power supply filter stages.

Capacitors in circuit diagrams perform several distinct roles. In DC power supplies, large electrolytic capacitors (bulk capacitance) smooth the rectified AC ripple into a steady DC rail. Smaller ceramic or film capacitors (decoupling or bypass capacitors) are placed close to integrated circuit supply pins to suppress high-frequency switching noise. In signal circuits, coupling capacitors pass AC signals between stages while blocking DC bias voltages. In RC timing circuits, the capacitor charges through a resistor at a known time constant (τ = RC seconds), enabling timers and oscillators.

In AC power circuits, capacitors provide power factor correction (PFC). Inductive loads such as motors draw lagging current; a capacitor connected in parallel supplies leading reactive current, reducing the phase angle and improving power factor toward unity. This reduces losses and can avoid utility power factor penalties.

Capacitors are connected in three main circuit configurations. In series, total capacitance decreases (reciprocal sum) but voltage handling increases. In parallel, capacitances add directly. In mixed networks, both effects combine. Polarised capacitors (aluminium electrolytic, tantalum) must be connected with the positive terminal to the more positive circuit node; reverse connection causes gas generation, leakage, and risk of rupture. Non-polarised film and ceramic capacitors may be connected in either orientation.

How to wire capacitor circuit diagram

Identify the capacitor's function in the circuit Determine whether the capacitor will act as a filter, coupling, decoupling, timing, snubber, or power factor correction element. The function determines the required capacitance value, voltage rating, and type (electrolytic, ceramic, film, tantalum).
Calculate the required capacitance value For RC timing: τ = RC; for the 555 timer astable: f ≈ 1.44/((R1+2R2)×C). For power supply filtering: C = I/(2×f×Vripple). For decoupling, 100 nF ceramic is a standard starting point, supplemented by a bulk 10–100 µF electrolytic on the rail.
Select the capacitor type for the application Use aluminium electrolytic for large-value, low-frequency filtering. Use MLCC ceramic (X7R or X5R dielectric) for decoupling and small-signal applications. Use polyester or polypropylene film for AC power, audio coupling, and precision timing. Use tantalum only where size is critical and voltage is well-controlled.
Determine the voltage rating Measure or calculate the maximum voltage across the capacitor including transients. Select a rated voltage at least 1.5× the maximum expected voltage. For AC circuits, base the selection on peak voltage, not RMS.
Observe polarity for electrolytic and tantalum capacitors Identify the positive terminal (longer lead on through-hole, stripe marking or minus sign on the can's negative side). Connect the positive terminal to the more positive circuit node. Verify this with a multimeter before powering up.
Place the capacitor in the circuit diagram and physical layout On PCB layouts, place decoupling capacitors as close as possible to the IC supply pin. Keep high-capacitance filter capacitors close to the rectifier output or regulator. Note polarity on the schematic symbol and the PCB silk-screen.
Test and verify Power up with current-limited supply. Measure DC voltage across electrolytic capacitors to confirm correct polarity. Check ripple with an oscilloscope across filter capacitors. Verify timing or frequency with a multimeter or oscilloscope for RC circuits.

Specifications

Capacitance range (typical)	1 pF (RF ceramic) to 100 000 µF (large electrolytic)
Voltage ratings	1.8 V (tantalum, small SMD) to 630 V (film capacitors); up to 450 V (electrolytic)
ESR — Equivalent Series Resistance (aluminium electrolytic)	Typically 0.01–1 Ω (low-ESR types) to several ohms (standard types)
Temperature coefficient (X7R MLCC ceramic)	±15% capacitance variation from -55 °C to +125 °C
RC time constant formula	τ = R × C (seconds, with R in ohms, C in farads)
Series capacitance formula	1/Ctotal = 1/C1 + 1/C2 + 1/C3 …
Parallel capacitance formula	Ctotal = C1 + C2 + C3 …

Safety warnings

Capacitors in power supplies and motor start/run circuits can retain dangerous charge long after the supply is disconnected. Always discharge large capacitors through a discharge resistor (not a direct short circuit) before handling. Verify zero voltage with a calibrated voltmeter before touching terminals.
Never exceed a capacitor's rated working voltage (WVDC for DC types, VAC for AC types). Overvoltage causes dielectric breakdown, which is often violent in electrolytic types. In AC circuits, use the peak voltage for selection, not the RMS value.
Polarised capacitors (electrolytic, tantalum) connected with reversed polarity will fail — sometimes explosively. Always verify polarity on the schematic and physically before applying power.
Power factor correction capacitors in mains AC circuits must be rated for AC service (X-rated or Y-rated film capacitors) and installed by a licensed electrician in compliance with IEC 60364, NEC/NFPA 70, or applicable local codes. Standard DC electrolytic capacitors must never be used directly across mains AC.
Capacitors in motor start circuits can supply a brief but significant short-circuit current. Treat the output terminals as potentially energised even when the supply is removed.

Tools needed

Digital multimeter with capacitance measurement function
Oscilloscope (for ripple and timing verification)
Discharge resistor (1 kΩ – 10 kΩ, appropriately rated wattage)
Calibrated DC voltmeter or multimeter (to verify zero charge before handling)
Soldering iron and solder (for PCB assembly)
LCR meter (for precise capacitance and ESR measurement)

Common mistakes

Connecting an electrolytic or tantalum capacitor with reversed polarity, causing rapid failure, gas venting, or rupture.
Selecting a capacitor with a voltage rating too close to the operating voltage, reducing service life and increasing failure risk — particularly in mains-derived supplies with transient spikes.
Using a capacitor value that is too small in a power supply filter, resulting in excessive ripple voltage that disrupts downstream circuits.
Placing decoupling capacitors far from the IC supply pin on the PCB, making them ineffective at suppressing high-frequency switching noise due to parasitic inductance in the trace.
Using an electrolytic capacitor in an AC circuit where the voltage polarity reverses — electrolytics are DC-only devices unless a back-to-back non-polarised configuration is used.
Not accounting for capacitance derating in MLCC ceramic capacitors under DC bias, which can reduce effective capacitance by 50–80% in X5R/X7R types at rated voltage.

Troubleshooting

Excessive ripple on DC supply rail: Cause: Bulk filter capacitor has failed (high ESR or lost capacitance), is undersized, or has dried out due to age or overtemperature Fix: Measure ESR with an LCR meter or ESR meter. A healthy electrolytic has ESR below a few hundred milliohms; failed units often show several ohms. Replace with a capacitor of equal or higher capacitance and the same or higher voltage rating.
Timing circuit produces wrong period or frequency: Cause: Capacitor value incorrect, capacitor leakage (especially with old electrolytics), or resistor tolerance causing error Fix: Measure capacitance with an LCR meter or multimeter capacitance function. Verify resistor values with multimeter. Replace leaky electrolytics with film capacitors for precision timing applications.
Capacitor becomes hot during operation: Cause: Voltage rating exceeded, high ripple current exceeding the capacitor's ripple current rating, or applied frequency much higher than the capacitor's intended range Fix: Reduce voltage or select a higher-rated capacitor. Check the ripple current rating in the datasheet. For high-ripple applications, use low-ESR types rated for the required ripple current. Never operate a hot capacitor — shut down immediately.

Frequently asked questions

What does a capacitor symbol look like in a circuit diagram?

A non-polarised capacitor is shown as two parallel lines of equal length. A polarised electrolytic capacitor is shown with one curved plate (the negative terminal) and a plus (+) sign beside the positive terminal. IEC and ANSI/IEEE symbols differ slightly but both conventions use parallel-line representations.

How do I calculate the total capacitance of capacitors in series and parallel?

In parallel, add the values directly: Ctotal = C1 + C2 + C3. In series, use the reciprocal sum: 1/Ctotal = 1/C1 + 1/C2 + 1/C3. For two equal capacitors in series the result is exactly half the individual value. For two in parallel it is double. This mirrors the opposite behaviour to resistors.

Why do electrolytic capacitors explode?

Aluminium electrolytic capacitors explode when reverse-biased (polarity reversed), when the applied voltage exceeds their rated working voltage, or when they are used beyond their temperature rating. Reverse bias causes electrolytic gas to form rapidly inside the sealed can, building pressure until the safety vent ruptures violently.

What is a decoupling capacitor and why is it needed?

A decoupling (bypass) capacitor, typically 100 nF ceramic, is placed between the supply pin and ground of an integrated circuit as close to the pin as possible. It provides a local reservoir of charge to supply instantaneous current demands during switching transitions, preventing voltage dips that cause logic errors in nearby devices.

How do I know what voltage rating capacitor to choose?

Select a capacitor with a voltage rating at least 20–50% higher than the maximum voltage it will see in the circuit. For a 12 V supply, choose a capacitor rated at 16 V or 25 V minimum. In AC circuits, use the peak voltage, not the RMS value: peak = RMS × 1.414.
