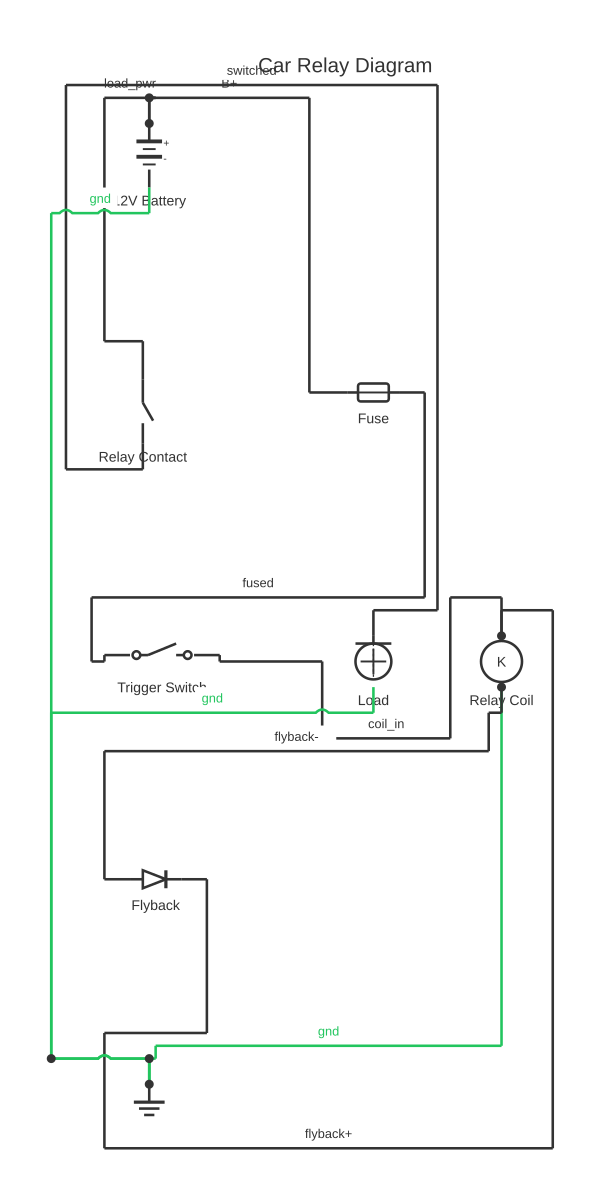

Car Relay Diagram: How to Diagnose and Fix a Failed Relay Circuit — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable car relay diagram: download the diagram as SVG or open it and print to paper or PDF.

A troubleshooting-focused reference for car relay wiring — using systematic voltage checks, resistance measurements, and swap tests to identify whether a fault lies in the relay, the coil circuit, the contact circuit, or the load itself.

A relay circuit has four possible failure zones: the coil circuit (including the control switch and the coil supply), the coil itself, the contact circuit (including the load wiring and load ground), and the load device. Identifying which zone is at fault before replacing parts saves time and cost.

Relays fail in two modes: fail-open (contacts do not close when the coil energises, or the coil does not energise at all) and fail-closed (contacts remain closed even when the coil is de-energised). Fail-open is more common and less dangerous. Fail-closed — caused by welded contacts — means the load runs continuously regardless of the control switch.

The most reliable starting point for relay diagnosis is measuring the coil supply. With the control switch on (or the ECU commanding the relay), probe pin 86 with a multimeter set to DC voltage. You should see battery voltage (approximately 12–14V with engine running). If no voltage is present, the fault is upstream in the control circuit — the switch, the ECU output, the fuse supplying the switch, or the wiring between them. If 12V is present at pin 86, check pin 85 — it should be at or near 0V (chassis ground). If both coil pins have voltage but the relay does not click, the coil is open-circuit (failed internally) or the voltage difference across the coil is insufficient to pull in the armature.

If the coil circuit is confirmed healthy (relay clicks audibly), the fault moves to the contact circuit. With the relay energised, measure pin 30 — it should show battery voltage (this is the incoming supply). Measure pin 87 — it should also show battery voltage if the contacts are closed correctly. If pin 30 is live but pin 87 is dead, the contacts are open despite the relay clicking, indicating a failed contact surface or a mechanically failed armature.

A swap test — replacing the suspected relay with a known-good relay of the same type — is a valid and fast diagnostic step, but only after the coil and contact circuit checks have been performed. Swapping a relay into a circuit with a wiring fault will confirm the wiring is the problem — the new relay will exhibit the same fault.

Automotive relay wiring is central to managing high-current loads — horns, fans, lights, and pumps — without stressing the switch or ECU output. The standard ISO micro or mini relay used in most cars has five or four pins: 85 and 86 are the coil terminals (low-current control circuit), 30 is the common contact connected to battery power, 87 is the normally open contact (output when energised), and 87a is the normally closed contact on a changeover relay. Drawing a clear car relay wiring diagram in the free online editor helps verify the control and load circuits before installation.

How to wire car relay diagram

Confirm the fault symptom and which circuit is affected Identify exactly what the relay controls and what the specific fault is — load never operates, load operates continuously, or load operates intermittently. This narrows the diagnostic approach before any measurements are taken.
Check for coil supply voltage at pin 86 With the control switch activated (or the ECU commanding the relay), probe pin 86 with a multimeter (DC voltage, negative probe to chassis). You should read battery voltage (12–14V). No voltage indicates a fault in the control circuit upstream of the relay — trace the circuit back to the switch, fuse, or ECU output.
Check coil ground at pin 85 Probe pin 85 with a multimeter (DC voltage, negative probe to chassis). With the coil energised, this should read near 0V. A reading of several volts at pin 85 indicates a high-resistance or open-circuit ground — trace the ground wire from pin 85 back to its chassis termination point.
Confirm the relay clicks and measure contact circuit If pins 85 and 86 show correct voltages but no audible click, the relay coil is open-circuit — measure resistance across pins 85 and 86 with the relay removed. Expect 70–120 Ω. Infinite resistance confirms an open coil; replace the relay. If the relay clicks, probe pin 87 — it should show battery voltage with the relay energised.
Check the load supply feed at pin 30 Probe pin 30 (with the relay in circuit) with the multimeter. It should always show battery voltage (live supply). If pin 30 is dead, there is a fault in the supply wiring from the battery — typically a blown fuse. Check the inline fuse in the pin 30 supply.
Isolate the fault to relay or wiring If both pin 30 (live) and pin 86 (control signal present) are confirmed, but the load does not operate, substitute the relay with a known-good unit of the same specification. If the replacement relay resolves the fault, the original relay's contacts were failed. If the fault persists, the problem is in the wiring between pin 87 and the load, or in the load or load ground itself.

Specifications

Expected coil voltage at pin 86 (relay commanded on)	Battery voltage: 12–14V DC
Expected coil ground at pin 85 (relay commanded on)	Near 0V DC (under 0.5V)
Expected coil resistance at ambient temperature	70–120 Ω
Expected voltage at pin 30 (always live when fuse intact)	Battery voltage: 12–14V DC
Expected voltage drop across contacts (30 to 87, full load)	Under 0.2V DC
Expected continuity pin 30 to 87 (coil energised)	Closed (conducting), under 0.1 Ω
Expected continuity pin 30 to 87 (coil off)	Open (infinite resistance)
Expected continuity pin 30 to 87a (coil off)	Closed (conducting)

Safety warnings

Take all voltage measurements with the circuit live only as required for diagnosis — return the circuit to a safe state before making or breaking any connections. A momentary short during live circuit probing can blow fuses, damage ECUs, or cause burns.
Do not force back-probe pins or sharp test probes into ECU connector terminals — damaged terminal contacts cause intermittent faults that are significantly harder to diagnose than the original problem.
When testing a cooling fan relay or fuel pump relay, be aware that the load circuit may carry significant current — position yourself and test equipment clear of rotating parts or fuel components before commanding the relay on.
Confirm the vehicle handbrake is applied and the transmission is in park or neutral before performing any electrical diagnosis with the engine running.

Tools needed

Digital multimeter (DC voltage, resistance, continuity functions)
Back-probe adaptor set (fine pin adaptors for connector probing)
Test lamp (12V, with alligator clip leads)
Jumper wires with insulated alligator clips (for bench testing relay out of circuit)
Vehicle wiring diagram for the circuit being diagnosed

Common mistakes

Replacing the relay as the first step without diagnosing the circuit — if the fault is a blown fuse, an open control wire, or a failed switch, replacing the relay achieves nothing and the fault recurs.
Performing a swap test with a relay from a different position in the fuse box without verifying that the substitute relay has the same coil voltage and contact rating — an incorrect relay may appear to work initially but fail under the actual load conditions.
Measuring pin 86 voltage with the control switch off and expecting to see 12V — pin 86 should be at 0V (or floating) with the switch off, and at battery voltage when the switch is on. Confusing this causes the technician to incorrectly conclude the control circuit is working when it is not.
Concluding the relay has failed because the coil resistance measures slightly outside 70–120 Ω — relay coil resistance varies with temperature. A warm relay fresh from a hot engine bay may measure 10–15% higher than its ambient-temperature resistance. Test resistance at ambient temperature if possible.
Overlooking connector corrosion in the relay socket — a relay with green-corroded blade terminals can exhibit intermittent contact resistance even with a new relay installed. Clean socket terminals with electrical contact cleaner and a fine pick before fitting the replacement relay.

Troubleshooting

Load operates continuously regardless of switch position (relay stuck on): Cause: Relay contacts welded closed from high-current arc, or control circuit has a permanent 12V feed rather than a switched feed on pin 86 Fix: Remove the relay. If the load stops, the relay contacts are welded — discard and replace with a correctly rated relay. If the load continues with the relay removed, the load circuit has a wiring fault causing a permanent feed that bypasses the relay entirely.
Relay energises but voltage at pin 87 is significantly lower than at pin 30: Cause: High contact resistance from pitted or oxidised contact surfaces; relay underrated for load current Fix: Measure voltage drop across pins 30 and 87 with full load active — it should be under 0.2V. Anything above 0.5V indicates a contact resistance problem. Replace the relay and verify replacement is rated for the load. Clean the relay socket terminals.
Load works intermittently; relay and all measurements appear correct when tested: Cause: Vibration-induced relay socket connection failure, thermal cycling causing intermittent contact resistance, or a harness wire that is broken internally with intact insulation Fix: Apply light pressure to the relay body and wiring harness while observing the load — movement-induced change confirms a vibration/connection fault. Wiggle the harness to identify the section where the fault manifests. Cut back insulation at suspect sections and inspect conductors for internal strand breaks.

Frequently asked questions

My relay clicks but the load does not work. What should I check first?

The click confirms the coil is energising and the armature is pulling in. Check pin 87 with a multimeter — it should show battery voltage with the relay energised. If pin 87 is dead, the contacts are failing to carry current. If pin 87 is live but the load does not work, the fault is between pin 87 and the load (wiring or load ground).

How do I test a relay out of the circuit?

Apply 12V to pin 86 and ground pin 85. Measure continuity between pins 30 and 87 — it should be open with no power applied and closed (conducting) when the coil is energised. Measure continuity between pins 30 and 87a — it should be closed at rest and open when energised. Measure coil resistance across pins 85 and 86 — expect 70–120 Ω.

What fault codes are typically associated with a failed relay?

There is no universal relay fault code — it depends on what the relay controls. An ECU-commanded relay that fails open may generate a fault code for the controlled device (e.g. 'cooling fan circuit open' or 'fuel pump circuit insufficient current'). The fault code points to the circuit, not necessarily the relay — always check the relay as part of the diagnosis for any circuit fault code.

Can I check a relay by listening for the click?

Audible click testing confirms the armature pulls in but does not confirm that the contacts are conducting current. A relay can click audibly with welded-open contacts (the armature moves, but the contact surface is physically separated). Always confirm contact continuity with a multimeter, not just the sound.

Why would a relay work intermittently but fail under load?

Intermittent failure under load typically indicates a high-resistance contact surface — the contacts make sufficient connection to register low current (enough to operate a test lamp) but generate excessive voltage drop and heat under the actual load current, causing the contact to open thermally or oxidise further. Test voltage drop across pins 30 and 87 with the full load connected.

How do you wire a relay in a car?

Connect pin 30 to the battery positive (or fused supply for the load), pin 87 to the device being powered (e.g. fan or light), pin 86 to the switched control signal from the switch or ECU output, and pin 85 to chassis ground. When the control signal on pin 86 is applied, the coil energises, the internal contacts close, and current flows from pin 30 to pin 87. Always fuse the pin 30 supply close to the battery to protect the wiring from overcurrent.
