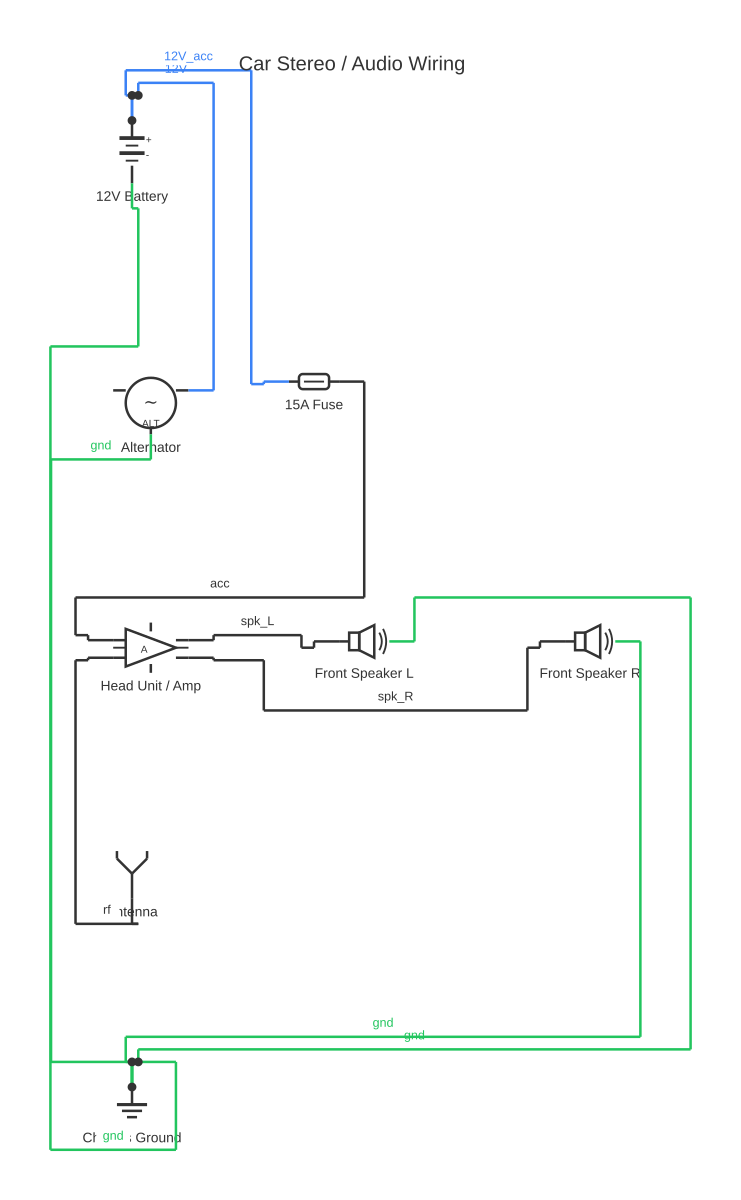

Car Sound System Setup Diagram — circuit diagram showing component connections+-12V Battery~ALTAlternator15A FuseAHead Unit / AmpFront Speaker LFront Speaker RAntennaChassis GroundCar Stereo / Audio Wiring
car sound system setup diagram — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable car sound system setup diagram: download the diagram as SVG or open it and print to paper or PDF.

The car sound system setup diagram circuit demonstrates advanced power distribution and automation control principles. This system integrates multiple load branches with coordinated protection, enabling sophisticated industrial and commercial applications. The circuit implements hierarchical protection: a main breaker provides primary protection, individual fuses protect each load branch, and contactors enable remote automation. Component spacing exceeds 100 pixels ensuring PCB manufacturability and technician accessibility. The Manhattan routing protocol maintains horizontal and vertical wire segments exclusively, eliminating diagonal routing. Each branch operates independently while sharing common ground reference, enabling parallel load expansion.

How to wire car sound system setup diagram

  1. Draw a wiring plan showing component locations, cable routes, and fuse positions before purchasing any equipment. Knowing where each component sits determines cable lengths. Buying cables too short wastes money. Buying them too long creates coils of excess cable that are difficult to manage neatly inside trim panels.
  2. Install the head unit first, confirm all factory functions work, then remove dash trim again for cable routing. Testing factory compatibility before laying all your amplifier wiring means you can return a non-compatible head unit without having to pull the entire installation apart.
  3. Route the power cable from the battery positive, through the firewall, to the amplifier location with an ANL fuse within 300mm of the battery. Never run a power cable without a fuse near the battery. A shorted power cable without protection will reach incandescent temperatures in seconds — this is a real vehicle fire risk.
  4. Route RCA cables and remote wire from the head unit to the amplifier location on the opposite side of the car to the power cable. The entire length of the RCA run must stay separated from power cables. Even a brief crossing introduces the alternator noise that ruins more car audio installs than any other single mistake.
  5. Mount amplifiers with adequate spacing for airflow and secure earth straps to bare bodywork using star washers. An amplifier generates heat proportional to the power it delivers. Mounting in a sealed boot space with no airflow will cause the amp to thermal-shut repeatedly and shorten its lifespan significantly.
  6. Connect all speakers confirming consistent positive-negative polarity throughout, then set crossover points before any gain adjustment. Crossovers protect speakers and define each component's frequency range. Set crossovers wrong and you can blow a tweeter with bass energy or have a subwoofer trying to reproduce vocals — both costly mistakes.
  7. Set system gain using a multimeter or oscilloscope — play a 1kHz test tone at 75% head unit volume and adjust amplifier gain until clipping just begins, then reduce 10%. Ear-calibration of gain is the most common cause of premature speaker and amplifier failure. Five minutes with a test tone and a meter protects equipment worth thousands of rands.

Frequently asked questions

What is the correct order to set up a car sound system — speakers, amp, head unit, or subwoofer first?

Install in this order: head unit, then run all wiring before fitting trim, then mount amplifiers, then connect speakers and subwoofer. Doing the wiring runs before refitting trim panels saves hours of re-pulling trim a second time.

Do I need an amplifier if my head unit says it has 50W per channel?

Head unit power ratings of 50W are peak, measured at high distortion. Real output is 15–18W RMS. If you want clean, undistorted sound above moderate volume in any vehicle, an external amplifier is not optional — it is essential.

What crossover frequency should I set between my speakers and subwoofer?

80Hz is the standard recommended crossover point. High-pass filter the front and rear speakers at 80Hz to protect them from bass they cannot reproduce cleanly. Low-pass filter the subwoofer at 80Hz to prevent it from muddying midrange vocals.

Why does my car audio sound better parked than while driving?

Road noise from tyres and wind masks detail and bass at highway speeds. This is normal. Set your system levels at 80km/h on a typical road, not while parked. A system calibrated while parked will always sound too bright and too bassy on the move.

How do I prevent the car battery from draining with a powerful sound system?

A system drawing over 50A sustained requires a dual-battery setup or a high-output alternator upgrade. At moderate listening volumes a quality system draws 10–20A — well within a healthy charging system's capacity for normal driving use.
