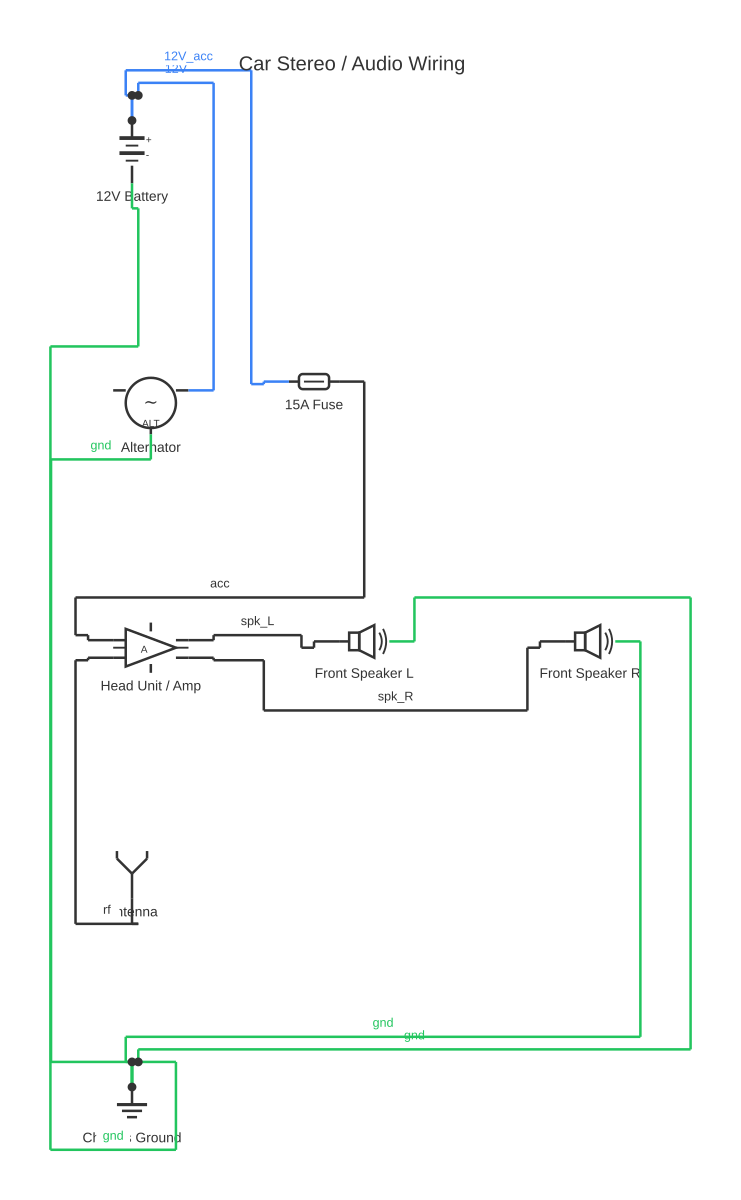

Car Speaker Wiring Diagram: Connections, Impedance, and Polarity — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable car speaker wiring diagram: download the diagram as SVG or open it and print to paper or PDF.

Correct car speaker wiring prevents amplifier damage, eliminates phase cancellation, and delivers full bass response. This guide covers single, parallel, and series speaker connections for automotive audio systems.

Car speaker wiring seems straightforward until you connect two woofers out of phase and wonder why all the bass disappeared, or wire two 4-ohm speakers in parallel and discover the amplifier's protection circuit trips every time the volume rises. Understanding the fundamentals of speaker impedance, polarity, and circuit topology prevents both audio problems and equipment damage.

Every speaker is a reactive load. Its impedance (measured in ohms) is frequency-dependent, and the rated impedance (2, 4, or 8 ohms) is the nominal value at the standard measurement frequency, not the actual DC resistance. Most car audio amplifiers are rated to drive 4-ohm loads, with many capable of 2-ohm operation — but driving a load below the amplifier's minimum rated impedance draws excess current, heats the output stage, and triggers thermal protection or permanent failure.

Connecting speakers in parallel reduces impedance: two 4-ohm speakers in parallel present a 2-ohm load. Connecting them in series doubles impedance: two 4-ohm speakers in series present an 8-ohm load. Before wiring multiple speakers to a single amplifier channel, calculate the resulting impedance and verify it falls within the amplifier's specified range.

Polarity is equally critical. Each speaker has a positive (+) and negative (–) terminal, usually identified by a red dot, a + symbol, or a larger terminal tab. In a head unit or amplifier's output stage, one terminal of each channel swings positive relative to the other. If you reverse polarity on one speaker while leaving others correctly wired, that speaker moves backward when all others move forward — acoustic cancellation results, heard as thin sound with collapsed bass.

In a full vehicle installation, the head unit drives front and rear channels independently. Each channel's positive output goes to the speaker's + terminal and the channel's negative (return) goes to the speaker's – terminal. The head unit's speaker outputs are floating (not referenced to chassis ground), so the negative speaker wire is not a chassis ground — do not ground speaker wires to chassis.

For component speaker systems (separate woofer and tweeter with a passive crossover), the amplifier output connects to the crossover input; the crossover outputs connect to the woofer and tweeter. Bypassing the crossover and connecting a tweeter directly to full-range output will destroy the tweeter almost immediately.

How to wire car speaker wiring diagram

Identify amplifier or head unit output channels Locate the speaker output terminals on the head unit or amplifier. Each channel will have a positive (+) and negative (–) terminal. On head units these are often colour-coded: front left (white/white-black), front right (grey/grey-black), rear left (green/green-black), rear right (violet/violet-black) per the ISO wiring standard, though not all units follow this exactly. Confirm with the unit's documentation.
Identify speaker polarity Locate the + and – terminals on each speaker. The positive terminal is typically identified by a red ring, a + symbol, a larger terminal, or a single stripe on the lead wire. If markings are absent, use the 1.5V battery test: touch positive to one terminal; if the cone moves outward, that terminal is positive.
Calculate impedance for multi-speaker runs If connecting more than one speaker per channel, calculate resulting impedance. Parallel: Z_total = (Z1 × Z2) / (Z1 + Z2). Series: Z_total = Z1 + Z2. Verify the result is at or above the amplifier's minimum specified load impedance before proceeding.
Run speaker wire from source to speakers Route speaker wire away from power cables (keep at least 100mm separation or cross at 90° where unavoidable) to prevent electrical noise from inducing into the audio signal. Secure wire with cable ties every 300–500mm and use grommets wherever wire passes through metal body panels to prevent chafing and short circuits.
Terminate and connect speaker wires Strip approximately 10mm of insulation from each wire end. Use push-fit terminals, fork terminals, or solder-and-heatshrink connections at the speaker terminals. Crimp connections must be fully seated. Match positive-to-positive and negative-to-negative at every speaker. Gently tug each connection to confirm it is secure before reassembly.
Test polarity across all speakers before closing up Play a mono audio source (a mono test tone or spoken word) at low volume with all speakers connected. All cones should move in the same direction on a positive pressure waveform. Alternatively, use a dedicated speaker polarity tester if available. If bass sounds thin or stereo image collapses to the centre, a speaker pair is out of phase.

Specifications

Typical nominal speaker impedance	4 ohms (automotive standard); some OEM systems use 2-ohm speakers
Minimum amplifier load impedance (typical)	2 ohms stereo, 4 ohms bridged (mono); always verify amplifier datasheet
Parallel impedance formula (two equal speakers)	Z_parallel = Z / 2 (e.g. two 4-ohm speakers = 2 ohms)
Series impedance formula (two equal speakers)	Z_series = Z × 2 (e.g. two 4-ohm speakers = 8 ohms)
Recommended wire gauge — head unit output	16 AWG (1.5mm²) for runs up to 4 metres
Recommended wire gauge — external amplifier (50W+ RMS)	14 AWG (2.5mm²) minimum; 12 AWG (4mm²) for higher power or longer runs
Speaker terminal tab width (typical)	4.8mm (0.187 in) — verify against specific speaker

Safety warnings

Disconnect the vehicle's negative battery terminal before starting any wiring work. This prevents accidental short circuits that can cause sparks, wiring fires, or airbag deployment in vehicles with pyrotechnic components.
Never ground speaker negative wires to vehicle chassis. Head unit and amplifier speaker outputs are floating differential outputs. Grounding one terminal shorts the output stage and can cause immediate amplifier damage.
Protect all wire runs through metal panels with rubber grommets. Chafed insulation against a metal edge will eventually short to chassis, potentially at high current, causing a fire in enclosed areas behind trim panels.
Do not connect speakers with an impedance below the amplifier's rated minimum. Operating into too low an impedance draws excess current, overheats output transistors, and can cause irreversible amplifier damage.
This guide is for illustrative and reference purposes only. Installations involving significant rewiring or amplifier addition should be carried out by or verified by a suitably qualified automotive electrician.

Tools needed

Digital multimeter (resistance and DC voltage functions)
Wire stripper (set to conductor gauge being used)
Crimp tool (for spade and ring terminals)
Panel removal tools (plastic trim clip tools to avoid scratching)
Cable routing tools or fish tape
Drill and hole saw or step bit (if new speaker apertures are required)
Cable ties and tie-wrap gun
1.5V battery (for speaker polarity verification)

Common mistakes

Wiring speaker negatives to chassis ground: this shorts the amplifier output and causes distortion, hum, or amplifier damage.
Mixing impedances incorrectly: connecting mismatched impedance speakers in parallel and not verifying the combined load against the amplifier's minimum specification.
Running speaker wire alongside power cable for the full length of the run: parallel routing of high-current power cables induces alternator whine and ignition interference into the audio signal.
Reversing polarity on one speaker in a multi-speaker system: acoustic cancellation removes bass and narrows the stereo image — often mistaken for a defective speaker or amplifier.
Using lamp cord or household speaker wire: unprotected insulation degrades rapidly in the presence of fuel vapour, heat, and mechanical vibration in automotive environments.

Troubleshooting

No sound from one speaker: Cause: Open circuit in the speaker wire, loose or disconnected terminal, or blown voice coil Fix: Disconnect the speaker and measure continuity from amplifier output terminal to speaker terminal. A break indicates a faulty connection or damaged wire. Measure speaker DC resistance across its terminals — an open reading (infinite resistance) indicates a blown voice coil requiring speaker replacement.
Bass sounds thin and stereo image is unfocused: Cause: One or more speakers wired with reversed polarity, causing acoustic phase cancellation Fix: Use the 1.5V battery polarity test on each speaker individually to confirm + and – terminals, then verify the wiring from the amplifier maintains consistent polarity throughout. Swap the wire pair at one speaker terminal if reversed.
Amplifier thermal protection trips at higher volumes: Cause: Combined speaker impedance is below the amplifier's rated minimum, causing excessive output current Fix: Disconnect all speakers and calculate the combined impedance of the wiring topology. If parallel wiring results in a load below the rated minimum, rewire speakers in series or remove one speaker per channel to raise impedance into the rated range.

Frequently asked questions

Can I wire two car speakers to one amplifier channel?

Yes, either in series or parallel. In series, impedances add (two 4-ohm speakers = 8 ohms), reducing power output. In parallel, impedances halve (two 4-ohm speakers = 2 ohms), increasing current draw. Verify the resulting impedance is within the amplifier's rated minimum before connecting — most amplifiers specify a 2-ohm or 4-ohm minimum load.

What happens if I wire car speakers out of phase?

When one speaker moves forward while the adjacent speaker moves backward, their pressure waves partially cancel. The audible result is weak, thin bass and a diffuse, unfocused stereo image. To correct it, swap the positive and negative wires at one speaker only, keeping all others consistent. Use a 1.5V battery test to confirm polarity: the cone should move outward when positive is applied to the + terminal.

Do car speaker wires need to be grounded to chassis?

No. Amplifier and head unit speaker outputs are differential (bridged) outputs — neither terminal is at chassis potential. Running a speaker negative wire to chassis ground will short one output terminal to ground, distorting the signal and potentially damaging the amplifier. Speaker negative wires must return to the amplifier or head unit's speaker negative terminal only.

What wire gauge should I use for car speaker wiring?

For most head unit installations (typically 20–50W RMS per channel), 16 AWG (1.5mm²) is adequate for runs under 4 metres. For external amplifiers above 50W RMS per channel, use 14 AWG (2.5mm²) or heavier. Longer runs increase resistance and reduce damping factor, so use a heavier gauge for runs exceeding 3 metres from amplifier to speaker.

Can I use household speaker wire in a car?

Technically the electrical properties are compatible, but standard household lamp cord (figure-8 cable) is not designed for automotive use. It lacks resistance to oil, fuel vapour, UV, and vibration. Use wire rated for automotive environments — CCA (copper-clad aluminium) is acceptable for budget installations but pure OFC (oxygen-free copper) offers lower resistance and better longevity.
