Ceiling Fan Connection with Capacitor: PSC Motor Wiring, Speed Control, and Diagram

Ceiling Fan Connection with Capacitor: PSC Motor Wiring, Speed Control, and Diagram — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable ceiling fan connection with capacitor: download the diagram as SVG or open it and print to paper or PDF.

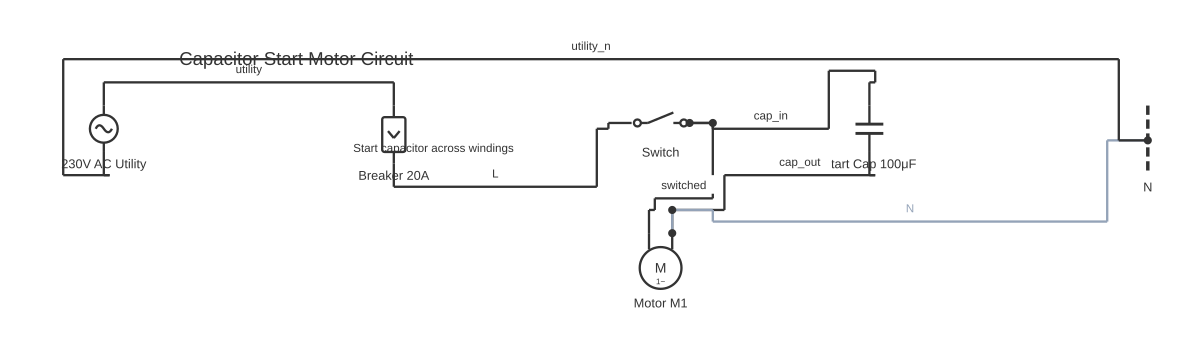

A ceiling fan connection with capacitor diagram shows the run capacitor wired in series with the auxiliary winding of the PSC motor to create the phase shift needed for rotation and speed regulation.

A ceiling fan uses a Permanent Split Capacitor (PSC) single-phase induction motor. Unlike a capacitor-start motor that uses the capacitor only during starting, the PSC design keeps the run capacitor permanently in the circuit during operation — hence 'permanent split capacitor.' The capacitor performs two roles: it creates the phase displacement between the main winding (running winding) and the auxiliary winding (starting winding) necessary to produce a rotating magnetic field, and it significantly influences the motor's speed when different capacitor values are switched in.

In the wiring diagram, the ceiling fan motor has three or four wires beyond the supply:

Main winding terminals: the main winding connects directly across the supply (live and neutral).

Auxiliary winding (with capacitor): the capacitor is connected in series with the auxiliary winding, and this series combination connects across the supply in parallel with the main winding. The capacitor's reactance shifts the current in the auxiliary winding by approximately 90 degrees relative to the main winding current, creating the two-phase rotating field.

Speed control in a PSC ceiling fan is achieved by switching between capacitor values or by switching tappings on the main winding. A capacitor-switched speed control uses a rotary switch to connect different capacitor values in series with the auxiliary winding — a larger capacitor produces a stronger magnetic field and higher speed; a smaller capacitor (or a capacitor in series with additional reactance) reduces speed. Winding-tapped speed control uses a capacitor of fixed value with the supply connected to different tapping points on the main winding, changing the effective number of turns energised and thus the motor speed.

The wiring diagram for speed control also includes a pull-chain switch or wall control with the appropriate number of positions (commonly 3-speed: High, Medium, Low, Off). In three-speed capacitor-switched fans, the capacitor assembly contains two or three capacitors in a single can with multiple terminals.

Light kits attached to the fan add a parallel branch to the wiring diagram, typically with a separate pull-chain for the light and, in modern fans, a separate wire for remote control receiver input.

Two-Switch Ceiling Fan Wiring: Fan and Light on Separate Controls

Independent wall-switch control of a ceiling fan's motor and light kit requires a 14/3 NM-B cable (or 12/3 on a 20A circuit) running between the switch box and the ceiling box. The four conductors carry: black (always-hot from the panel), white (neutral), red (second switched-hot for the light kit), and bare copper (ground). At the double-gang switch box, Switch 1 (fan) connects to the black wire; Switch 2 (light) connects to the red wire. The white neutral is spliced through with a wire nut and does not connect to either switch terminal. At the ceiling box, the fan's black motor wire connects to the cable's black (via Switch 1), the fan's blue light-kit wire connects to the cable's red (via Switch 2), and the fan's white neutral connects to the cable's white. Ground bonds to the fan's green ground screw and to each switch's grounding screw.

What the Red Wire Does in Ceiling Fan Wiring

The red wire in a 14/3 supply cable is the second switched-hot. It carries the switched signal from Switch 2 to the fan's blue wire, giving the light kit its own independent circuit. Without a red wire — that is, when only 14/2 cable is present — there is no second switched circuit and independent wall-switch control is not possible. In that situation, options are: run new 14/3 cable, or install a wireless remote receiver that accepts a single two-wire supply and outputs separate fan-motor and light-kit signals. If only one wall switch is desired and both fan and light should operate together, wire-nut the red wire to the black wire inside the ceiling box so both the black motor wire and blue light wire receive the same switched-hot.

Adding a Remote Receiver to an Existing Installation

A remote receiver mounts inside the fan canopy above the down rod. Its input side (AC-in black and AC-in white) connects to the house supply wires; its output side provides separate leads for the fan motor (black) and light kit (blue). DIP switches on both the receiver and the handheld remote must be set to the same frequency code to prevent controlling a neighbouring fan. Leave the wall switch permanently ON so the receiver remains powered; using the wall switch to turn the fan on and off will cause the receiver to lose pairing and require re-initialisation. The fan's pull chain must be set to HIGH before pairing so the receiver controls full speed range. Note that the wall switch feeding a remote-equipped fan should not be used as the daily on/off control — that defeats the purpose of the remote.

How to wire ceiling fan connection with capacitor

Identify the motor wires Locate the fan motor's wiring harness. Common colour coding in ceiling fans varies by region and manufacturer. Typical wires include: black (live — main winding), white or blue (neutral), and one or more wires for the auxiliary winding tappings and capacitor. Consult the fan's wiring diagram label (usually on the motor housing or in the manual).
Identify the capacitor terminals The run capacitor has two, three, or four terminals depending on the speed control arrangement. A single-speed fan has a two-terminal capacitor. A three-speed fan typically has a multi-terminal capacitor (four terminals: common, low, medium, high) that the speed switch selects between.
Connect the supply Run supply live and neutral from the ceiling rose or junction box through an appropriate single-pole switch (or remote receiver, if applicable) to the fan motor. The supply live feeds the fan speed switch, and the switched live from each speed position feeds the appropriate motor wire. Neutral connects directly to the motor neutral terminal.
Connect the capacitor to the auxiliary winding Connect one terminal of the capacitor to the auxiliary winding wire from the motor. Connect the other capacitor terminal to the supply live (or the appropriate winding tapping if speed control is winding-tapped). In a multi-speed capacitor configuration, follow the specific wiring diagram for the speed switch positions.
Wire the speed switch The speed switch (pull-chain, rotary, or wall switch) routes the live supply to the appropriate motor winding terminal or capacitor connection for each speed setting. The switch's common terminal receives the supply live; each position terminal connects to the corresponding motor speed wire.
Wire the light kit (if present) Connect the light kit's supply wire to the fan's light wire (blue or grey in many fans) which is separately switched by the light pull-chain or a second wall switch. The light's neutral connects to the common neutral. Verify the light's wattage does not exceed the fan's rated lighting load.
Mount and test Complete the mechanical mounting of the fan following the manufacturer's instructions. Restore power and test each speed setting. Verify the fan starts on each speed and accelerates to the correct relative speed. Test the light if fitted. Test direction reversal.

Specifications

Motor type	Permanent Split Capacitor (PSC) single-phase induction motor
Capacitor type	AC motor run capacitor, polypropylene film (not electrolytic)
Typical run capacitor value	3–10 µF at 250 V AC (exact value per manufacturer specification)
Supply voltage (international)	220–240 V AC, 50 Hz (IEC regions) or 120 V AC, 60 Hz (North America)
Speed control method	Capacitor switching or winding tapping, via multi-position speed switch
Ceiling box load rating requirement	Must be a fan-rated box; standard light boxes are not sufficient
Direction reversal method	Auxiliary winding polarity reversal switch on motor housing or remote signal
Applicable wiring standard	IEC 60364 / BS 7671 / NEC — per region

Safety warnings

Ceiling fan installation involves electrical work at height. All wiring must comply with applicable regulations (BS 7671, NEC/NFPA 70, AS/NZS 3000, or local equivalent) and be carried out by a qualified person where required. These diagrams are illustrative reference material only.
Always isolate the circuit at the consumer unit or distribution board and verify it is dead with an approved voltage tester before beginning any wiring work at the ceiling mounting point.
Ceiling fans must be mounted on a ceiling box or brace specifically rated and designed for fan support. Standard lighting electrical boxes are not rated for the dynamic (swinging and rotating) loads of a fan and must not be used for fan mounting.
Run capacitors in ceiling fans are AC-rated film capacitors. Never substitute an electrolytic capacitor — electrolytic capacitors are not rated for continuous AC operation and will fail, potentially causing overheating or fire.
Discharge the run capacitor before handling it in service. Even a small film capacitor can store a charge that causes a sharp shock.

Tools needed

Approved voltage tester (non-contact)
Multimeter (with capacitance measurement for capacitor testing)
Screwdrivers (flat and cross-head, insulated)
Wire stripper
Ladder or working at height platform
Wire connectors (twist-on or strip connectors)

Common mistakes

Using a capacitor of the wrong value or type — specifically, using an electrolytic capacitor instead of an AC-rated film capacitor. Electrolytic capacitors are polarised, cannot tolerate AC, and will fail rapidly with potential fire risk.
Mounting the fan on a standard electrical box not rated for fan dynamic loads, leading to the fan working loose over time and eventually falling.
Connecting the live supply directly to the motor without a speed switch, leaving the fan with only on/off control and eliminating speed selection.
Failing to earth the motor housing, leaving the metal motor body at risk of becoming live if insulation fails.
Not stopping the fan completely before operating the direction reversal switch — operating the reversal switch on a spinning fan causes a current surge and can damage the motor.
Running 14/2 cable between the switch box and ceiling box and then trying to add a second switch — two independent switched circuits require 14/3 cable with a red wire.
Using a standard incandescent or LED dimmer on the fan switch leg, which damages the motor windings and run capacitor.
Connecting the house red wire to the fan's black motor wire instead of the fan's blue light-kit wire, causing the light to operate on Switch 1 and the fan on Switch 2 — reversed from the intended layout.
Leaving the wall switch in the off position when a remote receiver is installed, which cuts power to the receiver and prevents remote control from working.

Troubleshooting

Fan hums but does not start or runs very slowly: Cause: Run capacitor failed (open circuit) or capacitor value significantly out of specification Fix: Isolate, discharge the capacitor, remove and measure its capacitance with a capacitor meter. Compare to the value marked on the capacitor and the motor specification. Replace if the measured value is significantly below the rated value or if the capacitor reads open circuit.
Fan only runs at one speed despite the speed switch being in different positions: Cause: Speed switch contacts burnt or failed, or wiring to alternate speed tappings disconnected Fix: Isolate and use a continuity tester to verify the speed switch changes connection between its output terminals in each position. Check that motor speed wires are securely connected to the switch output terminals.
Fan vibrates excessively: Cause: Blade unbalance, loose blade brackets, or worn motor bearings Fix: Check all blade bracket screws are tight. Use a blade balancing kit to add small adhesive weights to out-of-balance blades. If vibration persists after balancing, the motor bearings may be worn — the fan requires replacement or motor service.
Fan runs but light does not work with two switches installed: Cause: Red wire is not connected to the fan's blue (light-kit) wire at the ceiling box, or the red wire is not connected to Switch 2 at the switch box. Fix: At the ceiling box confirm the red wire is wire-nutted to the fan's blue wire. At the switch box confirm the red wire terminates on Switch 2. Test Switch 2 for continuity with a multimeter if the connections appear correct.
Fan hums loudly or speed is uncontrollable after installing a fan-speed controller: Cause: The speed controller is not rated for inductive (motor) loads, or the run capacitor inside the fan is failing. Fix: Replace the wall controller with one specifically rated for ceiling fan inductive loads. If humming persists at all speed settings, inspect and replace the fan's run capacitor — a failed or mismatched capacitor is the most common cause of speed and hum issues independent of switch wiring.

Frequently asked questions

Why does a ceiling fan need a capacitor?

A ceiling fan's PSC motor needs a capacitor to create a phase shift between its main and auxiliary windings. Single-phase AC supply cannot by itself create a rotating magnetic field. The capacitor shifts the current in the auxiliary winding by approximately 90 degrees, producing a two-phase approximation that generates the rotating field needed for starting and continued rotation.

How does the capacitor control the speed of a ceiling fan?

In capacitor-switched speed control, different capacitor values are connected in series with the auxiliary winding by the speed switch. A larger capacitance value increases the auxiliary winding current and field strength, raising motor speed. A smaller capacitance reduces them, lowering speed. Alternatively, some fans control speed by switching supply to different winding tappings.

What are the symptoms of a failed run capacitor in a ceiling fan?

A failed run capacitor causes the fan to hum and vibrate but not start, run at greatly reduced speed (often very slowly), draw high current (because the motor is essentially single-phasing), or fail to reverse direction if directional switching is also capacitor-dependent. The motor will also run hot due to increased current in the main winding.

Can I replace a ceiling fan capacitor with a higher capacitance value?

No — the capacitor value is chosen by the motor designer to produce a specific phase angle for optimal performance. Using a higher value than specified increases the auxiliary winding current above design limits, causing overheating and winding damage. Always replace with the capacitor value specified on the motor's rating plate or the capacitor's existing marking.

How do I reverse a ceiling fan's direction of rotation?

Most ceiling fans have a direction switch on the motor housing (sometimes accessible through a slot) that reverses the connection of the auxiliary winding relative to the main winding. This moves the rotating magnetic field in the opposite direction, reversing rotation. The fan must be completely stopped before operating the reversal switch. Some fans reverse direction via a remote control signal to an onboard receiver.

What cable do I need to wire a ceiling fan with two separate wall switches?

You need 14/3 NM-B cable (four conductors: black, white, red, and bare ground). The black wire feeds the fan motor switch, the red wire feeds the light kit switch, and the white is the neutral. Standard 14/2 cable only supports one switched circuit and cannot provide independent fan and light control without adding a remote receiver.

What does the red wire connect to on a ceiling fan with two switches?

At the ceiling box the red wire from the 14/3 cable connects to the fan's blue wire (light-kit hot) using a wire nut. At the switch box the red wire connects to Switch 2, which controls the light independently. The red wire is the second switched-hot and does not exist in standard 14/2 cable installations.

Can I use a regular dimmer switch on the ceiling fan speed switch?

No. Ceiling fans use capacitor-based AC induction motors. A standard incandescent dimmer reduces voltage by phase-cutting, which overheats the motor windings, damages the run capacitor, and causes audible humming. Use only a fan-speed controller rated for inductive loads — these regulate speed by adjusting the capacitor switching, not by cutting voltage.

How do I add a remote receiver to a ceiling fan that already has two wall switches?

Mount the receiver inside the fan canopy. Connect the receiver's AC-in black and white to the house black and white supply wires. Connect the receiver's motor output (black) to the fan's black motor wire, and the receiver's light output (blue) to the fan's blue light wire. Set DIP switch codes to match on both the receiver and remote. Leave both wall switches permanently ON and use the remote as the daily control. If you want one wall switch to control the light, some installers cut the receiver's internal light-output wire and wire the light directly to the house supply through Switch 2.
