Diode Circuit Diagram

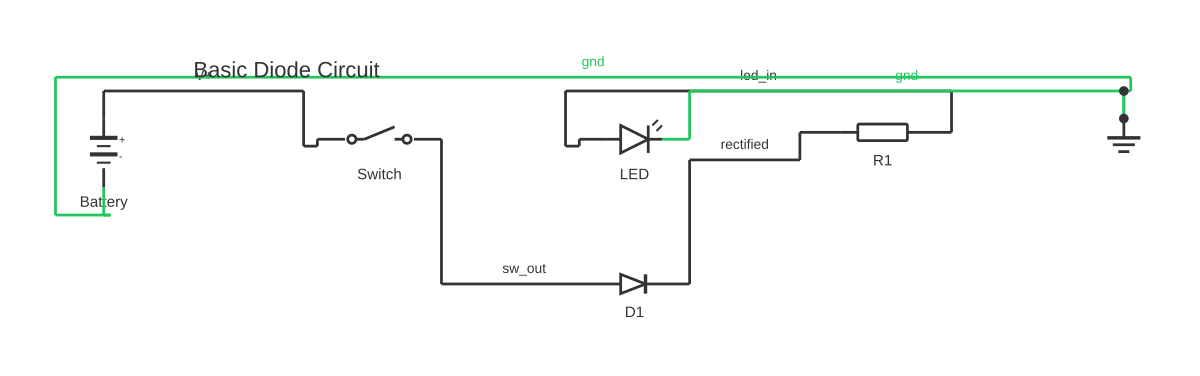

Diode Circuit Diagram — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable diode circuit diagram: download the diagram as SVG or open it and print to paper or PDF.

Reference circuit diagram guide for diodes covering rectification, Zener voltage regulation, flyback protection, and signal clipping applications.

A diode is a two-terminal semiconductor device that allows current to flow predominantly in one direction only — from anode to cathode in conventional current notation. The anode is the p-type semiconductor terminal; the cathode is the n-type terminal. On a physical diode component, the cathode is identified by a band, stripe, or line at one end of the body.

Forward bias: When the anode is at a higher potential than the cathode by at least the forward voltage (Vf), the diode conducts. For standard silicon rectifier diodes, Vf is approximately 0.6–0.7 V. For Schottky diodes, Vf is lower — approximately 0.2–0.4 V — which reduces power loss in switching circuits. For LEDs, Vf is higher and varies with colour: typically 1.8–2.2 V for red, 2.8–3.5 V for blue and white.

Reverse bias: When cathode is at a higher potential, the diode is reverse biased and conducts negligible current (only reverse leakage current, typically in the nanoampere to microampere range). Exceeding the Peak Inverse Voltage (PIV) rating in reverse bias causes dielectric breakdown.

Key circuit applications:

1. Half-wave rectifier: a single diode in series with an AC source and load converts one half-cycle of AC to pulsating DC. Peak output voltage = peak AC input voltage minus Vf.

2. Full-wave bridge rectifier: four diodes arranged in a bridge configuration convert both AC half-cycles to DC, producing a higher average output voltage than half-wave rectification.

3. Zener voltage regulation: a Zener diode is operated in reverse breakdown (Zener breakdown region). When reverse voltage reaches the Zener voltage (Vz), the device conducts and clamps the voltage across it to Vz, providing a voltage reference. A series resistor limits current.

4. Flyback / freewheeling diode: connected in reverse parallel (anti-parallel) across an inductive load (relay coil, motor winding, contactor coil). When the switching device opens, the collapsing magnetic field generates a back-EMF voltage spike. The flyback diode clamps this spike and recirculates the inductive current, protecting the switching device.

5. Clipping and clamping: diodes limit signal amplitude in analogue circuits.

All circuits are illustrative references. Verify component ratings before construction.

Diode circuit diagrams cover a broad family of devices, from the common 1N4007 rectifier to the precision voltage-reference behaviour of the Zener diode. The Zener diode is the most frequently searched variant: operated in reverse breakdown, it maintains a stable reference voltage across its terminals when the supply exceeds its Zener voltage (Vz). Understanding how to draw and read these circuits — including the correct polarity, the series-limiting resistor, and the load connection — is fundamental for power supplies, signal clipping, and over-voltage protection. Use the free online editor to draw rectifier, clipping, or Zener reference circuits and annotate component values directly on the schematic.

How to wire diode circuit diagram

Identify anode and cathode before installation Locate the cathode band on the physical diode body. On the schematic, confirm the diode symbol orientation: triangle apex (anode) connects toward positive supply or signal; bar (cathode) connects toward the load or negative rail in a rectifier circuit. Installing a diode backwards blocks normal current flow entirely.
Verify forward voltage and current rating for the application Select a diode whose maximum forward current (If_max) exceeds the expected circuit current. Verify peak inverse voltage (PIV) rating exceeds the maximum reverse voltage the diode will experience (for rectifiers, this is typically the peak AC input voltage).
Wire a half-wave rectifier Place a single diode in series between the AC source and the DC load resistor. Cathode connects toward the load (positive output). Add a filter capacitor in parallel with the load for smoother DC output. Output peak voltage ≈ AC peak voltage minus Vf.
Wire a full-wave bridge rectifier Arrange four diodes in a bridge: two conduct on each AC half-cycle. The AC input connects to the two midpoints of the bridge. The positive DC output is taken from the top of the bridge (two cathodes joined); the negative DC output from the bottom (two anodes joined). Add a filter capacitor across the output.
Wire a Zener voltage regulator Connect the Zener diode in reverse bias: cathode toward the positive supply, anode toward the negative rail. Place a series resistor (Rs) between the supply and the Zener cathode. The voltage across the Zener clamps at Vz. The series resistor must be sized to keep Zener current within the device's rated range under all load conditions.
Install a flyback diode across an inductive load Connect the diode in reverse parallel across the inductive load (relay coil, motor, solenoid): anode to the negative (or switched-low) side of the load, cathode to the positive supply side. The diode is reverse biased during normal operation and only conducts during the inductive back-EMF spike.

Specifications

Silicon rectifier forward voltage (Vf)	Approximately 0.6 – 0.7 V at rated forward current
Schottky diode forward voltage (Vf)	Approximately 0.2 – 0.4 V at rated forward current
Zener operating region	Reverse breakdown at Vz; maintains constant Vz within rated current range
Key diode ratings (selection criteria)	If (forward current), PIV (peak inverse voltage), Vf, reverse recovery time
Bridge rectifier output (from AC input)	Peak DC ≈ AC peak voltage − 2 × Vf (two diodes in series per half-cycle)
Diode symbol — cathode identification	Bar on schematic; painted band / stripe on physical component body

Safety warnings

Diodes used in mains rectifier circuits (120 V AC, 230 V AC) are part of mains-connected equipment. Design and installation of mains-connected circuits must be performed by a qualified engineer or licensed electrician per NEC/NFPA 70, BS 7671, AS/NZS 3000, or IEC 60364.
Filter capacitors in rectifier circuits retain DC charge after the supply is removed. Discharge capacitors with a resistor and verify discharge before touching circuit nodes.
Zener diodes dissipate power as heat. Verify the Zener's power rating (Pz) is not exceeded under maximum current conditions. Insufficient rating causes thermal runaway and failure.
Never exceed a diode's peak inverse voltage (PIV) rating. A reverse-biased diode that exceeds PIV undergoes destructive breakdown — use a safety margin of at least 2× the maximum expected reverse voltage.
These circuit diagrams are illustrative references only and do not constitute approved designs or installation specifications.

Tools needed

Digital multimeter with diode test function
DC bench power supply (variable, current limited)
Breadboard for prototype testing
Oscilloscope (for verifying rectifier output waveform and ripple)
Current-limited test leads
Component datasheets for all diodes used

Common mistakes

Installing a rectifier diode with reversed polarity — it blocks the intended current direction while conducting during the reverse half cycle.
Using a diode whose PIV rating is lower than the peak reverse voltage — particularly critical in mains rectifiers where peak voltage is approximately 1.41× the RMS value.
Omitting the series resistor in a Zener regulator circuit, causing destructive overcurrent through the Zener.
Using a standard silicon diode (slow recovery) in a high-frequency switching circuit — high-frequency alternating voltages cause the diode to remain partially conductive due to slow reverse recovery, increasing losses and temperature.
Omitting the flyback diode across an inductive load and then wondering why transistors or microcontroller pins fail.

Troubleshooting

No DC output from rectifier circuit: Cause: Diode installed backwards, diode open circuit (failed), or no AC input reaching the diode Fix: With power off, use the diode test function on a multimeter: a forward-biased good diode reads approximately 0.5–0.7 V; a reverse-biased good diode reads OL (open). Verify AC input is present at the anode with a multimeter.
Zener voltage reference unstable or wrong voltage: Cause: Series resistor value incorrect; Zener current too low to regulate; supply voltage too low (Vsupply < Vz + minimum headroom) Fix: Measure actual current through the Zener with a series milliammeter. Verify the supply voltage exceeds Vz by at least 10–20%. Recalculate Rs = (Vsupply − Vz) / Iz_operating.
Transistor or MOSFET switching inductive load fails repeatedly: Cause: No flyback diode across the inductive load; back-EMF spike exceeding device Vds or Vce maximum Fix: Add a flyback diode (or Schottky diode for fast switching) in reverse parallel across the inductive load. Verify anode connects to the lower-potential side of the load and cathode to the supply rail.

Frequently asked questions

How do I identify the anode and cathode of a diode?

On a physical through-hole diode, the cathode end is marked with a painted band, stripe, or line. On schematic symbols, the triangle points in the direction of conventional current flow (anode to cathode); the bar (vertical line) represents the cathode. On surface-mount diodes, check the marking against the specific component's datasheet.

What is the forward voltage drop of a diode and why does it matter?

Forward voltage (Vf) is the voltage dropped across a conducting diode — approximately 0.6–0.7 V for silicon rectifier diodes, 0.2–0.4 V for Schottky types. In rectifier circuits, Vf reduces the output DC voltage. In high-current applications it causes power dissipation (P = Vf × If) that must be managed with heatsinking.

What is a flyback diode and when is it needed?

A flyback (freewheeling) diode is connected in reverse parallel across an inductive load — such as a relay coil, contactor coil, or motor winding. When the load is de-energised, the inductor's collapsing field generates a high-voltage spike. The flyback diode clamps this spike and safely dissipates the energy, protecting transistors, MOSFETs, or microcontroller GPIO pins from damage.

What is the difference between a rectifier diode and a Schottky diode?

A standard silicon rectifier diode uses a p-n junction with a forward voltage of approximately 0.6–0.7 V and relatively slow recovery time. A Schottky diode uses a metal-semiconductor junction with a lower forward voltage (0.2–0.4 V) and extremely fast reverse recovery time, making it suitable for high-frequency switching and efficiency-critical rectifier circuits.

How does a Zener diode regulate voltage?

A Zener diode is designed to operate in reverse breakdown. When reverse voltage reaches the Zener voltage (Vz), the device conducts and maintains a nearly constant voltage across itself regardless of current (within rated limits). A series resistor between the supply and the Zener sets the current. This provides a simple voltage reference or shunt regulator.

What does the circuit diagram of a Zener diode look like?

A basic Zener diode voltage-reference circuit shows a DC supply in series with a current-limiting resistor (Rs), with the Zener diode connected in reverse bias across the output load. The Zener cathode (the bar with bent ends in the symbol) faces the positive supply rail. The resistor drops the excess voltage and limits current, keeping the voltage across the Zener — and thus the load — equal to the Zener's rated breakdown voltage (Vz). The formula Rs = (Vs – Vz) / (Iz + IL) ensures the diode stays in the regulation region.
