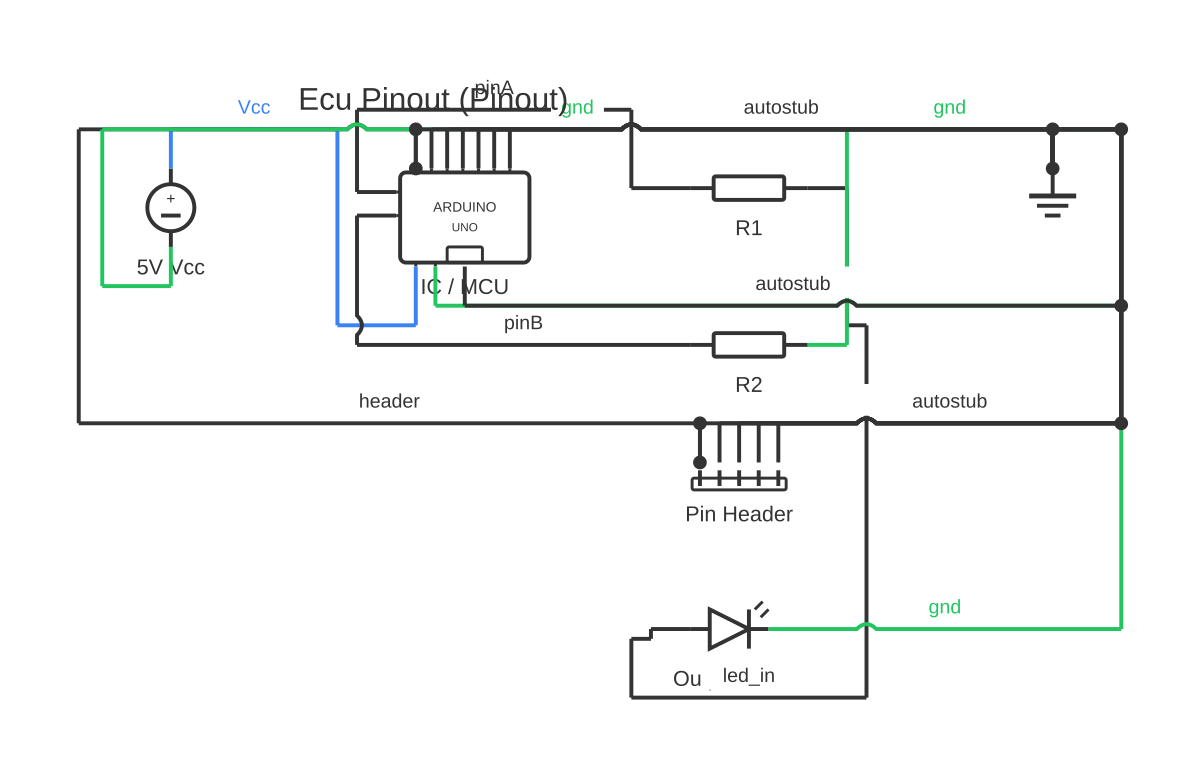

ECU Pinout Diagram: Understanding Generic Functions and Signal Types — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable ecu pinout: download the diagram as SVG or open it and print to paper or PDF.

An ECU pinout diagram maps the connector pins of an engine control unit to their functions — sensor inputs, reference voltages, injector outputs, and communication buses — for diagnostic and wiring purposes.

An Engine Control Unit (ECU) is the primary microcontroller responsible for managing fuel injection, ignition timing, and numerous other engine functions in a modern vehicle. Its connector (or connectors — many ECUs use two or three multi-pin connectors) exposes dozens to hundreds of individual circuits, each with a defined function.

Important caveat: ECU pin assignments are completely specific to the vehicle make, model, year, and engine variant. There is no universal ECU pinout. This reference describes the categories of signals typically found on automotive ECU connectors so that technicians understand what to expect — not to be used as the pin assignment for any specific vehicle. Always obtain the vehicle manufacturer's wiring diagram and pin assignment table before probing any ECU connector.

ECU pin functions fall into several general categories. Reference voltage outputs are precise 5 V DC outputs (occasionally 12 V) that the ECU supplies to sensors such as throttle position, manifold absolute pressure, accelerator pedal position, and fuel rail pressure sensors. These circuits are low-current and must not be loaded with test equipment that draws more than a few milliamperes. Sensor ground pins are dedicated, isolated ground references for sensor signals — they are not chassis ground and must not be bridged to chassis ground outside the ECU, as this introduces noise into sensor circuits.

Analogue input pins receive variable voltage signals (typically 0–5 V) from sensors. Digital input pins receive switched signals from crankshaft position sensors (reluctor or Hall-effect), camshaft position sensors, and vehicle speed sensors. Injector driver outputs are high-current (up to 4 A peak) switched-ground outputs; the ECU transistor pulls the injector circuit to ground to open the solenoid. Ignition coil driver outputs operate similarly. Communication bus pins carry CAN bus (typically 120-ohm terminated differential pair), LIN bus, or other serial protocols.

When testing, use a high-impedance multimeter (10 MΩ minimum) and back-probe connectors with fine-tipped probes rather than disconnecting the ECU — an unplugged ECU produces no operating signals to measure.

How to wire ecu pinout

Obtain the vehicle-specific ECU wiring diagram Locate the OEM wiring diagram for your exact vehicle. The ECU connector diagram will identify each pin number, its circuit name, the wire colour, and the expected signal type. This document is essential — do not proceed without it.
Identify the ECU connector(s) on the vehicle Modern ECUs may have two, three, or four multi-pin connectors. Identify each connector by its physical label or position on the ECU housing and cross-reference with the wiring diagram to know which connector contains the circuits you need to test.
Prepare back-probe tools Use fine-tipped back-probe pins that slide alongside the existing terminal inside the connector without spreading or damaging the pin's grip tabs. Never force a probe tip directly into the front of the ECU connector — this spreads the terminal and causes intermittent contact faults.
Test reference voltage outputs With the ignition on and engine off, measure the 5 V reference pins relative to sensor ground. A healthy reference reads 4.90–5.10 V. A low reading indicates a short to ground somewhere on the reference circuit; an absent reading may indicate a failed ECU internal regulator — but first unplug suspect sensors one at a time to rule out an external short.
Test sensor signal pins With the engine running, monitor analogue signal pins (throttle, MAP, etc.) relative to sensor ground. Vary the sensor's input (open/close throttle, increase/decrease manifold vacuum) and confirm the signal voltage moves smoothly and proportionally across the expected range.
Test injector driver outputs with an oscilloscope A multimeter cannot accurately capture the fast switching of injector pulses. Use an oscilloscope to observe the injector driver pin — you should see the voltage pulling to near 0 V for a brief pulse duration (typically 2–15 ms depending on load), then rising back to battery voltage. No pulse indicates a driver fault or missing trigger signal.
Inspect connector and pin condition If fault-finding leads to an ECU connector, carefully inspect each pin for corrosion (green or white residue), pushed-back pins, or broken retaining tabs. Clean corroded pins with an appropriate electrical contact cleaner, and use a pin release tool to re-seat any pushed-back terminals rather than trying to push them forward with a screwdriver.

Specifications

5 V reference output voltage (typical)	4.90–5.10 V DC relative to sensor ground
Sensor signal input range (analogue)	0–5 V DC (typical for resistive and variable-voltage sensors)
Injector driver output type	Low-side switched to ground (ECU sinks current)
Injector driver peak current (typical)	Up to 4 A peak (peak-and-hold drivers); varies by injector type
CAN bus termination resistance	120 ohms (measured across CAN-H and CAN-L with both ECUs disconnected)
Multimeter input impedance required	Minimum 10 MΩ for ECU signal measurement
ECU supply voltage range (typical)	9–16 V DC (vehicle battery voltage; ECU regulates internally to logic levels)
Injector pulse width range (reference)	Approximately 2 ms (idle) to 15+ ms (full load); varies by engine and fuel system design

Safety warnings

IMPORTANT: Do not use this generic ECU reference as a pin assignment for any specific vehicle. Incorrect probing of ECU pins — especially injector driver, coil driver, or power supply pins — can permanently damage the ECU. Always obtain the vehicle-specific OEM wiring diagram before performing any ECU connector testing.
Never inject external voltage into any ECU signal or output pin. ECU internal driver circuits are not protected against reverse voltage or overvoltage on output pins. Even brief contact with battery voltage on a sensor signal pin can destroy the ECU.
When working near the ignition system, note that ignition coils produce high voltage (20 000–40 000 V) on the secondary side. Keep hands clear of coil towers, HT leads, and spark plug caps with the engine running.
Disconnecting the ECU harness connector with the ignition on can cause voltage spikes on inductive circuits (injectors, coils) that may damage ECU driver transistors. Switch the ignition off before unplugging any ECU connector.
Some ECUs contain anti-theft immobiliser logic. Incorrect handling or replacement of the ECU may require transponder key programming or module coding — consult the vehicle manufacturer's procedure.

Tools needed

Vehicle-specific OEM wiring diagram and ECU pin assignment table
Digital multimeter (10 MΩ input impedance minimum)
Automotive oscilloscope or graphing multimeter (for injector/coil pulse analysis)
Back-probe pin set (fine-tipped, non-damaging)
Terminal release tool set (for pin extraction without connector damage)
Scan tool / OBD-II reader (to read live data and fault codes alongside wiring tests)
Electrical contact cleaner spray

Common mistakes

Using the wrong vehicle's wiring diagram — even a one-year difference or a different engine code can result in completely different pin assignments on an identical-looking connector.
Probing ECU connector pins from the front (the terminal face) with a standard sharp probe, which spreads the terminal's spring leaves and causes permanent intermittent contact faults.
Treating sensor ground pins as chassis ground and connecting them to body earth, introducing noise offsets into sensor signal circuits that cause incorrect ECU fuelling or ignition calculations.
Using a low-impedance multimeter on the 5 V reference circuit, which loads the output down, giving a falsely low reading that implies an ECU fault when the circuit is actually healthy.
Replacing an ECU based on voltage readings alone without first checking connector pin condition and wiring continuity — a corroded or pushed-back pin is far more common than a failed ECU.

Troubleshooting

5 V reference reads low or absent (e.g., 0.5 V or 0 V): Cause: Short to ground on the 5 V reference circuit — usually a damaged sensor, pinched harness wire, or water ingress into a sensor connector Fix: Unplug sensors on the 5 V reference circuit one at a time and re-measure after each disconnection. When the voltage returns to 5 V after unplugging a specific sensor, that sensor or its wiring is the source of the short.
No injector pulse detected at ECU output pin: Cause: Missing crankshaft position signal (ECU has no speed/position reference), ECU in flood-clear mode (throttle held wide open during cranking on some vehicles), or failed ECU injector driver Fix: Verify crank sensor signal first — no crank signal means no injection pulse by design. Check for throttle position sensor errors. If crank signal is present and driver output is absent, consult the OEM diagnostic procedure before condemning the ECU.
Intermittent fault codes that clear on their own: Cause: Poor terminal contact at ECU connector — corrosion, pushed-back pin, or connector moisture Fix: Inspect all ECU connector terminals for corrosion and proper seating. Apply dielectric grease to the connector mating faces. Flex the harness near the ECU while monitoring live data to confirm or eliminate a flex-induced intermittent connection.

Frequently asked questions

Is there a universal ECU pinout diagram?

No. ECU pin assignments are entirely specific to the vehicle make, model, year, and engine variant. Even the same ECU hardware part number can have different pin functions when programmed for different applications. Always use the vehicle manufacturer's wiring diagram for any specific vehicle. Generic diagrams are illustrative only.

What is the 5 V reference output on an ECU?

Most sensors that provide a variable analogue voltage signal — throttle position, MAP, accelerator pedal, fuel rail pressure — are supplied with a precisely regulated 5 V reference from the ECU. The sensor returns a proportional voltage between 0 V and 5 V. This reference circuit is low-current; short-circuiting it can damage ECU internal circuitry.

Why are ECU sensor grounds different from chassis ground?

ECU sensor grounds are isolated return paths for analogue sensor signals routed directly back to the ECU's internal reference. Bridging them to chassis ground introduces voltage offsets from chassis current flow (millivolt-level noise that is significant in a 0–5 V measurement range). Sensor ground pins must only be connected as specified by the OEM wiring diagram.

How does the ECU control a fuel injector?

Injector driver outputs are switched-to-ground (low-side switch) circuits. The injector's positive terminal is connected to a relay-switched battery supply (the injector fuse rail). The ECU's injector output pin connects to the injector's negative terminal and pulls it to ground for a precisely timed duration (pulse width), allowing current to flow through the injector solenoid and open the needle.

Can I probe ECU connector pins with a standard multimeter?

Yes, with caution. Use a high-impedance multimeter (10 MΩ or higher) and back-probe with fine-tipped probes through the rear of the connector — do not disconnect the ECU. Probing reference voltage or sensor signal pins with low-impedance test equipment loads the circuit and produces inaccurate readings. Never inject voltage into ECU signal pins.
