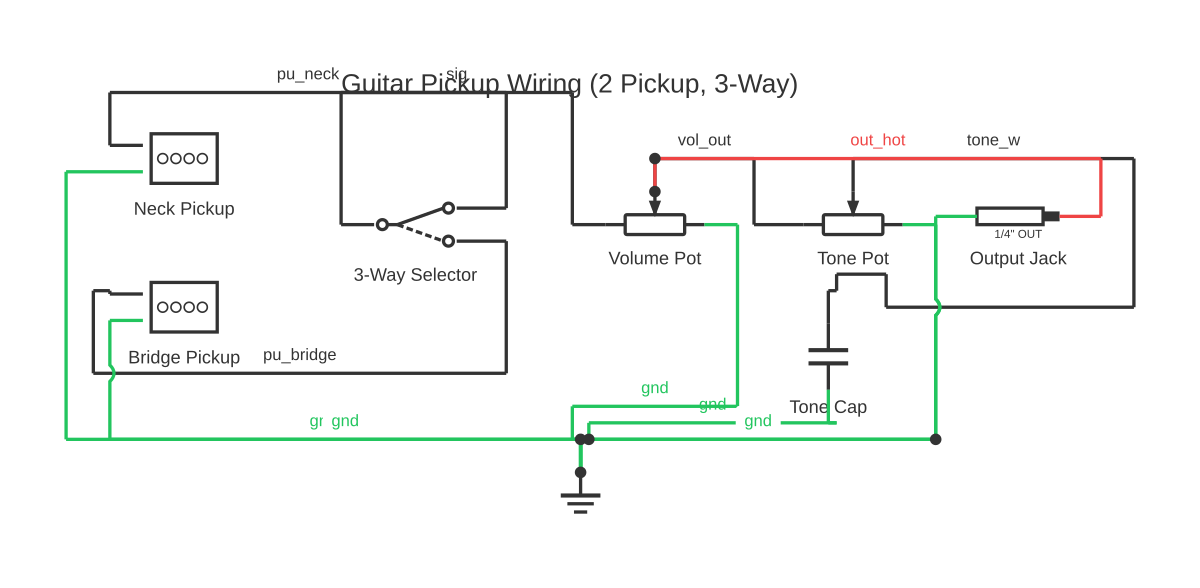

Electric Guitar Wiring Diagram: Pickups, Volume, Tone and Selector Switch
This is a free printable electric guitar diagram: download the diagram as SVG or open it and print to paper or PDF.
A reference wiring diagram for electric guitar electronics, covering single-coil and humbucker pickups, volume and tone potentiometers, selector switches, and output jack wiring.
Electric guitar wiring is a low-voltage passive circuit — no power supply is required for standard passive instruments. The signal path begins at the pickup and ends at the output jack, with volume and tone controls in between.
**Pickups:** A single-coil pickup consists of a coil of very fine wire (typically 42–44 AWG) wound around a bobbin holding individual pole pieces. The moving steel string disturbs the magnetic field and induces a small AC voltage in the coil — typically 100–300 mV peak. A humbucker uses two coils wound in opposite directions and wired in series with opposite magnetic polarities (RWRP — Reverse Wound, Reverse Polarity). This cancels hum induced by external electromagnetic interference, while the string signal (which is differential) adds together.
**Potentiometers:** Volume and tone controls use rotary potentiometers. A 250 kΩ pot is standard with single-coil pickups (reducing the high-frequency peak that causes brightness in Telecaster and Stratocaster circuits). A 500 kΩ pot is used with humbuckers to preserve high-frequency response. The volume pot is wired as a voltage divider between the pickup output and earth. The tone pot is wired as a low-pass filter with a capacitor (typically 0.022–0.047 µF) to bleed treble frequencies to ground as the control is turned down.
**Selector switch:** A 5-way lever switch (Stratocaster standard) selects between neck, middle, bridge, neck+middle (parallel, hum-cancelling), and middle+bridge (parallel, hum-cancelling) positions. A 3-way switch is standard on Les Paul-style instruments.
**Output jack:** A standard TS (Tip-Sleeve) mono jack connects to the signal hot (tip contact) and signal ground (sleeve contact). The sleeve and all control grounds must form a continuous star ground returning to the jack sleeve. Poor earthing causes hum.
**Shielding:** Shielding the control cavity with conductive paint or adhesive copper tape significantly reduces hum and radio frequency interference. All shielding must connect to the circuit ground.
How to wire electric guitar diagram
- Identify all wiring points before desoldering Before removing any existing wiring, photograph the control cavity from multiple angles. Note which wires connect to each potentiometer lug and switch terminal. Identify the ground bus and hot signal path. Having a reference prevents incorrect reassembly.
- Establish the ground bus Identify the signal ground return path from the output jack sleeve. All component grounds should connect to a single common ground point (often the back of the volume pot or a dedicated ground bus strip). Confirm the string ground wire from the bridge/tailpiece also terminates here.
- Wire the pickup leads to the selector switch Connect each pickup's hot lead to the appropriate selector switch input lug, per the switch wiring diagram for the guitar layout. Connect each pickup's ground (shield) lead to the common ground. On humbuckers, identify which conductor is hot and which is ground from the pickup manufacturer's wiring colour chart.
- Wire the volume potentiometer Connect the selector switch output to lug 2 (wiper, centre lug) of the volume pot via the signal hot wire. Connect lug 3 to earth for the voltage divider. Connect a treble bleed capacitor (optional: 220–470 pF in series with a 100–150 kΩ resistor) from lug 1 to lug 2 if desired, to prevent treble loss at lower volume settings.
- Wire the tone potentiometer and capacitor Connect the volume pot lug 1 (or 2, depending on circuit topology) to the tone pot input lug. Solder the tone capacitor from the tone pot wiper (lug 2) to earth. Connect tone pot lug 3 to earth. Turning the tone pot clockwise reduces resistance, bleeding more treble to earth through the capacitor.
- Wire the output jack Connect the tone pot signal output (or volume pot lug 1, per the circuit) to the jack tip terminal. Connect the signal ground to the jack sleeve terminal. The jack sleeve also connects to the cavity shield (if used) and the star ground point.
- Test before reassembly Plug in and select each pickup position in turn, tapping pole pieces to confirm signal. Rotate volume and tone controls through their full range confirming smooth, hum-free response. Check for any solder bridges or cold joints under a magnifying light before routing the wiring into the cavity.
Specifications
| Pickup output voltage (typical) | 100–350 mV peak (single-coil); 200–500 mV peak (humbucker) |
|---|---|
| Pickup DC resistance (single-coil) | 5–10 kΩ (varies by wind count) |
| Pickup DC resistance (humbucker) | 7–18 kΩ (both coils in series) |
| Volume/tone pot resistance (single-coil) | 250 kΩ audio taper |
| Volume/tone pot resistance (humbucker) | 500 kΩ audio taper |
| Tone capacitor value (Stratocaster) | 0.047 µF typical |
| Tone capacitor value (Les Paul) | 0.022 µF typical |
| Output jack connector | 6.35 mm (1/4 inch) TS mono |
Safety warnings
- Electric guitar circuits are passive low-voltage systems and are not directly hazardous. However, ensure your guitar amplifier is properly earthed. A faulty amplifier earth in combination with a guitar connected to a separate audio path (e.g. a mixing desk) can create a potential difference that causes shock.
- When using a soldering iron inside the guitar control cavity, protect the finish with a cloth or silicone mat. Rosin flux fumes are an irritant — work in a ventilated area.
- If modifying a vintage instrument, consider the impact on the instrument's value. Some modifications are irreversible. Consult a guitar technician before drilling or routing.
Tools needed
- Soldering iron (25–40 W, with fine tip)
- Rosin-core solder (60/40 tin-lead or lead-free equivalent)
- Multimeter (continuity and resistance)
- Wire stripper (suitable for 22–28 AWG hookup wire)
- Screwdrivers (matching control cavity screws)
- Desoldering braid or solder sucker (for rework)
- Small needle-nose pliers
- Magnifying glass or loupe
Common mistakes
- Grounding all component grounds to different points rather than a single star ground, creating ground loops that cause hum.
- Connecting pickup ground (shield) wires to the hot signal path, which shorts the pickup output to earth and produces no sound.
- Selecting the wrong potentiometer taper — linear taper pots have very little volume change across most of the rotation; audio (log) taper is required for smooth volume control.
- Leaving the tone pot wiper (lug 2) unconnected, which allows the capacitor to float and produces random high-frequency noise.
- Using rosin-flux-core solder but not applying adequate heat to pot backs — pot cases require more heat than component leads. Use the flat side of the iron tip on the pot casing.
Troubleshooting
- No output from guitar; confirmed amp is working
- Cause: Open circuit somewhere in the signal path — disconnected jack hot lead, broken pickup lead, or faulty selector switch Fix: Use a multimeter in continuity mode and trace from jack tip terminal back through the circuit. Start at the jack, then volume pot, then selector switch, then pickup hot lead. The break will show as an open (no continuity).
- Loud hum from guitar in all positions
- Cause: Ground loop, missing string ground, or broken shield connection Fix: Touch the strings — if hum reduces, the string ground is connected but the cavity shielding is incomplete. If hum does not change when touching strings, the string ground wire is disconnected. Trace the wire from bridge/tailpiece to control cavity ground.
- Volume or tone control is scratchy when rotated
- Cause: Contaminated or oxidised potentiometer track Fix: Apply an appropriate contact cleaner/lubricant spray (rated for potentiometers) through the pot housing opening. Rotate the control back and forth through its full range ten times to distribute the cleaner. If scratching persists, the pot track is worn and the pot must be replaced.
Frequently asked questions
Why does my electric guitar hum when I touch the strings?
Touching the strings connects your body to the guitar's electrical ground, which should reduce hum. If the guitar hums more when you touch strings, the string ground is disconnected — a wire from the bridge or tailpiece to the control cavity ground is missing or broken. If hum stops when touching strings, your body is acting as ground — the earthing is working but the shielding is incomplete.
What is the difference between 250 kΩ and 500 kΩ volume pots?
Higher resistance pots allow more high frequencies through to the output. Single-coil pickups (Stratocaster, Telecaster) traditionally use 250 kΩ pots, which naturally attenuate some harshness. Humbuckers use 500 kΩ pots to preserve their warmer but less bright character. Switching pot values significantly changes the tonal character of the pickup.
What capacitor value should I use for the tone control?
The tone capacitor sets the corner frequency of the treble-cut filter. A 0.047 µF capacitor (common on Stratocasters) cuts more treble at the rolled-off position. A 0.022 µF capacitor (common on Les Pauls) cuts less, giving a brighter sound at minimum tone. The correct value is a matter of preference — both are correct in their respective traditional applications.
How does a humbucker in split-coil mode work?
A 4-conductor humbucker has both start and finish leads of each coil accessible. Splitting the coil shorts one coil's conductors together, silencing that coil and leaving only the other active. This converts the humbucker to a single-coil mode — quieter output, less hum cancellation, but a brighter, thinner tone. A push-pull or mini toggle switch performs this switching.
My guitar has no sound in one pickup position. What should I check?
First verify the pickup is producing output by selecting it alone and tapping the pole pieces with a metal object. If no sound, check the pickup lead connections at the selector switch. If pickup signals are present in adjacent positions, the switch contact for that position is dirty or worn. Clean switch contacts with contact cleaner spray or replace the switch.
