electrical socket wiring diagram

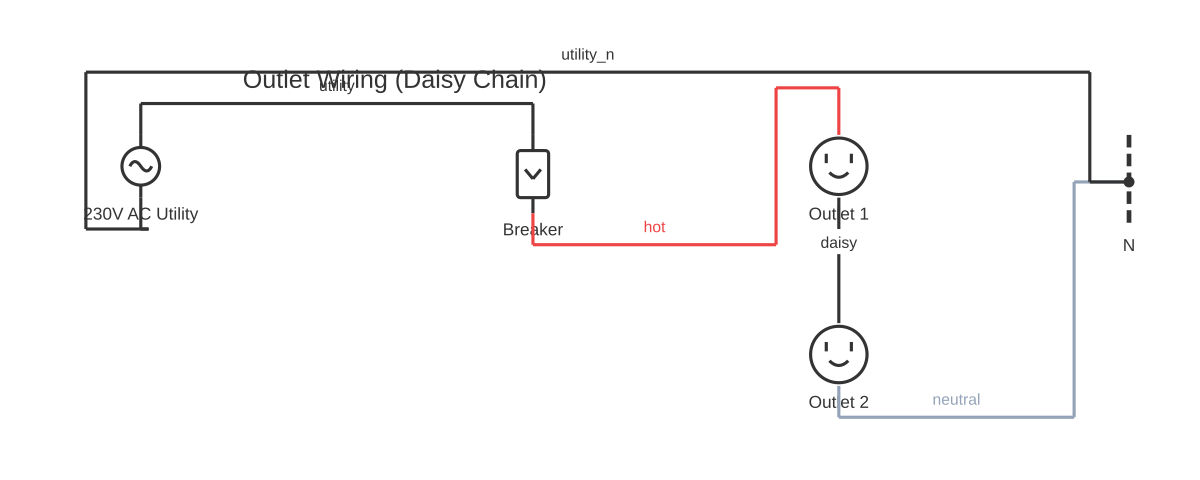

This is a free printable electrical socket wiring diagram: download the diagram as SVG or open it and print to paper or PDF.
An electrical socket wiring diagram (also called outlet wiring diagram) shows the terminal connections for 120V or 240V receptacles that provide power to portable appliances and equipment. The diagram identifies three terminals in standard 120V outlets: hot (carries live electrical potential), neutral (return path for current), and ground (safety conductor). Standard outlet configurations follow NEMA standards: horizontal neutral slot slightly larger than hot slot to prevent reverse insertion, and a rounded ground pin positioned above the two power slots. The diagram shows proper wiring: black or red hot conductor to brass-colored hot terminal, white or gray neutral conductor to silver-colored neutral terminal, and bare copper or green ground conductor to green ground terminal. Outlet wiring may be single or double-gang (two outlets), and may include GFCI protection in wet locations (kitchens, bathrooms, outdoor areas). Modern outlet diagrams show proper terminal pressure, strain relief, and specifications for amp rating (15A, 20A) and voltage rating (125V, 250V). Understanding outlet wiring enables safe installation, ground-fault diagnosis, and proper grounding verification for electrical safety.
In the UK, mains socket wiring follows strict colour and terminal conventions: the brown conductor connects to the Live (L) terminal, blue to Neutral (N), and the green-and-yellow striped conductor to Earth (E). Ring-main and radial circuits differ in how sockets are looped, and fused spurs add another layer of variation. Whether you are planning a new ring circuit, adding a fused spur, or converting an older rubber-insulated installation, mapping the socket layout in advance prevents costly mistakes. Draw and customise your UK electrical socket wiring diagram free in the browser-based editor — no download needed.
How to wire electrical socket wiring diagram
- Switch off and verify dead Switch off the MCB for the circuit and test the socket terminals with a voltage tester or multimeter. Confirm all three terminals read zero voltage before touching any wiring. Lock out the MCB if working in a shared panel — another person switching it on while your hand is in the socket box is an avoidable fatality.
- Prepare cable ends Strip the outer sheath of the supply cable to expose approximately 80 mm of insulated conductors inside the socket box. Strip 8 mm of insulation from each conductor end. Do not nick the copper strands when stripping — a nicked strand reduces the effective conductor cross-section and can lead to a high-resistance connection.
- Identify live, neutral, and earth In South African wiring, the live conductor is red, neutral is black, and earth is green-and-yellow. In older installations or imported cable, colours may differ. If in doubt, use a multimeter to confirm polarity from the distribution board with power on before connecting.
- Terminate earth conductor first Connect the green-and-yellow earth conductor to the earth terminal of the socket, which is marked E or with the earth symbol. Terminate earth first so the enclosure is earthed before you work on the live and neutral connections.
- Terminate neutral conductor Connect the black neutral conductor to the N terminal. Insert the stripped end fully into the terminal — no bare copper should be visible outside the terminal body. Tighten the terminal screw to the manufacturer's torque specification.
- Terminate live conductor Connect the red live conductor to the L terminal. Double-check the polarity before tightening — connecting live to N and neutral to L will give a reversed-polarity socket that passes visual inspection but fails a socket polarity test.
- Refit the socket and test Refit the socket face to the box, restore the MCB, and test with a socket polarity tester — a basic socket tester with three indicator lights confirms live, neutral, earth, and polarity in under five seconds. Do not leave any new socket installation without this final check.
Frequently asked questions
What are the three terminals on a South African electrical socket?
The three terminals on a South African three-pin socket (SANS 164-1 Type M) are L (line/live), N (neutral), and E (earth). The live conductor connects to L, neutral to N, and the protective earth conductor to E. The earth pin on a Type M socket is the large round top pin.
Can I wire a double socket from a single circuit?
Yes. Both sockets in a double outlet share the same supply conductors. Wire the live, neutral, and earth to the first socket terminals, then use short jumper links or the double-socket's common terminals to carry the same supply to the second socket. Total load on both sockets combined must not exceed the circuit rating.
What cable size should I use for a standard 15 A socket circuit?
A standard South African 15 A socket circuit uses 2.5 mm² two-core plus earth cable per SANS 10142-1. This cable is rated to carry 20 A but is protected by a 15 A or 16 A MCB. The MCB protects the cable, so the cable must be rated above the MCB trip current, not the socket current rating.
Does it matter which way round I connect live and neutral?
Yes. Reversing live and neutral (polarity reversal) creates a shock hazard. A switched lamp will have its switch in the neutral conductor, leaving the lamp holder live when the switch is off. Appliances with polarity-sensitive circuits can be damaged. Always confirm correct polarity with a socket tester after installation.
Do I need an RCD on a socket circuit in South Africa?
SANS 10142-1 requires RCD protection on socket circuits in wet areas such as bathrooms and kitchens. The RCD must trip at 30 mA maximum. For all other socket circuits, RCD protection is strongly recommended for safety though not always mandatory — check the specific edition of the standard and your local authority's requirements.
How do you wire an electrical socket in the UK (colour codes and terminals)?
In the UK, the brown wire connects to the Live (L) terminal, the blue wire to the Neutral (N) terminal, and the green-and-yellow wire to the Earth (E) terminal. These are the post-2004 harmonised European colours; older installations may use red (Live) and black (Neutral), which should be sleeved with new-colour sleeves when re-worked. Always isolate and test with a proving unit before handling any conductors.
