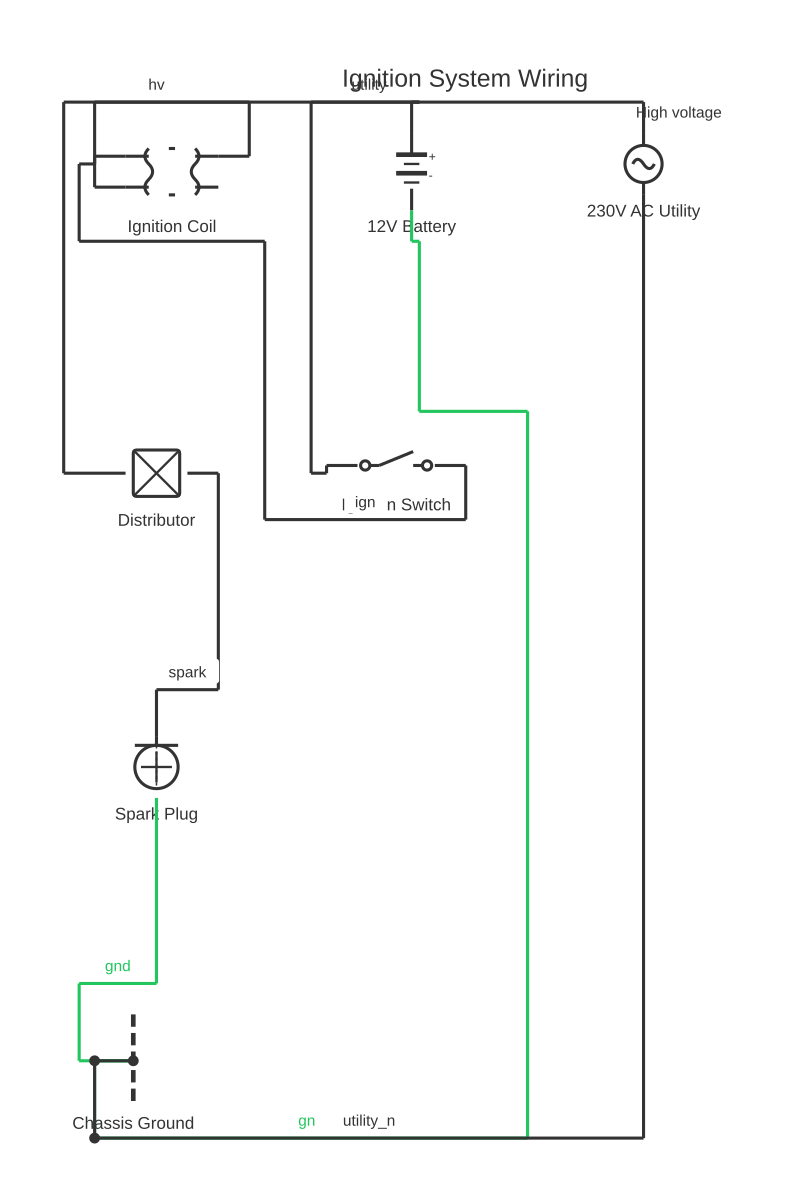

electronic ignition distributor wiring diagram
This is a free printable electronic ignition distributor wiring diagram: download the diagram as SVG or open it and print to paper or PDF.
A electronic ignition distributor wiring diagram configuration establishes reliable control over complex electrical systems through strategic use of contactors and distributed protection. The circuit topology separates control signals from power paths, allowing low-voltage logic to manage high-power loads safely. Protective devices are rated and coordinated to ensure selective tripping during fault conditions, preventing cascade failures across unaffected branches. Component tolerance analysis ensures predictable operation across manufacturing variations and environmental temperature ranges. The ground distribution uses star topology to minimize return-path impedance and reduce voltage distortion.
How to wire electronic ignition distributor wiring diagram
- Confirm the electronic ignition kit is application-specific for your engine — never fit a universal kit without verifying compatibility. Fitting a mismatched kit wastes money and may damage the new module within hours. Look up your engine's distributor type (Lucas, Bosch, Ducellier) and buy the correct application kit.
- Disconnect the battery negative terminal, remove the distributor cap and rotor, and photograph the existing point and condenser wiring before removing anything. You will reconnect the electronic module to the same terminal positions as the original points. A photograph costs nothing and saves hours of confusion if you are working from memory.
- Remove the contact points and condenser from the distributor baseplate — the module fits in the same position. Some kits use the original condenser terminal as the module trigger output — others bypass it entirely. Check the specific instructions for your kit before discarding the condenser.
- Fit the trigger magnet ring over the distributor shaft and mount the Hall-effect or magnetic sensor to the baseplate per the kit instructions. Air gap between the magnet and sensor is critical — typically 0.5–1.0mm. Too large and the trigger signal is weak. Too small and the magnet strikes the sensor as the shaft rotates — destroying the module instantly.
- Connect the module positive wire (red) to the coil positive terminal and the module trigger wire (black or green) to the coil negative terminal. The coil negative terminal is where the original points wire connected. The module replaces the points electrically — it switches the coil primary current to ground at the correct trigger point.
- Refit the rotor and distributor cap, reconnect the battery, and start the engine — confirm smooth idle with no misfire before checking timing. If the engine will not start, check the module wiring polarity first. Reversed wires on most electronic modules prevent firing entirely but do not cause immediate damage.
- Check and set ignition timing with a timing light — advance or retard by rotating the distributor body and retighten the clamp bolt when timing marks align. Electronic ignition modules do not change the ignition timing set-point — they improve spark energy and consistency. Set timing to the same specification as the original points system.
Frequently asked questions
Can I fit an electronic ignition module to any distributor?
No. The module must be matched to the distributor type — Pertronix, Crane, and similar brands make application-specific kits for common engines. The magnetic ring or reluctor inside the distributor must be compatible with the specific module being used.
Does electronic ignition require a different ignition coil?
Often yes. Many electronic ignition modules specify a minimum coil primary resistance (typically 3Ω) to prevent excessive current through the module's transistor output stage. Using a low-resistance coil without checking the module specification will shorten or destroy the module.
My engine starts but misfires at high RPM after fitting electronic ignition. What is wrong?
High-RPM misfire after an electronic ignition conversion usually indicates a weak ignition coil, a coil with incorrect primary resistance, or HT leads with too much resistance. Replace the HT leads and confirm coil specification matches the module datasheet.
What happens to the ballast resistor when I fit electronic ignition on an older vehicle?
This depends on the electronic module specification. Some modules, like certain Pertronix Ignitor I units, require the ballast resistor to remain in circuit. Others specify bypassing it. Always follow the specific module installation instructions — not generic advice.
How do I set ignition timing after fitting an electronic ignition distributor?
Connect a timing light to number 1 plug lead, start the engine, point the timing light at the timing marks on the harmonic balancer, and rotate the distributor body until the marks align with the manufacturer's specified advance at idle — typically 10–12° BTDC on most older petrol engines.
