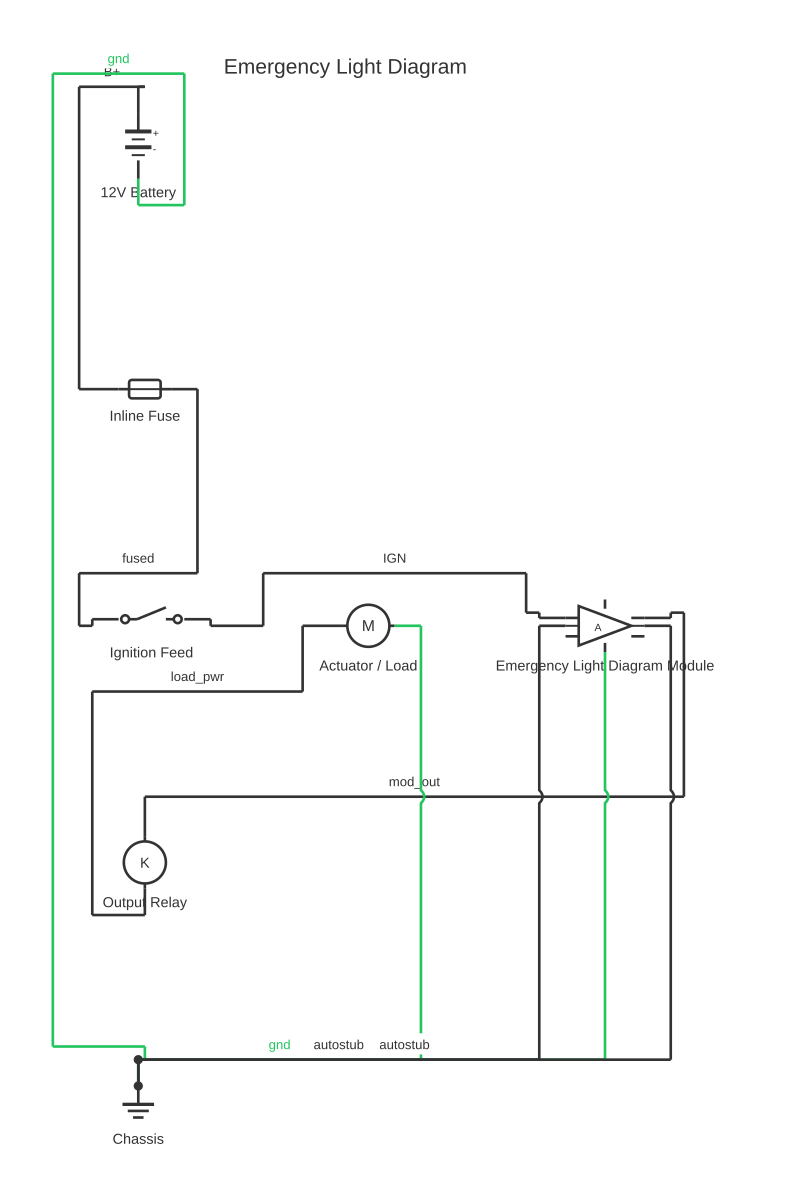

Emergency Light Wiring Diagram — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable emergency light diagram: download the diagram as SVG or open it and print to paper or PDF.

Understand how a maintained or non-maintained emergency light integrates a trickle charger, sealed battery, and inverter or LED driver into a circuit that fails safely when mains power is lost.

Emergency lighting is a life-safety system. Its purpose is to provide illumination for safe egress when normal lighting fails — during a power cut, a tripped circuit breaker, or a fire event that disrupts the mains supply. Understanding the circuit architecture is essential before servicing, because a wiring error that disables the charge circuit or prevents the battery from supplying the lamp can result in complete darkness during an emergency, with potentially fatal consequences.

Most self-contained emergency lights share a common internal circuit: a mains input feeds a trickle charger that maintains a sealed lead-acid (SLA) or nickel-cadmium (NiCd) battery at full charge under normal operating conditions. A transfer circuit monitors the mains input. When mains voltage drops below a threshold (typically 160–180 V AC on 230 V systems), the transfer circuit switches the lamp load from mains to the battery within one second (the maximum transfer time specified in standards such as AS 2293, BS EN 60598-2-22, and NFPA 101). The battery then powers the lamp either directly (for DC LED lamps) or via an inverter (for fluorescent tubes or high-voltage LED drivers), for the rated duration period.

Maintained emergency lights are energised at all times — both from mains under normal conditions and from battery during a power failure. They function as normal luminaires during regular operation. Non-maintained emergency lights are dark under normal conditions; they illuminate only during a mains failure. The wiring diagram differs: a maintained light connects the lamp load in parallel across both the mains and battery output circuits, while a non-maintained light connects the lamp load only to the battery/inverter output circuit.

The trickle charger is a current-limited power supply, typically delivering a charge current of C/10 to C/30 (a tenth to a thirtieth of the battery's ampere-hour capacity), maintaining the battery at float voltage without overcharging. Battery float voltage is approximately 2.25–2.30 V per cell for SLA (13.5–13.8 V for a six-cell 12 V battery). Exceeding float voltage causes water loss from SLA cells and shortens battery life significantly.

The test and inhibit function (marked on most units as a 'test' terminal or remote test input) allows testing the emergency function from a remote switch without disconnecting mains — this is the correct method for the routine function tests required by most standards.

How to wire emergency light diagram

Isolate mains power and verify dead At the distribution board, isolate the circuit feeding the emergency light. Lock off or tag the circuit breaker. Use an approved non-contact voltage tester and a calibrated multimeter to verify the circuit is dead at the emergency light terminals. Emergency lights may remain illuminated from battery after mains isolation — this is normal and does not indicate the circuit is live.
Disconnect the battery before working on internal wiring After verifying mains is isolated, open the fitting and disconnect the battery connector. The internal circuits of an emergency light remain live from the battery even with mains isolated. Disconnecting the battery eliminates this hazard. Note battery polarity before disconnecting.
Identify and connect mains input terminals Emergency lights have clearly marked terminal blocks: Live (L), Neutral (N), and Earth (PE) for mains input; and in many cases a switched Live input for maintained operation (allowing the fitting to follow a switched circuit for non-emergency normal use). Connect the permanent live to the permanent live terminal; connect the switched live (if required for maintained operation) per the manufacturer's diagram.
Connect the remote test and inhibit wiring (if applicable) Many installations include a central test switch or emergency lighting test controller. Connect the remote test cable from the controller to the fitting's test terminal per the manufacturer's wiring diagram. Verify polarity and voltage requirements for the test input — some accept a dry contact closure, others require a voltage signal.
Reconnect battery and verify charge voltage Reconnect the battery with correct polarity. Restore mains power. Using a multimeter, measure voltage across the battery terminals — it should read the battery float voltage (approximately 13.5–13.8 V for 12 V SLA) within a few minutes. A reading equal to open-circuit battery voltage (approximately 12.6–12.8 V) without any rise indicates the charger is not functioning.
Perform function test Activate the test function (test button or remote test switch). The lamp should illuminate within one second at rated brightness. Allow a partial duration test (typically three minutes, or as required by the maintenance schedule). Restore mains after the test and verify the lamp extinguishes (non-maintained) or remains on from mains (maintained), and that the charger resumes charging the battery.
Record test results Log the test date, outcome, battery voltage before and after test, and duration achieved. Regulations in most jurisdictions require a maintained log of emergency lighting test results. A minimum monthly function test and an annual full-duration test are required under BS EN 50172, AS 2293, and similar standards.

Specifications

Mains input (typical)	230 V AC 50 Hz (UK/AU/EU) or 120/240 V AC 60 Hz (North America)
Battery type (most common)	Sealed lead-acid (VRLA/SLA) or Nickel-Cadmium (NiCd)
SLA float voltage (12 V battery)	13.5–13.8 V (2.25–2.30 V per cell)
Minimum emergency duration (most standards)	90 minutes (BS EN 50172, AS 2293, NFPA 101)
Mains failure transfer time (maximum)	1 second (BS EN 60598-2-22, AS 2293)
Minimum maintained illuminance (egress)	1 lux on escape route floor level (BS EN 50172); 1 foot-candle (NFPA 101)
Battery replacement interval (SLA, indicative)	Every 3–5 years (environment- and depth-of-discharge dependent)
Required test frequency (typical)	Monthly function test; annual full-duration test

Safety warnings

Emergency lighting wiring and installation must comply with applicable standards: NFPA 101 and NEC (USA), BS EN 60598-2-22 and BS EN 50172 (UK/Europe), AS 2293 (Australia), IEC 60598-2-22 (international). Installation must be performed or verified by a licensed electrician.
Always isolate the mains circuit AND disconnect the internal battery before working on emergency light wiring. The battery will maintain the internal circuit live even when mains is isolated — failure to disconnect the battery has caused burns and short-circuit damage.
Do not substitute a battery with a higher capacity than specified without verifying the charger circuit is rated for the new battery — an undersized charger on a large battery will never achieve full charge, and battery life and emergency duration will be compromised.
Emergency lighting is a life-safety system. Do not disable, bypass, or leave in a non-functional state. If a fitting cannot be repaired immediately, inform the building owner and fire safety officer and implement alternative measures.
Routine testing, maintenance, and log-keeping are legal requirements in most jurisdictions. Failure to maintain and test emergency lighting correctly creates regulatory liability and, more importantly, a genuine risk to occupant safety.

Tools needed

Approved non-contact voltage tester
Digital multimeter (AC and DC voltage, resistance)
Lockout/tagout equipment for circuit breaker
Screwdrivers (for terminal block and fitting cover)
Torque screwdriver (terminal block connections)
Emergency lighting test log book
Stopwatch (for duration test timing)

Common mistakes

Working on the fitting with the battery still connected after isolating mains — the battery keeps internal circuits live and can cause burns if a tool bridges battery terminals.
Connecting the permanent live to the switched live terminal (or vice versa) causing the fitting to operate incorrectly in maintained or non-maintained mode.
Replacing a failed battery with a physically similar but higher-capacity unit without checking the charger's maximum charge current output, resulting in chronic undercharging.
Failing to perform or log regular function tests, resulting in both regulatory non-compliance and an undetected battery or charger failure that would only become apparent during an actual emergency.
Using the main circuit breaker as the test method — disconnecting mains supply from the distribution board to test an emergency light disturbs all other loads on that circuit and risks mains wiring faults during reconnection.
