ESP32 Circuit Diagram: Power Supply, GPIO Usage, and Peripheral Connections

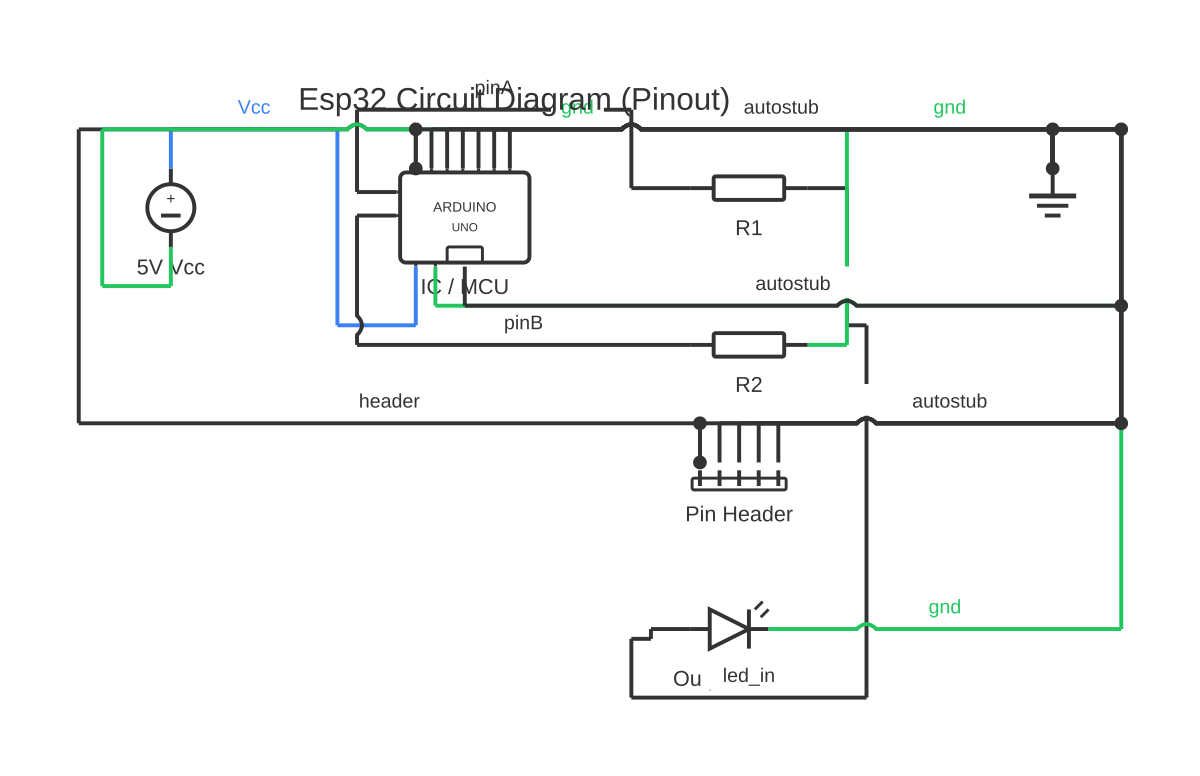

ESP32 Circuit Diagram: Power Supply, GPIO Usage, and Peripheral Connections — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable esp32 circuit diagram: download the diagram as SVG or open it and print to paper or PDF.

Learn how to wire an ESP32 development board correctly, including 3.3V logic levels, safe GPIO usage, strapping pins, power input options, and common peripheral circuits.

The ESP32 is a dual-core 32-bit microcontroller with integrated Wi-Fi and Bluetooth, manufactured by Espressif Systems. Development boards based on the ESP32 (commonly 38-pin or 30-pin form-factor modules) expose the GPIO pins, power supply inputs, and programming interface through standard 2.54 mm pitch headers, making them straightforward to prototype with on a breadboard.

The single most important characteristic to understand when wiring an ESP32 is that it is a 3.3 V logic device. All GPIO pins operate at 3.3 V logic levels. Applying 5 V to any GPIO pin will likely damage the chip permanently. When interfacing with 5 V peripherals (sensors, displays, or communication lines that operate at 5 V), a logic level converter or voltage divider must be used to shift signals down to 3.3 V before they reach the ESP32 GPIO pins.

Power input: most ESP32 development boards include a USB-to-UART bridge chip and can be powered via a Micro USB or USB-C connector (5 V, typically 500 mA capable). An onboard 3.3 V LDO regulator converts this to 3.3 V for the ESP32 chip and the 3.3 V rail available on the header pins. Alternatively, the board can be powered by applying 3.3 V directly to the 3.3 V header pin, bypassing the onboard regulator — ensure your 3.3 V supply can source the peak current required (up to 500 mA during Wi-Fi transmission). The 5 V (Vin) pin on many boards accepts 5 V directly from an external supply, feeding the onboard regulator.

Strapping pins are GPIOs that the ESP32 samples at boot to determine operating mode. Common strapping pins include GPIO0 (must be high for normal boot, low for programming mode), GPIO2, GPIO12, and GPIO15. These pins can generally be used as GPIO after boot, but their state at power-up must be controlled carefully. Do not apply external pull-down loads to these pins that could interfere with the boot mode selection.

GPIO current limits: each GPIO pin can source or sink a maximum of 40 mA individually, with a total chip IO current of approximately 1200 mA across all GPIOs — but driving multiple LEDs or relays directly from GPIO pins without driver circuits is poor practice. Use transistors, MOSFETs, or driver ICs for loads above 10 mA per pin.

The ESP32 is a dual-core Wi-Fi and Bluetooth microcontroller with 3.3 V I/O logic, 34 usable GPIO pins, integrated ADC/DAC channels, and hardware support for SPI, I2C, UART, and PWM. Circuit diagrams for ESP32 projects must show decoupling capacitors on the 3.3 V rail (typically 10 µF + 100 nF close to the chip), correct EN and IO0 pull-up/pull-down resistors for boot mode selection, and a 5 V USB or LDO supply feeding the onboard voltage regulator. Level shifters are required when interfacing with 5 V devices such as HC-SR04 ultrasonic sensors or classic Arduino shields. You can build and annotate your complete ESP32 circuit diagram — including peripheral connections and power rail layout — in the free browser-based editor at circuitdiagrammaker.com.

How to wire esp32 circuit diagram

Select the correct ESP32 development board for your project Confirm the pin count and module variant — common options include the 30-pin and 38-pin form-factor boards, and variants with different flash and PSRAM sizes. Obtain the pinout diagram for your specific board from the manufacturer or distributor. Generic ESP32 pinout images found online may not match your specific board revision. Obtain the datasheet for your exact module.
Select the correct power supply For prototyping, USB power from a USB 3.0 port or a dedicated 5 V 2 A USB adapter is recommended. Ensure the supply can handle the peak current demand of the ESP32 during Wi-Fi transmission (up to 500 mA for the ESP32 alone, plus peripheral current). For battery-powered applications, a 3.7 V LiPo with a boost regulator to 5 V or a direct 3.3 V LDO is typical, but check your specific board's input requirements.
Install the board on the breadboard and identify strapping pins Insert the ESP32 development board straddling the breadboard centre channel. Connect 3.3 V and GND from the board headers to the breadboard power rails. Identify GPIO0 and other strapping pins on your board's pinout diagram. Do not connect external pull-down resistors or loads to GPIO0 that could force it low at boot.
Wire digital GPIO connections for output For low-current outputs (indicator LEDs), connect a 330 Ω to 1 kΩ current-limiting resistor in series between the GPIO pin and the LED anode. The LED cathode connects to GND. Do not connect any load directly to a GPIO pin without a series resistor unless the load is specifically designed for 3.3 V GPIO drive. For higher-current loads, use an NPN transistor or N-channel MOSFET as a driver.
Wire digital GPIO inputs correctly For button inputs, connect one side of the button to the GPIO pin and the other to GND. Enable the internal pull-up resistor in firmware (pinMode INPUT_PULLUP in Arduino or gpio_pullup_en in ESP-IDF). The GPIO pin reads HIGH when the button is open and LOW when pressed. For external 5 V logic inputs, use a voltage divider or level shifter first.
Wire UART, I2C, or SPI peripherals The ESP32 supports flexible GPIO mapping for most peripherals. For I2C, assign SDA and SCL to compatible GPIO pins and add 4.7 kΩ pull-up resistors to 3.3 V on both lines. For SPI, follow the MOSI/MISO/SCK/CS assignment for your device. For UART, cross TX and RX: ESP32 TX to peripheral RX, and peripheral TX to ESP32 RX. All signal lines must be at 3.3 V — level-shift if the peripheral is 5 V.
Program and verify Connect the USB cable. In most development boards, pressing the BOOT button (GPIO0 to ground) while pressing and releasing EN (reset) activates the download bootloader for programming. After programming, press EN to restart in normal mode. Monitor serial output at 115200 baud to verify firmware operation. Remove the USB connection and apply the target power supply to verify the circuit operates on its intended power source.

Specifications

Operating voltage	3.3 V DC (GPIO and core logic)
USB input voltage (development board)	5 V via Micro USB or USB-C
GPIO logic HIGH voltage	3.3 V (5 V tolerant inputs NOT available on standard GPIO)
Maximum GPIO pin current (source/sink)	40 mA per pin (keep under 12 mA for reliable long-term operation)
Peak current during Wi-Fi TX (typical)	Up to 500 mA — supply must be capable of this peak
I2C pull-up resistor (recommended)	4.7 kΩ to 3.3 V on SDA and SCL
Recommended decoupling capacitor	100 nF ceramic per VCC pin, placed as close as possible to pin
Applicable reference	Espressif ESP32 Technical Reference Manual and ESP32 Datasheet (current revision from espressif.com)

Safety warnings

The ESP32 GPIO pins are 3.3 V logic. Never apply 5 V or higher directly to any GPIO input or output pin — this will permanently damage the chip. Always use a level converter or voltage divider when interfacing with 5 V systems.
Do not exceed 40 mA per GPIO pin or the total package GPIO current limit. Driving inductive loads (relays, motors, solenoids) directly from GPIO pins without driver transistors will damage the output buffer and potentially the chip.
Strapping pins (particularly GPIO0) must not be held low at power-up by external circuitry unless bootloader programming is intended. Resistive pull-down loads on GPIO0 can prevent normal boot.
Never power the ESP32 from both USB and an external 5 V supply simultaneously on Vin — this can cause current to back-flow through the USB bridge chip or LDO regulator, potentially damaging the board.
Electrostatic discharge (ESD) can damage the ESP32. Handle the board and module by the edges, avoid touching the GPIO pins directly, and use an anti-static mat when working in dry environments.

Tools needed

Digital multimeter (voltage and continuity)
USB cable (matching board connector type)
Computer with ESP-IDF, Arduino IDE, or MicroPython toolchain installed
USB serial monitor (Arduino Serial Monitor, PuTTY, or equivalent)
Logic probe or oscilloscope (for signal verification)
Breadboard and jumper wires
Fine-tip soldering iron (if soldering headers to module)

Common mistakes

Connecting 5 V logic signals directly to ESP32 GPIO pins without a level converter — the most common cause of instantly destroyed ESP32 chips in mixed-voltage projects.
Powering the ESP32 from the 3.3 V pin with a supply that cannot deliver peak currents — the ESP32's Wi-Fi transmitter draws current bursts that cause voltage sag on weak supplies, leading to random resets and connection failures.
Using GPIO0 for a general purpose output that is pulled low at startup, causing the board to enter bootloader mode every time it is powered — circuit never runs normally.
Omitting pull-up resistors on I2C lines — I2C requires external pull-ups to function. Without them, the bus remains low and no communication occurs.
Forgetting to cross TX and RX when connecting a UART peripheral — TX of the ESP32 must connect to RX of the peripheral, not TX to TX.
Sharing a single decoupling capacitor across the entire board instead of placing 100 nF capacitors close to the ESP32 VCC pins — power supply noise causes unpredictable processor resets during radio-frequency activity.

Troubleshooting

ESP32 enters bootloader mode on every power-up: Cause: GPIO0 is being pulled low at startup by an external circuit — a resistor, component, or wiring error is holding the strapping pin in the download-mode state. Fix: Remove all connections from GPIO0 and verify the board boots normally. Identify which component is causing the low state and either remove it, add a pull-up resistor (10 kΩ to 3.3 V) to override the pull-down, or relocate the circuit function to a non-strapping GPIO pin.
ESP32 resets randomly during Wi-Fi operation: Cause: Power supply cannot deliver the peak current during Wi-Fi transmission, causing the 3.3 V rail to sag below the brownout detection threshold, triggering a watchdog reset. Fix: Replace the USB cable and power supply with higher-rated versions. Add a 470 µF electrolytic capacitor between the 3.3 V rail and GND close to the board to buffer transmission current peaks. Measure 3.3 V rail with an oscilloscope during Wi-Fi activity to confirm whether sag is occurring.
I2C peripheral not detected: Cause: Missing pull-up resistors on SDA and SCL, incorrect I2C address in firmware, or SDA/SCL pins not assigned to the correct GPIO in firmware. Fix: Add 4.7 kΩ pull-up resistors from SDA and SCL to 3.3 V. Run an I2C scanner sketch to confirm device detection. Verify the GPIO pin numbers assigned to SDA and SCL in firmware match the physical wiring.

Frequently asked questions

Can I connect 5V signals directly to ESP32 GPIO pins?

No. The ESP32 operates at 3.3 V logic. Applying 5 V to any GPIO pin will exceed the maximum input voltage rating and permanently damage the chip. Use a resistive voltage divider (e.g. 10 kΩ and 20 kΩ from the 5 V signal to GPIO to ground) or a dedicated bidirectional logic level converter to interface 5 V signals with ESP32 GPIO pins.

What is the maximum current an ESP32 GPIO pin can supply?

Each GPIO pin can source or sink a maximum of 40 mA, with the total package IO current limited to approximately 1200 mA. In practice, keep individual GPIO loads under 10–12 mA for reliable operation. For anything above 10 mA (LEDs at full brightness, relays, motors), drive through a transistor or MOSFET rather than directly from the GPIO pin.

What are strapping pins and why do they matter?

Strapping pins are GPIOs sampled by the ESP32 at boot to determine operating mode — whether to enter normal run mode, bootloader mode, or JTAG mode. GPIO0 is the most critical: low at boot enters the download (programming) bootloader. GPIO12 affects the flash voltage on some modules. External circuits connected to strapping pins must not force them to incorrect states at power-up, or the ESP32 will fail to boot or enter an unintended mode.

How much current can the ESP32 draw from the USB supply?

During normal Wi-Fi operation the ESP32 can draw 160–260 mA average with peaks up to 500 mA during Wi-Fi transmission bursts. A standard USB 2.0 port provides 500 mA, which is marginal for an ESP32 with additional peripherals attached. When driving sensors, displays, or other peripherals, use a USB 3.0 port or a dedicated 5 V power supply capable of at least 1 A.

What is the difference between powering the ESP32 via USB, Vin, and the 3.3V pin?

USB (Micro USB or USB-C): powers the board through the onboard USB-to-UART bridge and then the 5 V to 3.3 V LDO regulator. Vin (typically 4.5–12 V depending on board): feeds the onboard LDO directly, bypassing the USB bridge. 3.3V pin: powers the chip directly, bypassing the LDO — your external supply must be regulated, stable 3.3 V and capable of peak currents up to 500 mA. Only one power source should be connected at a time.

How do you create an ESP32 circuit diagram using a free online maker?

A free browser-based circuit diagram maker lets you drag ESP32 symbol components onto the canvas, route power rails, and add labels for GPIO pin assignments without installing any software. Start by placing the ESP32 module symbol, add a 3.3 V regulated supply with decoupling capacitors (10 µF electrolytic and 100 nF ceramic on the supply pin), then connect peripheral components — sensors, relays, displays — to the correct GPIO numbers, noting that ADC pins and touch-sensitive pins have special constraints. The online editor at circuitdiagrammaker.com works entirely in the browser, supports export to PNG or SVG, and is free to use with no account required.
