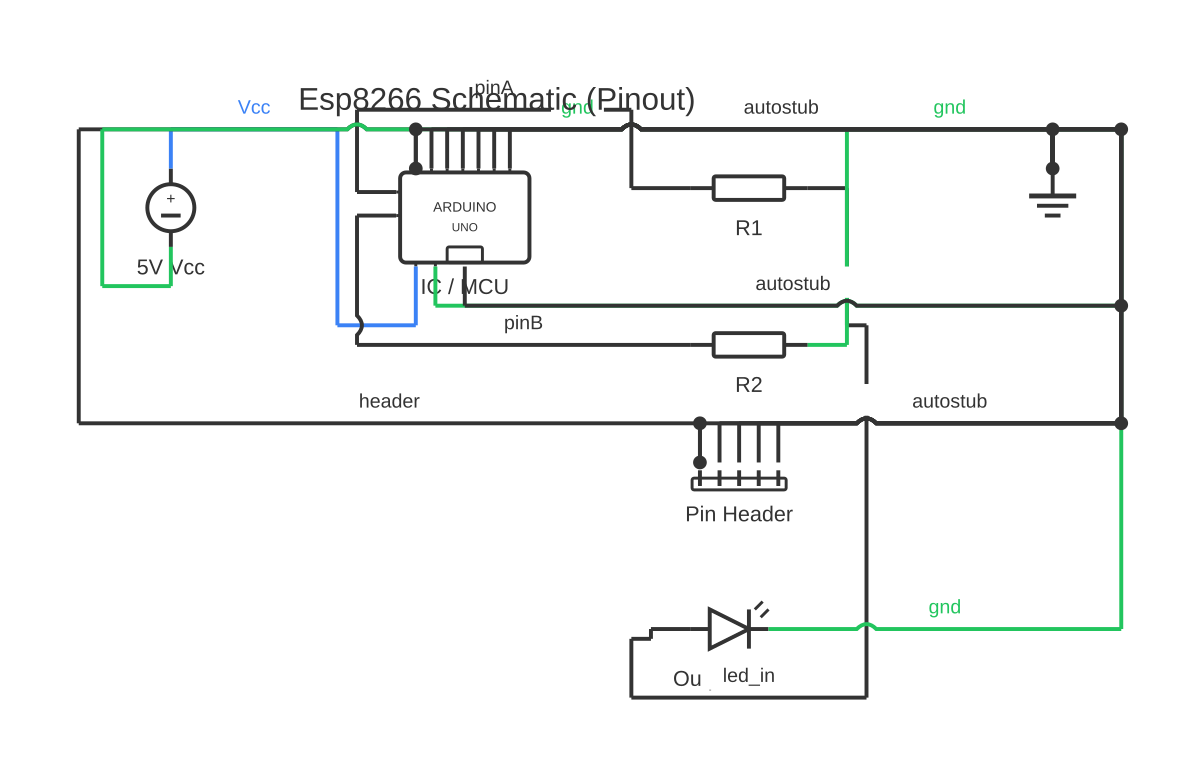

Esp8266 Schematic — circuit diagram showing component connections+5V VccARDUINOUNOIC / MCUR1R2Output LEDPin HeaderEsp8266 Schematic (Pinout)
esp8266 schematic — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable esp8266 schematic: download the diagram as SVG or open it and print to paper or PDF.

The ESP8266 schematic diagram illustrates the circuit architecture of the popular WiFi-enabled microcontroller module used in IoT applications, home automation, and wireless sensor networks. The schematic shows the main components: ESP8266 SoC (system-on-chip), voltage regulator dropping USB 5V to module operating 3.3V, crystal oscillator providing precise timing, flash memory for program storage, and antenna circuit for WiFi transmission and reception. Input/output pins provide digital I/O, analog input, SPI communication, UART serial interface, and I2C bus connections for sensor and device integration. The schematic includes decoupling capacitors on power rails reducing electrical noise, pull-up resistors on I2C and other open-drain interfaces, and proper antenna matching networks optimizing signal reception and transmission range. Modern ESP8266 schematics show integration with USB serial converters enabling programming through standard USB connection, status LED indicators for visual feedback during operation, and boot mode selection jumpers. Understanding ESP8266 schematic design enables custom board layouts, proper power supply design, and integration with external sensors and actuators.

How to wire esp8266 schematic

  1. Choose the correct ESP8266 module variant ESP-01 exposes only 2 GPIOs and is for simple applications. ESP-12E/F exposes up to 11 GPIOs and is used in NodeMCU boards. Identify your module variant before drawing the schematic, as pin count and available functions differ significantly between variants.
  2. Design the 3.3 V power supply Select an LDO regulator rated for at least 500 mA at 3.3 V. The AMS1117-3.3 is commonly used but can only supply 800 mA at low dropout. Add a 100 µF electrolytic capacitor and a 100 nF ceramic capacitor close to the VCC pin to handle the high-current Wi-Fi transmission transients.
  3. Pull CH_PD to 3.3 V Connect a 10 kΩ resistor from CH_PD to 3.3 V. On NodeMCU this is done internally, but on bare ESP-01 and ESP-12 modules, this must be added in your schematic. A floating CH_PD prevents the module from booting — this is the single most common cause of a new ESP8266 circuit that appears completely dead.
  4. Set GPIO0 and GPIO2 boot states Add 10 kΩ pull-up resistors to GPIO0 and GPIO2 for normal boot from flash. GPIO2 must be high at boot. GPIO0 high selects normal mode; GPIO0 low selects programming mode. Include an optional pull-down button on GPIO0 in your schematic to enable in-circuit firmware flashing.
  5. Connect the serial interface for programming Connect TX of your USB-to-serial adapter to RX of the ESP8266 and RX of the adapter to TX of the ESP8266. Note the cross-connection. The serial interface operates at 3.3 V — use a 3.3 V-compatible adapter, not a 5 V RS232 adapter.
  6. Add decoupling capacitors Place a 100 nF ceramic capacitor between VCC and GND as close as possible to the module power pins. Poor decoupling is responsible for a significant number of unexplained ESP8266 resets and brownouts, especially during Wi-Fi association when current draw spikes sharply.
  7. Add a reset button Connect a momentary normally-open button between the RST pin and GND with a 10 kΩ pull-up to 3.3 V. This allows hardware reset without power cycling. On a permanent installation, an accessible reset button saves significant time during development and field commissioning.

Frequently asked questions

What is the ESP8266 and what is shown on its schematic?

The ESP8266 is a low-cost Wi-Fi microcontroller module manufactured by Espressif Systems. Its schematic shows the GPIO pins, power supply connections (3.3 V and GND), serial interface (TX/RX), reset and enable pins, flash memory connections, and the RF antenna circuit. Different ESP8266 module variants expose different subsets of these pins.

What voltage does the ESP8266 operate on?

The ESP8266 operates at 3.3 V. It is NOT 5 V tolerant on its GPIO pins. Connecting a 5 V Arduino output directly to an ESP8266 GPIO input will damage the chip over time. Use a voltage divider or level shifter when interfacing 5 V devices to any ESP8266 GPIO or serial pin.

What is the CH_PD (EN) pin and why must it be pulled high?

CH_PD (Chip Power Down, also called EN on NodeMCU boards) must be connected to 3.3 V through a pull-up resistor to enable normal operation. If CH_PD floats or is held low, the ESP8266 module remains in a powered-down state and will not boot or respond to serial commands.

What is the GPIO0 pin used for during programming?

GPIO0 controls the boot mode. For normal operation, GPIO0 must be pulled high (to 3.3 V) or left floating — the module boots from flash memory. For firmware flashing via serial, GPIO0 must be pulled low at power-on to put the ESP8266 into bootloader mode. Most development boards like NodeMCU have an onboard button for this.

How much current can the ESP8266 draw and how does this affect power supply design?

The ESP8266 can draw up to 300–400 mA peak during Wi-Fi transmission. A 3.3 V LDO regulator must be able to supply this without dropping below 3.0 V. Many USB-to-serial adapters cannot supply this current — use a dedicated 3.3 V supply capable of at least 500 mA for reliable ESP8266 operation.
