Extension Cord Plug Wiring Diagram

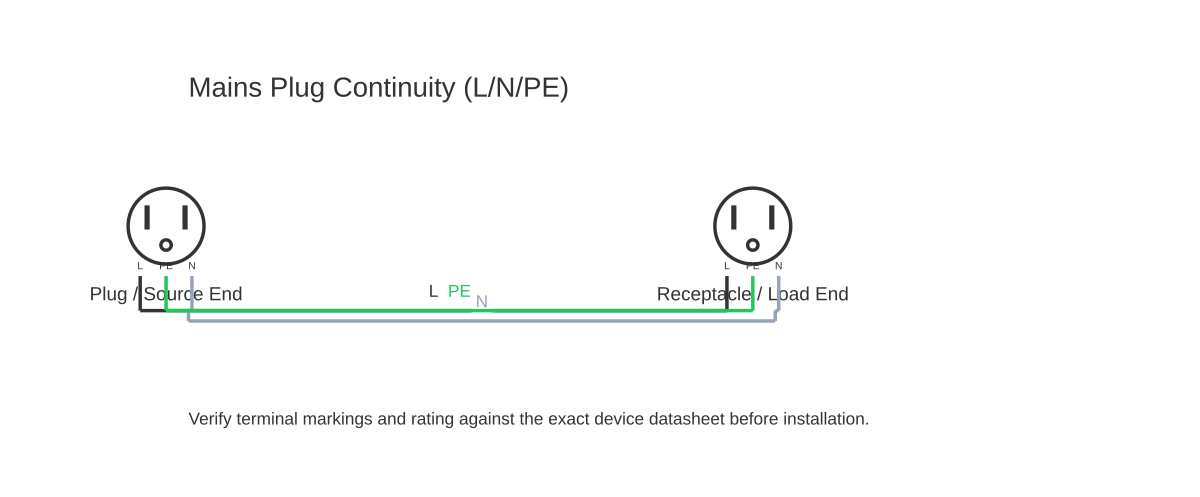

Extension Cord Plug Wiring Diagram — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable extension cord plug wiring diagram: download the diagram as SVG or open it and print to paper or PDF.

Wire an extension cord plug correctly — covering 3-pin plug terminal assignment, conductor colour codes by region, strain relief, and the safety rules that prevent fire and electric shock.

Replacing a damaged plug on an extension cord or wiring a new plug are among the most common DIY electrical tasks. Done incorrectly, the results range from a non-functional cord to a fire hazard or lethal electric shock risk. Understanding terminal assignment, conductor colour coding, and the mechanical requirements of a safe plug connection is essential.

A standard 3-pin plug for a single-phase AC circuit contains three terminals: Live (L), Neutral (N), and Earth (E or Ground). The live terminal carries the line conductor that is switched and fused — getting this terminal right is safety-critical. In many plug designs, the live terminal is fused (particularly in UK BS 1363 plugs, where a cartridge fuse is built into the plug body); the neutral and earth terminals are unfused.

Conductor colour codes differ by region. In the United Kingdom and most countries following IEC 60446 / BS 7671 harmonised colours: Brown is Live, Blue is Neutral, and Green-and-Yellow is Earth. In older UK wiring (pre-2004): Red was Live, Black was Neutral, Green was Earth — be aware of this when working on older equipment. In the United States and Canada (following NFPA 70 / CEC): Black is Hot (Live), White is Neutral, and Green or bare copper is Ground (Earth). In South Africa (SANS 164): Brown is Live, Blue is Neutral, and Green-and-Yellow is Earth — consistent with IEC harmonised colours.

The physical terminal connection must be mechanically secure. Each conductor is inserted into the terminal and clamped by a screw. The conductor must be stripped to the correct length — too short and the conductor may pull out; too long and bare wire extends beyond the terminal, risking contact with adjacent terminals or the plug body. A typical strip length is 8–12 mm.

Strain relief is as important as the terminal connection. The plug body clamps the outer sheath of the cable — not the individual conductors — so that a pull on the cord does not stress the terminal connections. An incorrectly fitted strain relief transfers mechanical load directly to the terminal screws, which will eventually loosen or break the conductor.

Never use a 2-pin ungrounded plug with a 3-conductor earthed cord, or defeat the earth conductor. The earth provides the only protection against a fault that energises the metal body of a connected appliance.

How to wire extension cord plug wiring diagram

Check local wiring regulations and plug standards Confirm which plug standard applies in your location (BS 1363 in the UK; NEMA 5-15 or 5-20 in the USA; SANS 164 in South Africa; AS/NZS 3112 in Australia). Verify the conductor colour code for your region before stripping any wire. Do not proceed if you are uncertain about which standard applies.
Select the correct cord and plug for the load Match the cord's current rating to the maximum load to be connected. A 3 A cord (0.75 mm² conductors) is suitable for lamps and small electronics; a 13 A cord (1.25 mm² or 1.5 mm² conductors) is required for appliances up to 3 kW. The plug's current rating must equal or exceed the cord's current rating. Using an undersized cord is a fire risk.
Open the plug and prepare the cable entry Unscrew the plug body to expose the terminals and cable clamp. Thread the cord through the plug body entry hole before stripping — it is easy to forget this step, which then requires disassembly. Check that the cord outer diameter matches the cable clamp size; if too small, the clamp will not grip the outer sheath effectively.
Strip the outer sheath and individual conductors Strip the outer sheath of the cord by 35–45 mm, exposing the individual coloured conductors. Do not nick the individual conductor insulation with the knife — nicked insulation can fail at the nick point under flexing. Strip each individual conductor 8–12 mm to expose bare copper. Twist stranded conductors clockwise so no strands splay out — a splayed strand can bridge to an adjacent terminal.
Connect Earth first, then Neutral, then Live Connect the Earth (green-and-yellow / green) conductor to the Earth terminal — the longest pin in most plug designs. Insert the stripped copper into the terminal aperture fully and tighten the clamping screw firmly. Repeat for Neutral (blue / white) to the Neutral terminal, then Live (brown / black) to the Live terminal (fused terminal in BS 1363 plugs). Ensure no bare copper is visible outside the terminal clamp.
Secure the cable clamp onto the outer sheath Position the cable clamp so it grips the outer sheath — not the individual coloured conductors. Tighten the clamp screws. A correct installation withstands a firm pull on the cord without the cord moving inside the plug body. A gentle tug on each individual coloured conductor inside should show no movement at the terminals.
Reassemble the plug and verify Close and secure the plug body. Fit the correct fuse in the fuse carrier if the plug uses a fused design (BS 1363). Before energising, visually inspect: outer sheath clamped, no bare conductors visible, plug body fully closed and screwed. With a continuity tester, verify Earth pin to Earth terminal, Neutral pin to Neutral terminal, and Live pin to Live terminal with no cross-connections.

Specifications

Conductor colour — Live (IEC 60446 / BS 7671 / SANS 10142-1 / AS/NZS 3000)	Brown (current standard); Red (old UK pre-2004 / old Australian)
Conductor colour — Neutral	Blue (IEC harmonised / current UK / South Africa / Australia); White (USA/Canada NFPA 70)
Conductor colour — Earth/Ground	Green-and-Yellow (IEC harmonised / current UK / South Africa / Australia); Green or bare (USA/Canada)
BS 1362 fuse options (for BS 1363 plugs)	3 A (loads up to 700 W), 5 A, 13 A (loads 700 W–3 000 W)
Recommended individual conductor strip length	8–12 mm (enough to fill the terminal aperture; no bare copper visible outside)
Minimum cord current rating for general use	1.25 mm² (10 A) — 0.75 mm² (3 A) suitable only for lamps and low-power electronics
Applicable standards	BS 1363 / BS 1362 (UK); NEMA 5-15/5-20 and NFPA 70 (USA); SANS 164 / SANS 10142-1 (South Africa); AS/NZS 3112 and AS/NZS 3000 (Australia/NZ)

Safety warnings

This diagram is a general reference only. Plug wiring standards, terminal designations, conductor colours, and fuse requirements vary by country. Always confirm the applicable standard for your location (BS 1363, NEMA, SANS 164, AS/NZS 3112, CEE 7/4, or other) before wiring any plug.
Never defeat or omit the Earth conductor. The earth pin and green-and-yellow conductor provide the only protection against electric shock if the connected appliance develops an insulation fault. Using a 2-pin ungrounded plug on a 3-conductor cable, or cutting the earth conductor short, creates a lethal hazard.
Never use a plug with a current rating lower than the maximum load to be connected. An underrated plug will overheat at the terminals, melting the plug body and potentially causing a fire. The plug, cord, and socket must all be rated equal to or higher than the maximum load.
Do not attempt to repair a plug that has been overheated, shows burn marks, or has damaged terminals. A plug that has experienced overcurrent or arcing at the terminals is unsafe and must be replaced entirely — burnt terminal contacts have increased resistance that worsens with use.

Tools needed

Flat-bladed and cross-head (Pozidriv/Phillips) screwdrivers (for plug body and terminal screws)
Wire stripper (for outer sheath and individual conductors)
Side cutters or wire cutters
Continuity tester or multimeter (to verify connections before energising)
Fuse rating checker or load calculator (to confirm correct fuse selection for BS 1363 plugs)

Common mistakes

Connecting Live and Neutral to the wrong terminals — the appliance may still function but the switch will break the Neutral, leaving the appliance Live when switched off. Always confirm terminal markings (L, N, E) inside the plug body.
Stripping too much insulation from individual conductors — excess bare copper extending beyond the terminal clamp can bridge to the adjacent terminal or to the plug body, creating a short circuit or shock hazard.
Clamping the strain relief on the individual coloured conductors rather than the outer cable sheath — the clamp must grip the outer sheath. Clamping the inner conductors will damage their insulation and means the terminal connections bear the full mechanical load of any cord pull.
Using the wrong fuse rating in a BS 1363 plug — fitting a 13 A fuse on a 500 W lamp extension cord provides almost no cord protection. The cord would need to attempt carrying 13 A before the fuse operates, which is far beyond its design capacity.
Using a 2-core (ungrounded) extension cord with a 3-pin socket outlet on the far end — the earth pin of the socket is unconnected, meaning any appliance using the earth pin for protection is unprotected. Always use 3-core (earth included) cable for extension cords.

Troubleshooting

Appliance does not work when plugged into the extension cord: Cause: Open circuit in Live or Neutral conductor — typically a loose terminal screw connection, a broken conductor at the plug body entry point where flex meets the terminal, or a blown fuse in the plug (BS 1363 designs) Fix: Check the fuse first (if present) by removing and testing with a continuity tester. Open the plug body and check that all three terminal screws are tight and that the conductor is fully seated in the terminal aperture. Test the cord for continuity from plug pin to socket terminal for each conductor.
Plug body is warm or hot during normal use: Cause: Loose terminal connection creating a high-resistance joint that generates heat under current; plug current rating is too low for the connected load; cord conductor cross-section undersized for the load Fix: Immediately unplug and do not continue using the cord. Open the plug and inspect for discoloured or burnt terminal connections. Re-terminate all conductors with tight, clean connections. If the plug or cord is rated correctly for the load but still runs hot, the terminal design may be inadequate — replace the plug with a higher-quality component.
RCD or circuit breaker trips when the extension cord is plugged in: Cause: Earth fault (short circuit between Live or Neutral and Earth) within the plug, cord, or connected appliance; transposed Live and Earth at the plug terminal Fix: Disconnect the extension cord from all appliances. If the RCD still trips with only the cord plugged in, the fault is in the plug or cord — test with a continuity tester between Live pin and Earth pin, and between Neutral pin and Earth pin. Any continuity between these pairs indicates a fault. Inspect and re-terminate the plug, checking for strands bridging between terminals.

Frequently asked questions

Which terminal is Live in a 3-pin plug?

Terminal designation varies by plug standard. In BS 1363 (UK): the fused terminal on the right when viewed from the front (with earth at top) is Live — connected to the Brown (or old Red) conductor. In NEMA 5-15 (USA): the narrower blade slot on the right is Hot (Live) — connected to the Black conductor. Always confirm against the plug's moulded markings (L, N, E) inside the plug body.

What wire colour is Live for an extension cord in the UK and South Africa?

Brown is Live under current IEC 60446 harmonised colour codes, used in the UK (BS 7671), South Africa (SANS 10142-1 / SANS 164), Europe, and Australia (AS/NZS 3000). In older UK equipment (pre-2004), Red was Live. In the USA and Canada, Black is the Hot (Live) conductor. Always identify conductors by both colour and labelling.

Why is the Earth terminal connected before Live and Neutral?

When plugging in, the earth pin on most plug designs makes contact before the live and neutral pins. This ensures the appliance chassis is earthed before any live voltage is connected, preventing a shock risk if the appliance has a latent insulation fault. When wiring the plug, connect earth first as a safe working practice.

What happens if I swap Live and Neutral in an extension cord plug?

For most non-polarised loads (electric heaters, some lamps), the equipment will still function — but the switch in the appliance will break the Neutral rather than the Live conductor. This means when the appliance is switched off, the chassis and internal components remain at Live potential, creating a shock hazard during maintenance or lamp replacement. Always connect Live to the correct terminal.

Can I use any fuse in a BS 1363 plug?

No — the fuse rating must match the appliance load. For appliances rated up to 700 W, use a 3 A fuse. For appliances rated 700 W to 3000 W, use a 13 A fuse. Using a 13 A fuse on a 500 W appliance provides almost no overcurrent protection for the cord — the cord would need to carry 13 A to blow the fuse, far exceeding its safe capacity.
