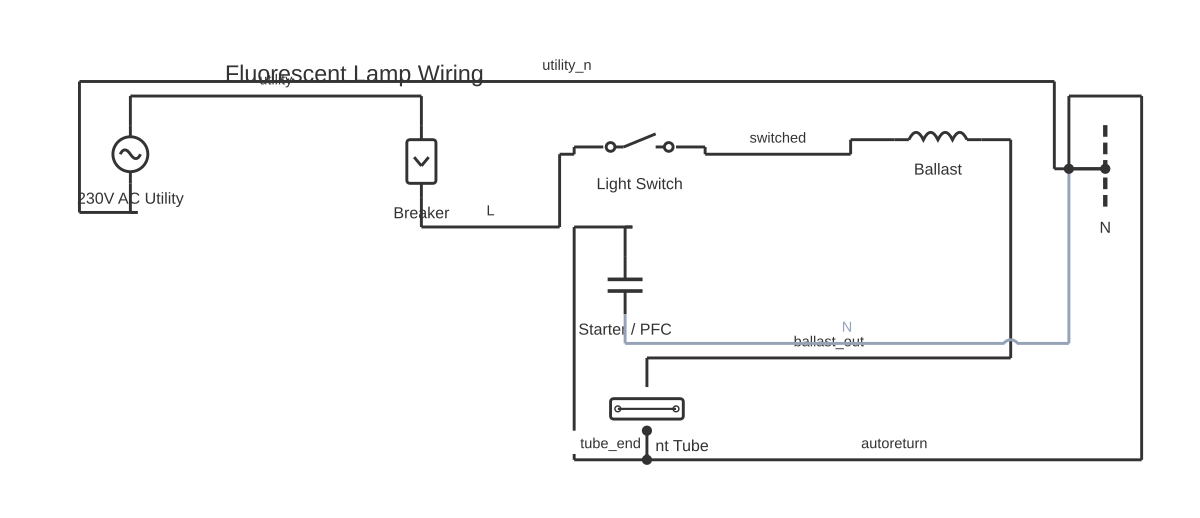

A fluorescent lamp circuit diagram illustrates the power distribution, ballast function, and ignition sequence for fluorescent lighting systems used in commercial buildings, offices, and industrial facilities. The diagram shows: 120V or 277V AC power feed through a switch to a magnetic or electronic ballast, which steps voltage to approximately 600V for lamp ignition, then regulates current during normal operation. The fluorescent lamp requires an initial high-voltage impulse to ionize mercury vapor inside the tube, enabling current flow between electrodes. Once ionized, the ballast limits current to safe operating level (typically 400-500 mA for standard 40W lamps). The circuit includes a starter switch or ignitor module that generates the starting pulse. Older magnetic ballasts create audible humming and generate considerable heat, while modern electronic ballasts operate silently and more efficiently at 40 kHz frequency. The diagram identifies: line voltage input, ballast core and coil configuration, starter module timing, and lamp terminal connections. Understanding fluorescent circuit operation enables safe lamp replacement, ballast troubleshooting, and upgrade to more efficient LED alternatives.

How to wire fluorescent lamp circuit diagram

Identify the ballast type Open the fluorescent fitting cover to expose the ballast. A magnetic ballast is a heavy rectangular or cylindrical transformer. An electronic ballast is a lightweight PCB-based unit. The circuit diagram and fault-finding approach differs significantly between the two. Identify which you have before attempting any work.
Isolate the supply Switch off the circuit at the MCB or pull the lamp from its socket if it is a plug-in type. Test for live voltage with a non-contact tester at the fitting terminals before opening it. Fluorescent fittings retain mains voltage at the tube holders even with the tube removed — never assume a fitting is de-energised because the lamp is out.
Check supply voltage at the ballast input Restore power briefly and measure voltage at the ballast supply terminals. Correct mains voltage confirmed means the supply is not the problem. Switch off again before proceeding. No supply voltage means a broken conductor, blown fuse in the fitting, or open switch upstream.
Test the starter Remove the starter by pressing and turning anti-clockwise. Fit a known-good identical starter and test the lamp. The starter is the cheapest component and the most common failure. Always test the starter first — fitting a new tube on a failed starter means the new tube fails early as well.
Test the tube If the starter tests good, remove the tube and test it with a fluorescent tube tester or substitute a known-good tube. A tube with blackened ends has exhausted electrodes and must be replaced. Never attempt to use a blackened tube — the uneven arc places stress on the ballast.
Test the ballast If the tube and starter are confirmed good, measure the ballast output voltage with the supply on. A magnetic ballast that produces no output with a confirmed good supply is open-circuited internally and must be replaced. Electronic ballast testing requires measurement of the output frequency and voltage waveform.
Reassemble and test Refit components in reverse order — tube, starter, cover. Restore power and confirm the lamp strikes within 5 seconds and sustains a steady glow. A lamp that strikes and then immediately goes out usually has a starter that does not open after striking, which keeps the electrode heating current flowing and overloads the tube.

Frequently asked questions

What components are in a fluorescent lamp circuit?

A magnetic ballast fluorescent circuit has four components: the supply (mains voltage), a magnetic choke ballast to limit current, a starter switch to pre-heat the electrodes, and the fluorescent tube itself. Electronic ballast circuits replace the magnetic choke and starter with a high-frequency electronic control circuit inside a single unit.

What does the starter do in a fluorescent lamp circuit?

The starter is a glow discharge switch inside a small aluminium cylinder. When power is applied, the glow discharge heats a bimetallic strip which closes, sending current through the tube electrodes to heat them. When the strip cools, it opens the circuit, causing the ballast to generate a voltage spike that strikes the arc in the tube.

Why does a fluorescent lamp flicker before starting?

The starter makes and breaks several times before the tube strikes, which causes visible flickering during start-up. This is normal on magnetic ballast circuits. If the flickering continues for more than 30 seconds without striking, the starter is failing, the tube electrodes are worn, or the supply voltage is low.

What is the difference between a T8 and T5 fluorescent tube in the circuit?

T8 (25 mm diameter) tubes are designed for magnetic or electronic ballasts and operate at mains frequency on magnetic ballasts. T5 (16 mm diameter) tubes require high-frequency electronic ballasts — they cannot operate on magnetic ballasts. The circuit components differ significantly, so T5 tubes cannot be retrofitted into T8 magnetic ballast fittings.

Can I replace a magnetic ballast with an LED driver in the same fitting?

Yes, but you must rewire the fitting to bypass the magnetic ballast and starter completely. LED replacement tubes and drivers have their own regulation built in. Leaving the magnetic ballast in circuit with an LED driver wastes energy, causes flickering, and can damage the LED driver. Always rewire per the LED driver installation diagram.
