A technical reference for fuel gauge circuits covering the resistive sender unit, gauge movement, voltage stabiliser, and systematic diagnosis of inaccurate or inoperative fuel gauges.

The automotive fuel gauge system consists of two main components working in series: a variable-resistance sender unit mounted in the fuel tank and a gauge movement on the dashboard. Together they form a simple voltage-divider circuit that translates fuel level into a needle position.

The sender unit contains a float attached to a pivoting arm. As the fuel level drops the float descends, rotating the arm across a resistive track. North American domestic vehicles have traditionally used a sender where resistance decreases as fuel level drops (full = high resistance, empty = low resistance). European and many Asian vehicles more commonly use the opposite convention (full = low resistance, empty = high resistance). This is critical when diagnosing or replacing sender units across different vehicle origins — a reversed convention causes the gauge to read backwards.

The gauge movement on the dashboard is a bimetal or D'Arsonval (moving-coil) type instrument calibrated to deflect in proportion to the current flowing through the sender circuit. Most bimetal gauges use a voltage stabiliser (typically 10 V or 5 V) to isolate the gauge circuit from battery voltage fluctuations, which would otherwise cause reading errors as the engine charges the battery.

The circuit is simple: regulated voltage supply > gauge movement > sender unit > ground. The gauge and sender form a series circuit. When sender resistance is high (full tank on a North American convention sender) current is low and the gauge reads full. As sender resistance drops with falling fuel level, current increases and the gauge deflects towards empty.

Common failure modes include a stuck float (broken float or arm), corroded sender resistance track, open sender wire causing gauge to read full or empty depending on convention, and a failed voltage stabiliser causing gauge drift with engine RPM. A direct short to ground on the sender wire causes the gauge to read maximum or minimum deflection depending on the type of gauge.

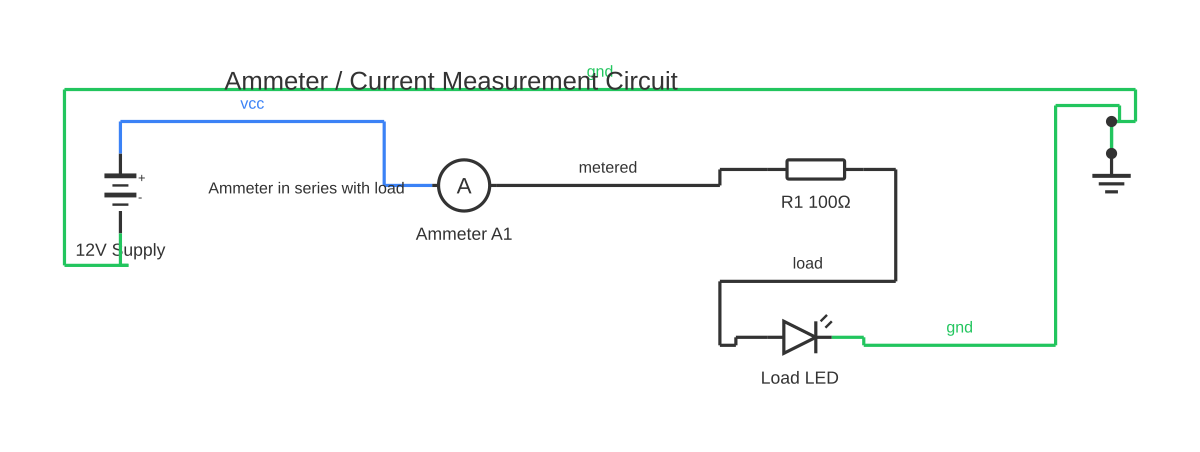

How to wire fuel gauge diagram

Identify sender resistance convention and range Obtain the vehicle's wiring diagram and note the full and empty resistance values for the sender. Common ranges include 0–90 Ω, 10–180 Ω, and 240–33 Ω (North American convention). This data is essential before any testing or parts replacement.
Test the voltage stabiliser output Identify the voltage stabiliser in the instrument cluster. With ignition on, probe the output terminal with a multimeter set to DC volts. A 10 V stabiliser should read 9.5–10.5 V. An unstable or incorrect reading here causes all gauges in the cluster to be inaccurate — replace the stabiliser before assuming a gauge or sender fault.
Disconnect and resistance-test the sender unit With the ignition off, disconnect the sender wire at the tank or the sender connector. Measure resistance between the sender terminal and chassis ground with the fuel at a known level. Compare to the specification. Test for smooth resistance variation as the float moves if accessible.
Simulate sender resistance at the gauge Disconnect the sender wire at the tank and connect a decade resistor box (or a known precision resistor) in its place. Set the resistance to the full value. Turn on the ignition and verify the gauge reads full. Then set to the empty value and confirm the gauge reads empty. This isolates whether the fault is in the sender or the gauge.
Check ground continuity Measure resistance from the sender body (or sender ground terminal on twin-wire systems) to the vehicle chassis ground. Values above 1 ohm cause gauge under-reading. Clean and re-bond the sender ground connection.
Inspect the sender wire for damage Trace the sender wire from the gauge to the tank. Look for pinching, chafing against the fuel tank or chassis, or corrosion at the tank connector. A high-resistance fault in the wire shifts the gauge reading without affecting the sender itself.
Verify gauge accuracy after reassembly With a known fuel quantity in the tank, confirm the gauge reading matches. Fill the tank completely and verify the gauge reads full. Allow the fuel to drop to a quarter tank and confirm the gauge moves proportionally. A gauge accurate at full and empty but non-linear in between suggests a bent or worn sender float arm.

Specifications

System supply voltage	12 V DC (regulated to 10 V or 5 V at gauge cluster)
Voltage stabiliser output (typical)	10 V ± 0.5 V
Sender resistance — North American convention (typical)	Full: 240–250 Ω / Empty: 30–33 Ω
Sender resistance — European convention (typical)	Full: 10–30 Ω / Empty: 150–180 Ω
Sender ground resistance (maximum acceptable)	< 1 Ω (sender body to chassis)
Sender wire minimum cross-section	1.0 mm²
Gauge circuit current (typical)	10–40 mA depending on fuel level

Safety warnings

Never expose an open fuel tank to sparks, flames, or open electrical connections. Work on fuel sender units only with the ignition off, in a ventilated area, away from ignition sources. Fuel vapour is heavier than air and pools at floor level.
Disconnect the battery negative terminal before removing the fuel sender unit to eliminate all risk of electrical sparks near the fuel tank.
Fuel sender units are immersed in fuel. Use only sender units rated for continuous fuel immersion. A non-rated electrical component inside a fuel tank is a fire and explosion hazard.
When testing circuits near the fuel tank, use only a multimeter or a high-impedance test instrument. Never use a test light with an incandescent bulb near an open fuel system.
After any fuel system work, check for fuel leaks with the engine running before returning the vehicle to service. A weeping sender flange gasket can cause fuel to contact hot exhaust components.

Tools needed

Digital multimeter
Fuel sender lock ring tool (spanner wrench)
Decade resistor box or known precision resistors
Flat-blade screwdriver
Electrical contact cleaner
Wire stripper and crimper
Anti-corrosion electrical grease
Fuel-safe container (fuel drainage if required)

Common mistakes

Replacing the sender without first testing the gauge — a faulty gauge reads incorrectly with a new sender just as it did with the old one.
Installing a sender with the wrong resistance convention or range — causes reverse or compressed gauge readings.
Neglecting the sender ground — a high-resistance ground shifts the gauge reading low across the entire scale.
Testing sender resistance with the ignition on — applied voltage from the gauge circuit affects the multimeter reading. Always test resistance with ignition off.
Omitting the voltage stabiliser test — a faulty stabiliser causes all gauges to fluctuate with engine RPM, which is often misdiagnosed as a sender fault.
Bending the float arm to recalibrate a gauge — this can correct reading at one point but distorts readings across the rest of the scale.

Troubleshooting

Gauge reads full at all times: Cause: Open circuit in sender wire (North American convention sender), or sender float stuck at full position Fix: Disconnect sender wire at tank. Measure resistance at sender terminal. No resistance change as float is moved confirms a stuck sender. If sender reads correctly, trace sender wire for open circuit back to gauge.
Gauge reads empty at all times: Cause: Short to ground on sender wire, or sender float collapsed and sunk Fix: Disconnect sender wire at tank and check for continuity between the wire and chassis ground at the gauge end. A short to ground confirms wiring fault. If no short, remove sender and inspect for a collapsed or waterlogged float.
Gauge fluctuates with engine RPM: Cause: Failed or out-of-specification voltage stabiliser Fix: Probe voltage stabiliser output with multimeter during RPM changes. Output should remain constant within ±0.5 V. Replace the stabiliser if output varies with alternator load.
Gauge reads correctly at full and empty but is non-linear in between: Cause: Sender float arm bent or resistance track worn in mid-range Fix: Remove sender and manually move float arm through full travel while measuring resistance. Non-linear or jumping resistance values indicate a worn track or bent arm. Replace sender unit.
New sender installed but gauge still reads incorrectly: Cause: Incorrect sender resistance range or convention, or gauge itself is faulty Fix: Verify the new sender resistance range matches the gauge calibration. Simulate sender at the gauge terminals using known resistors. If gauge reads correctly with known resistors, the sender specification is wrong. If gauge still reads incorrectly, replace gauge or instrument cluster.

Frequently asked questions

Why does my fuel gauge read full when the tank is actually empty?

On a vehicle using the North American convention (high resistance = full), an open-circuit fault in the sender wire causes the gauge to see no return path and interpret infinite resistance as a full tank. Check for a broken wire between the gauge and sender unit. On European convention senders the same fault drives the gauge to empty.

What is a fuel gauge voltage stabiliser and why does it matter?

The voltage stabiliser is a thermal regulator that supplies a fixed voltage (commonly 10 V) to the gauge cluster independent of the vehicle's charging voltage, which varies between approximately 12 V and 14.4 V. Without it, all gauges would read higher when the alternator is charging than when running on battery alone, making fuel readings unreliable across driving conditions.

How do I test a fuel sender unit without dropping the tank?

Disconnect the sender wire at the fuel tank. Measure resistance between the sender terminal and ground with a multimeter. Resistance should change smoothly and continuously as the float is moved manually if accessible, or by adding and removing fuel. A fixed reading regardless of float position, or an open circuit (infinite resistance), confirms a faulty sender.

Can I replace a fuel sender with one from a different vehicle?

Only if it uses the same resistance convention and the same resistance range. Senders are not universal. A sender with a different full/empty resistance range will cause a gauge to read incorrectly across the entire scale. Always match the sender resistance specification to your gauge's calibration.

Why does my fuel gauge fluctuate when I accelerate or corner hard?

Fuel sloshing in the tank moves the float, causing momentary resistance changes that register on the gauge. This is normal behaviour, particularly in partially filled tanks. A faulty or corroded resistance track can amplify this effect, causing exaggerated jumps. Some vehicles use a capacitor in the gauge circuit to dampen short-duration fluctuations.
