Fuel Pump Relay Diagram: How the Circuit Works

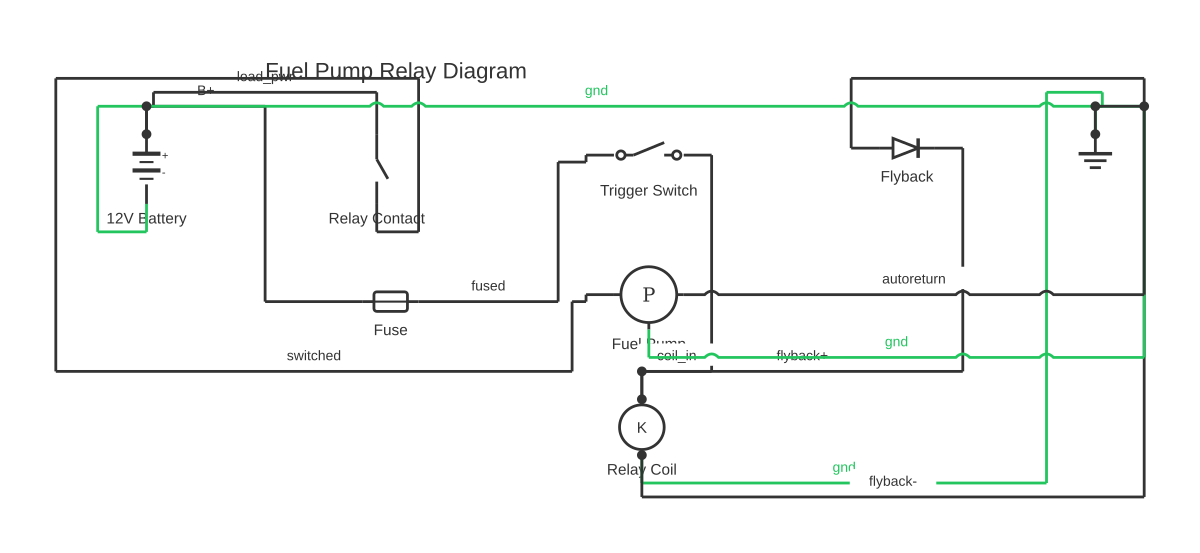

Fuel Pump Relay Diagram: How the Circuit Works — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable fuel pump relay diagram: download the diagram as SVG or open it and print to paper or PDF.

A fuel pump relay diagram shows how the ECU-controlled relay switches battery power to the fuel pump, protecting delicate control circuits from high current draw.

The fuel pump relay is a small but critical component in any fuel-injected vehicle. Its job is to act as an electrically controlled switch: the Engine Control Unit (ECU) sends a low-current signal to the relay coil, which then closes the relay's high-current contacts and connects battery voltage directly to the fuel pump motor.

Without this relay, the ECU would need to handle the full current load of the fuel pump — typically 5 A to 15 A depending on pump size — through its own transistors. The relay protects those transistors by doing the heavy switching work.

A typical fuel pump relay circuit has four external connections. Terminal 85 and terminal 86 are the coil terminals; one is connected to a switched ignition feed (or a dedicated ECU driver output) and the other to chassis ground. Terminal 30 receives battery positive (B+) via a fuse, and terminal 87 is the output that sends power to the fuel pump.

When the ignition is switched on, the ECU energises the relay coil (terminals 85–86), the internal armature closes, and battery power flows from terminal 30 to terminal 87, through the pump wiring, through the pump motor, and back to chassis ground. The ECU may also receive a feedback signal from a fuel pump circuit monitor to verify the relay actually closed.

Many modern vehicles add a second relay or a smart driver module that limits inrush current and shuts the pump off within approximately two seconds if no crank signal is detected — a critical safety feature that prevents fuel from flooding an engine after an accident.

Fuse sizing matters: the fuse in the battery-positive feed to terminal 30 should be rated for approximately 120–150 % of the pump's steady-state current draw. Under-fusing causes nuisance failures; over-fusing removes overcurrent protection from the wiring harness. Always verify the vehicle manufacturer's recommended fuse rating before replacing.

This diagram is a generic reference. Always consult the vehicle-specific wiring diagram before working on any fuel system.

The Vauxhall Zafira fuel pump relay is a common failure point, and understanding its wiring helps diagnose a no-start condition caused by the pump not priming. Like most fuel pump relay circuits, the Zafira uses the ECU or PCM to ground the relay coil for a prime pulse on ignition-on, then holds the relay closed while the engine is running. Mapping the relay circuit makes it straightforward to test each leg with a multimeter before replacing parts unnecessarily — draw your own annotated fuel pump relay diagram free at CircuitDiagramMaker.com.

How to wire fuel pump relay diagram

Identify the relay location Locate the fuel pump relay in the fuse/relay box, usually in the engine bay or passenger compartment. The vehicle owner's manual or lid diagram will identify the correct relay socket.
Disconnect the battery negative terminal Before unplugging or testing any relay, disconnect the battery negative cable to prevent accidental sparks near the fuel system. Wait at least 30 seconds for capacitors to discharge.
Remove the relay and test the coil Use a multimeter set to resistance mode. Measure across the coil terminals (85 and 86 on a standard relay). A healthy relay coil reads approximately 70–120 ohms. An open reading indicates a failed coil.
Verify battery feed to terminal 30 Reconnect the battery, set the multimeter to DC voltage, probe terminal 30 of the relay socket with the relay removed. You should read battery voltage (approximately 12.6 V with engine off). No voltage indicates a blown fuse or open wiring.
Verify ECU control signal on the coil circuit Using a test light or multimeter, check that the ECU-side coil terminal pulls to ground (or to switched 12 V, depending on your vehicle's design) when the ignition is switched on. No signal points to an ECU output fault or open wire.
Check continuity to the fuel pump connector With the battery disconnected and relay removed, use a multimeter continuity function to verify the wire from terminal 87 of the relay socket reaches the positive terminal of the fuel pump connector without breaks or high resistance.
Reinstall the relay and confirm pump operation Reconnect the battery, install the relay, and switch the ignition on. Listen for a brief whirring sound from the fuel tank — the pump priming. Confirm fuel pressure with a gauge if available, then start the engine and verify normal idle.

Specifications

Relay coil voltage	12 V DC nominal
Relay coil resistance (typical)	70–120 ohms
Relay contact rating (typical)	30 A maximum
Fuel pump current draw (typical)	5 A–15 A continuous (varies by pump)
Recommended fuse rating	120–150 % of pump steady-state current; verify OEM specification
Minimum wire gauge (power feed)	14 AWG (2.5 mm²); upsize for longer runs or higher-current pumps
Relay terminal standard	ISO 280 (common automotive mini-relay footprint)
Fuel system operating pressure (reference)	250–400 kPa (36–58 PSI) for typical port-injection; consult vehicle specification

Safety warnings

Fuel is extremely flammable. Never work on the fuel system near open flames, sparks, or sources of ignition. Ensure the work area is well-ventilated and have a Class B fire extinguisher within reach.
Always disconnect the battery negative terminal before unplugging relay connectors or fuel pump wiring to prevent sparks in the presence of fuel vapour.
Never substitute a fuse with a higher ampere rating to resolve a repeatedly blowing fuse. A blown fuse indicates a fault — find and repair the fault before restoring the circuit.
Fuel system repairs in many jurisdictions require work to comply with applicable vehicle safety standards. If in doubt, have the work inspected by a qualified automotive technician.
Relieve fuel system pressure before disconnecting any fuel lines. Pressurised fuel can spray and ignite. Consult the vehicle service manual for the correct depressurisation procedure.

Tools needed

Digital multimeter (DC voltage, resistance, continuity modes)
Test light (12 V automotive)
Fused jumper wire (for direct pump testing)
Relay puller or flat-blade screwdriver
Wire stripper and crimping tool
Fuel pressure gauge (to verify pump output)
Vehicle-specific wiring diagram / service manual

Common mistakes

Confusing terminal 87 (normally open) with terminal 87a (normally closed) on a 5-terminal relay, which energises the pump permanently regardless of ECU command.
Running the fuel pump dry during bench testing — many in-tank pumps use fuel as a coolant/lubricant and can be damaged by extended dry running.
Replacing the relay without checking why it failed. A failed relay is often a symptom of excessive pump current draw caused by a worn pump motor.
Using undersized wire between the relay output and the fuel pump, causing voltage drop that reduces pump pressure and flow.
Forgetting to include a fuse on the battery-positive feed to the relay, leaving the wiring harness unprotected in the event of a short circuit.

Troubleshooting

Fuel pump does not run at ignition-on: Cause: Blown fuse, failed relay coil, missing ECU ground signal, or open wire between relay output and pump Fix: Check fuse first. Test relay coil resistance. Verify ECU control signal with a test light. Use a fused jumper to apply power directly to the pump to isolate pump vs. circuit fault.
Relay clicks but pump does not run: Cause: Open circuit between relay terminal 87 and the pump, or a failed pump motor Fix: Confirm voltage is present at terminal 87 when relay is energised. Check continuity of the feed wire to the pump connector. Replace the pump if voltage is present but no motor operation.
Fuse blows immediately on ignition: Cause: Short circuit in the pump wiring harness, pump connector, or a seized/shorted pump motor Fix: Disconnect the pump connector and replace the fuse. If the fuse holds, the fault is in the pump or its wiring. If it blows again, there is a short between the relay output wire and chassis ground.

Frequently asked questions

What does the fuel pump relay do?

It acts as an electrically operated switch. The ECU energises the relay coil using a low-current signal, which closes the relay contacts and allows battery voltage to power the fuel pump motor at full current — protecting the ECU's internal circuitry from the pump's high current draw.

Which relay terminal goes to the fuel pump?

On a standard ISO 280-footprint automotive relay, terminal 87 is the normally-open switched output. Battery positive enters at terminal 30, and terminal 87 feeds power to the fuel pump. Terminals 85 and 86 are the coil connections. Always verify against your vehicle's wiring diagram.

Why does the fuel pump only run for two seconds at key-on?

Many ECUs prime the fuel system for a brief period at ignition-on, then cut the relay if no crank signal is detected. This pressurises the fuel rail for quick starting while preventing the pump from running continuously if the engine fails to start or after an accident.

What fuse should I use on the fuel pump relay feed?

A general guideline is to size the fuse at approximately 120–150 % of the pump's rated continuous current. For most passenger vehicles this is 15 A to 20 A, but always refer to the vehicle manufacturer's specification. Never substitute a fuse with a higher rating to 'fix' a blowing fuse without finding the root cause.

Can I bypass the fuel pump relay to test the pump?

Yes, briefly and safely, by using a fused jumper wire to apply battery voltage directly to the pump feed wire. This confirms whether the pump itself is functional. Do not run the pump for extended periods without fuel flow, as many fuel pumps rely on the fuel itself for cooling and lubrication.

What is the Zafira fuel pump relay wiring diagram?

On the Vauxhall Zafira, the fuel pump relay coil receives switched ignition voltage on one coil terminal, while the ECU provides a ground path on the other coil terminal to energise the relay. When energised, the relay's main contacts close and supply battery voltage to the in-tank fuel pump. A common fault is corrosion at the relay socket causing high resistance on either the coil ground circuit or the supply contact, preventing the pump from operating. Testing involves checking for 12 V at the relay socket supply pin, confirming the ECU grounds the coil correctly on ignition-on, and verifying voltage reaches the pump connector when the relay is known good.
