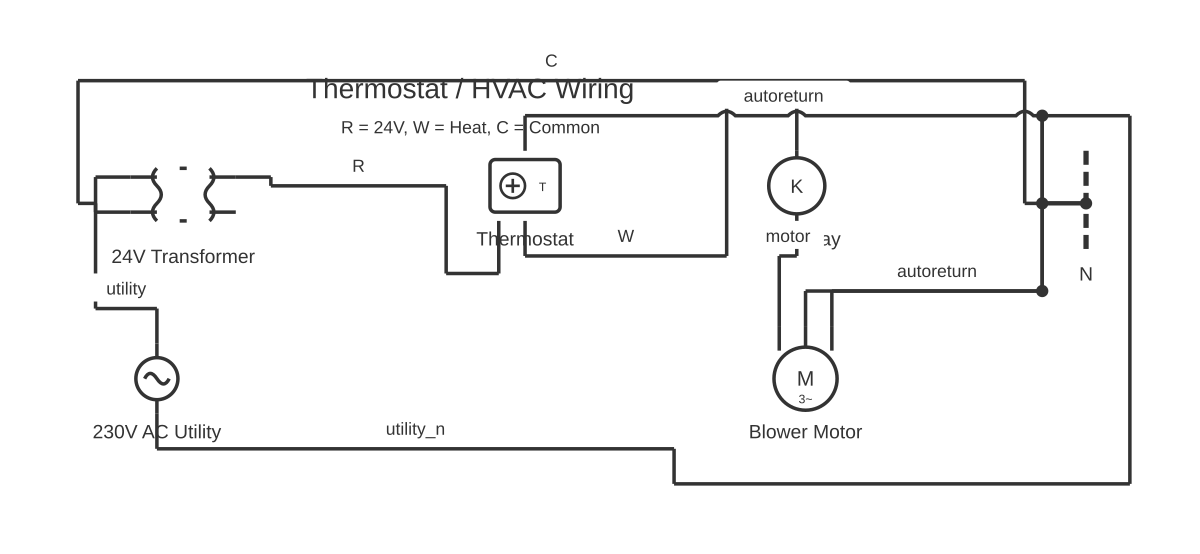

Furnace Thermostat Wiring Diagram

Furnace Thermostat Wiring Diagram — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable furnace thermostat wiring diagram: download the diagram as SVG or open it and print to paper or PDF.

Wire a furnace thermostat correctly using R, W, G, and C terminals — with heat-only, heat/cool, and heat pump configurations, plus the common wire explained for smart thermostats.

A residential forced-air furnace thermostat low-voltage control circuit operates at 24 V AC, supplied by a transformer inside the furnace (or air handler). The thermostat is simply a set of switching contacts: when the indoor temperature falls below the setpoint, the thermostat closes contacts to complete control circuits that energise specific loads inside the furnace. Understanding each terminal is the foundation for correct wiring.

The standard thermostat terminal designations and their functions are:

- R (or Rh): 24 V AC hot/live supply from the furnace transformer. In systems with separate heating and cooling transformers, Rh feeds heating and Rc feeds cooling. Many thermostats have a jumper between Rh and Rc that must be removed when using two separate transformers. - W: Heat call output. When the thermostat calls for heat, it closes the R-to-W circuit, energising the furnace's heating relay or gas valve control board. - G: Fan call output. Closing R-to-G energises the furnace fan relay, running the indoor blower motor independently of the heat or cool call. - Y: Cooling call output (for systems with air conditioning). Closing R-to-Y energises the outdoor condensing unit contactor via the thermostat circuit. - C: Common. The 24 V AC common (neutral) return from the furnace transformer. The C terminal is NOT a ground — it is the return side of the 24 V AC circuit. Without a C wire, the thermostat cannot complete a continuous power circuit and must derive power from other means (battery or power-stealing from the call wires).

In a simple heat-only furnace system, only four wires are essential: R, W, G, and C. The thermostat calls for heat by closing R to W. The furnace control board senses the closure, initiates the ignition sequence (inducer pre-purge, ignition, gas valve opening), and after the heat exchanger warms up, closes the fan relay via G or automatically.

Smart thermostats (those with Wi-Fi, touchscreens, or learning algorithms) require a continuous power supply: they consume power even when not calling for heating or cooling. This is why the C wire became critical with the rise of smart thermostats. A thermostat without a C wire and without batteries will 'power steal' — draw a small current through the W or Y wire that is just enough to power the thermostat but not enough to energise the furnace loads. Power stealing can cause furnace control board interference, inducer fan fluttering, or unreliable operation.

Both a thermostat wiring diagram for a gas furnace and a general thermostat-to-furnace wiring diagram follow the same low-voltage (24 V AC) control wiring convention. The furnace control board supplies 24 V on the R terminal (Rh for heating, Rc for cooling if separate transformers are used). Standard connections are: W (white) — heat call, Y (yellow) — cooling/compressor, G (green) — fan, C (blue or black) — common return. Gas furnaces use the W wire to energise the gas valve and ignition sequence. Always confirm wire colours match terminal labels at both ends, as colours vary by installer.

How to wire furnace thermostat wiring diagram

Turn off power to the furnace at the disconnect switch or circuit breaker Locate the furnace's dedicated circuit breaker (typically labelled 'Furnace' or 'Air Handler' in the distribution panel) and turn it off. Also locate the furnace's local disconnect switch (usually a wall switch near the furnace that looks like a light switch) and turn it off. Verify the furnace control board has no LED indicators lit before proceeding.
Photograph the existing thermostat wiring before removing the old thermostat Before disconnecting any wires at the old thermostat base, take a clear photograph of the terminal block showing which wire connects to which terminal letter. Also note the wire colours. This prevents confusion during reconnection, particularly on older systems where non-standard colour coding may have been used.
Identify the wire functions at the thermostat Standard colour conventions (not always followed): Red = R (power), White = W (heat), Green = G (fan), Yellow = Y (cooling), Blue or Black = C (common). However, colour coding is not mandated — verify by tracing each wire back to the furnace control board and identifying the terminal it connects to on the board.
Connect the wires to the new thermostat base Connect each wire to the correspondingly labelled terminal on the new thermostat base. The R wire to R (or Rh), white wire to W, green wire to G, and — critically for smart thermostats — the C wire to C. If the existing cable has an unused conductor (often blue or black), connect it at both ends: to the C terminal on the thermostat base and to the C terminal on the furnace control board.
Connect or verify the C wire at the furnace control board Remove the furnace access panel (with power off) and locate the control board. Find the terminal labelled C (or COM). If the thermostat cable's C conductor is already connected there, verify the connection is tight. If no wire is connected to C at the board end, strip and connect the unused conductor. The C terminal on the furnace control board is the secondary common of the 24 V transformer — it is not the same as the chassis earth.
Restore power and verify operation Restore power at the circuit breaker and local disconnect. Set the thermostat to a temperature above the current indoor temperature to call for heat. Within 30–60 seconds, the furnace should initiate: the inducer motor starts, ignition occurs, the gas valve opens, the burners light, and after the heat exchanger warms (typically 2–5 minutes), the blower fan starts. Verify the fan runs on G alone by manually calling for fan mode.
Test the C wire power with a multimeter Set a multimeter to AC voltage. Measure between the R and C terminals at the thermostat base (with the thermostat removed from the base but the furnace powered). You should read 24–28 V AC. If you read 0 V, the C wire is not making a complete circuit — check both ends of the C connection. This confirms the thermostat will have continuous power.

Specifications

Thermostat control circuit voltage	24 V AC (nominal), supplied by furnace transformer
Furnace transformer typical rating	40 VA (provides adequate power for thermostat plus multiple relay coils)
Thermostat cable standard gauge	18 AWG (0.82 mm²) stranded copper, multi-conductor
R terminal function	24 V AC hot/supply from furnace transformer secondary
W terminal function	Heat call: closes R-to-W to energise heat relay / gas valve circuit
G terminal function	Fan call: closes R-to-G to energise indoor blower relay
C terminal function	24 V AC common (return) — NOT ground; provides continuous thermostat power
Y terminal function	Cooling call: closes R-to-Y to energise outdoor condensing unit contactor

Safety warnings

Always turn off the furnace circuit breaker AND the local furnace disconnect switch before working on thermostat wiring or furnace control board connections. Although thermostat wiring is 24 V AC (low voltage), the furnace also contains 120 V AC (or 240 V AC in some regions) line-voltage wiring for the blower motor and inducer. Contact with line-voltage conductors inside the furnace cabinet is dangerous.
Gas furnaces contain a live gas supply. Do not disturb any gas pipework, fittings, or the gas valve. If you suspect a gas leak (smell of mercaptan/sulphur) at any time during the work, leave the area immediately, do not use any electrical switches, and call the gas emergency service from outside the building.
Any work on the furnace's gas valve wiring, ignition system, or heat exchanger requires a licensed HVAC technician. Thermostat wiring replacement is low-voltage electrical work, but the furnace itself should only be serviced by a qualified person.
Do not short-circuit the R and C terminals directly when testing. R-to-C is the 24 V transformer secondary — a direct short may trip a thermal overload on the transformer or damage the control board.
Verify the furnace operates correctly after any wiring changes, including confirming the safety limit switches, gas valve control, and blower sequencing are functioning normally. An incorrectly wired furnace may run the gas valve without ignition, creating an unburned gas accumulation hazard.

Tools needed

Multimeter (AC and DC voltage, continuity)
Non-contact voltage tester
Small flathead and Phillips screwdrivers
Wire strippers
Needle-nose pliers
Smartphone or camera (for photographing existing wiring before disassembly)
Electrical tape or small wire labels

Common mistakes

Omitting the C wire when installing a smart thermostat, causing intermittent operation, power-stealing interference with the control board, or inducer fan flutter.
Confusing the C terminal (24 V AC common/return) with the chassis earth or ground — the C wire must connect to the C terminal on the furnace control board, not to any metal chassis or earth point.
Leaving the Rh/Rc jumper in place when connecting two separate heating and cooling transformers, shorting the two transformer secondaries together and potentially damaging both transformers.
Connecting a wire with a call for heat (W) to the fan terminal (G), causing the fan to run on a heat call instead of the heat sequence being initiated.
Using incorrect wire gauge or solid (rather than stranded) wire for thermostat wiring — solid conductor wire work-hardens and breaks at the terminal screw under repeated thermal cycling in the wall.

Troubleshooting

Furnace does not start when thermostat calls for heat: Cause: Open circuit in R or W wire, failed thermostat, or furnace control board fault Fix: Measure AC voltage at the furnace control board between R and C: should be 24–28 V AC. Then measure at the thermostat between R and C: same reading confirms intact R wire. Short R and W directly at the thermostat base (jumper wire) — if the furnace starts, the thermostat is faulty. If furnace still does not start, the W wire or furnace control board has a fault.
Smart thermostat display goes blank or restarts frequently: Cause: No C wire, or C wire has high resistance due to corroded or loose connection Fix: Measure AC voltage between R and C at the thermostat base. It should be 24–28 V AC. If it reads low (below 20 V AC) or zero, check the C wire continuity and connections at both ends. If no C wire is available, install a C-wire adapter compatible with the thermostat model.
Furnace inducer motor starts and stops rapidly without igniting: Cause: Smart thermostat power-stealing through W wire causing W relay to flutter; or furnace control board safety lock-out Fix: Check the thermostat for a C wire. If absent, install one or use an approved C-wire adapter. The power-steal current through W may be just below the relay engagement threshold, causing marginal and repetitive engagement. Also check the furnace control board for fault codes (most modern boards have an LED indicator with blink codes).
Fan (G) runs continuously regardless of thermostat setting: Cause: G wire shorted to R inside the wall or at a terminal, or thermostat fan switch left in 'ON' rather than 'AUTO' Fix: Set thermostat fan mode to 'AUTO' (not 'ON'). If fan continues, remove the thermostat from its base — if the fan stops, the thermostat is commanding G on. If the fan runs with the thermostat disconnected from the base, the G wire has a short to the R wire somewhere in the cable run.
Furnace heats but blower fan does not turn on: Cause: Broken G wire, G terminal not connected, or furnace fan limit switch fault Fix: Measure voltage between R and G at the thermostat base when the thermostat calls for heat: many modern thermostats automatically close G during a W call. If G is active at the thermostat but the fan does not run, the fault is in the furnace — suspect the fan relay or the fan limit switch. If G is not active, check the thermostat's fan settings and the G wire continuity.

Frequently asked questions

What does the C wire do and why do smart thermostats need it?

The C (common) wire is the return conductor of the furnace's 24 V AC transformer circuit. Connected from the C terminal on the furnace control board to the C terminal on the thermostat, it provides a complete power circuit for the thermostat's electronics. Smart thermostats draw continuous power (typically 0.25–1 VA) for their display, Wi-Fi module, and processor — they cannot operate reliably from battery alone or by power-stealing through a call wire.

What happens if I wire R to W without a C wire?

Without a C wire, the thermostat has no return path for its own power supply. Some smart thermostats will attempt to power-steal through the W wire — drawing a small parasitic current that may cause the furnace control board to flutter the inducer fan or behave erratically, because the current is just below the threshold to fully energise the W relay. Always install a C wire for smart thermostats.

My thermostat wire only has four conductors — how do I add a C wire?

If the existing thermostat cable does not have an unused conductor for the C wire, there are several options: (1) run a new 5-conductor (or larger) thermostat cable; (2) use a C-wire adapter kit that repurposes the G (fan) wire for C and moves the fan control to a wireless or alternate path; (3) install a 24 V power adapter kit at the thermostat base that derives power from the existing wiring without a dedicated C wire. Option (1) is the most reliable long-term solution.

What is the difference between Rh and Rc on a thermostat?

Rh (R-heat) connects to the heating system transformer output. Rc (R-cool) connects to the cooling system transformer output. In most residential systems, a single transformer in the furnace or air handler powers both heating and cooling, and the thermostat's Rh and Rc terminals are jumpered together. In systems with separate heating and cooling equipment on separate transformers, the jumper must be removed to isolate the two circuits and prevent a short between transformers.

Is furnace thermostat wiring 24 V AC or 24 V DC?

Furnace thermostat control circuits are 24 V AC, derived from a step-down transformer on the furnace control board. It is not DC. This is important when selecting or diagnosing smart thermostats — some LED indicators or test equipment will only work correctly on DC and may give misleading results when testing 24 V AC thermostat wires.

How do I wire a thermostat to a gas furnace?

Connect the 24 V low-voltage wiring between the furnace control board and the thermostat using the standard terminal labels: R (red) for the 24 V hot feed from the furnace transformer, W (white) for heat demand — this signal energises the gas valve and ignition, G (green) for the fan only, and C (blue or black) for the common return to complete the 24 V circuit. If your thermostat requires a C wire for power and the old wiring lacks one, you can use an add-a-wire adapter or run a new 18/5 thermostat cable. Never connect line voltage (120 V or 240 V) to thermostat terminals. You can diagram your specific furnace thermostat circuit free at circuitdiagrammaker.com.

What is the standard thermostat to furnace wiring diagram layout?

The standard layout shows the furnace control board at one end and the thermostat at the other, with an 18 AWG multi-conductor cable (typically 18/5 or 18/8) connecting them. Each conductor is labelled by its terminal letter: R (24 V power), C (common), W (heat), Y (cool), and G (fan). On a heat-only gas furnace without air conditioning, only R, W, G, and C are used. Some furnaces split R into Rh (heating transformer) and Rc (cooling transformer) — these are usually jumpered together at the thermostat unless the system has two separate transformers. Draw and label the full layout using the free online editor at circuitdiagrammaker.com.
