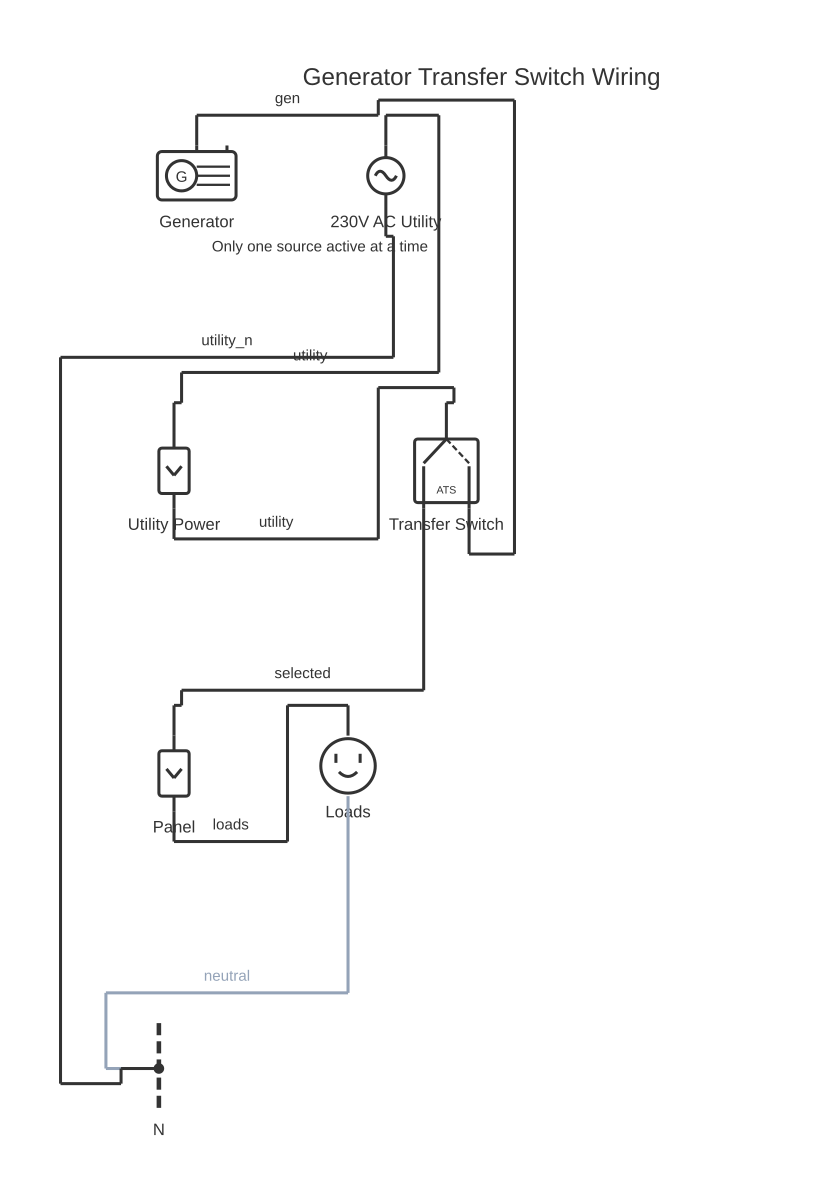

Generator Wiring Diagram
This is a free printable generator wiring diagram: download the diagram as SVG or open it and print to paper or PDF.
Connecting a portable or standby generator safely requires proper transfer switching, grounding, and conductor sizing. This guide covers manual and automatic transfer switch wiring, generator output connections, and code requirements.
A generator converts mechanical energy (from an engine or turbine) into electrical energy via electromagnetic induction. Portable generators produce single-phase 120/240 V AC at 60 Hz (or 50 Hz internationally) by rotating a field coil inside stationary armature windings. Standby generators use natural gas or propane engines and connect permanently to the building electrical system through an automatic transfer switch (ATS). The ATS is the most critical safety component in any generator installation. It mechanically and electrically prevents the generator from being connected to the utility simultaneously -- if generator power fed back into utility lines, it creates deadly voltage on supposedly de-energised utility lines endangering line workers. Manual transfer switches require the operator to physically move from UTILITY to GENERATOR position before starting the generator. Automatic transfer switches monitor utility voltage and frequency; when utility power falls below approximately 90% of nominal for 2-10 seconds, the ATS starts the generator, waits for it to stabilise (typically 10-30 seconds), then transfers the load. When utility power is restored and stable for 30 seconds to 5 minutes (programmable), the ATS retransfers to utility and signals the generator to cool down at no load before shutting off. Generator wiring requires THWN or USE conductors in conduit for fixed installations. Conductor sizing follows NEC 445.13 (generator output circuit conductors rated not less than 115% of nameplate current). Grounding the generator frame and the neutral-to-ground bond location depends on whether the generator is a separately derived system -- if yes, the neutral-ground bond is at the first means of disconnect from the generator, not at the main panel.
Generator wiring diagrams vary significantly depending on the prime mover and output type. A diesel generator set combines an engine control panel, an alternator (synchronous generator), automatic voltage regulator (AVR), circuit breakers, and the transfer switch that isolates the generator from the utility supply. A portable petrol generator typically has a simpler layout: engine kill switch, low-oil shutdown sensor, alternator windings, capacitor (for self-excitation in brushless units), and output sockets. Motor-driven generator combinations — sometimes called motor-generators — add a DC or AC drive motor to the circuit. All three layouts can be drawn and customised in the free online editor at circuitdiagrammaker.com.
How to wire generator wiring diagram
- Calculate loads List all essential loads with their running and starting watts. Select a generator with capacity exceeding the largest starting surge plus running total of all other loads.
- Install transfer switch Mount the transfer switch next to the main panel. A licensed electrician must install the ATS, connecting utility feeds and generator output to the switch. Verify both utility and generator feeds are properly isolated.
- Run generator feed conductors Install THWN conductors in rigid or IMC conduit from the generator location to the ATS. Size conductors at 115% of generator nameplate current per NEC 445.13.
- Establish grounding Drive an 8-foot ground rod at the generator location. Connect generator frame to the ground rod. Bond neutral to ground at the generator (separately derived system) per NEC 250.30.
- Test the transfer sequence Start the generator manually and verify voltage and frequency (120 V +/-5%, 60 Hz +/-0.5 Hz). Operate the manual transfer switch to generator position. Verify loads transfer correctly.
Specifications
| Generator output conductor sizing | 115% of nameplate current (NEC 445.13) |
|---|---|
| ATS utility detection threshold | 90% of nominal voltage |
| ATS transfer time | 5-20 seconds (automatic) |
| Ground rod depth | 8 feet minimum (NEC 250.52) |
| Generator output voltage tolerance | 120 V +/- 5% (114-126 V) |
| Generator frequency tolerance | 60 Hz +/- 0.5 Hz |
Safety warnings
- Never connect a portable generator directly to household wiring without a transfer switch -- this is illegal and can electrocute utility workers restoring power.
- Keep the generator outdoors, at least 20 feet from doors and windows -- generator exhaust contains carbon monoxide, which kills rapidly indoors.
- Never refuel a running generator -- hot exhaust and engine components can ignite spilled fuel instantly.
Tools needed
- True-RMS multimeter for generator output voltage and frequency measurement
- Clamp meter for measuring generator output current under load
- Conduit bender and fittings for fixed generator installation
- NEC codebook (Article 445 and 250.30) for grounding compliance
Common mistakes
- Installing the neutral-ground bond at both the generator and the main panel -- in a separately derived system, only one neutral-ground bond is permitted; duplicate bonds cause dangerous neutral currents on ground conductors.
- Sizing generator output conductors to generator breaker rating instead of 115% of nameplate current -- undersize conductors overheat during sustained generator operation.
- Using extension cords instead of proper wiring for fixed loads -- extension cords are not rated for continuous outdoor duty and create fire and shock hazards.
Troubleshooting
- Generator trips breaker under load
- Cause: Motor loads creating starting surge exceeding generator capacity Fix: Start loads one at a time, starting with the largest motor. If one motor stalls the generator, the generator is undersized for that load. Consider a soft-start kit for the motor or upgrade generator capacity.
- ATS does not transfer to generator
- Cause: Generator output voltage out of ATS acceptance window, or ATS start signal not reaching generator Fix: Measure generator output voltage and frequency. Verify start signal wiring from ATS to generator start terminal. Check ATS parameters against generator output specifications.
- Utility power restored but ATS stays on generator
- Cause: ATS cool-down timer running or utility frequency outside acceptance window Fix: Wait for programmed cool-down period (30 seconds to 5 minutes). Check utility voltage stability with meter. If ATS never retransfers, check utility sensing circuit and ATS programming.
Frequently asked questions
How do I size a generator for my home?
Add the running watts of all loads you need during an outage. For motor loads (well pump, HVAC), multiply running watts by 2-3 times for starting surge watts. The generator must meet the largest single motor starting surge without tripping or stalling. Most homes need 7,500-15,000 watts for essential loads. Add 20% margin for efficiency variation and future loads.
What is the correct generator grounding method?
For a portable generator used with extension cords only (not connected to building wiring), the frame is grounded to earth via a driven ground rod and the generator neutral floats (or follows manufacturer instructions). For a generator connected to building wiring through a transfer switch, it becomes a separately derived system: the neutral must be bonded to the generator ground at the generator or first means of disconnect, and the main panel neutral-ground bond remains intact.
How does an automatic transfer switch (ATS) work?
The ATS continuously monitors utility voltage on all phases. When voltage drops below the set threshold (typically 90% nominal), the ATS starts the generator via a start signal. After the generator reaches stable voltage and frequency (typically 55-60 Hz, 110-125 V), the ATS opens the utility contactor and closes the generator contactor -- transferring the load in about 5-20 seconds. Upon utility restoration and a time delay, the process reverses.
Can I use a generator with a solar panel system?
Yes, but careful integration is required. Grid-tie solar inverters shut down when utility power is lost (anti-islanding protection). For generator plus solar compatibility, use an off-grid or hybrid inverter with generator input, or a generator with automatic transfer that isolates the solar system from the grid during generator operation.
What gauge extension cord can I use with a generator?
For loads up to 15 A at 120 V, use 14 AWG cord rated for the wattage. For 20 A loads, use 12 AWG. Keep cords as short as possible -- every 50 feet of 12 AWG cord at 20 A drops approximately 2.5 V (2%). For 240 V loads such as well pumps or HVAC, use the generator L14-30 outlet and a 10 AWG rated 30 A cord.
What does an electrical wiring diagram of a diesel generator look like?
A diesel generator wiring diagram typically shows the generator terminals (L1, L2, L3, N for three-phase or L1/L2/N for single-phase), the AVR connections (S+ S- for sensing, F+ F- for excitation field), the control panel interconnects (start/stop, oil pressure, coolant temp, RPM), and the output circuit breaker feeding the load bus or transfer switch. The battery charger and engine starter circuit are usually shown as a separate DC sub-diagram. Always consult the manufacturer's specific drawing because AVR pin assignments differ between brands such as Stamford, Leroy-Somer, and Mecc Alte.
How is a generator motor wiring diagram different from a standard generator diagram?
A motor-generator (MG) set adds a drive motor — often a three-phase induction motor — mechanically coupled to the generator shaft. The wiring diagram therefore shows two electrical circuits: the motor supply side (incoming mains, contactor, overload relay, DOL or star-delta starter) and the generator output side (field winding, AVR, output breaker). The two circuits are electrically isolated from each other, which is the key purpose of an MG set for noise or frequency conversion.
How does an alternator generator wiring diagram differ from a regular alternator diagram?
An automotive alternator diagram shows a compact three-phase stator, diode bridge rectifier, field winding, voltage regulator, and a B+ output stud feeding the battery — all contained in one housing. A synchronous generator (alternator-generator) diagram for standby power is larger in scope: it separates the stator windings, AVR, PMG (permanent magnet generator pilot exciter), main exciter, and output breaker as distinct blocks. The operating principle is the same, but the terminal labelling and circuit complexity differ considerably.
