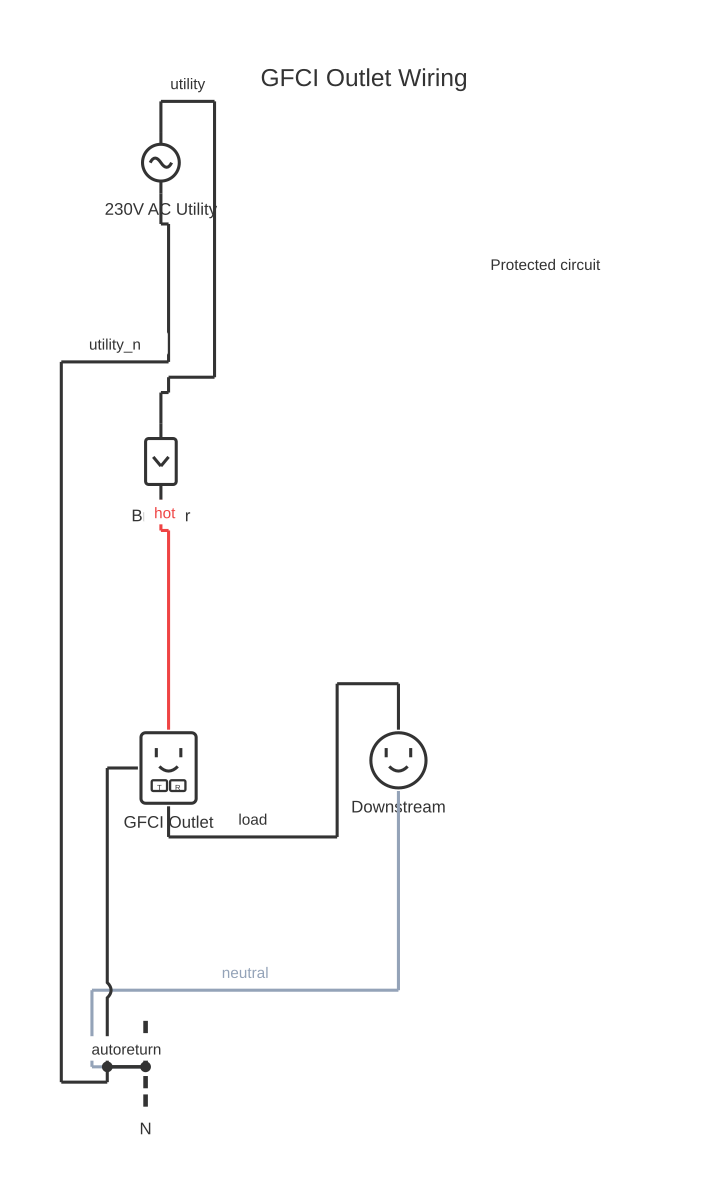

GFCI (Ground Fault Circuit Interrupter) Electrical Diagram

GFCI (Ground Fault Circuit Interrupter) Electrical Diagram — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable gfci circuit diagram: download the diagram as SVG or open it and print to paper or PDF.

A GFCI circuit diagram illustrates how ground fault protection circuits work to prevent electrical shock hazards. Understanding this diagram helps with proper installation, testing, and troubleshooting of GFCI-protected outlets and breakers.

A GFCI monitors the current flowing through the hot and neutral conductors of a circuit. Under normal conditions, the hot wire current leaving the breaker equals the neutral wire current returning to the source. A ground fault occurs when current leaks to ground through moisture, damaged insulation, or a person touching a live wire. When a ground fault exceeds 5 milliamps, the GFCI detects the current imbalance between hot and neutral wires. Internally, the GFCI uses a differential transformer that detects any mismatch, triggering a solenoid that opens a switch, disconnecting power within 40 milliseconds. This extreme speed protects against lethal shock. GFCI protection is required in kitchens, bathrooms, laundries, garages, and outdoor outlets. GFCI outlets can be installed individually or as the first outlet in a circuit to protect all downstream outlets. GFCI breakers protect the entire circuit. Grounding still provides backup protection by offering a low-impedance path for fault current. The circuit diagram shows the sensing network that monitors current flow, the solenoid mechanism, and the electrical connections to the outlet or circuit.

How to wire gfci circuit diagram

Determine where GFCI protection is required based on electrical code for your location.
Choose between GFCI outlets for individual protection or a GFCI breaker for circuit-wide protection.
Turn off power at the breaker before installing the GFCI device.
Remove the existing outlet or access the breaker panel carefully.
Connect the GFCI outlet's line terminals to the circuit breaker (hot and neutral).
If protecting downstream outlets, connect the load terminals to those outlets.
Verify proper polarity: hot wire to hot terminal, neutral to neutral, ground to ground.
Restore power and test the GFCI by pressing the test button, then reset with the reset button.

Frequently asked questions

What's the difference between a GFCI outlet and a GFCI breaker?

A GFCI outlet protects only devices plugged into that outlet and downstream outlets on the same circuit. A GFCI breaker in the panel protects the entire circuit. Breakers are better for whole-circuit protection but more expensive.

Why do GFCI outlets trip when nothing is wrong?

Nuisance trips occur from minor leakage currents in normal loads, humidity, or degraded insulation in connected devices. High-quality GFCIs have adjustable sensitivity to reduce nuisance trips.

How often should I test my GFCI?

Test GFCI outlets monthly using the test button to ensure proper function. If it doesn't trip within seconds, the outlet is faulty and must be replaced immediately.

Can I use a GFCI outlet with a microwave?

Some appliances are sensitive to GFCI protection and may not work well with it. Most modern appliances work fine, but check manufacturer recommendations for sensitive equipment.

Is GFCI protection the same as grounding?

No, GFCI prevents shock from ground faults while proper grounding provides a safe path for fault current. Both are important: grounding backs up GFCI if it fails, and GFCI reacts faster than grounding alone.
