Headlight Relay Diagram

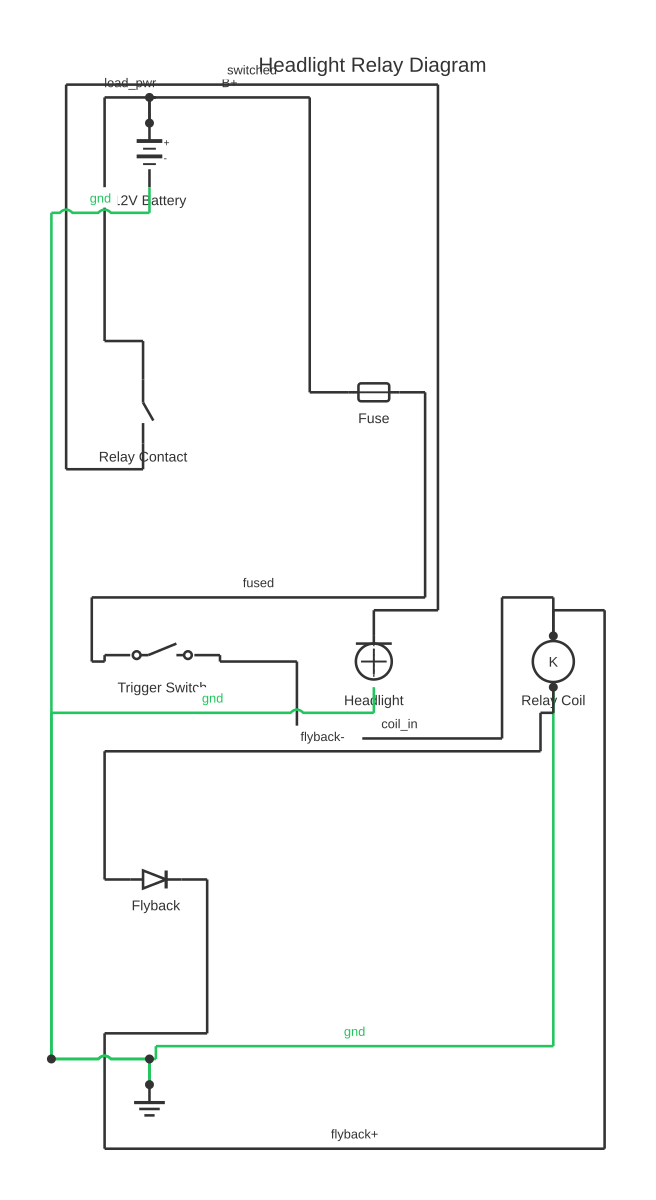

Headlight Relay Diagram — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable headlight relay diagram: download the diagram as SVG or open it and print to paper or PDF.

A headlight relay allows a high-current headlight circuit to be switched by the low-current headlight switch, protecting the switch contacts and maintaining full voltage to the bulbs.

Automotive headlights — particularly HID (high-intensity discharge), LED upgrades, and halogen units on older vehicles — draw significant current. A standard headlight switch was designed to handle the original equipment load, but when bulbs are upgraded to higher-wattage alternatives, or when a headlight switch is already worn, the switch contacts can overheat, causing voltage drop, intermittent failure, or switch melting.

The solution is an interposing relay. A relay is an electromagnetic switch: a small control current energises the coil (terminals 85 and 86), which closes the high-current main contacts (terminals 30 and 87). The headlight switch now only drives the relay coil — typically 150–200 mA — while the main contacts switch the full headlight load current directly from the battery.

Standard automotive relay pin designations (ISO 7588 / DIN 72552): - Terminal 30: Battery positive (+12 V) — main contact input, connected directly to the battery or fuse box with a short, appropriately fused wire. - Terminal 87: Main contact output — connects to the headlight load (bulb positive). - Terminal 87a: Second normally-closed contact output (5-pin relays only) — connects to the device that should be ON when the coil is de-energised. - Terminal 85: Coil negative — connects to chassis ground (earth). - Terminal 86: Coil positive — connects to the headlight switch output (the signal wire that triggers the relay).

For a simple headlight relay upgrade: terminal 30 receives battery power via a suitably rated fuse (typically 15–20 A per lamp for high-wattage halogen or LED); terminal 87 feeds the headlight positive wire; terminal 86 receives the existing headlight switch signal; terminal 85 connects to chassis earth. The original headlight wiring now controls only the relay coil.

For a dual-relay high/low beam system: two separate relays are used, one per beam. The high-beam relay coil (86) is driven by the existing high-beam switch signal; the low-beam relay coil (86) is driven by the low-beam signal. Both relays share the same battery-fused positive supply on terminal 30.

A 5-pin relay is used in applications where the two contact states (NO and NC) serve different loads — for example, a driving light relay where the NO contact (87) energises the driving lights when the coil is activated, and the NC contact (87a) can provide a parking light or indicator function when the coil is released.

Wire gauge for the power circuit (30 to 87) must be rated for the headlight load current. A pair of 55 W H4 halogen bulbs draws approximately 9.2 A at 12 V per bulb (110 W total = 9.2 A). Use a minimum 12 AWG (4 mm²) wire for runs of more than 0.5 m, and fuse the terminal 30 wire close to the battery — within 150 mm of the positive terminal is best practice.

Adding a relay to a headlight circuit — whether for standard headlights or high-output driving lights — routes high current directly from the battery to the lamps, using the existing switch wire only to trigger the relay coil. This reduces voltage drop and switch wear, producing noticeably brighter lights. Brands like Narva, Hella, and Roots offer pre-wired relay harnesses for common applications. Sketch your own headlight relay layout free with Circuit Diagram Maker directly in the browser.

How to wire headlight relay diagram

Disconnect the battery negative terminal Before any wiring work on an automotive circuit, disconnect the negative battery terminal to prevent accidental short circuits. Have the vehicle's radio security code available if applicable, as disconnecting the battery resets the radio.
Plan the relay mounting location Mount the relay close to the headlight loads — typically on the inner wing (fender), firewall, or engine bay relay box. Keep the power wire from battery to terminal 30 as short as possible. Avoid mounting relays in locations exposed to excessive heat (near the exhaust manifold) or water ingress (low points in the engine bay). Use a relay socket with mounting bracket for secure, weather-resistant installation.
Run the battery supply wire (terminal 30) with an inline fuse Run an appropriately gauged wire (12 AWG / 4 mm² minimum for 55 W halogen loads) from the battery positive terminal to the relay socket terminal 30. Install an inline fuse holder within 150 mm of the battery terminal, fitted with the correctly rated fuse. This wire is live at all times — take great care not to allow its stripped end to contact ground while working.
Connect the relay coil (terminals 85 and 86) Terminal 85 (coil negative) connects to a clean chassis ground point — a bolt on the inner wing or firewall that is clean metal-to-metal contact. Terminal 86 (coil positive / trigger) connects to the existing headlight switch output wire — the wire that currently carries 12 V when the headlights are switched on. Do not cut this wire; use a T-tap or a soldered splice to take a signal from it.
Connect the relay output (terminal 87) to the headlight positive Run a suitably rated wire from relay terminal 87 to the headlight positive connector at the bulb. If both headlights on the same beam (left and right) are driven from one relay, splice to both bulb connectors with a Y-junction, ensuring the combined current does not exceed the relay's contact rating.
Reconnect the battery and test before final securing Reconnect the battery negative terminal. Switch the headlights on. Verify both bulbs illuminate on the correct beam. Check that switching between high and low beam operates correctly. Feel the relay body after 5 minutes — it should be warm but not uncomfortably hot. If it is hot to the touch, the relay is undersized for the load or the contact resistance is high — investigate before permanent installation.
Secure wiring and protect from heat and abrasion Once verified, secure all new wiring with cable ties at intervals of no more than 200 mm in the engine bay. Route wiring away from moving parts, hot surfaces, and sharp edges. Use split-loom conduit or heat-shrink over any section running near exhaust components or along sharp brackets. Seal any splices with adhesive-lined heat-shrink tubing — unsealed splices corrode rapidly in the engine bay environment.

Specifications

Standard relay terminal designations (ISO 7588 / DIN 72552)	30 = battery positive input; 87 = NO contact output; 87a = NC contact output (5-pin); 85 = coil negative; 86 = coil positive
Coil operating voltage	12 V DC nominal (operating range typically 8–16 V)
Coil current draw	Typically 150–200 mA (1.8–2.4 W) for a standard automotive mini relay
Main contact rating	30 A or 40 A at 12 V DC (continuous); higher for heavy-duty relays
Fuse rating (two 55 W H4 halogen bulbs per relay)	15 A minimum (9.2 A load × 1.3 margin = ~12 A; 15 A fuse is next standard size)
Minimum wire gauge (main contacts)	12 AWG / 4 mm² for 20 A load; 10 AWG / 6 mm² for 30 A load
Applicable standard	ISO 7588 (automotive relay terminal designation), ISO 8820 (automotive fuse standards)

Safety warnings

Always disconnect the vehicle battery negative terminal before beginning any automotive wiring work. An automotive battery can deliver thousands of amperes in a short circuit — accidental contact between the battery positive and chassis ground causes extremely high-energy arcing that can cause burns, eye injury, and fire.
The battery supply wire to relay terminal 30 is live at all times, even with the ignition off. Keep the stripped wire end insulated until the moment it is connected to the terminal. If you are not immediately ready to connect, tape the bare end.
Fit the inline fuse as physically close to the battery positive terminal as possible — within 150 mm. A wire that runs unfused from the battery through the engine bay for any distance before reaching a fuse is an unprotected fire hazard if the wire chafes against the bodywork.
Ensure all headlight work complies with local vehicle lighting regulations. In many jurisdictions, changing headlight bulbs to non-type-approved units (certain LED conversion kits, HID retrofits) is illegal for road use and may invalidate vehicle insurance and roadworthiness certification.
Do not use crimp connections on the battery supply wire without a proper ratcheting crimper and automotive-rated terminals. Cold or poorly crimped connections develop high resistance, overheat at load, and can cause fires — particularly on continuous-duty headlight circuits.

Tools needed

Digital multi-meter (DC voltage and continuity modes)
Wire strippers for 10–20 AWG / 0.5–6 mm² conductors
Ratcheting crimping tool and insulated crimp terminals
Soldering iron and heat-shrink tubing (preferred over crimp splices for engine bay wiring)
Test light or multi-meter for verifying the trigger signal from the headlight switch
Cable tie gun and adhesive cable tie mounts
Flathead screwdriver and spanner set for mounting bracket and battery terminal

Common mistakes

Running the battery supply wire (terminal 30) without a fuse, or fitting the fuse far from the battery — if the wire chafes mid-run, the entire length is unprotected and can sustain a fire for seconds before the fuse blows (if at all).
Grounding the relay coil (terminal 85) to a painted surface or a rust-prone bracket — high resistance at the earth point causes the relay coil to not pull in reliably, particularly in cold weather when coil resistance is higher.
Connecting terminal 86 (coil trigger) directly from the battery rather than from the headlight switch signal — the relay coil is now permanently energised and the headlights cannot be switched off.
Using speaker wire or generic electrical cable for automotive power circuits — automotive-grade wire is rated for the temperature range, vibration, and chemical exposure of an engine bay; generic wire degrades rapidly.
Installing relays without a socket or mounting bracket, allowing the relay to vibrate freely on its wiring — mechanical fatigue eventually cracks a solder joint or connector, causing intermittent headlight failure.

Troubleshooting

Headlights do not illuminate after relay installation: Cause: Relay is not energising (coil circuit open); or relay is energising but load circuit is open; or the inline fuse has blown. Fix: Check the inline fuse first. Then, with headlights switched on, measure voltage at relay terminal 86 (should be +12 V) and terminal 85 (should be 0 V / ground). If both are correct and the relay clicks audibly, the load circuit is open — check terminal 87 wire and headlight connectors. If the relay does not click, the coil circuit has no voltage — trace back to the headlight switch signal.
Headlights flicker or go out intermittently, particularly over bumps: Cause: Loose connection at a relay socket terminal, corroded chassis earth point, or a damaged inline fuse holder where the fuse is vibrating loose. Fix: Inspect and tighten all relay socket terminal connections. Verify the earth point is making clean metal-to-metal contact — remove the bolt, clean both surfaces with a wire brush, apply a thin layer of di-electric grease, and retighten. Remove and reseat the inline fuse.
Relay runs hot, melted socket, or blown fuse repeatedly: Cause: The relay contact rating is insufficient for the load current; or the load is drawing more current than expected (bulb short, water in headlight housing). Fix: Calculate the actual load current with a clamp meter. If the relay is undersized, replace with a higher-rated unit. If current is significantly above expected, check each headlight for a short circuit or water ingress. A bulb with an internal short draws several times its rated current until the fuse blows.

Frequently asked questions

What are the four terminals on a standard automotive relay and what do they do?

The four terminals are: 30 (battery positive input to the main contacts), 87 (switched output to the load when the coil is energised — normally open contact), 85 (coil negative, to ground), and 86 (coil positive, receives the trigger signal from the switch). Terminal 87a appears on 5-pin relays as the normally-closed contact output.

Why does adding a relay to my headlight circuit make the lights brighter?

When headlight current flows through a worn switch, the switch's contact resistance causes a voltage drop. A 1 Ω contact resistance in a 10 A circuit drops 10 V — the headlight bulb receives only 2 V instead of 12 V. With a relay, the high current flows through the relay's low-resistance main contacts directly from the battery, and the bulbs receive close to the full 12–14 V supply.

What size fuse should I use on the battery supply wire to my headlight relay?

Calculate the fuse size based on the total wattage of the headlights. At 12 V: fuse rating = total watts / 12 V, then add 25–30% margin. Two 55 W bulbs = 110 W / 12 V ≈ 9.2 A — use a 15 A fuse. For LED upgrades with much lower wattage, reduce accordingly. Always fit the fuse as close to the battery positive terminal as possible.

Can I use one relay for both the high-beam and low-beam headlights?

Only if the relay's contact rating is sufficient for the combined load and if the switching logic works — a single-relay setup that enables one beam at a time could use a 5-pin relay with NC for low beam and NO for high beam, de-energised for low and energised for high. However, in practice, using separate relays for high and low beams is simpler, more reliable, and allows independent fusing of each circuit.

Do I need relays for modern LED headlights?

LED headlight bulbs draw significantly less current than halogen equivalents, often 50–80% less. If upgrading to LED within the OEM headlight housing and the switch is in good condition, a relay may not be strictly necessary. However, some LED conversion kits include relay harnesses because the LED driver electronics require stable voltage for correct colour temperature and brightness, and relay wiring ensures minimal voltage drop.

How do I wire headlights with a relay?

Connect relay terminal 30 to a fused battery positive, terminal 87 to the headlight lamp, terminal 86 to the existing headlight switch output (the trigger wire), and terminal 85 to chassis ground. When the headlight switch is turned on, it energises the relay coil, closing the main contact and supplying full battery voltage directly to the lamp. This bypasses the long factory wiring harness, eliminating voltage drop and delivering full brightness. Use a relay rated at least 30 A for high-beam loads.

What is a Roots headlight relay wiring diagram?

Roots is a brand of automotive relay harness kits popular in Southeast Asia and Australia for headlight upgrades. Their headlight relay harnesses typically follow the standard 5-pin relay configuration: pin 30 to fused battery positive, pin 87 to the headlight bulb, pin 85 to ground, and pin 86 to the original switch feed. The kit includes pre-terminated connectors to simplify installation. Refer to the specific Roots product instruction sheet for exact wire colours, as these can vary between kit versions.
