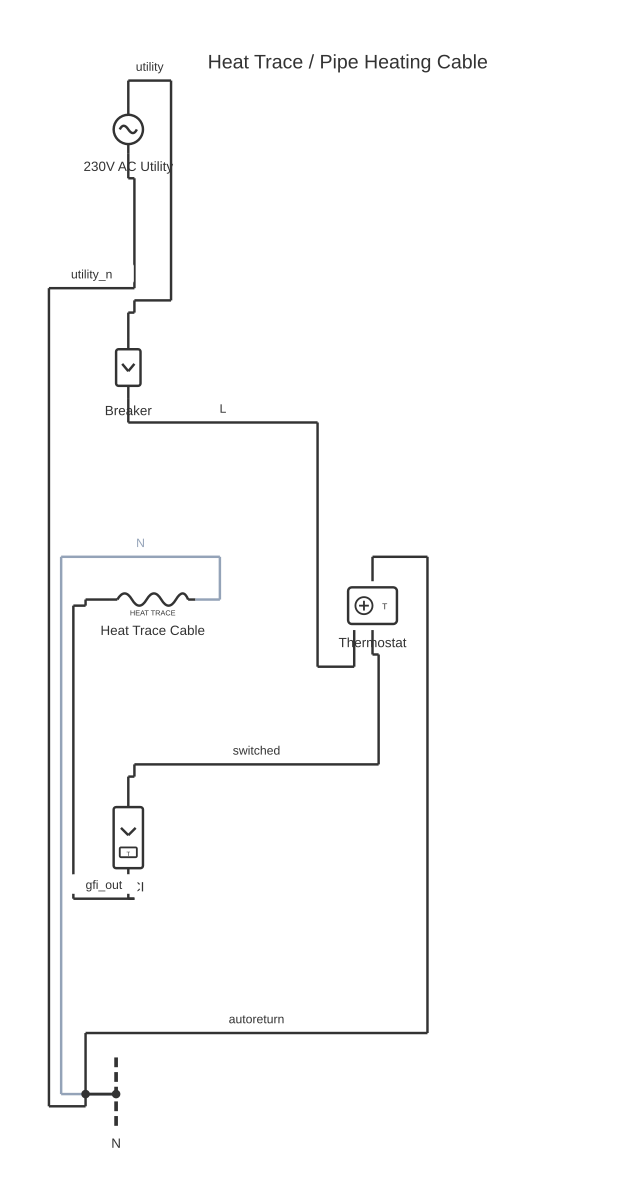

This is a free printable heat trace wiring diagram: download the diagram as SVG or open it and print to paper or PDF.
A heat trace wiring diagram configuration establishes reliable control over complex electrical systems through strategic use of contactors and distributed protection. The circuit topology separates control signals from power paths, allowing low-voltage logic to manage high-power loads safely. Protective devices are rated and coordinated to ensure selective tripping during fault conditions, preventing cascade failures across unaffected branches. Component tolerance analysis ensures predictable operation across manufacturing variations and environmental temperature ranges. The ground distribution uses star topology to minimize return-path impedance and reduce voltage distortion.
How to wire heat trace wiring diagram
- Measure pipe length and select cable type Measure the total pipe length to be traced, including valves, flanges, and support brackets. Select self-regulating or constant-wattage cable based on pipe temperature maintenance requirement. Note the watts-per-metre rating at your design temperature.
- Calculate circuit current and select MCB Multiply cable length by watts per metre, divide by 230 V for single-phase circuits. Add 25% for cold start inrush. Select an MCB at the next standard size above this current. Use a Type C MCB to handle the inrush without nuisance tripping.
- Install RCBO for earth fault protection Fit a 30 mA RCBO (combined MCB and RCCB) on the heat trace circuit. Heat trace cables are moisture-prone and run outdoors — earth fault protection is not optional. Confirm the RCBO rating matches the MCB selection from the previous step.
- Wire end seal on cable Before installation, terminate the non-powered end of the heat trace cable with the manufacturer's end-seal kit. Trim the cable to length, apply heat-shrink end cap, and seal with a heat gun. A missing end seal allows moisture ingress and causes circuit failure.
- Wire power connection end Strip back the outer jacket, separate the bus wires from the grounding braid, and attach the power connection kit. Connect bus wires to L and N, earth the braid to the earth terminal. Apply the heat-shrink power connection cap and seal.
- Install thermostat sensor on the pipe Clip the thermostat pipe sensor to the pipe on the opposite side from the heat trace cable, away from heat sources. Set thermostat to the required cut-in temperature — typically 3°C for freeze protection. Route sensor cable back to the thermostat in conduit.
- Test insulation resistance before energising Use a 500 V megohmmeter to test insulation resistance between the bus wires and earth braid. A reading above 20 MΩ indicates a sound cable. Below 1 MΩ indicates moisture ingress or cable damage — do not energise until the fault is found and corrected.
Frequently asked questions
What is heat trace wiring used for?
Heat trace cables are electric resistance heating elements wrapped around or clipped to pipes to prevent freezing or maintain a minimum process temperature. They are common on water supply lines in cold climates, fire suppression systems, and industrial chemical pipework.
Do heat trace cables need a thermostat?
Self-regulating heat trace cables adjust their output based on ambient temperature and do not strictly require a thermostat, but one is strongly recommended for energy efficiency. Fixed-resistance heat trace cables must have a thermostat or they will overheat and fail prematurely.
What circuit protection does heat trace wiring need?
Heat trace circuits require a dedicated MCB or fuse, an earth leakage circuit breaker (RCCB or RCBO), and often a GFEP (ground-fault equipment protection) relay to detect small leakage currents before a fault damages the cable or creates a fire.
Can I join two lengths of heat trace cable together?
Heat trace cables are joined using manufacturer-supplied splice kits with heat-shrink insulation. Never use standard electrical tape or connector blocks — moisture ingress into a heat trace joint causes failure and creates an electrical hazard. Use only the approved kit for your cable type.
How do I size the MCB for a heat trace circuit?
Determine the total watts per metre rating of the cable, multiply by the total installed length in metres, and divide by 230 V to get the current draw. Size the MCB to the next standard rating above that current, typically with a 20–25% margin for cold start inrush current.
