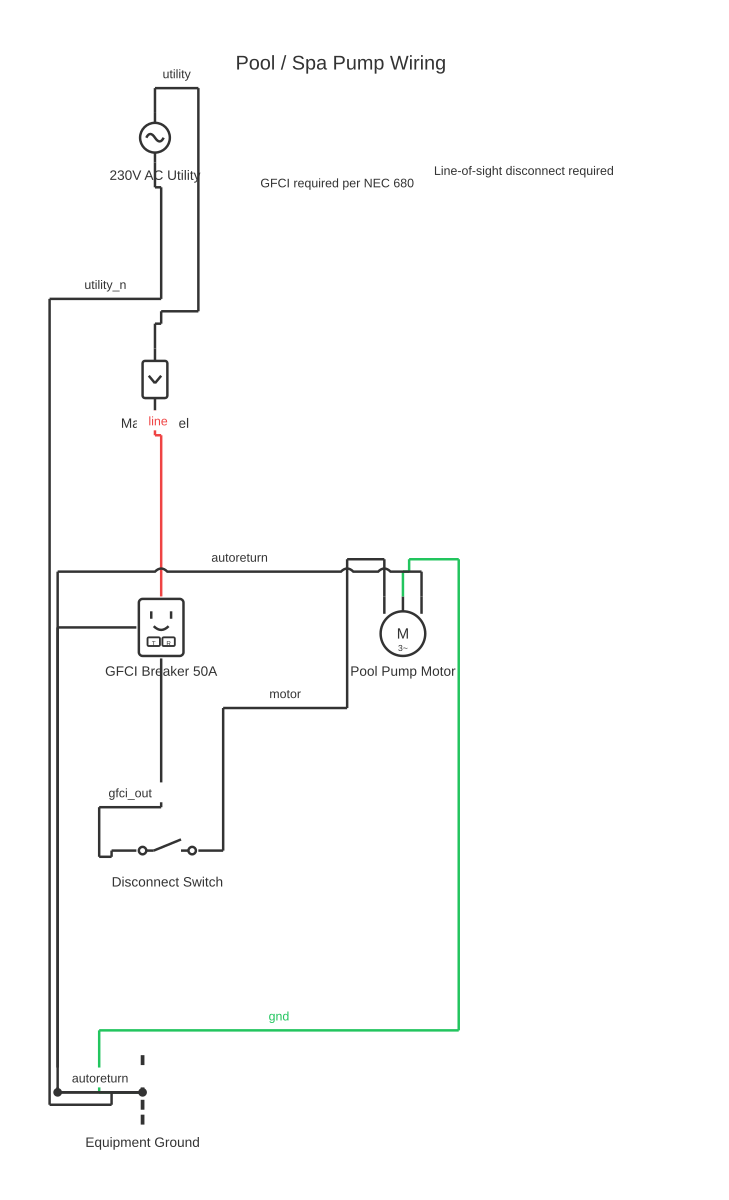

Hot Tub Wiring Diagram: 240V Dedicated Circuit with GFCI to NEC 680
This is a free printable hot tub wiring diagram: download the diagram as SVG or open it and print to paper or PDF.
Hot tub wiring requires a dedicated 240V GFCI-protected circuit, a nearby disconnect within sight, and strict compliance with NEC Article 680 to prevent electrocution.
Hot tub electrical installation is one of the most safety-critical residential wiring projects because it combines mains voltage with a large body of water in which people are immersed. The National Electrical Code (NEC) governs this work under Article 680 (Swimming Pools, Hot Tubs, Spas, and Similar Installations), with equivalent requirements in IEC 60364-7-702, BS 7671 Section 702, and AS/NZS 3000 Section 6.
A permanently installed hot tub in North America requires a dedicated 240 V, 50 A (or 60 A, per manufacturer specification) two-pole circuit fed from the main panel. The circuit must be protected by a 4-wire configuration: two ungrounded conductors (L1 and L2), one grounded conductor (neutral), and one equipment grounding conductor (ground). The specific amperage and wire gauge depend on the hot tub manufacturer's installation requirements — always consult the equipment nameplate and installation manual.
All hot tub circuits must be protected by a Ground Fault Circuit Interrupter (GFCI). NEC 680.44 requires that the entire branch circuit feeding the hot tub be GFCI protected. The GFCI is commonly incorporated in the main panel as a GFCI-type two-pole breaker. The GFCI will trip at a ground fault current of approximately 5 mA — far below the threshold for lethal electric shock — cutting power within milliseconds.
A readily accessible disconnect switch (or circuit breaker acting as the disconnect) must be installed within sight of the hot tub and within 1.5 m (5 feet) for some jurisdictions, or as specified by NEC 680.12. This disconnect allows the hot tub to be isolated for maintenance without going to the main panel. The disconnect must not be accessible to a person immersed in the water.
Bonding is as critical as the GFCI. All metallic parts of the hot tub structure, the equipment cabinet, the circulating pump, the heater housing, water fittings, and any metallic surfaces within 1.5 m (5 feet) of the tub must be bonded together with a minimum 8 AWG solid copper conductor connected to the equipment ground. This equipotential bonding grid ensures no voltage potential can exist between metallic parts that a person could simultaneously contact.
All fixed wiring must be installed by a licensed electrician. A permit and inspection are required in virtually all jurisdictions.
How to wire hot tub wiring diagram
- Read the hot tub manufacturer's installation manual and consult the nameplate Before any planning, obtain the minimum circuit ampacity, voltage, and GFCI requirements from the equipment nameplate and installation manual. These override any general guidance. Confirm whether a neutral conductor is required (some hot tubs use 240 V only; others use 120/240 V for controls and lighting).
- Obtain permits and engage a licensed electrician Contact your local authority having jurisdiction (AHJ) or building department to obtain the required electrical permit. Hot tub wiring must be performed by or under the direct supervision of a licensed electrician in virtually all jurisdictions. The installation must be inspected before the tub is energised.
- Plan the conduit route from panel to hot tub location Underground wiring to an outdoor hot tub must use conduit (rigid metal, rigid non-metallic, or intermediate metal conduit as permitted by local code) at the correct burial depth — NEC Table 300.5 specifies 600 mm (24 inches) for circuits over 30 V in most applications. Plan the route to avoid the zone within 1.5 m (5 feet) of the hot tub where buried conduit depth requirements increase.
- Install the 2-pole GFCI breaker at the main panel Install a two-pole GFCI circuit breaker of the correct amperage (50 A or 60 A as required) in the main panel. The GFCI breaker has a separate white pigtail that connects to the panel's neutral bus. The two load terminals connect to the hot conductors going to the hot tub. Follow panel manufacturer instructions for correct installation.
- Install the disconnect switch within sight of the hot tub Mount a lockable disconnect switch (or a non-GFCI breaker in a suitable outdoor enclosure if the GFCI is in the main panel) within sight of the hot tub and at the required distance from the water's edge. The enclosure must be rated for outdoor use (NEMA 3R or 4X minimum). Ensure it is not reachable by a person in the water.
- Pull conductors through conduit and connect at the sub-panel or hot tub junction box Pull 6 AWG (or required gauge) THHN conductors through the conduit: L1 (black), L2 (red), neutral (white, if required), and ground (green or bare). At the hot tub's junction box, connect per the manufacturer's wiring diagram — typically L1 and L2 to the main terminal block, neutral to the neutral bus (if used), and ground to the chassis ground lug.
- Install the equipotential bonding grid Using 8 AWG solid copper conductor, bond together: the hot tub shell or perimeter bonding lugs (provided by manufacturer), the pump motor housing, the heater housing, all metallic water fittings, the equipment cabinet, and any metallic handrails or accessories within 1.5 m (5 feet) of the tub. Connect the bonding grid to the equipment ground conductor at the hot tub junction box.
Specifications
| Supply voltage (permanent installation, North America) | 240 V AC, split-phase (120/240 V) |
|---|---|
| Typical circuit ampacity | 50 A or 60 A (per manufacturer specification) |
| GFCI trip threshold (Class A) | ≤ 5 mA ground fault current |
| Applicable NEC article | NEC Article 680 (Swimming Pools, Hot Tubs, and Spas) |
| Conductor size (50 A circuit, copper) | 6 AWG THHN minimum |
| Conductor size (60 A circuit, copper) | 4 AWG THHN minimum |
| Bonding conductor minimum size | 8 AWG solid copper |
| Disconnect location requirement | Within sight of hot tub, not accessible to an immersed person |
Safety warnings
- All hot tub electrical installation work must comply with NEC Article 680 (USA), BS 7671 Section 702 (UK), IEC 60364-7-702, AS/NZS 3000 Section 6 (Australia/NZ), or the applicable national standard. A permit and inspection by the authority having jurisdiction are mandatory in virtually every jurisdiction. Engage a licensed electrician — this work must not be performed by an unqualified person.
- GFCI protection is mandatory for all hot tub circuits and is not optional. A non-GFCI breaker on a hot tub circuit is a code violation and creates an unacceptable risk of fatal electrocution. Verify that the installed breaker is a Class A GFCI type.
- Equipotential bonding is a separate requirement from GFCI and must not be omitted. Unbonded metallic parts of the hot tub can carry a voltage potential relative to the water during a fault condition, creating a lethal touch voltage even with a GFCI fitted.
- The disconnect switch must be within sight of the hot tub but not reachable by a person in the water. Positioning the disconnect where it could be operated while immersed is a serious hazard and a code violation.
- Verify the circuit is completely de-energised at the main panel and at the disconnect before any maintenance on the hot tub's electrical components. Confirm dead with a calibrated non-contact tester. The water in the hot tub can remain energised even after the hot tub controls are switched off if the circuit remains live.
Tools needed
- Non-contact voltage tester (rated for 240 V AC)
- Digital multimeter
- Fish tape or conduit rod (for pulling conductors through conduit)
- Conduit bender (for rigid conduit bends above ground)
- Wire strippers for 6 AWG conductors
- Torque screwdriver (for panel and disconnect terminal connections)
- Shovel or trenching tool (for underground conduit burial)
- Measuring tape
Common mistakes
- Installing a standard (non-GFCI) circuit breaker and relying on a portable GFCI device instead — NEC 680.44 requires the entire branch circuit to be GFCI protected from the panel breaker, not at an intermediate point.
- Omitting the equipotential bonding grid, or bonding only the pump but not the heater, fittings, and handrails — every metallic component within 1.5 m (5 feet) of the water must be included.
- Burying conduit at insufficient depth — the NEC and local amendments specify minimum burial depths that vary by conduit type and circuit voltage. Conduit too close to the surface is vulnerable to damage from digging.
- Locating the disconnect where it is accessible to a person in the water, or out of sight of the hot tub — both conditions are NEC violations and safety hazards.
- Failing to obtain a permit and inspection — this leaves the homeowner with an uncertified installation that may void the hot tub warranty, create liability in the event of an incident, and may need to be removed or reworked at the owner's expense.
Troubleshooting
- GFCI breaker trips immediately when hot tub is energised
- Cause: Ground fault in the hot tub equipment, wiring, or a component with moisture ingress Fix: Disconnect the hot tub equipment at the junction box and re-energise the circuit. If the GFCI holds, the fault is inside the hot tub equipment — contact the hot tub manufacturer's service department. If the GFCI still trips with equipment disconnected, the fault is in the supply wiring; inspect for damaged conductor insulation, especially at conduit entry points.
- GFCI breaker nuisance trips during normal operation (no fault found)
- Cause: Leakage current from long cable run, multiple loads, or a component with age-related insulation degradation Fix: Measure the total leakage current with a clamp meter on the circuit at normal operating temperature. If leakage approaches 5 mA, inspect the pump motor and heater element for insulation resistance degradation. A GFCI with nuisance tripping on a correct installation may indicate component wear — do not replace the GFCI with a non-GFCI device. Contact a licensed electrician.
- Hot tub heater works but jets (pump) do not, or vice versa
- Cause: Separate internal breaker or thermal cutout has tripped within the hot tub control pack, or one hot leg has lost voltage Fix: Check the hot tub's internal control panel for tripped breakers or thermal reset buttons. Measure voltage at the main terminal block inside the junction box: L1-to-neutral, L2-to-neutral, and L1-to-L2. A reading of 0 V on one leg while the other reads 120 V indicates a lost hot leg — trace upstream to the disconnect and GFCI breaker.
Frequently asked questions
Why does a hot tub need GFCI protection?
Water is an excellent conductor of electricity. A fault current that would barely be felt in a dry environment can be lethal when a person is immersed. A GFCI detects ground fault currents as low as 5 mA and disconnects power within milliseconds — fast enough to prevent cardiac fibrillation. NEC Article 680 makes GFCI protection mandatory for all hot tub circuits.
What is the difference between GFCI protection and equipotential bonding?
GFCI protection detects a fault and disconnects the circuit. Equipotential bonding prevents voltage differences from existing between metallic parts that a person in the water could simultaneously touch — it equalises potential so that even if a fault occurs, there is no current path through the person's body. Both are required; neither alone is sufficient.
Where must the disconnect switch be located?
NEC 680.12 requires the disconnect to be readily accessible, within sight of the hot tub, and not accessible to a person immersed in the water. Specific distance requirements vary by local amendments, but a common requirement is within 1.5 m (5 feet) of the tub. The disconnect must be lockable in the open (off) position for maintenance.
Can I install a hot tub on a standard 20 A household outlet?
Plug-in (inflatable or portable) hot tubs with a 120 V / 15 A or 20 A plug are available and use a standard outlet with a GFCI-protected circuit. Permanently installed hot tubs require a dedicated 240 V, 50–60 A circuit. Never attempt to run a permanently installed hot tub on a standard household outlet — the current draw will overheat the circuit immediately.
What wire gauge is required for a 240V, 50A hot tub circuit?
For a 50 A, 240 V circuit, the NEC requires 6 AWG copper for the hot conductors, neutral, and equipment ground. For a 60 A circuit, use 4 AWG copper. Always verify the hot tub manufacturer's nameplate and installation manual — some models specify different minimum circuit ampacity. Aluminium conductors require a larger gauge and special termination procedures.
