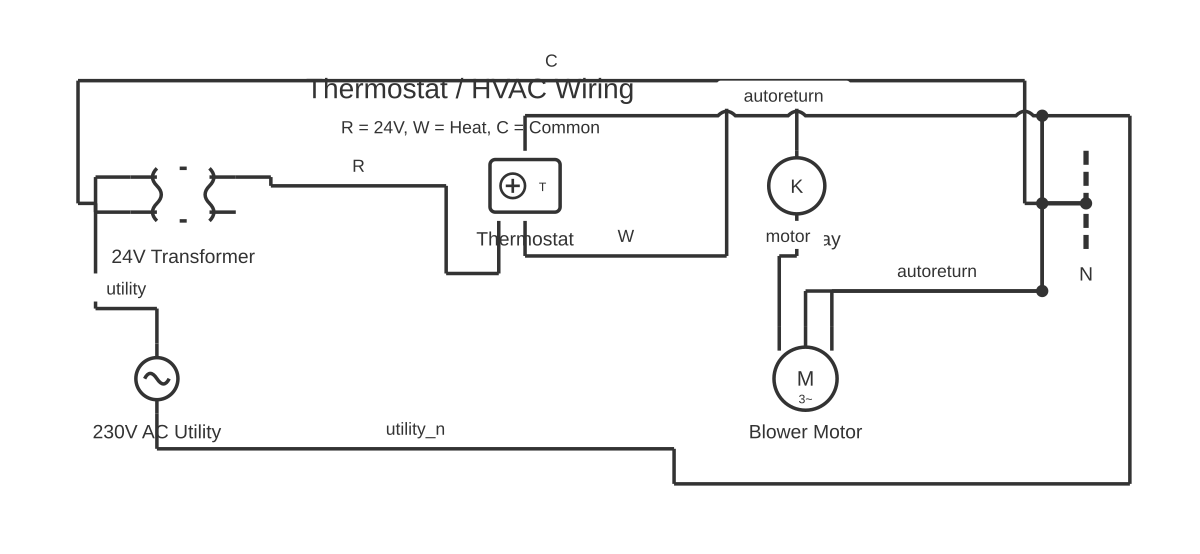

A reference HVAC electrical schematic covering low-voltage thermostat control wiring, contactor operation, compressor, condenser fan, and air handler circuits in split-system air conditioning.

An HVAC split-system air conditioner has two separate electrical circuits: a high-voltage power circuit and a low-voltage (24 V AC) control circuit. Understanding both is essential for safe and effective fault diagnosis.

**High-voltage power circuit:** The condensing unit (outdoor unit) is fed by a dedicated circuit from the distribution board — typically a double-pole breaker and a local disconnect means within sight of the unit (required by NEC 440.14 and similar codes). The circuit feeds a contactor (heavy-duty relay) which, when energised, connects supply voltage to the compressor motor and condenser fan motor. A start/run capacitor is wired to each motor to provide starting torque and improve running efficiency.

**Contactor operation:** The contactor coil operates on 24 V AC supplied by the control transformer in the air handler (indoor unit). When the thermostat calls for cooling, it closes a contact that applies 24 V to the contactor coil via the Y (cooling) signal wire. The contactor pulls in, connecting high-voltage supply to the outdoor unit loads.

**Low-voltage control circuit (24 V AC):** The control transformer (typically 40–75 VA) steps high-voltage supply down to 24 V AC. The transformer secondary (24 V) distributes via labelled terminals: - **R** (red): 24 V AC power from transformer - **C** (common, black): transformer common return - **Y** (yellow): cooling call from thermostat to contactor and compressor - **W** (white): heating call - **G** (green): fan/blower call - **O/B**: heat pump reversing valve

**Safety controls:** High-pressure and low-pressure switches are wired in series with the 24 V control circuit, opening the circuit if system pressures reach unsafe levels. A freeze stat or condensate overflow switch may also be wired in this safety chain.

**Capacitors:** A run capacitor (dual-rated for compressor and condenser fan) maintains motor power factor and provides phase shift for single-phase motor starting. A failed run capacitor is the single most common field service call on split-system AC units.

A schematic diagram for an HVAC system traces the electrical control circuit from the 24 V transformer secondary through the thermostat terminals — R (24 V hot), C (common), Y (compressor), G (fan), W (heat), and auxiliary heat stages — to the corresponding contactor coils and relay inputs in the air handler or furnace. The refrigerant flow is shown separately as a piping schematic, but the electrical schematic governs every call-for-cooling or call-for-heating sequence. Reading both diagrams together is essential for fault-finding compressor, fan motor, and reversing-valve issues. Use the free browser-based editor to draw or customise your HVAC schematic diagram online.

How to wire hvac schematic

Isolate all power before working on the unit Switch off the circuit breaker for the outdoor unit and open the local disconnect switch within sight of the condensing unit. Switch off the air handler circuit breaker separately. Verify zero voltage at all supply terminals with a multimeter before touching any component. HVAC capacitors hold charge after power removal — discharge before handling.
Identify and trace the control transformer Locate the control transformer in the air handler or furnace cabinet. Identify the primary (high voltage) and secondary (24 V) windings. Measure the secondary voltage — it should read 24–28 V AC. Low secondary voltage under load indicates an overloaded or failing transformer.
Trace thermostat wiring at the air handler terminal board Identify the thermostat terminal board in the air handler. Confirm each thermostat wire is connected to the correct terminal (R, C, Y, W, G, O/B). A loose or disconnected C wire is a common cause of intermittent control issues and smart thermostat compatibility problems.
Inspect the contactor in the outdoor unit With outdoor unit isolated, inspect the contactor contacts for pitting, burning, or welding. A pitted contact set has high resistance and causes voltage drop under load. Measure the gap between the contactor coil and the armature face — worn contactors may not pull in fully. Replace a contactor showing signs of burning.
Test the dual-run capacitor Discharge the capacitor safely using a resistor (10 kΩ, 5 W minimum) across the terminals. Measure capacitance with a capacitor meter across each section (HERM–C and FAN–C). Compare measured values against the capacitor nameplate rating — a reading more than 6% below the rated value indicates a failing capacitor.
Verify safety switch continuity With the system off, check continuity of the high-pressure switch and low-pressure switch in the safety chain. Both should read closed (continuity) when the system is off and pressures are within range. An open pressure switch in a de-energised system indicates a failed or sticky switch, or a persistent pressure issue.
Restore power and verify operation sequence Restore power to both units. Call for cooling from the thermostat. Confirm the contactor closes (audible click), the compressor starts without prolonged humming, and the condenser fan runs. Measure supply voltage to the compressor terminals — it should be within 10% of rated voltage under running load.

Specifications

Control circuit voltage	24 V AC (nominal 24–28 V under load)
Control transformer capacity	40–75 VA (typical residential)
Thermostat wire gauge	18 AWG (0.75 mm²)
Contactor coil voltage	24 V AC
Run capacitor voltage rating	370 V or 440 V AC (common ratings)
Outdoor unit supply (US residential)	208–240 V AC, 60 Hz, 2-pole breaker
Maximum voltage variation	±10% of equipment nameplate voltage

Safety warnings

HVAC systems involve mains-voltage electrical circuits and refrigerant systems. All installation, commissioning, and refrigerant work must be performed by licensed and qualified technicians in accordance with NEC Article 440, ASHRAE standards, and local regulations.
Capacitors hold lethal charge even after power is removed. Always discharge run and start capacitors through an appropriate resistor (minimum 10 kΩ, 5 W) before touching terminals. Failure to discharge can cause a severe electric shock.
Refrigerant handling requires certification in most jurisdictions (EPA Section 608 in the US). Never release refrigerant to atmosphere. Refrigerant system pressures are very high — release of pressurised refrigerant causes cryogenic burns and eye injury.
Always isolate all power to the system — both outdoor unit and indoor unit circuits — and verify dead with a multimeter before working inside any electrical panel or junction box.
This schematic is for reference and educational purposes only. HVAC electrical work requirements vary by jurisdiction. Always follow equipment manufacturer installation instructions and comply with applicable codes.

Tools needed

Multimeter (AC voltage, DC voltage, resistance, capacitance)
Clamp-type ammeter (to measure compressor and fan running current)
Capacitor discharge resistor (10 kΩ, 5 W minimum)
Non-contact voltage tester
Manifold gauge set (refrigerant pressures — licensed technicians only)
Thermostat wire staples and cable clips
Insulated screwdrivers and nut drivers

Common mistakes

Failing to discharge capacitors before handling — run capacitors on condensing units can hold 400 V+ charge and deliver a serious shock.
Replacing a capacitor with a higher voltage-rated but lower capacitance unit without checking the µF rating — capacity value must match nameplate exactly.
Jumping out safety switches to test operation without diagnosing why they opened — the safety switch is protecting the compressor from a real fault condition.
Incorrect thermostat wire termination — reversing R and C at the air handler terminal board applies 24 V across the wrong components, potentially damaging the control board.
Forgetting to restore the local disconnect handle and close the access panels after service — exposed live terminals and open panels are safety hazards.

Troubleshooting

Outdoor unit does not start; thermostat is calling for cooling: Cause: No 24 V at contactor coil, open safety switch, failed contactor, or blown transformer fuse Fix: Measure 24 V between Y and C terminals on the outdoor unit. If present but contactor does not pull in, the contactor coil is open — replace the contactor. If 24 V is absent, check thermostat output at Y and C terminals and trace the control wire. Check for open safety switches.
Compressor hums but does not start; breaker trips: Cause: Failed run capacitor (HERM section), locked rotor due to refrigerant liquid in compressor, or failed compressor start winding Fix: Test capacitor HERM section — replace if below rated value. If capacitor is good, compressor is likely electrically faulty. Do not restart a compressor that is tripping on high current without identifying the root cause.
Indoor blower runs but outdoor unit does not come on: Cause: Thermostat Y output not present, open control wiring, or tripped outdoor circuit breaker Fix: Check outdoor circuit breaker and local disconnect. Measure 24 V at outdoor unit Y and C terminals. If absent, check thermostat Y output and continuity of the thermostat wire run from indoor to outdoor unit.

Frequently asked questions

What does the C terminal (common) on a thermostat do?

The C terminal provides the return (common) side of the 24 V AC control circuit, completing the circuit from the transformer secondary. Many older thermostats and wiring systems omitted the C wire because battery-powered thermostats did not need it. Smart thermostats and modern communicating thermostats typically require a C wire to power their electronics.

My outdoor unit runs but blows warm air. Where do I start?

A system blowing warm air with the compressor running suggests insufficient refrigerant, a failed reversing valve (heat pump), or a refrigerant flow restriction. Measure suction and discharge pressures — low suction pressure combined with low discharge pressure indicates refrigerant undercharge or a restriction. Refrigerant work must be performed by a licensed HVAC technician.

Why does my contactor make a loud buzzing sound?

A buzzing or chattering contactor typically means the coil is receiving inadequate voltage (low 24 V supply or high resistance in the control circuit), the contactor contacts are pitted and preventing full pull-in, or the shading ring on the electromagnet faces is damaged. Measure 24 V at the coil terminals. If voltage is correct, the contactor should be replaced.

What is a dual-run capacitor?

A dual-run capacitor is a single physical component housing two capacitors in one can — one for the compressor motor and one for the condenser fan motor. It has three terminals: C (common), HERM (compressor), and FAN. Failure of the capacitor is very common and causes both motors to start slowly or not at all, often with high current draw and tripped breakers.

How does the high-pressure safety switch protect the system?

The high-pressure switch is a normally-closed switch wired in series with the 24 V control circuit. If condensing pressure rises above the safe limit (caused by blocked condenser coil, failed condenser fan, or refrigerant overcharge), the switch opens, de-energising the contactor coil and shutting the compressor off. This prevents compressor damage from operating against excessive head pressure.

What does a schematic diagram for HVAC show?

An HVAC schematic diagram shows the low-voltage (24 V) thermostat control wiring alongside the line-voltage power circuits for the compressor contactor, indoor blower motor, and auxiliary heat elements. Standard thermostat terminals used on the diagram include R (24 V supply), C (common), Y (cooling/compressor), G (indoor fan), W (heating), and O/B (reversing valve for heat pumps). The diagram helps technicians trace why a particular component is not receiving a call signal and identify wiring or component faults quickly.
