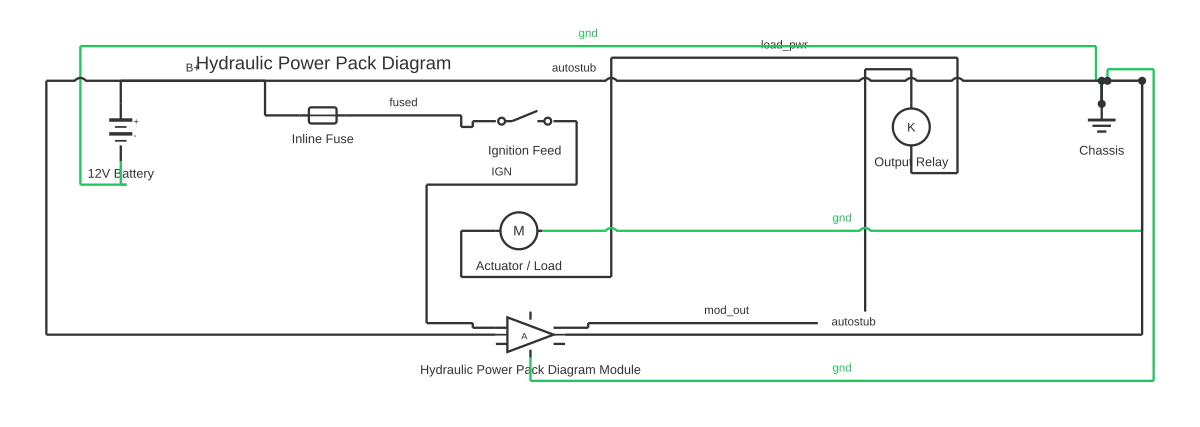

Hydraulic Power Pack Diagram — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable hydraulic power pack diagram: download the diagram as SVG or open it and print to paper or PDF.

A hydraulic power pack diagram illustrates the mechanical, hydraulic, and electrical circuits of a self-contained unit that converts electric motor power into controlled hydraulic flow and pressure.

A hydraulic power pack (also called a hydraulic power unit or HPU) is a self-contained assembly that generates and controls hydraulic power. It comprises an electric motor, a hydraulic pump, a reservoir (tank), a pressure relief valve, directional control valves, filters, and associated instrumentation — all mounted on a common baseplate or tank.

The operating principle is straightforward. The electric motor (typically three-phase AC, though single-phase and DC motors are used in smaller units) drives the hydraulic pump directly or through a coupling. The pump draws fluid from the reservoir and delivers it under pressure to the system. A pressure relief valve (PRV) limits maximum system pressure, opening to return excess flow to tank when the set pressure is reached. Directional control valves (DCVs) — energised electrically or operated manually — route pressurised fluid to actuators (cylinders or hydraulic motors) and control their direction of movement.

Main variants include open-centre systems, where fluid circulates back to tank when no actuator demand exists, and closed-centre systems, where a variable-displacement pump or unloading valve maintains pressure in a standby accumulator. Accumulator-based systems provide rapid flow on demand without requiring a large pump motor.

The electrical circuit of a power pack typically includes a main contactor or motor starter (often direct-on-line for small units, or star-delta and soft-starter for larger motors), thermal overload protection, solenoid valve drivers, pressure switch inputs, temperature switch inputs, and a control panel with indicator lamps. E-stop circuits must de-energise all solenoid valves and the motor simultaneously.

Power packs are used in industrial pressing, clamping, and lifting machines; mobile equipment (tipper trucks, aerial work platforms); construction and agricultural machinery; and test rigs. Proper hydraulic cleanliness (fluid filtration to ISO 4406 cleanliness codes) is critical to service life.

How to wire hydraulic power pack diagram

Read the hydraulic and electrical schematic before any work Obtain the complete hydraulic circuit diagram and the electrical schematic from the manufacturer or design engineer. Identify the motor rating, pump type and displacement, PRV setting, all valve types and their normal positions, and all safety devices (pressure switches, temperature switches, level switches, E-stop).
Ensure the unit is fully isolated before opening Isolate the electrical supply at the disconnect switch and lock out / tag out (LOTO). Bleed down all hydraulic pressure using the bleed valve or by manually depressing the PRV. Verify pressure is zero on the gauge before loosening any fitting or valve. For units with accumulators, isolate and depressurise the accumulator separately.
Check fluid level and condition Fluid level should be within the reservoir sight glass operating range. Check fluid colour and clarity — dark, milky, or foamy fluid indicates contamination or water ingress. Take a fluid sample for particle count analysis if the unit has been in service. Top up with the correct fluid type and viscosity grade.
Inspect filter condition indicators Check all filter differential pressure indicators (bypass indicators). A red indicator on a return-line or pressure-line filter signals the element is blocked and bypassing. Replace blocked elements before starting the unit. Document the replacement date.
Verify motor rotation direction before coupling For three-phase motors, confirm correct rotation by briefly energising the motor uncoupled from the pump (or on first start after any electrical work) and observing rotation direction against the arrow on the pump body. Incorrect rotation delivers no flow and can damage gear pumps. Swap any two phase connections to reverse rotation if needed.
Set and verify pressure relief valve With the actuator stalled against a known load or blocked, observe the system pressure gauge while the pump is running. Adjust the PRV to the specified system pressure. Lock the adjustment. Confirm the motor does not overload (check current draw) and the PRV does not bypass continuously at working pressure.
Test all electrical interlocks and E-stop Operate each E-stop button and verify the motor contactor drops out and all solenoid valves de-energise. Test the pressure switch and temperature switch by simulating the trip condition or by confirming the set point with a calibrated gauge or thermometer. Document all test results.

Specifications

Typical operating pressure range	70–350 bar (1 000–5 000 psi), system dependent
Typical flow rates	1–100 L/min depending on pump size and motor rating
Reservoir capacity (rule of thumb)	3–5 times pump flow rate per minute for adequate heat dissipation
Typical control voltage (solenoid valves)	24 V DC (preferred for PLC systems)
Maximum fluid operating temperature	60–70 °C continuous; trip at 75–80 °C
Fluid cleanliness target (proportional valves)	ISO 4406: 16/14/11 or better
Return-line filter rating	10 µm absolute (β10 ≥ 200)
Motor protection class	IP55 minimum for industrial environments

Safety warnings

Hydraulic systems store substantial energy. Always isolate the electrical supply (LOTO) and fully depressurise the hydraulic circuit — including any accumulators — before loosening any fitting, hose, valve, or component. Verify zero pressure on a calibrated gauge, not by opening a fitting.
The motor and pump drive coupling present a rotating entanglement hazard. Ensure all guards are fitted and secured before starting the unit. Never reach near the motor-pump coupling while the unit is energised.
High-pressure hydraulic fluid injection injuries are a serious medical emergency. A pinhole leak in a pressurised hose or fitting delivers fluid at sufficient velocity to penetrate skin and cause severe internal injury with no obvious external wound. Never locate a leak with bare hands. Use a piece of cardboard and seek medical attention immediately if injection occurs.
Fixed electrical installations powering the motor must comply with applicable electrical codes (NEC/NFPA 70, BS 7671, AS/NZS 3000, or IEC 60364) and be carried out by a licensed electrician. Verify correct motor rotation before coupling the pump.
Never bypass, adjust upward, or tamper with the pressure relief valve beyond the system's design pressure. Overpressure can rupture hoses, cylinders, or valves, causing a serious injury or fatality.

Tools needed

Hydraulic pressure gauge (calibrated, rated above system pressure)
Digital multimeter
Clamp-on ammeter (motor current verification)
Adjustable spanner and open-end spanners (hydraulic fittings)
Lockout/tagout (LOTO) equipment
Fluid sample bottle and particle count analysis (fluid condition)

Common mistakes

Starting the motor without checking rotation direction, driving the pump backwards and causing internal damage to gear or vane pumps.
Setting the pressure relief valve too high, beyond the rated pressure of valves, hoses, or cylinders in the circuit.
Ignoring the filter bypass indicator and running with a blocked return-line filter, bypassing filtration and rapidly contaminating the fluid.
Failing to bleed air from the system after refilling — air in the fluid causes pump cavitation noise, erratic actuator movement, and accelerated wear.
Mixing different hydraulic fluid types or viscosity grades, causing seal degradation and varnish deposits.
Operating the unit without a functioning thermal overload on the motor, risking motor burnout on a sustained stall or overload condition.

Troubleshooting

Pump runs but no pressure builds: Cause: Pump not primed, worn pump, PRV stuck open, or actuator bypassing internally Fix: Check fluid level. Verify PRV is not jammed open (disconnect PRV and plug the port temporarily to confirm pump output). Check pump coupling — a sheared coupling passes rotation without driving the pump. If pump delivers no flow with PRV bypassed, the pump is worn and requires replacement.
System overheats rapidly: Cause: PRV bypassing continuously, blocked cooler, incorrect fluid viscosity, or undersized reservoir Fix: Confirm actuators are not stalled at relief for extended periods. Clean or service the heat exchanger. Verify fluid viscosity matches the ambient temperature range. If overheating persists at correct operating pressure, the reservoir capacity or cooling system is undersized for the duty cycle.
Solenoid valve energises but actuator does not move: Cause: Solenoid spool stuck, incorrect valve centre condition, or actuator seized Fix: Verify solenoid coil voltage and current draw. If voltage is correct but spool does not shift (cross-check with manual override on the valve), the spool may be stuck due to contamination — flush the circuit and replace the valve element. If valve shifts freely, check downstream — actuator may be mechanically seized or load-holding valve may be faulty.
Motor trips thermal overload repeatedly: Cause: Motor overloaded, system pressure too high, or thermal overload set too low Fix: Measure motor current with a clamp meter and compare to nameplate FLA. If overcurrent, confirm system operating pressure is at design value — excessive pressure increases pump torque and motor load. If current is within rating, verify thermal overload setting and adjust if incorrect.

Frequently asked questions

What determines the working pressure of a hydraulic power pack?

Working pressure is set by adjusting the pressure relief valve (PRV). The PRV is set below the system's maximum allowable working pressure (MAWP) as determined by the weakest component — commonly the cylinder, valve, or hose rating. Typical industrial power packs operate at 140–350 bar. Never exceed component pressure ratings.

Why does my hydraulic power pack overheat?

Overheating occurs when more energy enters the fluid as heat than the reservoir can dissipate. Common causes include: pressure relief valve bypassing continuously (system pressure not building up, indicating a pump or actuator problem), undersized reservoir, blocked heat exchanger, incorrect viscosity fluid, or high ambient temperature. A temperature switch should shut down the unit above approximately 70–80 °C.

What is the purpose of the accumulator in some power packs?

An accumulator stores pressurised hydraulic fluid and releases it on demand, supplementing pump output for peak flow requirements and maintaining circuit pressure when the pump is off or during E-stop. It also dampens pressure pulsations. Accumulators require gas pre-charge maintenance and must be depressurised before any hydraulic circuit work.

What hydraulic fluid cleanliness level should I maintain?

Most industrial hydraulic systems require ISO 4406 cleanliness code of 16/14/11 or better for servo and proportional valve systems, and 18/16/13 for directional and pressure control valves. Return-line filters (typically 10 µm absolute rating) and regular fluid sampling are the primary means of achieving and verifying target cleanliness.

Can I wire the solenoid valves directly to mains voltage?

Many industrial solenoid valves are rated for 24 V DC or 24 V AC operation, which is the preferred control voltage for safety and PLC compatibility. Some are rated for 110 V AC or 230 V AC. Always match the solenoid's rated voltage and confirm the control transformer or supply is adequate for simultaneous solenoid operation. Never exceed the solenoid's rated voltage.
