Inverter Battery Connection Diagram: Series & Parallel Bank Wiring, Fusing & Cable Sizing

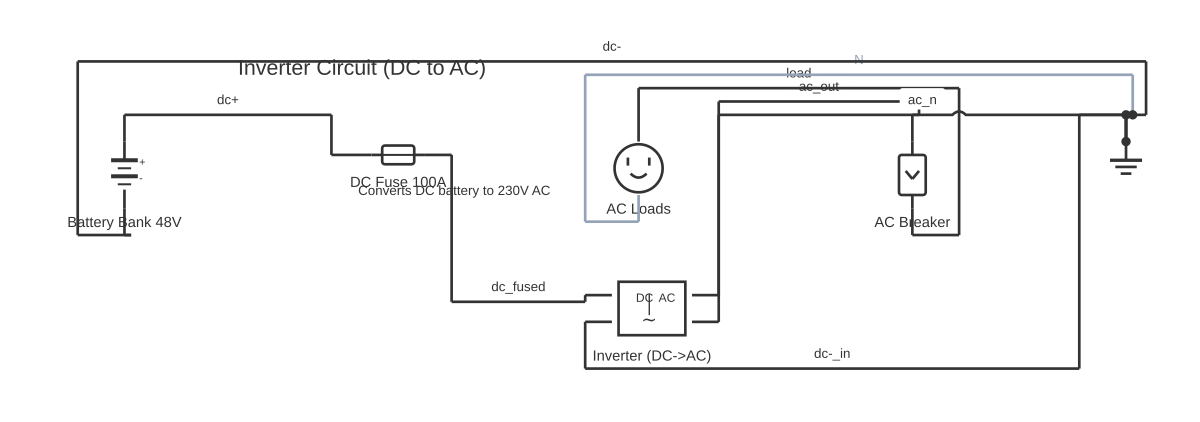

Inverter Battery Connection Diagram: Series & Parallel Bank Wiring, Fusing & Cable Sizing — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable inverter battery connection diagram: download the diagram as SVG or open it and print to paper or PDF.

Learn how to connect batteries to an inverter in series and parallel configurations to achieve the required voltage and amp-hour capacity, with fusing, cable sizing, and safe installation guidance.

An inverter converts DC battery power into AC mains-frequency power. Getting the battery bank connection right determines whether your inverter performs as expected, whether your batteries last their rated lifespan, and — crucially — whether your installation is safe. There are three things to get right before you cut a single cable: voltage, capacity, and protection.

Voltage is determined by the inverter's input specification. Most residential and light commercial inverters operate on 12 V, 24 V, or 48 V DC. The battery bank must match this voltage exactly. To achieve the correct voltage from individual 12 V batteries, connect them in series: positive of battery 1 to negative of battery 2, and so on. Two 12 V batteries in series produce 24 V. Four produce 48 V. In a series string, the amp-hour (Ah) capacity stays the same as a single battery — only the voltage adds up.

Capacity (Ah) is determined by the load and the required runtime. To increase Ah without increasing voltage, connect batteries in parallel: connect all positives together and all negatives together. Two 100 Ah batteries in parallel deliver 200 Ah at the same voltage. In parallel, voltage stays constant and Ah adds up.

A series-parallel combination achieves both a higher voltage and a higher Ah capacity. For example: four 12 V 100 Ah batteries can be configured as two series pairs, with the two pairs connected in parallel — producing 24 V at 200 Ah. Balance is critical in series-parallel banks: all batteries must be of the same type, age, capacity, and state of charge before connection. Mismatched batteries in series create unequal charging and discharge, shortening battery life significantly.

Fusing is non-negotiable. The inverter input cable must be protected by a fuse or circuit breaker as close to the battery bank positive terminal as possible — within 30 cm is the standard recommendation. A short circuit in the inverter or cable without a fuse allows the battery to deliver thousands of amperes through the fault, causing fire, explosion, or battery destruction. The fuse must be rated for DC voltage (a standard AC fuse is not adequate; DC arcs are harder to interrupt).

Cable sizing is determined by the maximum inverter current draw and the cable run length. Use the inverter's rated input current as the baseline, add a minimum 25% margin, and select cable gauge from published current-carrying capacity tables for the ambient installation conditions.

All inverter installations should comply with IEC 62040, NEC Article 705 or 480 (as applicable), AS/NZS 4509, or the applicable national standard.

How to wire inverter battery connection diagram

Determine the required bank voltage and amp-hour capacity before purchasing batteries Read the inverter's DC input voltage specification. Calculate total Ah needed: estimated daily load in watt-hours divided by the battery bank voltage, then multiply by the inverse of allowable depth of discharge (e.g. divide by 0.5 for 50% DoD on lead-acid). Round up to the nearest available battery configuration.
Select batteries of identical type, capacity, manufacturer, and batch where possible Never mix lead-acid and lithium batteries in the same bank. Avoid mixing old and new batteries, or batteries from different manufacturers with different internal resistance profiles. For lead-acid batteries that have been in service, verify specific gravity (flooded) or open-circuit voltage balance before connecting them in parallel.
Physically arrange batteries to minimise cable run length and balance inter-battery connections In a multi-battery parallel bank, unequal cable lengths between batteries create unequal internal resistance, causing the battery nearest the inverter to carry more current than batteries further away. Use identical cable lengths for all inter-battery parallel connections. This is called a balanced or symmetrical parallel connection, and it significantly improves battery equalisation.
Install the fuse or DC circuit breaker within 30 cm of the battery positive terminal before making any other connections Connect the fuse holder to the battery positive terminal first, before running the positive cable to the inverter. Leave the fuse out or the breaker open. This ensures that as soon as the cable is connected, any subsequent fault is protected. Do not insert the fuse or close the breaker until all other connections are made and verified.
Connect the positive cable from the fuse output to the inverter DC positive terminal Use appropriately sized cable (see FAQ on sizing). Make all connections with the fuse still removed and the inverter switched off. Torque all bolted connections to the manufacturer's specified torque — loose high-current DC connections arc, overheat, and cause fires.
Connect the negative cable directly from the battery bank negative terminal to the inverter DC negative terminal The negative cable must be the same gauge as the positive cable. If a system earth is required, connect it at the battery negative terminal or the inverter chassis earth point — per the inverter manufacturer's instructions and applicable wiring code. A single, well-defined earth point prevents circulating ground currents.
Insert the fuse (or close the breaker) and power up the inverter with no AC load connected Verify the inverter display shows correct battery voltage. Check for any fault codes. Connect a small resistive load and verify AC output voltage and frequency. Measure the cable temperature at the connection points after 10 minutes of load — any warmth beyond ambient indicates a high-resistance joint that must be remade.

Specifications

Common inverter DC input voltages	12 V, 24 V, 48 V DC (confirm inverter nameplate)
Series connection rule	Voltage adds; Ah stays constant — two 12 V 100 Ah batteries in series = 24 V, 100 Ah
Parallel connection rule	Voltage stays constant; Ah adds — two 12 V 100 Ah batteries in parallel = 12 V, 200 Ah
Maximum fuse distance from battery positive terminal	30 cm (300 mm) — within this limit as per standard practice and IEC/NEC guidance
Maximum allowable voltage drop on DC cable (main cable)	Typically less than 0.5 V on 12 V systems; ≤ 1% of nominal voltage recommended — confirm inverter specification
Recommended depth of discharge — lead-acid AGM	Maximum 50% (i.e. do not discharge below 50% state of charge for maximum cycle life)
Recommended depth of discharge — LiFePO4	Maximum 80% in most configurations (confirm BMS settings and cell manufacturer specification)
Fuse type for DC installation	DC-rated: ANL, MIDI, Class T, or DC-rated circuit breaker — NOT standard AC fuses

Safety warnings

HIGH SHORT-CIRCUIT CURRENT HAZARD: A battery bank can deliver thousands of amperes into a short circuit, sufficient to instantly vaporise tools and cable, cause severe burns, and start fires. Always install the fuse or circuit breaker within 30 cm of the battery positive terminal FIRST, before connecting any other cable. Keep the fuse removed and the breaker open until all connections are complete.
HYDROGEN GAS EXPLOSION RISK (lead-acid batteries): Flooded lead-acid and some AGM batteries emit hydrogen gas during charging. Hydrogen is explosive at concentrations above 4% in air. Install batteries in a ventilated enclosure that cannot trap gas. Do not create sparks near batteries — make the final connection at the inverter terminal, not at the battery terminal, to prevent sparks in the battery enclosure.
DO NOT mix battery chemistries (lead-acid and lithium) in the same bank. Different charge voltage profiles and discharge characteristics cause unsafe charging of one battery type by the charger profile designed for the other, risking thermal runaway in lithium cells or sulphation and overcharging in lead-acid cells.
DC VOLTAGE SHOCK HAZARD: Battery bank voltages of 24 V, 48 V, and above present a significant shock risk. Unlike AC, DC does not have a zero-crossing to extinguish an arc — a DC arc sustained across skin or a tool creates a plasma channel that continues until the circuit is interrupted. Never work on a live battery bank without appropriate insulated tools and PPE.
All inverter and battery installations must comply with the applicable national standard: IEC 62040, AS/NZS 4509, NEC Articles 480 and 705, or equivalent. Installations in premises served by a public electricity supply may require notification to the Distribution Network Operator and compliance with grid-connection regulations. Engage a qualified electrician for all installation and commissioning work.

Tools needed

Digital multimeter (DC voltage, resistance, current clamp)
Hydraulic or ratchet cable lug crimping tool (for the cable gauge used)
Wire stripper (heavy gauge capable)
Torque wrench with appropriate socket for terminal bolts
Battery hydrometer (for flooded lead-acid — checks electrolyte specific gravity)
Insulated tools rated for the battery bank voltage
Personal protective equipment: insulated gloves, safety glasses
Cable ties and cable management materials

Common mistakes

Connecting batteries of different ages or states of charge in parallel without first equalising them: An older battery with higher internal resistance will have a lower resting voltage. When connected in parallel with a newer, fuller battery, a large equalisation current flows from the newer battery into the older one. This current can be high enough to cause overheating and damage, and permanently unbalances the bank.
Using unequal cable lengths for parallel inter-battery connections: Longer cables have higher resistance. In a parallel bank, the battery connected via the shortest cable path carries the majority of the load and charge current. This battery degrades faster, creating the imbalance that unequal cables were supposed to avoid. Use identical cable lengths — even if this means routing cables the long way around.
Sizing the fuse to the battery capacity rather than the cable: The fuse protects the cable, not the battery. If the cable is rated for 150 A and the fuse is 300 A (because the battery can deliver 300 A), a cable fault at 200 A will not blow the fuse — it will heat the cable until it burns. Always size the fuse to the cable rating, which in turn must be sized for the inverter's maximum input current.
Omitting a fuse on the negative cable path when using a shunt monitor: The shunt is in the negative cable path and has a resistance of a few milliohms. Some installers omit any protection on the negative, assuming the positive fuse covers all faults. In practice, a fault between the battery negative and the inverter negative chassis can bypass the positive fuse. Some installations also add a fuse or negative bus bar with individual fused outputs per battery.
Tightening battery terminal connections by feel rather than by torque specification: Over-tightening lead-acid battery terminals (particularly on posts rather than bolts) cracks the post seal, causing acid leakage. Under-tightening causes high resistance at the terminal, leading to arcing, heat, and terminal corrosion. Always use a torque wrench and follow the battery manufacturer's terminal torque specification.

Troubleshooting

Inverter shows low battery voltage at full charge: Cause: High-resistance connection in the main cable (loose lug, corroded terminal), undersized cable causing excessive voltage drop under load, or battery bank genuinely depleted despite being labelled charged Fix: Measure voltage at the battery terminals (not at the inverter) under load. If battery terminal voltage is correct but inverter reads low, the voltage drop is in the cable — check cable gauge and all connection points. Measure resistance between battery terminal and inverter terminal with a milliohmmeter or clamp meter; values above 1 mΩ for the main cable are excessive.
Batteries in a parallel bank charge and discharge unevenly: Cause: Unequal inter-battery cable lengths, mismatched battery internal resistances (different ages or types), or a faulty battery with higher self-discharge than its partners Fix: Measure resting voltage of each battery individually after a full charge and after a significant discharge. Large voltage differences (more than 0.1–0.2 V for lead-acid) indicate internal resistance mismatch. Replace degraded batteries. Standardise all inter-battery cable lengths. If the bank has a bad battery, it must be replaced — it cannot be recovered by equalisation charging in most practical cases.
Fuse blows when inverter is switched on: Cause: Inverter peak inrush current exceeds fuse rating (fuse too small), internal inverter fault causing a hard short circuit, or a short circuit in the output AC wiring with the inverter under load Fix: Disconnect all AC loads and try again — if the fuse holds, the fault is in the AC output wiring or a connected appliance. If the fuse blows with no AC load, the fault is internal to the inverter. Verify the fuse rating against the inverter's maximum input current specification. Do not upsize the fuse beyond the cable current rating.

Frequently asked questions

What is the difference between series and parallel battery connections?

Series connection adds voltage while keeping amp-hour capacity the same — two 12 V 100 Ah batteries in series produce 24 V at 100 Ah. Parallel connection keeps voltage constant while adding amp-hour capacity — two 12 V 100 Ah batteries in parallel produce 12 V at 200 Ah. Combine both methods to increase both voltage and capacity simultaneously.

Why must all batteries in a bank be the same type, age, and capacity?

In a series string, the weakest battery determines the capacity of the entire string — a degraded battery with 60% of its rated Ah effectively limits the whole string to that capacity. In a parallel bank, a battery with lower internal resistance accepts more charge current and discharges more than its partners, accelerating its degradation. Matching batteries by type, capacity, age, and state of charge before installation is essential for longevity and safe charging.

Where must the inverter fuse or circuit breaker be located?

The fuse or DC circuit breaker must be installed as close as physically possible to the battery bank positive terminal — within 30 cm is standard practice. The purpose is to protect the cable between the battery and the fuse against short-circuit current. A cable fault between an unprotected battery and a distant fuse releases the full short-circuit current of the battery through the cable until it burns through — a serious fire risk.

What type of fuse must I use for a DC inverter installation?

A DC-rated fuse or DC-rated circuit breaker. A standard AC glass or ceramic fuse does not have the required arc-interrupting rating for DC circuits, because DC arcs do not self-extinguish at zero-crossing (as AC arcs do). Use ANL blade fuses, MIDI fuses, Class T fuses, or DC-rated circuit breakers — all of which are designed for the continuous arc of a DC fault.

How do I calculate the cable size for my inverter?

Divide the inverter's VA rating by the DC input voltage to get the maximum DC current draw. For a 3 000 VA inverter on a 24 V bank: 3 000 ÷ 24 = 125 A. Add at least 25% margin: 125 × 1.25 = 156 A. Select cable gauge from a DC cable current-carrying table for the installation method (free air, conduit, bundled) that supports at least 156 A, then check that the voltage drop over the cable run does not exceed the inverter manufacturer's specified limit — typically less than 0.5 V on 12 V systems.
