Microphone Circuit Diagram: Condenser Capsule Preamplifier Design

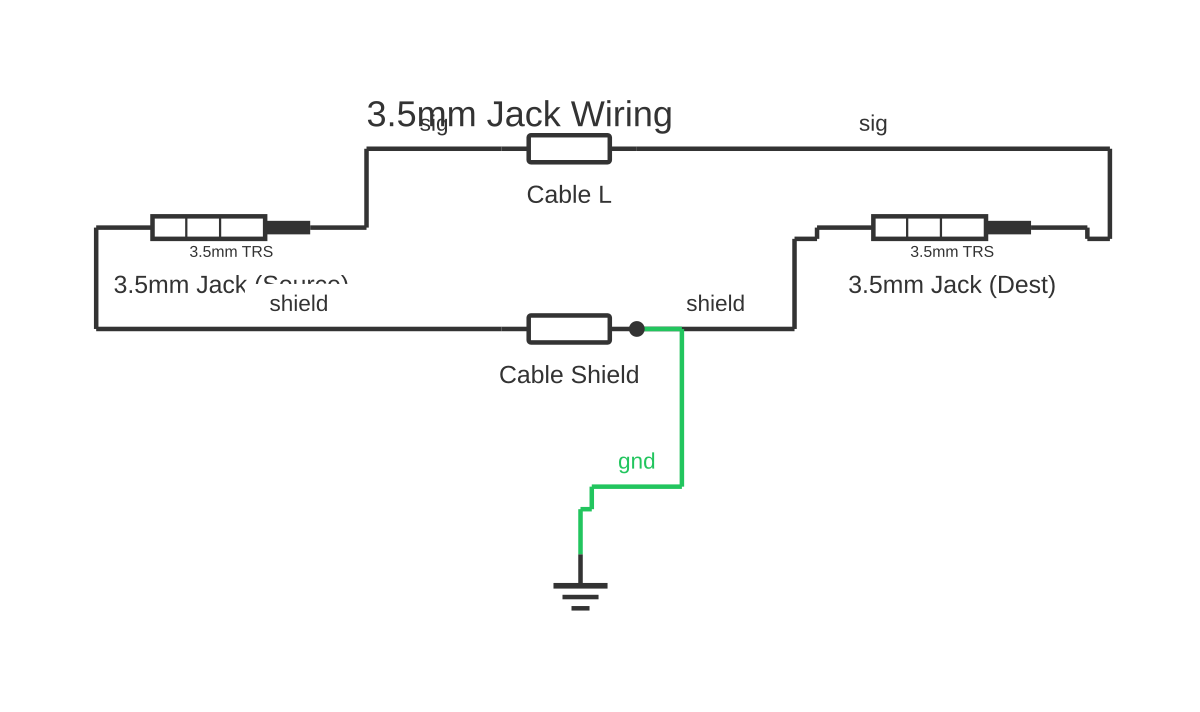

This is a free printable microphone circuit diagram: download the diagram as SVG or open it and print to paper or PDF.
A microphone circuit diagram for a condenser preamp shows phantom power distribution, impedance conversion, and differential amplification for professional audio quality.
A professional condenser microphone circuit goes well beyond a simple bias resistor. Where a budget electret module uses a single resistor and transistor, a true condenser microphone preamplifier circuit centres on phantom power delivery, high-input-impedance JFET head amplification, and a transformer-balanced or electronically balanced differential output stage.
Phantom power (standardised at 48 V DC by IEC 61938, with earlier standards permitting 12 V and 24 V) arrives on both signal conductors of an XLR cable simultaneously. Two matched resistors (typically 6.81 kΩ ± 0.1%, 1/4 W) connect from pin 2 and pin 3 of the XLR to the 48 V supply rail. The capsule back-plate receives this rail through a very high value resistor (1 GΩ to 10 GΩ) used purely as a polarising element; the charge stored on the capsule's electret or externally charged diaphragm does not rely on current flow — the resistor merely prevents charge leakage.
The JFET source follower sits at the capsule output, converting its extremely high impedance (hundreds of megaohms) to a workable 1 kΩ – 3 kΩ. A matched pair of JFETs in a differential (push-pull) topology — one connected to each face of a dual-diaphragm capsule in a cardioid configuration — drives a balanced output transformer or an INA-type instrumentation amplifier.
Pad and roll-off switches in a professional microphone circuit alter gain or insert a high-pass filter (typically 80 Hz, 12 dB/oct) into the feedback network of the output stage. A pad of −10 dB or −20 dB is achieved by inserting a resistive attenuator before the differential input.
For DIY condenser preamp projects: the LM4562 or NE5532 op-amp in a differential input configuration provides excellent noise (2.7 nV/√Hz for the LM4562) with readily available components. Match input resistors to 0.1% tolerance to achieve greater than 60 dB common-mode rejection ratio (CMRR), which is essential for rejecting hum on long cable runs.
How to wire microphone circuit diagram
- Design the phantom power distribution network Use two 6.81 kΩ resistors (0.1% tolerance, 1/4 W) from the 48 V regulated rail to XLR pins 2 and 3 respectively. Decouple the 48 V rail with a 10 µF electrolytic in parallel with 100 nF ceramic capacitor to the local ground reference. The XLR pin 1 (shield) connects directly to chassis ground.
- Connect the capsule and polarising network Run the capsule back-plate to the 48 V rail through a 1 GΩ resistor (the polarising/charge resistor). The capsule diaphragm output connects to the JFET gate directly — keep this trace or wire below 5 mm to avoid RF ingress. Enclose the capsule head in a grounded metal housing.
- Build the JFET source-follower input stage Wire the JFET gate to the capsule diaphragm output, source to a 1 kΩ source resistor to ground, and drain to the phantom supply through a 3.3 kΩ drain resistor. The buffered audio signal appears at the JFET source with approximately unity gain and reduced output impedance (≈1 kΩ).
- Build the differential output amplifier Use a low-noise op-amp (e.g. NE5532 type or LM4562 type) in an instrumentation amplifier configuration. Match input resistors to 0.1% tolerance. Set gain with the feedback resistors: gain = 1 + (Rf ÷ Rg). A gain of 1 to 10 (0 dB to 20 dB) is typical for a microphone body preamp driving a mixing console input.
- Add pad and high-pass filter switching For a −10 dB pad, insert a 10 dB resistive attenuator (e.g. series 9.1 kΩ, shunt 2 kΩ) between the JFET output and the differential amplifier input. For a high-pass filter at 80 Hz, add a switchable 100 nF capacitor across the gain-setting resistor Rg in the op-amp feedback network.
- Wire the balanced XLR output Connect the op-amp differential outputs to XLR pin 2 (hot, +) and pin 3 (cold, −) through 33 Ω to 47 Ω output protection resistors. These limit current during cable faults and help prevent RF ingress on the output. Tie pin 1 to chassis ground.
- Test and measure Apply 48 V phantom, connect to a mixing console or preamp input with phantom disabled at the console. Measure output noise floor with no audio input (should be below −120 dBu for a quality design). Apply a calibrated tone source at 94 dBSPL and verify sensitivity in dBu/Pa. Check CMRR by applying equal signals to pins 2 and 3 and measuring rejection at the output.
Specifications
| Phantom power supply voltage | 48 V DC ± 4 V (IEC 61938 standard) |
|---|---|
| Phantom feed resistor value | 6.81 kΩ ± 0.1% (matched pair) |
| Minimum polarising resistor value | 1 GΩ (recommended 1 GΩ – 10 GΩ) |
| JFET gate input impedance | > 1 TΩ (gate leakage < 1 pA at 25 °C) |
| Target equivalent input noise (EIN) | < −128 dBu (A-weighted, 150 Ω source) |
| Target CMRR at 1 kHz | > 60 dB (80 dB achievable with 0.01% resistors) |
| High-pass filter corner frequency | 80 Hz, 12 dB/octave (switchable) |
| Output load impedance compatibility | ≥ 600 Ω balanced (professional line level) |
Safety warnings
- Phantom power operates at 48 V DC. This voltage is not imminently lethal but can cause painful shocks and damage ribbon or dynamic microphone transducers instantly. Always verify phantom power is OFF at the mixer or audio interface before connecting or disconnecting microphones.
- The polarising resistor in an externally polarised condenser design holds 48 V to 200 V DC across it. Handle the assembled PCB with insulated tools until the supply capacitors are confirmed discharged. Allow at least 60 seconds after power-off before touching internal nodes.
- When constructing mains-powered phantom power supplies, all work must comply with applicable electrical codes (IEC 60364, NEC/NFPA 70, BS 7671, AS/NZS 3000) and must include appropriate insulation between mains and low-voltage sections. Engage a licensed electrical engineer for any mains-connected design.
- Use only properly earthed metallic enclosures for microphone preamplifier circuits to provide EMI shielding and safety earthing. A floating audio ground in a mains-powered unit can create lethal potential differences.
Tools needed
- Precision soldering iron (25 W – 40 W) with fine conical tip
- Solder (60/40 tin-lead or lead-free equivalent, 0.5 mm diameter)
- Multimeter with DC voltage and resistance measurement to 10 MΩ minimum
- Oscilloscope with 100 MHz bandwidth (to observe noise and signal waveforms)
- Audio interface or mixing console with 48 V phantom power capability (for testing)
- Calibrated audio signal source or tone generator (for sensitivity measurement)
- ESD-safe workmat and anti-static wrist strap
- Precision resistor matching bridge or four-wire (Kelvin) measurement capability (for 0.1% matching)
Common mistakes
- Using unmatched phantom feed resistors: a 1% mismatch between the two 6.81 kΩ resistors creates a differential phantom voltage error that appears directly as a hum signal in the balanced output — use 0.1% matched pairs only.
- Omitting the polarising resistor or using too low a value: a value below 100 MΩ loads the capsule's high-impedance output and causes severe high-frequency roll-off and sensitivity loss. Always use a minimum of 1 GΩ.
- Routing high-impedance capsule traces near ground plane vias or switching circuitry: parasitic capacitance as low as 1 pF causes measurable high-frequency roll-off given the hundreds-of-megaohm source impedance. Keep capsule traces isolated and short.
- Applying phantom power while the capsule is exposed and handled: momentary phantom transients during connection can displace charge on the capsule diaphragm and temporarily degrade sensitivity. Always connect the microphone before enabling phantom.
- Incorrect op-amp supply bypassing: an NE5532 or similar will oscillate if supply pins lack local 100 nF ceramics within 5 mm. The oscillation (often in the MHz range) cannot be heard but saturates the output and causes apparent DC offset.
Troubleshooting
- No signal output with phantom power applied
- Cause: Phantom not reaching capsule, polarising resistor open-circuit, or JFET failed Fix: Measure 48 V at both XLR pins 2 and 3 relative to pin 1. Confirm phantom voltage at capsule back-plate through the polarising resistor (attenuated due to high resistance — use electrometer or high-impedance probe). If JFET drain shows supply voltage but source shows nothing, the JFET is open-circuit; replace it.
- Strong hum on output that cancels when cable is moved to one orientation
- Cause: Phase reversal or mismatch in phantom feed resistors causing differential hum Fix: Measure resistance of both phantom resistors individually. They must be within 0.1% of each other. Replace with a matched pair and re-measure CMRR — should exceed 60 dB at 50/60 Hz.
- High-frequency roll-off — output sounds dull and lacks air
- Cause: Excessive stray capacitance on the capsule gate node, or polarising resistor value too low Fix: Measure the capacitance on the JFET gate node with a component analyser — it should be under 5 pF total. Reroute high-impedance traces away from ground planes. Verify polarising resistor reads at or above 1 GΩ.
Frequently asked questions
What is phantom power and why does a condenser microphone need it?
Phantom power is 48 V DC supplied via the signal conductors of a balanced XLR cable, standardised in IEC 61938. Condenser capsules require this voltage to polarise the diaphragm (or to power the internal JFET head amplifier in the case of electret capsules). Without phantom power, no capsule vibration is converted to an electrical signal.
What is the purpose of the 6.81 kΩ phantom feed resistors?
Each 6.81 kΩ resistor connects one signal pin of the XLR to the 48 V phantom rail. They must be matched to within 0.1% of each other so that phantom voltage appears equally on both pins — any imbalance injects hum into the differential signal. The value is specified in IEC 61938 to limit fault current if phantom is accidentally applied to a dynamic or ribbon microphone.
Can I use an op-amp instead of a JFET for the head amplifier?
For practical DIY purposes, yes — a low-noise op-amp such as the NE5532 or LM4562 works well. A JFET is preferred in the first gain stage immediately at the capsule because its extremely high gate impedance (> 1 TΩ) avoids loading the capsule, whereas a BJT input op-amp's lower input impedance would attenuate the signal and alter the frequency response.
How does a high-pass filter (low-cut) switch work in a microphone preamp circuit?
A high-pass filter is typically inserted in the feedback network of the output op-amp stage. Selecting the roll-off switches in a capacitor from the op-amp's inverting input to ground, creating a frequency-dependent gain reduction below the corner frequency (e.g. 80 Hz at 12 dB/octave). This attenuates low-frequency rumble and proximity-effect bass boost without affecting midrange gain.
What CMRR should I aim for in a balanced microphone preamp?
Professional balanced preamps target greater than 80 dB CMRR at 1 kHz, with 60 dB being a practical minimum for acceptable hum rejection on long cable runs. CMRR is primarily set by resistor matching in the differential network — 0.1% tolerance resistors yield approximately 66 dB CMRR; 0.01% resistors can exceed 80 dB.
