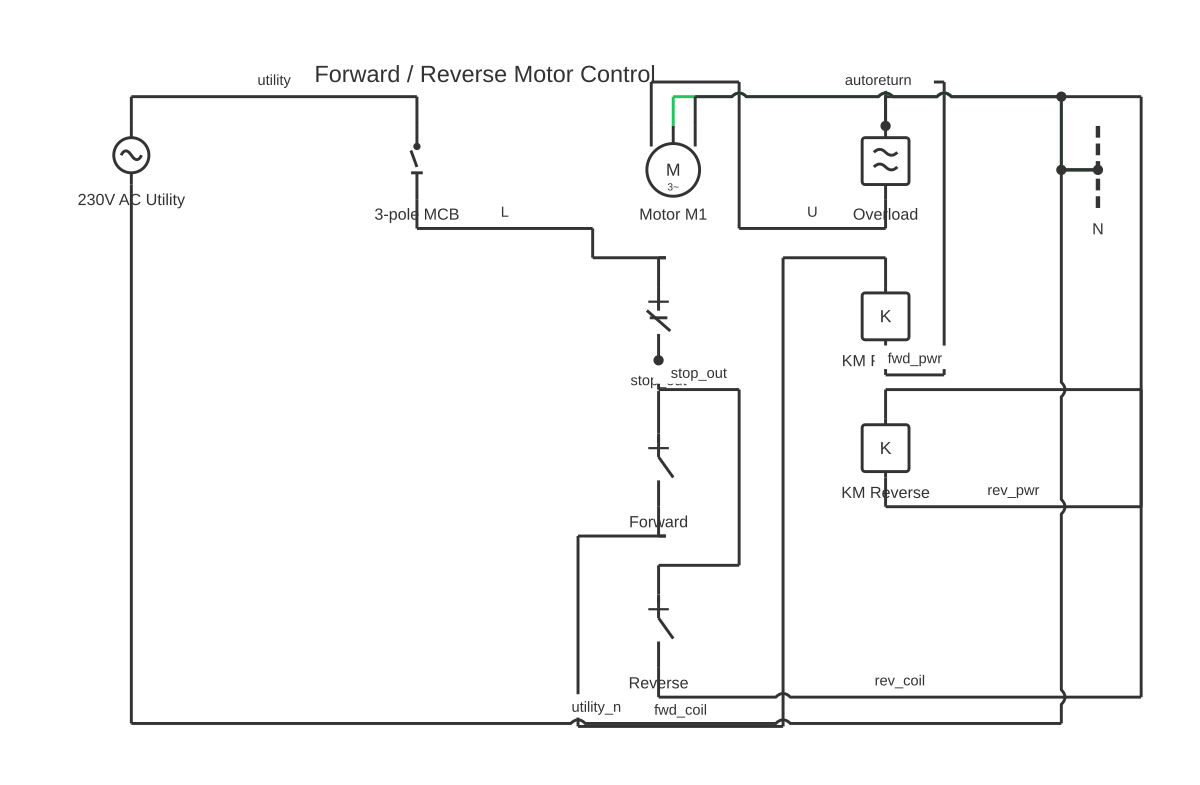

A motor control diagram shows the power circuit from the supply through a contactor and overload relay to the motor, and the separate control circuit with start/stop buttons and interlocks that govern the contactor coil.

Motor control circuits are divided into two distinct sections documented separately in any good motor control diagram. The power circuit carries the full motor current: incoming three-phase (or single-phase) supply connects to the main isolator, then to the main contacts of the line contactor, through the thermal overload relay heater elements, and out to the motor terminals (U, V, W in IEC notation; T1, T2, T3 in NEMA notation). Wire sizing, fuse or circuit breaker selection, and contactor contact ratings are all determined by the motor's full-load current from the nameplate.

The control circuit operates at a reduced voltage (typically 24V DC or 120V AC supplied by a control transformer) and governs the operation of the contactor coil. A basic direct-on-line (DOL) control circuit consists of: the normally-closed stop push button in series, the normally-open start push button in series, an auxiliary normally-open contact from the line contactor in parallel with the start button (the seal-in or hold circuit), the normally-closed trip contact of the overload relay in series, and finally the contactor coil. This series chain means any single element opening will de-energise the coil and stop the motor — a fail-safe architecture.

For larger motors, reduced-voltage starting methods are used to limit inrush current and mechanical shock. Star-delta (wye-delta) starting is the most common: the motor runs initially with its windings connected in star (reducing voltage per winding by √3 ≈ 1.73), then transfers to delta after a timed period, requiring a minimum of three contactors (main, star, delta) and a timing relay. The star-delta diagram is significantly more complex than DOL, with electrical and mechanical interlocks between the star and delta contactors to prevent simultaneous closure.

VFDs (Variable Frequency Drives) have largely replaced star-delta starters for new installations — they provide smooth ramp-up, adjustable speed, and built-in motor protection, though they introduce EMC considerations and require motor cables rated for VFD output switching frequencies.

Ladder diagrams are the standard representation for motor control logic in industrial environments, presenting the control circuit as horizontal rungs between two vertical power rails, much like the steps of a ladder. Each rung contains contacts (representing switch inputs, relay contacts, or pushbutton signals) in series or parallel, with the output coil (contactor coil, pilot light, or timer) at the right-hand end. Ladder notation makes it straightforward to trace the logic of start/stop, interlocking, and sequencing circuits without needing to follow physical wiring. You can draw and annotate ladder-format motor control diagrams in the free browser-based editor at circuitdiagrammaker.com.

How to wire motor control diagram

Determine motor nameplate data Record the motor's full-load amperage (FLA), voltage rating, frequency, power factor, and frame size from the nameplate. All component selections — fuse, contactor, overload relay, and wire size — are derived from the FLA.
Select and size the main circuit components Size the line contactor for at least 100% of motor FLA (check manufacturer's AC-3 utilisation category current rating). Size the overload relay for adjustable range that covers the motor FLA. Size supply fuses or circuit breakers per local code (NEC Table 430.52 or IEC 60947-4-1 guidance).
Draw the power circuit Show three-phase supply → main isolator → circuit breaker or fuses → contactor main contacts (L1/L2/L3 to T1/T2/T3) → overload relay heater elements → motor terminals (U/V/W). Include earth connection to motor frame.
Design the control circuit Draw the control transformer secondary (or 24V DC PSU) → control fuse → stop button (NC) → overload trip contact (NC) → start button (NO) with seal-in auxiliary contact (NO) in parallel → contactor coil → return to control neutral.
Add indicator lamps and auxiliary functions Wire a run indicator lamp via the RUN contactor auxiliary NO contact. Wire a fault indicator via the overload relay auxiliary NO alarm contact. Add any remote start/stop stations in parallel (for start) or series (for stop) with the local buttons.
Set the overload relay current Adjust the overload relay current dial to the motor nameplate FLA. On electronic overload relays, programme the FLA and class (Class 10 or Class 20 trip characteristic). Test by pressing the relay test button to confirm the trip contact operates the fault indicator.
Verify operation and document the installation Measure actual running current on all three phases with a clamp meter and confirm they are balanced and at or below FLA. Confirm the stop button de-energises the contactor immediately. Label all wires and complete the circuit diagram record.

Specifications

Typical main circuit voltage (IEC)	400V AC three-phase, 50Hz
Typical main circuit voltage (NEC/North America)	480V AC three-phase, 60Hz
DOL starting current (typical inrush)	600–800% of motor FLA for the first few seconds
Star-delta starting current	Approximately 200–250% of FLA (one-third of DOL inrush)
Overload relay class (standard motors)	Class 10 (trips within 10s at 7.2× FLA)
Overload relay class (high-inertia loads)	Class 20 or Class 30
Contactor utilisation category (motor loads)	AC-3 (IEC 60947-4-1) for squirrel cage induction motors

Safety warnings

Before working on any motor control panel, isolate all power sources (main supply and control circuit), apply Lockout/Tagout (LOTO) per OSHA 29 CFR 1910.147 or equivalent local standard, and verify dead on all conductors using a calibrated CAT III or IV voltage tester.
Do not defeat or bypass the overload relay or its trip contact in the control circuit — the overload relay is the motor's primary protection against thermal damage and winding failure.
Star-delta switching creates a brief interruption of supply to the motor — the motor is not isolated and is still connected to the circuit. Do not open the enclosure during or immediately after the star-to-delta transition.
Motor control panels must comply with IEC 60204-1 (machine safety), NEC Article 430, or the applicable local electrical standard. Installation must be carried out or verified by a competent, licensed electrician.
Always verify motor rotation direction before coupling it to a mechanical load — incorrect rotation can damage pumps, fans, and gearboxes. Use a brief jog test before coupling.

Tools needed

Calibrated True-RMS digital multimeter (CAT III minimum) for voltage and continuity checks
Clamp meter for measuring motor running current on all three phases
Insulation resistance tester (megohmmeter) for testing motor winding insulation
Screwdrivers (flat and cross-head) for terminal connections
Ferrule crimping tool and ferrules for stranded wire terminations
Wire number marker system (cable labels or heat-shrink markers)
Lockout/Tagout equipment

Common mistakes

Wiring the seal-in auxiliary contact in series with the start button rather than in parallel — the motor cannot latch on and stops immediately when the start button is released.
Setting the overload relay trip current above the motor FLA to avoid nuisance tripping — this removes overload protection and risks thermal damage to the motor windings.
Omitting earth continuity from the motor frame back to the main earth terminal — a live-to-frame fault would leave the motor chassis at mains potential.
In star-delta starters, failing to include electrical interlocking between star and delta contactors — simultaneous energisation causes a direct phase-to-phase short circuit through the motor windings.
Not labelling all wires with unique wire numbers at both ends of each conductor, making the panel extremely difficult to fault-find under production pressure.

Troubleshooting

Motor hums but does not rotate (or rotates slowly with high current): Cause: Single-phasing — one of the three supply phases is missing at the motor terminals due to a blown fuse, open contactor contact, or loose terminal connection. The motor attempts to start on two phases. Fix: Isolate and verify dead. Check all three phase voltages at the motor terminals with supply restored (carefully, at the terminals only). Identify the missing phase by tracing back through contactor contacts, fuses, and supply terminals.
Overload relay trips repeatedly shortly after starting: Cause: Motor is mechanically overloaded, overload relay setting is too low, supply voltage is low (causing higher-than-rated current to deliver the required torque), or the motor has a partial winding fault Fix: Check all three supply phase voltages at the panel. Verify overload relay is set to motor nameplate FLA. Remove mechanical load and test motor in no-load jog. Measure no-load current — if it exceeds ~30–40% of FLA, the motor may have a winding fault.
Pressing start does nothing — no contactor action: Cause: Control circuit is not energised: blown control fuse, open stop button (button failure or wiring), tripped overload relay (auxiliary contact open), or open control transformer Fix: Measure control voltage across the contactor coil terminals with start pressed. If zero, trace backwards through the series chain: overload trip contact, stop button, start button, control fuse, transformer secondary — find and resolve the open point.
Motor runs but stops randomly without overload indication: Cause: Intermittent loss of control circuit power — vibration-induced loose terminal on the control circuit, intermittent stop button contact, or intermittent auxiliary contact on the seal-in path Fix: Tighten all control circuit terminal screws. Temporarily bypass the start button (short the seal-in auxiliary contact) to test whether the seal-in path is the fault. Check stop button contact resistance with multimeter.

Frequently asked questions

What is the purpose of the seal-in contact in a motor starter circuit?

The seal-in contact (also called a hold-in or maintaining contact) is a normally-open auxiliary contact on the main contactor, wired in parallel with the start push button. When the contactor pulls in, this contact closes and provides a continuous current path through the control circuit, allowing the start button to be released without de-energising the coil.

Why must the stop button be normally closed and the start button normally open?

A normally-closed stop button is fail-safe: if the button, its wiring, or the stop circuit opens for any reason (broken wire, failed button), the motor stops. A normally-open start button means the motor only starts with a deliberate operator action. This architecture ensures unexpected open circuits cause a safe stop rather than an unexpected start.

What is the difference between a fuse and an overload relay in a motor circuit?

A fuse protects against short-circuit currents (very high, very fast fault currents that could damage wiring). A thermal overload relay protects the motor against sustained overcurrent at levels typically 125–600% of FLA — currents a fuse would not blow on but that would overheat the motor windings over time. Both devices are needed and serve different protective functions.

What does a star-delta starter do and why is it used?

A star-delta (wye-delta) starter initially connects the motor windings in star configuration, reducing the voltage across each winding by a factor of √3 and limiting starting current to approximately one-third of direct-on-line inrush. After a set time (typically 5–15 seconds), a timing relay switches the contactor configuration to delta for normal running. It is used to reduce mechanical shock and supply disturbance from large motor starts.

How is motor rotation reversed in a motor control diagram?

Reversing a three-phase motor requires swapping any two of the three phase connections at the motor terminals. In a reversing starter circuit, two contactors are used: a forward contactor and a reverse contactor, each swapping a different pair of phases. Electrical and mechanical interlocks between the two contactors are essential to prevent simultaneous energisation, which would cause a phase-to-phase short circuit.

How does a ladder diagram for motor control work?

In a motor control ladder diagram, each rung represents one logical condition that must be satisfied to energise an output. A typical direct-on-line (DOL) start rung contains a normally-open start button in parallel with a sealed-in auxiliary contact from the main contactor (the holding circuit), in series with a normally-closed stop button and the normally-closed overload relay contact, with the main contactor coil at the end. When the start button is pressed, the coil energises and its auxiliary contact latches the circuit so the button can be released; pressing stop or a thermal overload trip breaks the rung and drops out the contactor.
