Op-Amp 741 Pin Diagram: LM741 8-Pin DIP Pinout and Functions
This is a free printable op amp 741 pin diagram: download the diagram as SVG or open it and print to paper or PDF.
The LM741 (or μA741) is a general-purpose operational amplifier in an 8-pin DIP package; its pinout assigns pin 2 as inverting input (−), pin 3 as non-inverting input (+), pin 4 as V−, pin 6 as output, pin 7 as V+, and pins 1 and 5 as offset null adjustment terminals.
The 741 is a bipolar junction transistor (BJT) operational amplifier introduced by Fairchild Semiconductor in 1968. It remains one of the most widely taught and used general-purpose op-amps, though modern designs significantly outperform it on input bias current, slew rate, and supply voltage range. Understanding its pinout is foundational to analogue electronics.
The 8-pin dual in-line package (DIP-8) pin assignments, numbered from pin 1 (marked with a notch or dot on the package body, counting anti-clockwise from above for DIP packages) are:
Pin 1 — Offset Null (−): One terminal of the external potentiometer used to null the output offset voltage. Connect a 10 kΩ potentiometer wiper between pins 1 and 5; the wiper connects to V− (pin 4). Pin 2 — Inverting Input (−): The inverting input. A signal applied here produces an output of opposite polarity. In a negative-feedback amplifier, the feedback network connects here. Pin 3 — Non-Inverting Input (+): The non-inverting input. A signal applied here produces an output of the same polarity. Reference voltages and input signals for non-inverting configurations connect here. Pin 4 — V− (Negative Supply): The negative power supply rail, typically −15 V for ±15 V operation. Also called VSS or VEE in some datasheets. Pin 5 — Offset Null (+): The second terminal of the offset null potentiometer. See pin 1. Pin 6 — Output: The op-amp output. The 741 output is internally current-limited to approximately 25 mA and is short-circuit protected. Pin 7 — V+ (Positive Supply): The positive power supply rail, typically +15 V for ±15 V operation. Also called VCC or VDD. Pin 8 — No Connection (NC): Not internally connected to the die. This pin exists only because 8-pin packages are the standard form factor; it carries no signal.
Key performance characteristics: open-loop DC gain approximately 200 000 (106 dB); input offset voltage up to 6 mV (worst case); input bias current approximately 80 nA; slew rate approximately 0.5 V/μs — slow by modern standards; unity-gain bandwidth approximately 1 MHz; supply voltage range ±5 V to ±18 V.
How to wire op amp 741 pin diagram
- Identify pin 1 on the DIP-8 package Locate the notch or dot on one end of the IC body. With the notch facing left (in the standard orientation), pin 1 is at the top-left. Pins are numbered anti-clockwise: 1–4 down the left side, 5–8 up the right side.
- Connect the supply rails (V+ and V−) Connect pin 7 (V+) to the positive supply rail (typically +15 V). Connect pin 4 (V−) to the negative supply rail (typically −15 V). Add 100 nF ceramic decoupling capacitors from each supply pin to ground, physically close to the IC.

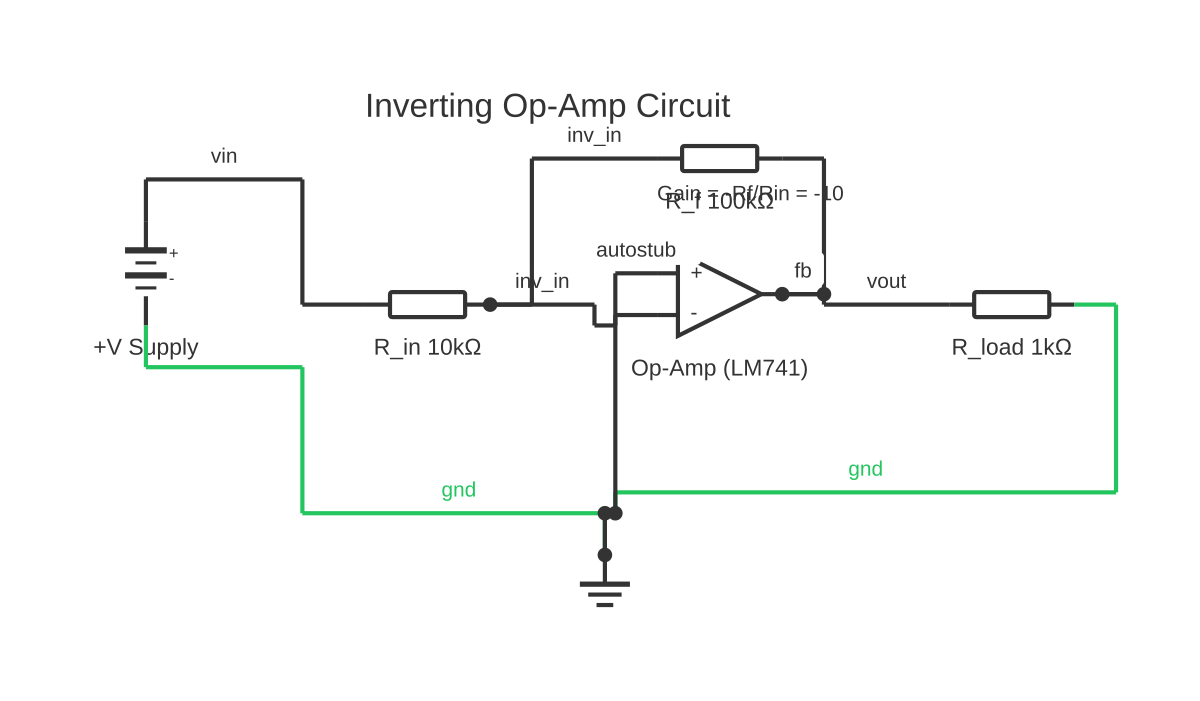

- Configure the feedback network for the desired gain For an inverting amplifier: connect the input through resistor Rin to pin 2 (inverting input), and connect feedback resistor Rf from pin 6 (output) back to pin 2. Gain = −Rf/Rin. For non-inverting: connect input to pin 3, and connect a voltage divider from pin 6 to ground with the centre tap to pin 2.
- Connect offset null potentiometer (if required) Connect a 10 kΩ potentiometer across pins 1 and 5. Connect the potentiometer wiper to V− (pin 4). With both inputs tied to ground, adjust the potentiometer until the output reads exactly 0 V on a multimeter.
- Verify that pin 8 (NC) is not connected Pin 8 is internally unconnected. Do not use it as a tie point — treating it as a ground or signal node will have no effect or, in extreme cases, could cause unexpected behaviour if solder bridges exist between pin 8 and an adjacent track.
- Apply input signal and measure output Apply a DC or low-frequency AC test signal to the configured input. Verify the output voltage matches the expected value: for gain = −10 (inverting), a +100 mV input should produce −1 V output. Check that the output does not clip against the supply rails at large input amplitudes.
Specifications
| Package | 8-pin DIP (DIP-8); also available in TO-99 metal can (8-pin) |
|---|---|
| Supply voltage range | ±5 V to ±18 V (absolute maximum ±22 V) |
| Open-loop voltage gain (DC) | Typically 200 000 (106 dB) |
| Unity-gain bandwidth | Approximately 1 MHz |
| Slew rate | Approximately 0.5 V/μs |
| Input offset voltage (max) | 6 mV (commercial grade) |
| Input bias current (typical) | 80 nA |
| Output short-circuit current | Approximately 25 mA (internally limited) |
Safety warnings
- Never exceed the absolute maximum supply voltage of ±18 V on pins 4 and 7. Operating above this rating will permanently destroy the IC due to transistor breakdown within the die.
- Do not apply differential input voltages greater than ±30 V across pins 2 and 3 (inverting vs non-inverting inputs). Excessive differential voltage destroys the input transistor pair.
- Reverse power supply polarity — even momentarily — will destroy the IC. Always double-check V+ connects to pin 7 and V− connects to pin 4 before applying power. Use a current-limited bench supply during initial prototyping.
- The output (pin 6) is short-circuit protected against brief shorts, but sustained short-circuit conditions will cause the IC to overheat. Add a small series resistor (47–100 Ω) on the output if driving capacitive loads or the risk of sustained short is present.
Tools needed
- Digital multimeter (voltage, resistance, continuity modes)
- Regulated dual-polarity bench power supply (±15 V)
- Oscilloscope (for AC signal verification)
- Breadboard or PCB with DIP-8 socket
- Resistor and capacitor component set
- IC insertion tool (for removing DIP ICs from sockets without bending pins)
Common mistakes
- Confusing the inverting (−, pin 2) and non-inverting (+, pin 3) inputs, resulting in positive feedback and oscillation or saturation instead of the intended amplifier behaviour.
- Omitting decoupling capacitors on the supply pins (4 and 7), causing high-frequency oscillation picked up through the power supply impedance.
- Using the 741 at audio frequencies without accounting for its 1 MHz gain-bandwidth product, resulting in far less than expected gain at frequencies above a few kilohertz.
- Leaving pin 8 (NC) connected to ground or a signal node — while usually harmless due to the internal no-connect, it indicates a misunderstanding of the pinout that may cause issues if replicated with other op-amps where pin 8 is functional.
- Omitting the bias compensation resistor on the non-inverting input (pin 3), causing a significant DC output offset when using high-value resistors in the feedback network, because the input bias current flows through the feedback resistors and creates a voltage drop.
Troubleshooting
- Output is stuck at or near one supply rail (saturated)
- Cause: Positive feedback (open-loop operation), inputs swapped, or a grounding fault on the feedback network Fix: Verify pin 2 is the inverting input and the feedback resistor returns to pin 2, not pin 3. Check that pin 4 (V−) is connected to the negative supply and pin 7 (V+) to the positive supply. Temporarily reduce gain to unity (short Rf) and verify the output follows the non-inverting input.
- Output oscillates continuously with no input signal
- Cause: Stray capacitive coupling, missing decoupling capacitors, or excessive gain at high frequency due to phase shift Fix: Add 100 nF ceramic capacitors between each supply pin and ground, placed physically close to the IC. Reduce gain if set very high. Verify the feedback resistor connects to pin 2 (not pin 3). Add a small capacitor (10–47 pF) in parallel with Rf for frequency compensation.
- DC offset on the output is much larger than expected
- Cause: Input bias current flowing through high-value feedback resistors; or no offset null adjustment performed Fix: Add a bias compensation resistor on pin 3 equal to the parallel combination of Rin and Rf. If offset is still too large, use the pins 1 and 5 offset null potentiometer to trim to zero. For precision DC applications, consider a modern op-amp with lower input offset voltage.
- Gain is much lower than calculated at the intended frequency
- Cause: Operating near or above the gain-bandwidth product limit of the 741 (approximately 1 MHz) Fix: Calculate the maximum usable frequency: fmax = GBP / closed-loop gain = 1 MHz / gain. At gain = 10, maximum flat response is approximately 100 kHz. For higher frequency operation, select an op-amp with a wider gain-bandwidth product.
Frequently asked questions
Which pin is the output on the 741 op-amp?
Pin 6 is the output of the LM741 in the standard 8-pin DIP package. The output is internally current-limited to approximately 25 mA short-circuit current and is short-circuit protected, meaning it will not be permanently damaged by a brief short to ground or either supply rail — unlike many other output stages.
What are pins 1 and 5 used for on the 741?
Pins 1 and 5 are the offset null terminals. They are used to connect an external 10 kΩ potentiometer (with the wiper going to V−, pin 4) to trim the output to exactly 0 V when both inputs are at the same voltage. In applications where a small DC offset is tolerable, these pins can be left unconnected.
What supply voltages does the 741 require?
The 741 operates from a dual (split) supply: V+ (pin 7) and V− (pin 4). The typical operating range is ±5 V to ±18 V, with ±15 V being the standard in most textbooks and lab exercises. The 741 is not designed for single-supply operation — its output cannot swing to the supply rails, and the output range is limited to roughly ±(Vsupply − 2 V).
What does the inverting vs non-inverting input mean in practice?
A positive voltage applied to the non-inverting input (pin 3) produces a positive output swing. A positive voltage applied to the inverting input (pin 2) produces a negative output swing — the output is inverted. In a closed-loop inverting amplifier, the input signal connects to pin 2 through a resistor, and the feedback resistor also connects to pin 2.
Why is the 741 not suitable for high-frequency applications?
The 741 has a slew rate of approximately 0.5 V/μs and a unity-gain bandwidth of approximately 1 MHz. This means it cannot accurately amplify signals above roughly 10 kHz without significant distortion in practical closed-loop configurations. Modern op-amps such as the TL071 or OPA2134 offer 10–50 V/μs slew rates and much wider bandwidth.
