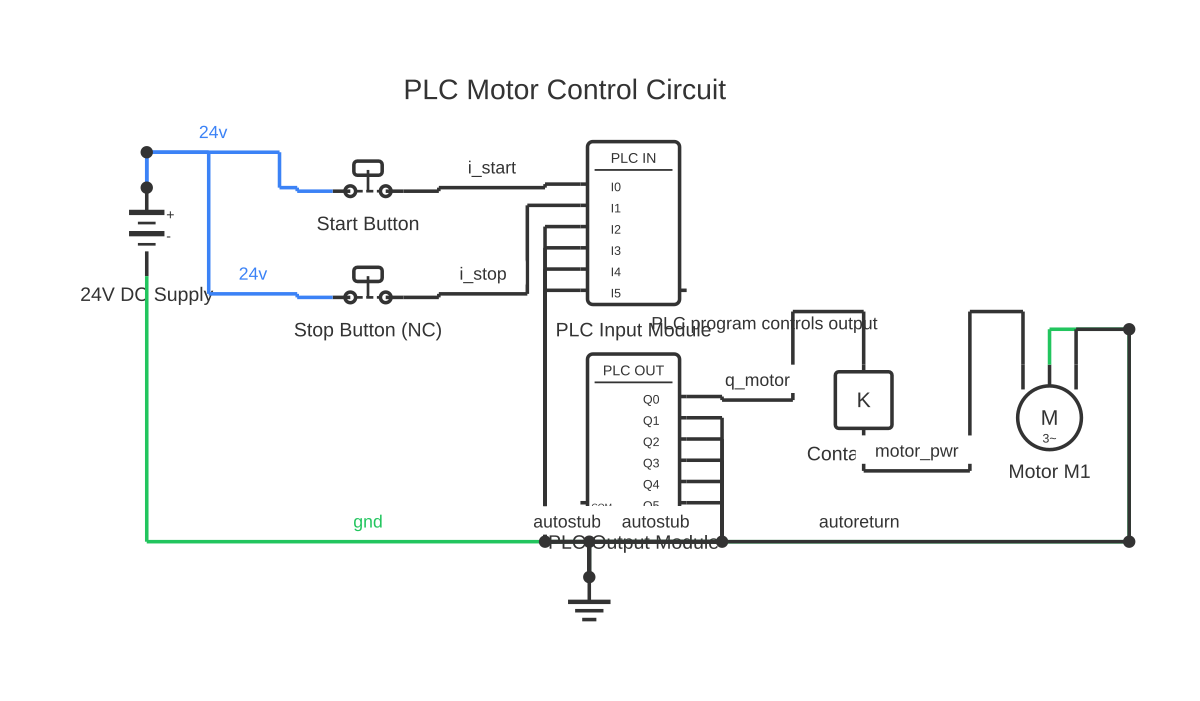

A PLC panel wiring diagram shows how a programmable logic controller, its power supply, I/O modules, terminal blocks, and field devices are interconnected inside an enclosure — the essential reference before you connect a single wire.

A PLC (Programmable Logic Controller) panel wiring diagram is a detailed schematic that documents every electrical connection within an industrial control panel. It covers the 24 VDC or 120/240 VAC power distribution rail, the PLC CPU and its backplane, discrete and analogue input/output (I/O) cards, terminal blocks, circuit breakers, contactors, relays, indicator lights, and the field wiring that reaches sensors and actuators on the machine or process.

The core concept that every wiring diagram must make explicit is whether each I/O card is configured as sinking (NPN) or sourcing (PNP). On a sinking input card the common terminal is connected to 24 VDC positive and a field sensor switches the input point low (to 0 V) to turn it ON. On a sourcing input card the common is 0 V and the sensor switches the point high (+24 V) to turn it ON. Mixing sinking and sourcing devices on the same common group is a common wiring error that produces erratic behaviour and is invisible to the CPU.

Panel layout follows several conventions. The power section (main breaker, transformer, 24 VDC SMPS) typically occupies the upper portion of the enclosure, with the PLC rack in the middle and terminal blocks along the bottom or right side. All field wiring enters through cable glands or conduit entries and lands on terminal blocks — field wiring never connects directly to PLC I/O card screw terminals on a properly engineered panel, because terminals allow loop testing and fault isolation without disturbing the PLC.

Common variants include: compact PLC panels (fixed I/O, single CPU) used for machinery OEM applications; modular rack-based panels with remote I/O drops connected via DeviceNet, PROFIBUS, or EtherNet/IP; and safety-rated panels that include SIL-rated safety I/O modules, dual-channel emergency-stop loops, and a safety relay or safety PLC.

Panel wiring diagrams are produced in CAD tools such as EPLAN, AutoCAD Electrical, or SEE Electrical and must reference applicable standards including IEC 61439 (low-voltage switchgear assemblies), IEC 61131-2 (PLC hardware requirements), and NFPA 79 (electrical standard for industrial machinery in the USA).

How to wire plc panel wiring diagram

Define the I/O list and power requirements List every field device: its type (digital/analogue input or output), voltage, current draw, and whether it is sinking or sourcing. Sum all 24 VDC loads to size the SMPS. Identify any 120/240 VAC outputs (contactors, solenoids) that need a separate AC power circuit.
Select the PLC, I/O modules, and rack Choose a CPU with sufficient programme memory and communication ports. Select I/O modules that match your device types. Ensure the backplane current budget (5 VDC bus) is not exceeded when all modules are installed. Add 20–25 % I/O spare capacity for future expansion.
Design the panel layout Place the main breaker and transformer at the top. Position the PLC rack centrally. Arrange terminal blocks along the bottom or the right side. Maintain 100 mm clearance between power and signal wiring ducts. Size the enclosure for at least 30 % free volume after components are installed to allow for heat dissipation.
Draw the power distribution schematic Show the incoming supply, main breaker, transformer (if present), SMPS, and all branch circuit breakers with their rated currents and the loads they protect. Label every breaker, fuse, and rail. Document PE bonding points.
Draw the I/O wiring diagrams For each I/O card, draw one row per point. Show the terminal block tag number, wire number, field device tag, and cable reference. Explicitly show the common terminal connection and confirm sinking/sourcing polarity. Cross-reference each point to the I/O list.
Add network and communication wiring Document Ethernet, PROFIBUS DP, DeviceNet, or serial (RS-485/RS-232) cabling. Show cable screens connected to PE at one end only (usually the panel end) to prevent ground loops. Label port numbers and baud rates.
Verify, review, and issue for construction Conduct a design review against the I/O list, the motor schedule, and the equipment specification. Confirm that all safety functions (E-stop, guard interlocks) are documented and that the diagram matches the PLC program I/O mapping table before issuing for panel build.

Specifications

Typical I/O supply voltage	24 VDC (±10 %)
Digital input ON threshold (IEC 61131-2 Type 1)	≥ 15 V = logic 1; ≤ 5 V = logic 0
Analogue input signal range	4–20 mA (current loop) or 0–10 VDC (voltage)
Transistor output maximum current per point	0.5 A typical (consult module datasheet)
Relay output contact rating	2 A at 30 VDC / 2 A at 250 VAC (resistive load)
Panel supply voltage (North America)	120 VAC or 480 VAC three-phase
Panel supply voltage (IEC territories)	230 VAC single-phase or 400 VAC three-phase
Enclosure protection rating	NEMA 12 (dust/oil resistant) or IP54 minimum for industrial environments

Safety warnings

Fixed electrical installation work inside a PLC panel must be carried out by a licensed or registered electrician and must comply with applicable wiring standards in your jurisdiction — IEC 60364, NFPA 79, UL 508A, or equivalent. Do not energise a panel that has not been inspected and verified by a competent person.
Always isolate all energy sources (mains AC, 24 VDC SMPS, UPS, and any field-supplied voltages) before working inside the panel. Use a lock-out/tag-out (LOTO) procedure and verify dead with a calibrated voltage tester on every conductor before touching wiring.
Do not work on a live PLC panel. Even 24 VDC can cause arcing damage to I/O card terminals and may trigger unintended machine motion through output modules. Where live testing is unavoidable, use insulated tools and one-hand technique, and keep the other hand clear of the enclosure.
Analogue signal cables routed parallel to high-voltage AC cabling can pick up interference. Segregate signal cables from power cables by at least 200 mm or use shielded cable with the screen grounded at one end only.

Tools needed

Calibrated multimeter (CAT III or CAT IV rated for AC work)
Insulated screwdrivers (VDE rated)
Wire stripper and ferrule crimping tool
Cable labels and label printer
Loop resistance tester or continuity tester
PLC programming software with I/O force function for loop testing
Insulated terminal pull-out tool
Torque screwdriver (to manufacturer terminal torque specifications)

Common mistakes

Connecting field wiring directly to PLC I/O card terminals instead of terminal blocks — eliminates the ability to isolate and test individual field circuits.
Mixing sinking and sourcing devices on the same common group of an I/O card — causes partial or erratic activation of inputs and is extremely difficult to diagnose without the wiring diagram.
Under-sizing the 24 VDC power supply — forgetting to include solenoid inrush current or indicator lamp loads causes nuisance tripping or SMPS shutdown under load.
Omitting ferrite cores or adequate cable segregation on analogue signal cables — results in 50/60 Hz interference on 4–20 mA loops, causing unstable PV readings in the PLC.
Not documenting wire numbers and terminal block references on the as-built diagram — the panel becomes unserviceable by any technician who was not present during the build.

Troubleshooting

Digital input stays ON or chatters when field device is open: Cause: Wrong sinking/sourcing polarity, leakage current from a solid-state sensor exceeding the I/O card's off-state threshold, or a wiring short at the terminal block Fix: Confirm the I/O card common polarity matches the sensor type. Measure residual current through the input with the device open. Add a bleed resistor (typically 5.6 kΩ) across the input if leakage current is excessive.
24 VDC SMPS trips or output voltage drops under load: Cause: Total I/O and field device current exceeds the SMPS rated output; inrush current from solenoids at power-up exceeds short-circuit protection threshold Fix: Audit the I/O list current budget. Replace or parallel a second SMPS. Add a soft-start or stagger output activations in the PLC programme to limit simultaneous inrush.
Analogue input reads erratic or noisy value: Cause: Signal cable running parallel to AC power cable picks up inductive or capacitive noise; screen not grounded or grounded at both ends (ground loop) Fix: Re-route signal cable away from power cables. Ground the cable screen at the panel end only. Use a twisted-pair shielded cable. Install a 4–20 mA signal isolator/conditioner if noise persists.
Relay output fails to activate field device: Cause: No 24 VDC on the output common terminal, blown fuse on the output circuit, relay coil not energising, or incorrect PLC output address in the programme Fix: Verify 24 VDC present on the I/O card common terminal. Check output fuse continuity. Use PLC force function (with machine safe) to energise the output and check relay coil voltage. Cross-reference programme address to I/O list.
PLC communication fault on PROFIBUS or EtherNet/IP network: Cause: Incorrect termination resistor on PROFIBUS segment, IP address conflict, cable screen grounded at both ends causing ground loop, or incorrect baud rate Fix: Verify termination resistors are fitted only at the two physical ends of the PROFIBUS segment. Check IP address assignments on EtherNet/IP network. Inspect cable screen grounding. Confirm baud rate matches all nodes.

Frequently asked questions

What voltage is typically used for PLC I/O wiring?

Most modern PLC I/O cards operate on 24 VDC supplied by a DIN-rail mounted switched-mode power supply (SMPS). Some older or heavy-duty discrete I/O cards use 120 VAC. Analogue I/O signals are typically 4–20 mA current loops or 0–10 VDC voltage signals. Always confirm the I/O card specification before wiring.

What is the difference between sinking and sourcing on a PLC input card?

A sinking (NPN) input card provides current to the field device; the device switches the current to the 0 V common to activate the input. A sourcing (PNP) input card's common is connected to 0 V; the field device supplies +24 V to the input point to activate it. European sensors are typically PNP (sourcing); Asian markets more commonly use NPN (sinking).

Why do field devices land on terminal blocks instead of directly on the PLC I/O card?

Terminal blocks create a separation point between panel wiring and field wiring. This allows a technician to open the field circuit, inject a test signal, or measure loop continuity without removing wires from the PLC card. It also protects the I/O card from damage if a field cable is inadvertently shorted during troubleshooting.

What wire colours are used in a PLC panel?

IEC convention: brown or red for 24 VDC positive, blue for 0 VDC negative/return, yellow-green for protective earth (PE). AC line is brown (L) and blue (N) in IEC territories; black (L1/L2/L3) and white (N) in North America per NEC. Signal wiring is often grey; safety circuit wiring is orange or pink depending on the standard applied.

What standards govern PLC panel construction?

Key standards include IEC 61439 (low-voltage switchgear and controlgear assemblies), IEC 61131-2 (PLC equipment requirements), NFPA 79 (industrial machinery electrical standard, USA), and UL 508A (industrial control panel standard, USA/Canada). The applicable standard depends on the installation country and end-customer specification.
