Plug Socket Wiring Diagram

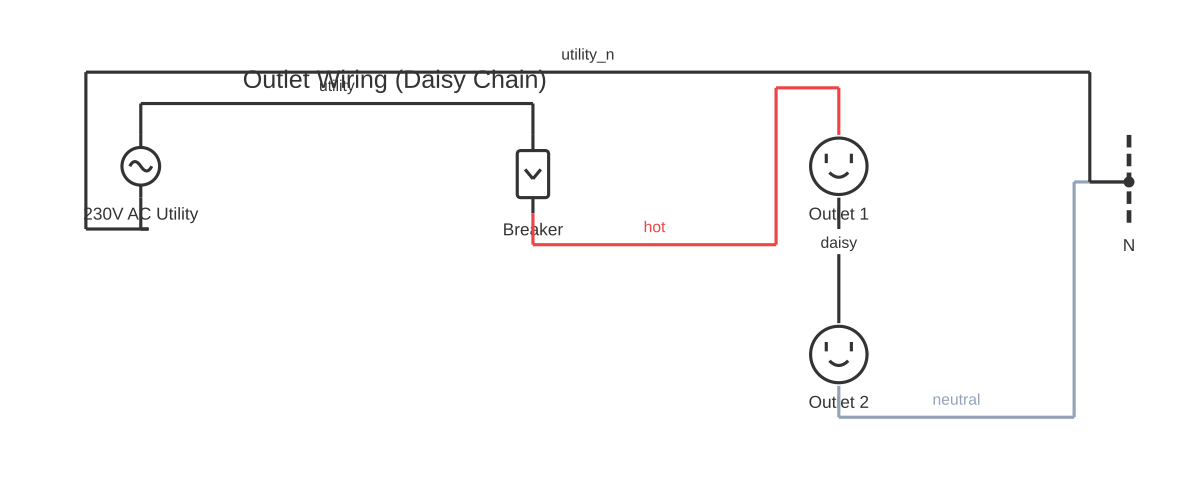

Plug Socket Wiring Diagram — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable plug socket wiring diagram: download the diagram as SVG or open it and print to paper or PDF.

A plug socket wiring diagram shows how a mains socket outlet connects to the fixed wiring in a building: the line (live) conductor to the L terminal, the neutral conductor to the N terminal, and the protective earth conductor to the E terminal, forming a safe power outlet.

A socket outlet (also called a power outlet or receptacle) is the fixed point in a building's wiring system where a plug is inserted to supply power to an appliance. Wiring a socket outlet incorrectly has consequences that range from the appliance failing to operate to creating a potentially lethal shock hazard — particularly if the live and neutral are transposed, or the earth terminal is left unconnected.

A socket wiring diagram has two distinct parts: the supply-side wiring (the circuit cable coming from the consumer unit or distribution board) and the socket terminal connections. In a standard ring main circuit (common in the UK) or a radial circuit (common elsewhere), the cable enters the socket's rear pattress box and connects to the socket's terminals on the rear face.

For a UK twin socket (BS 1363 compatible), the cable connections are: - L terminal: brown conductor (line/live) from the circuit cable - N terminal: blue conductor (neutral) from the circuit cable - E terminal: green-and-yellow conductor (protective earth) from the circuit cable

In a ring main, two cables are connected to each socket — one running from the previous socket on the ring and one continuing to the next. Both cables' corresponding conductors connect to the same terminal. Some socket designs have two screw holes per terminal specifically for this. Spur connections run only one cable to the socket (a dead-end spur), which must be connected to a ring main at a junction box or via a socket on the ring, and must not supply another socket in series.

The diagram should also show that the socket is connected to a circuit breaker (MCB) in the consumer unit rated for the cable size — typically 32 A for a 2.5 mm² ring main in the UK. An RCD (residual current device) or RCBO (combined RCD/MCB) must protect socket circuits in locations with increased shock risk, such as outdoors, bathrooms, garages, and kitchens, per BS 7671 (IET Wiring Regulations).

For international contexts, terminal labelling conventions differ: North American devices use silver screw (neutral, white), brass screw (hot/live, black), and green screw (earth, green or bare). Always verify the local standard before connecting.

UK plug and socket wiring follows the BS 7671 wiring regulations with a standardised colour code: brown for live, blue for neutral, and green-and-yellow striped for earth. The BS 1363 13 A plug used in UK homes has a mandatory fuse in the live pin and a large earth pin that mechanically opens the shutters on the socket before the live and neutral pins can enter — a key safety feature. Whether you are wiring a new fused spur, replacing a damaged socket, or drawing a ring-main layout, circuitdiagrammaker.com gives you a free browser-based tool for the job.

How to wire plug socket wiring diagram

Isolate the circuit at the consumer unit before starting Switch off the MCB protecting the socket circuit. Attach a lockout clip or a warning notice to prevent others from re-energising while you work. Use a voltage indicator or multimeter to confirm the socket and the cable conductors are dead before touching any terminals.
Run the circuit cable to the socket location For a new installation, route cable through the wall cavity or in surface conduit to the socket pattress box. Leave enough cable tail — at least 150 mm — to reach the socket terminals without strain. Secure the cable in the wall at the entry point.
Prepare the cable conductors Strip the outer sheath by approximately 50–60 mm to expose the three conductors. Strip each conductor's insulation by 10 mm. For the earth conductor in twin-and-earth cable (which has bare copper rather than insulated earth), sleeve it with a green-and-yellow sleeve before connecting.
Connect the earth (E) terminal first Insert the green-and-yellow sleeved earth conductor into the E terminal and tighten the screw. The earth terminal provides the protective bonding for the socket's metalwork and is non-negotiable. If connecting two cables (ring main), both earth conductors connect to the E terminal.
Connect the neutral (N) and line (L) conductors Connect the blue conductor to the N terminal and the brown conductor to the L terminal. Tighten screws firmly. Tug each conductor to confirm it is secure — a wire that pulls out of a terminal under light tug was never properly connected. For ring main: both incoming and outgoing conductors of each colour share the relevant terminal.
Fit the socket to the pattress box Fold the conductors carefully into the box to avoid sharp bends, and screw the socket face to the pattress. Do not overtighten the face screws — cracks in the socket body compromise insulation and are a replacement item, not a repair item.
Test before re-energising Use a socket tester or multifunction installation tester to verify L/N/E polarity is correct, earth continuity is present, and no faults exist. Only re-energise the circuit after a satisfactory test result. Record the circuit test results as required by the local wiring regulations.

Specifications

UK socket standard	BS 1363, 13 A / 250 V AC
Ring main cable size (UK)	2.5 mm² twin-and-earth, protected by 32 A MCB
Line (L) terminal conductor colour	Brown (live)
Neutral (N) terminal conductor colour	Blue
Earth (E) terminal conductor colour	Green and yellow stripes
RCD protection required (BS 7671)	30 mA sensitivity, for socket circuits in high-risk locations
North American receptacle terminal colours	Brass = hot (black/red wire); silver = neutral (white wire); green = earth (bare or green wire)
Maximum spur length from ring (UK guidance)	One socket or FCU per spur; total spur length should not exceed half the ring length

Safety warnings

All fixed electrical wiring work, including installing or extending socket circuits, must comply with applicable wiring regulations (BS 7671 in the UK; NEC/NFPA 70 in the USA; AS/NZS 3000 in Australia; IEC 60364 internationally) and must in many jurisdictions be carried out or inspected by a licensed electrician. Obtain a completion certificate where required.
Always isolate the supply at the consumer unit, lock the MCB in the off position or remove it, and confirm the circuit is dead with a calibrated voltage tester before touching any terminals. Treat all wires as live until proven dead.
Socket circuits in kitchens, bathrooms, garages, outdoors, or any other location with increased risk of electric shock must be protected by a 30 mA RCD or RCBO. This is a requirement, not an option, under BS 7671 and equivalent international codes.
Never connect a socket to the same circuit as an immersion heater, cooker, shower, or other dedicated high-power circuit. These circuits are dedicated radials not intended to supply general socket outlets.
A socket with a cracked face, damaged shutters, or burn marks inside a pin hole must be replaced immediately. A damaged socket can expose live parts during plug insertion.

Tools needed

Voltage indicator (two-pole tester) or multimeter rated CAT II minimum
Flathead and Pozidriv screwdrivers
Wire stripper (suitable for 1.5–2.5 mm² cable)
Side-cutter pliers
Electrician's knife (for outer sheath stripping)
Socket tester or multifunction installation tester
Green/yellow earth sleeving
Drill, flat bit, and fish tape (for cable routing through walls)

Common mistakes

Connecting both ring-main cable conductors to a terminal that only accepts one, by not identifying the dual-entry terminals on the socket — resulting in one cable being entirely unconnected.
Omitting the green/yellow sleeving on the bare earth conductor of twin-and-earth cable, which is a code violation in most jurisdictions.
Overtightening the socket face screws and cracking the plastic body — the socket must then be replaced before use.
Using extension leads or multi-socket adaptors as a permanent substitute for additional socket outlets, which creates overloading and trip hazards.
Connecting to a socket that is on a spur rather than the ring, and then adding another socket to that — creating an unpermitted spur-from-a-spur arrangement.

Troubleshooting

Socket tests as live/neutral reversed: Cause: Brown and blue conductors have been connected to the wrong terminals (brown to N, blue to L) Fix: Isolate at the consumer unit, verify dead, re-open the socket, swap the brown and blue conductors to correct terminals, retest with socket tester before re-energising.
Socket tester shows earth fault or missing earth: Cause: Earth conductor not connected to the E terminal, or earth connection has loosened Fix: Isolate and verify dead. Open the socket and confirm the green/yellow conductor is firmly connected to the E terminal. Check earth continuity with a multimeter from the terminal to the main earth point.
MCB trips when appliance is plugged in: Cause: Fault in the appliance, or the total ring circuit load exceeds the MCB rating, or a pinched conductor is creating an intermittent short Fix: Test with a different appliance known to be good. If the MCB holds, the original appliance is faulty. If the MCB still trips, inspect all socket connections on the ring for pinched insulation and verify total connected load.

Frequently asked questions

What do the L, N, and E terminals on a socket outlet represent?

L is the Line terminal, connecting to the live (brown) conductor — the one at supply voltage. N is the Neutral terminal, connecting to the neutral (blue) conductor — the return path at or near zero voltage. E is the Earth terminal, connecting to the protective earth (green/yellow) conductor for fault protection.

What is the difference between a ring main and a radial circuit for socket outlets?

A ring main circuit forms a complete loop: cable runs from the consumer unit, visits multiple sockets, and returns to the consumer unit on the same MCB. A radial circuit runs from the consumer unit to each socket in a line, terminating at the last socket. Both are valid; the ring main allows a lighter cable (2.5 mm²) because fault current has two parallel paths.

Can I add a new socket by wiring it in series from an existing socket?

No. Daisy-chaining (wiring socket to socket in series) creates a spur off a spur, which is not permitted in a ring main circuit under BS 7671. A spur from a ring may supply one additional socket or fused connection unit, but must be taken from the ring itself (at a socket on the ring or a junction box) — not from another spur.

Why is the earth terminal on a socket wired even for double-insulated appliances?

The earth terminal is wired because the socket itself must be correctly earthed for safety compliance, regardless of what appliance is eventually plugged into it. Any Class I appliance plugged in at a later date requires the earth terminal to be connected. Leaving it unconnected to save time is a serious regulatory and safety violation.

What cable size is required for a standard domestic socket ring main?

In the UK, a ring main supplying domestic socket outlets (BS 1363 type) uses 2.5 mm² twin-and-earth (T&E) cable and is protected by a 32 A MCB in the consumer unit. Radial circuits to up to 20 m² floor area may use 2.5 mm² cable with a 20 A MCB.

How do you wire a plug socket in the UK?

On a standard UK 13 A single or double socket (BS 1363), the live (brown) wire connects to the terminal labelled L on the right, the neutral (blue) wire to the terminal labelled N on the left, and the earth (green-and-yellow) wire to the terminal labelled E at the top. Tighten all terminals firmly and ensure no bare copper is exposed outside the terminal. If the socket is on a ring main, two cables will be present in the back box and both live wires go into the L terminal together, both neutrals into N, and both earths into E — or use the additional earth terminal on the mounting plate.
